vincent PHO-500
A unsophisticated and low noise playback is the "job" of a good phono preamplifier. With the PHO-500 we managed this. The reason for is in the first step a complex drafted power supply, which is built in an external housing and in the second step the careful choosen components. Besides you can make individual adjustments by DIP-switches on the PHO-500.
vincent PHO-500 Phono Preamplifier
Supports MM & MC Cartridges - Fully compatible with both Moving Magnet and Moving Coil cartridges for versatile turntable setups.
Dual Mono Construction - Independent power and circuitry for each channel, enhancing channel separation and soundstage.
Fully Discrete, Fully Balanced Design - Minimizes distortion and interference, ensuring a purer, more accurate audio signal.
Adjustable Gain for MM & MC - Offers fine-tuned gain control for optimal sound matching with various cartridges.
Balanced XLR Inputs & Outputs - High-quality balanced connections reduce noise and interference, providing a cleaner signal path.
10 Hz – 20 kHz ±0.5 dB, 10 Hz – 50 kHz ±2 dB
< 0.05% (20 Hz - 20 kHz)
58 mV, MC 6,8 mV
> 83 dB, MC: > 70 dB
47 KOhm, MC: 100 Ohm - 1000 Ohm (adjustbale)
15 pF - 350 pF (adjustable), MC: 15 pF
250 Ohm
PHO-500 1 x Stereo RCA
PHO-500 1 x Stereo RCA, USB
10 Watt
1,4 kg (power supply), 1 kg (PHO-500)

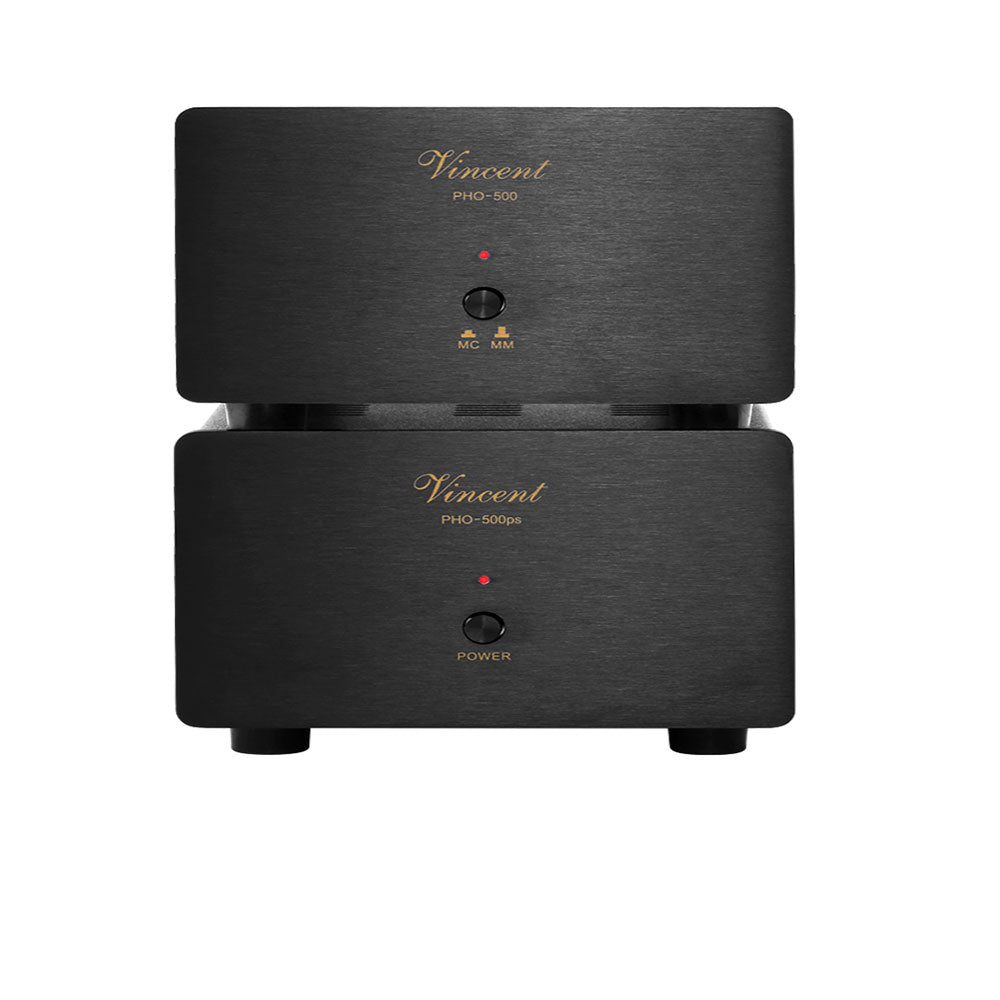

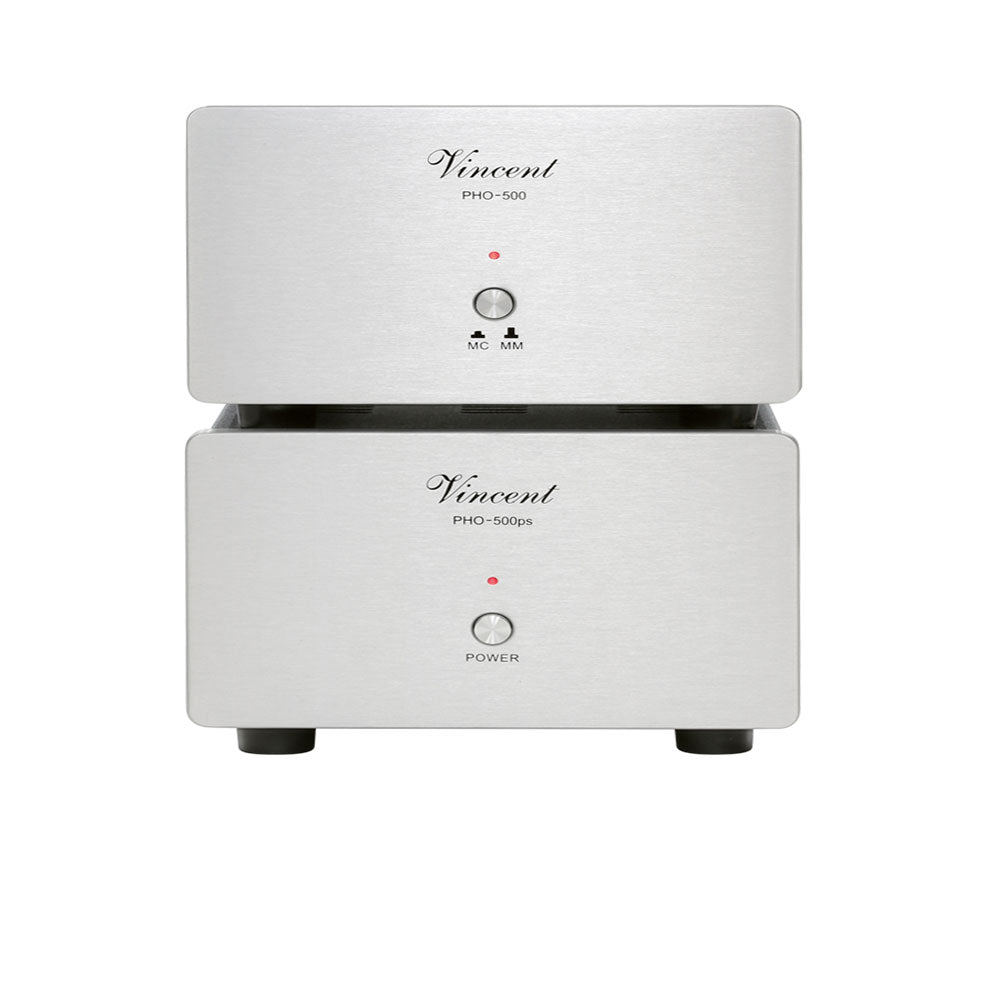

Black or Silver
130 x 95 x 205 mm (for power supply and PHO-500 each)
