Atoll Electronique IN100
Atoll Electronique IN100
Sale priceRs. 130,000.00
Regular price (/)

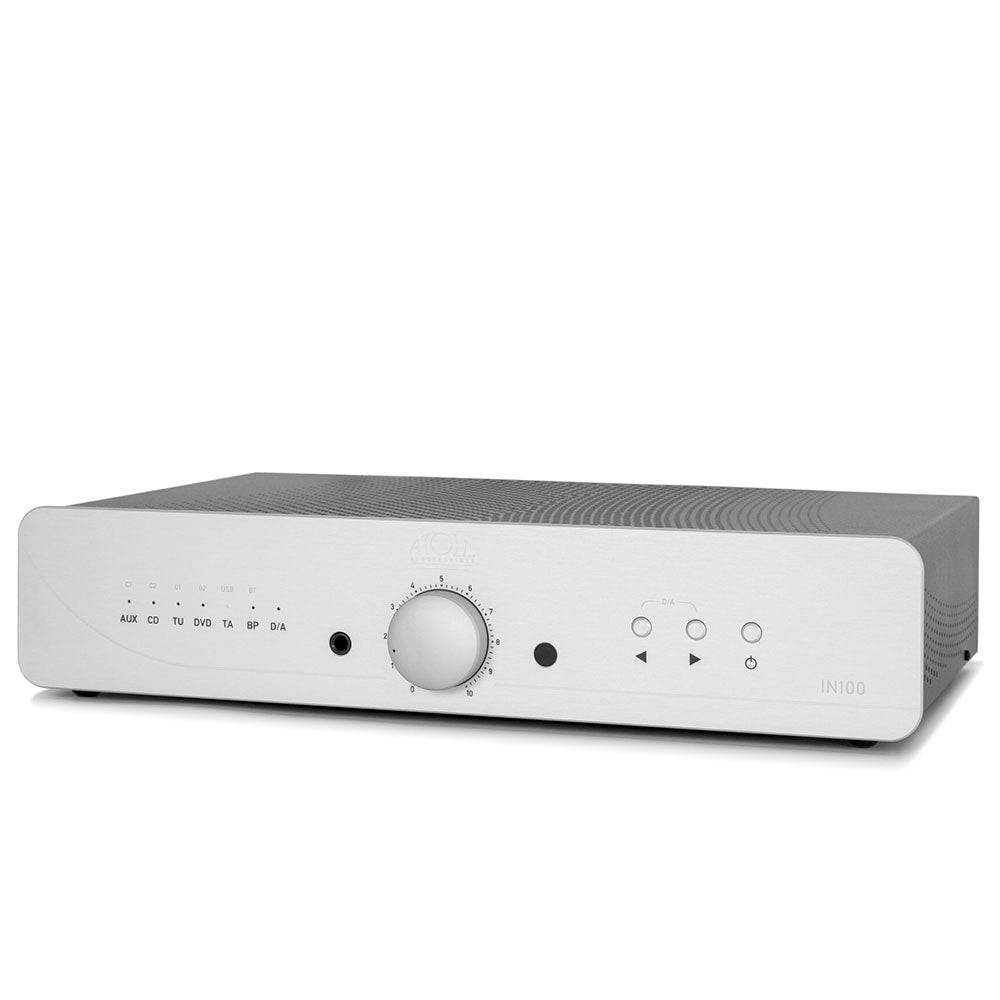

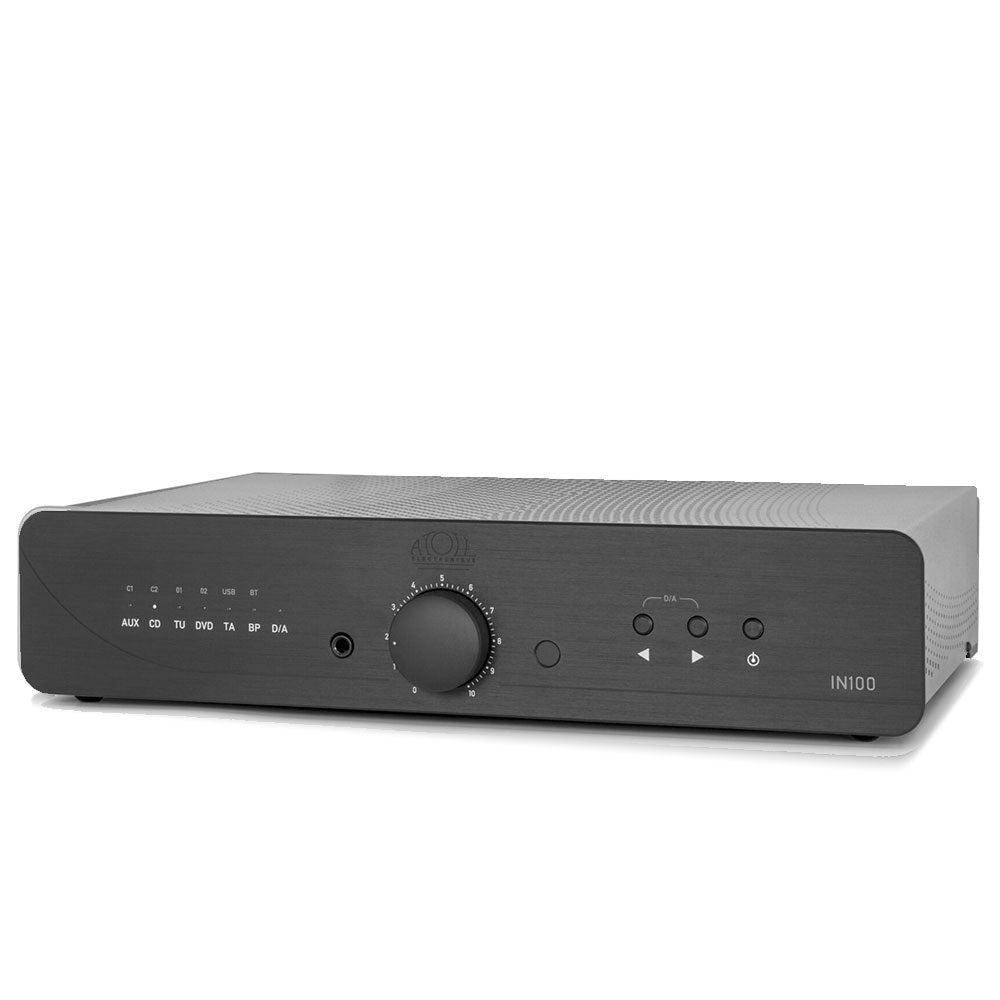

Atoll Electronique IN100 Integrated Amplifier
we choose the best possible components to achieve the highest level of sound performance. This rigorous search for perfection goes through the design of proprietary ATOLL circuits in order to preserve the integrity of the most subtle musical signals.
Output power/ 8 Ω
2×100 W
Output power/ 4 Ω
2×140 W
Power supply
2×340 VA
Total of capacitors
31 474 µF
Number of inputs
5+1 BY-PASS
Preamp outputs
2
Bandwidth
5 Hz – 100 kHz
Rising time
2,5 µs
Input impedance
357 kΩ
Sensitivity
100 mV
Signal/Noise ratio
100 dBA
Distortion at 1 kHz
0,05% / (10 W)
Dimensions
440×305×95 mm
Weight
11 Kg
- 4 mm brushed aluminium front panel.
- 2×100 W – 8 Ω.
- 2 toroidal transformers of 340 VA each.
- ALPS motorized potentiometer.
- Filter capacitors: 4×6800 μF.
- Single push-pull MOS-FET power stage.
- Monitoring loop.
- Discrete component audio stages.
- MKP Technology Link Capacitors.
- High-performance heat sinks, direct thermal coupling.
- Double-sided circuit boards with nickel/gold finish.
- Polarization of output stages in class A/B.
- Thermal protection.
- Optional DAC board: DA100 or DA200.
- Optional PHONO board: P50 or P100, can be combined with the DAC board.
- Optional ATOLL global remote control.

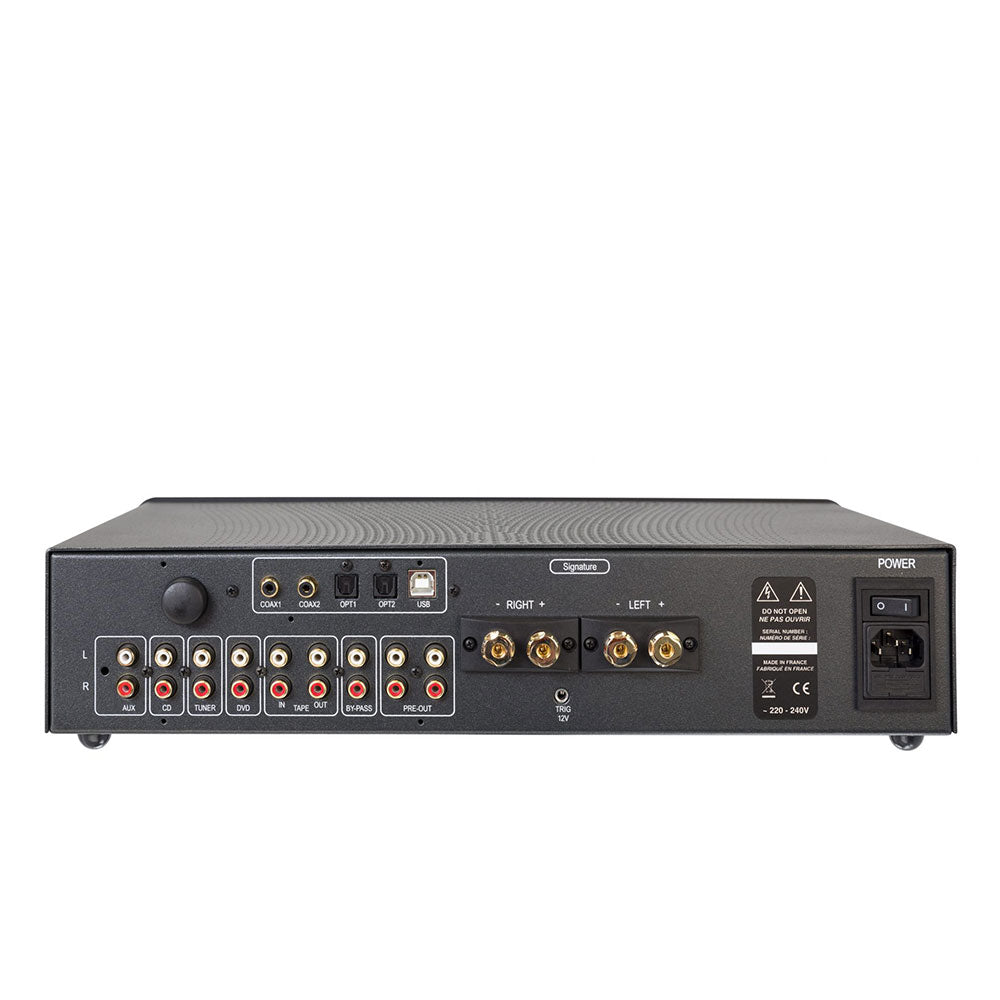

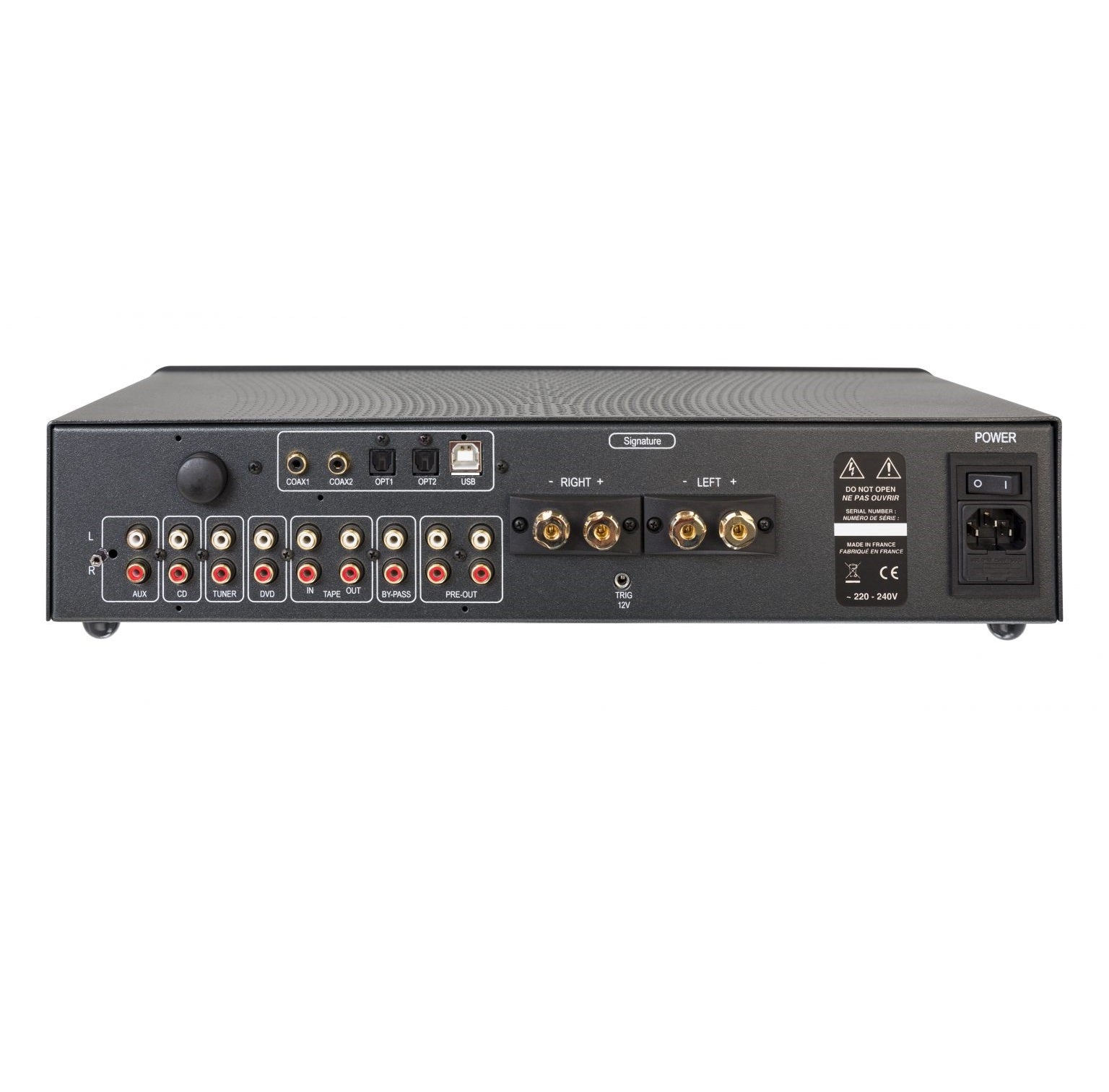

CONNECTIVITY
Inputs
5 Audio inputs (RCA): AUX (or optional P50 / P100 phono stage), CD, TUNER, DVD, TAPE (IN + OUT).
1 BY-PASS input (used as a power amplifier).
Outputs
2 Line preamp outputs (for bi-amplification or to connect a subwoofer).
1 Trigger output (12V).
Various
1 Headphone jack Ø 6,35 mm.
