Atoll Electronique IN200
The integrated amp-preamp IN200 Evolution is manufactured with the greatest care: We choose the best possible components to achieve the highest level of sound performance. This rigorous search for perfection involves designing proprietary ATOLL circuits to preserve the integrity of the most subtle musical signals.
Atoll Electronique IN200 Integrated Amplifier

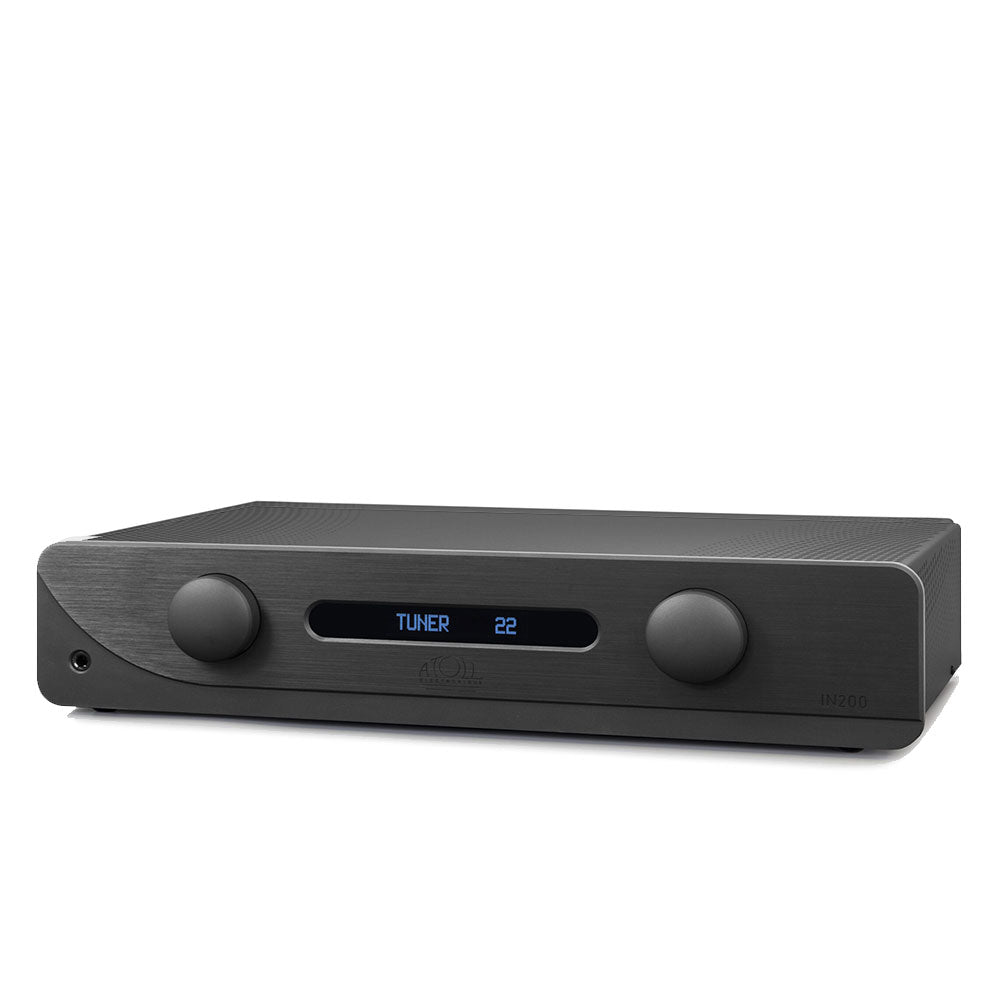

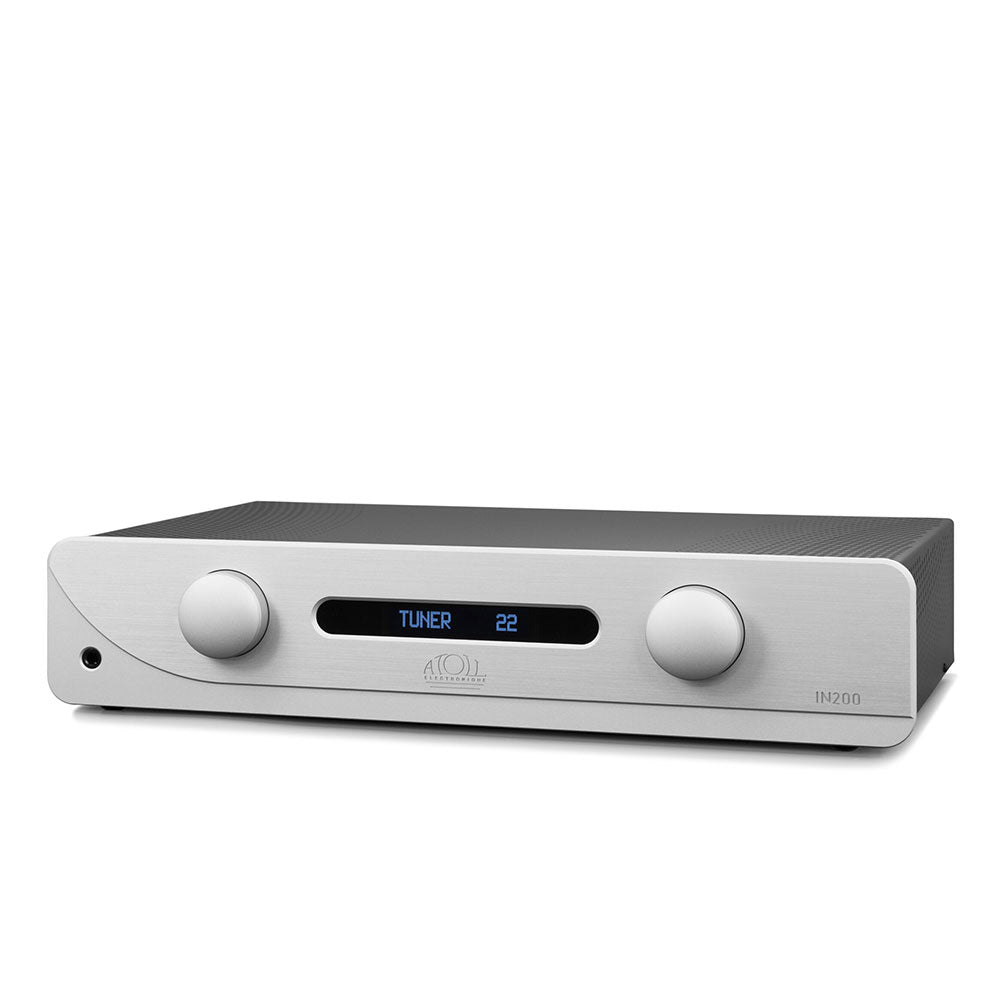

8 mm brushed, micro-blasted and anodized aluminum front panel, high-precision engraving.
1.5 mm steel chassis.
2×120 Wrms / 8Ω power.
Two 340 VA toroidal transformers for the audio stages plus 10 VA for the digital stages.
High-quality and shielded MKP coupling capacitors.
Bipolar transistor and LED current sources to ensure perfect voltage stability.
New tellurium copper speaker outputs.
Dual push-pull MOS-FET power stage.
Class A/B output stage biasing.
2×120 W
2×200 W
2×340 VA
62 853 µF
5+1 BY-PASS
5 Hz – 100 kHz
2,5 µs
220 kΩ
350 mV
100 dB
0,05% / (10 W)
440×309×95 mm
12 Kg

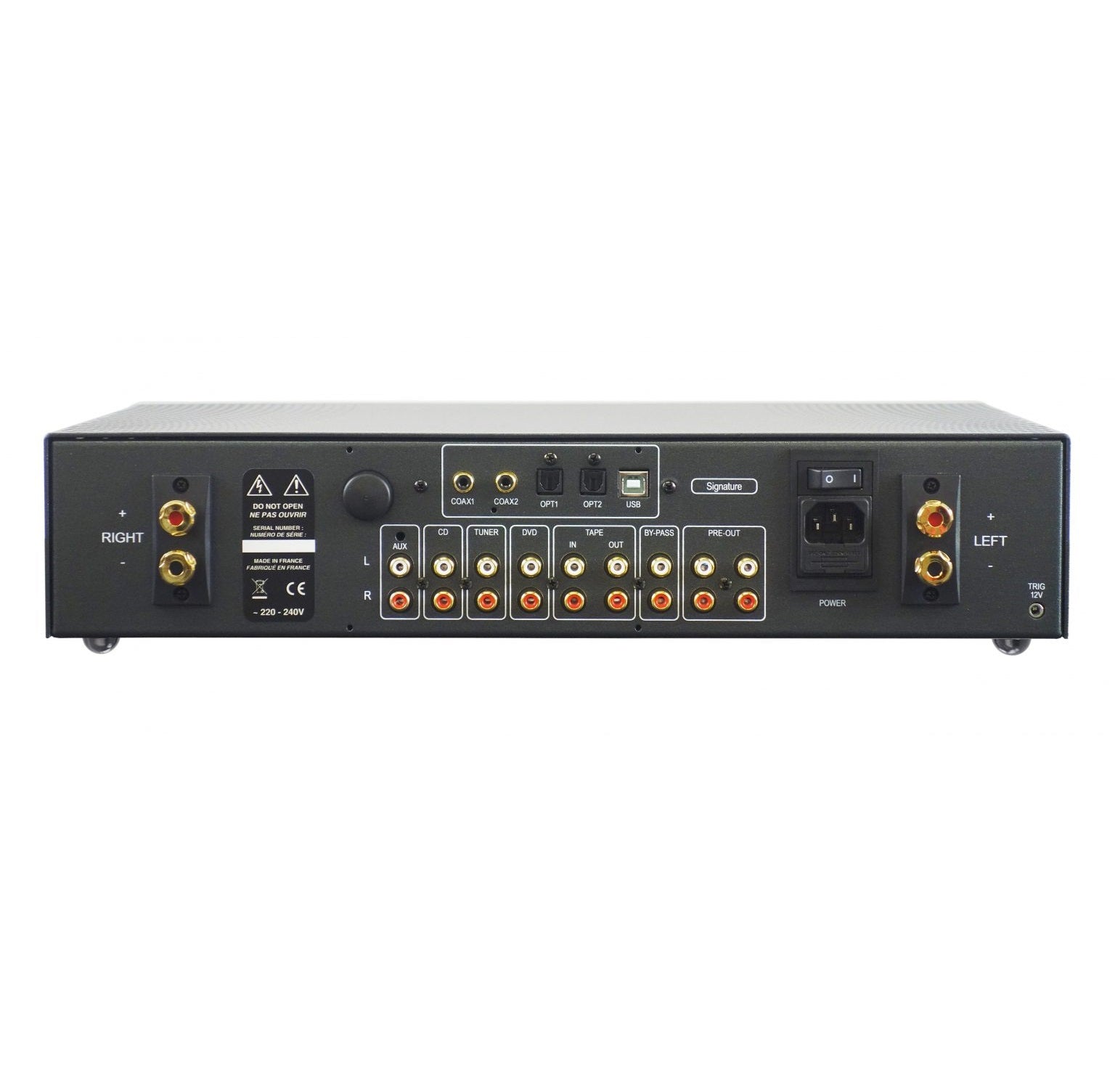

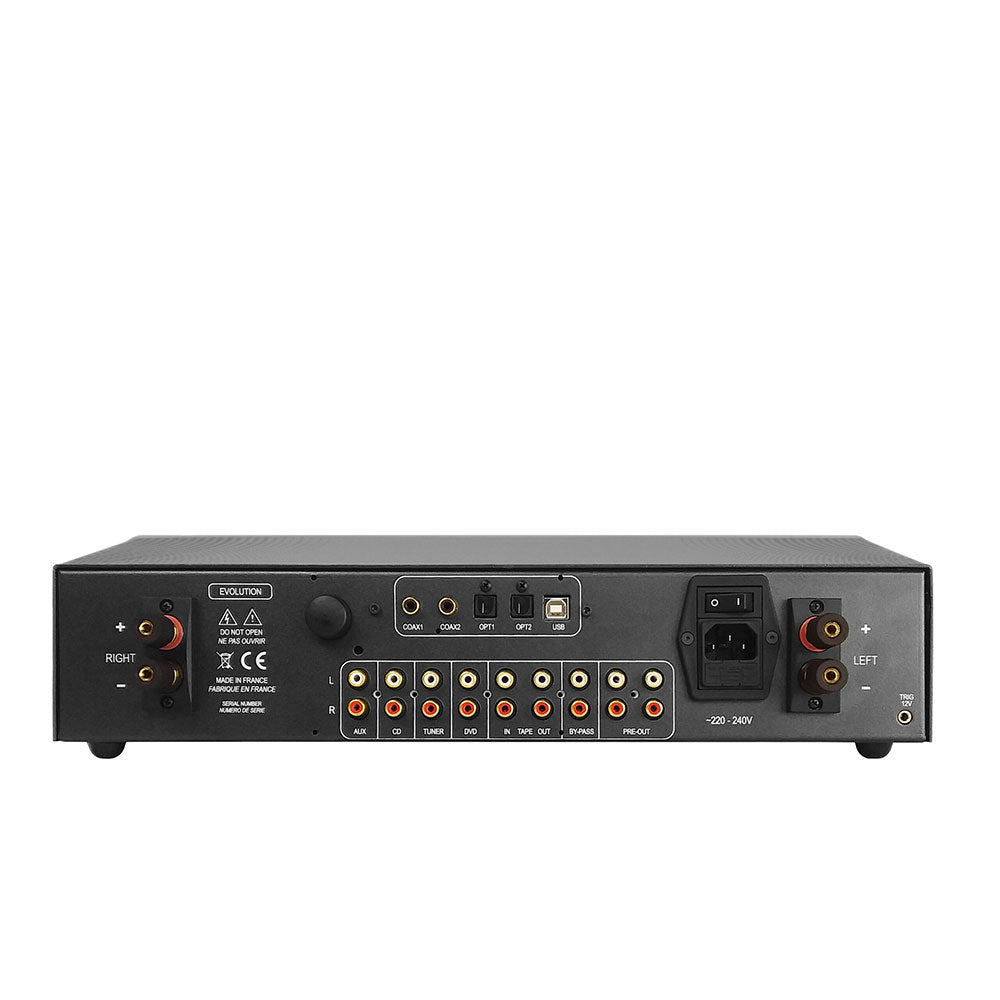

CONNECTIVITY
5 Audio inputs (RCA): AUX (or optional P50 / P100 phono stage), CD, TUNER, DVD, TAPE (IN + OUT).
1 BY-PASS input (used as a power amplifier).
Outputs
2 Line preamp outputs (for bi-amplification or to connect a subwoofer).
1 Trigger output (12V).
Various
1 Headphone jack Ø 6,35 mm.
Internal wiring of loudspeaker outputs with the specific audio cable.
Gold-plated (RCA) connectors.
Our balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect, every moment, the current is immediately delivered to your speakers. This is one of the secrets of the musicality that ATOLL amplifiers enjoy.
