Bowers & Wilkins 702 S3
702 S3's Carbon Dome tweeter is housed in an all-new Solid Body Tweeter assembly, while with its new downward-firing port configuration and trio of Aerofoil Profile bass cones, it delivers bass that's both profoundly deep and endlessly articulate.

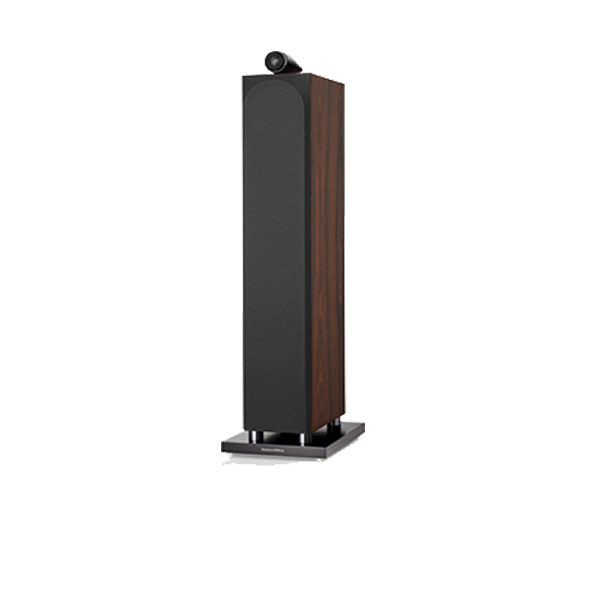

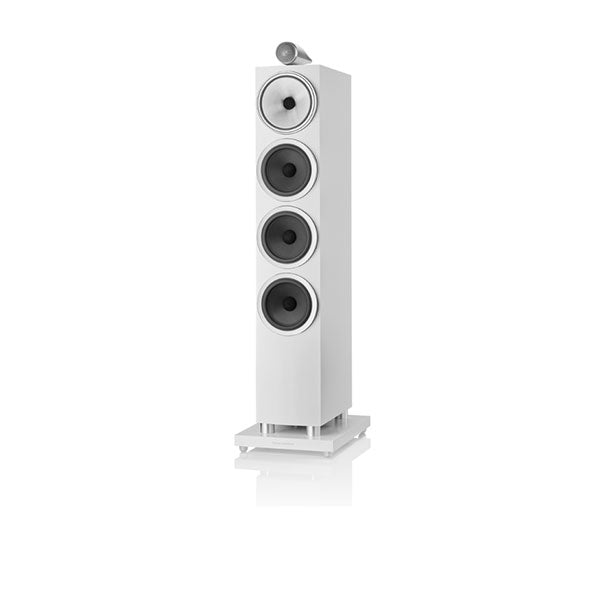

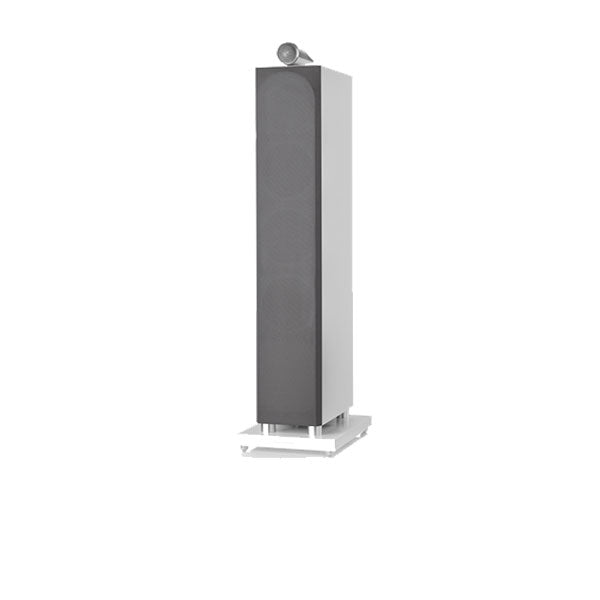

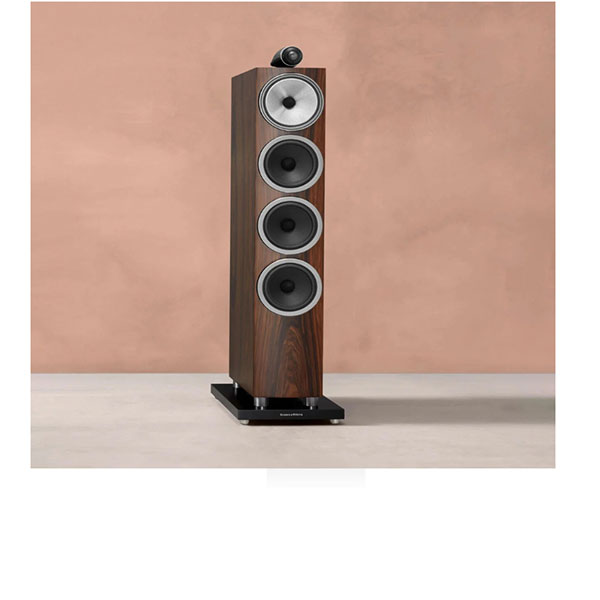

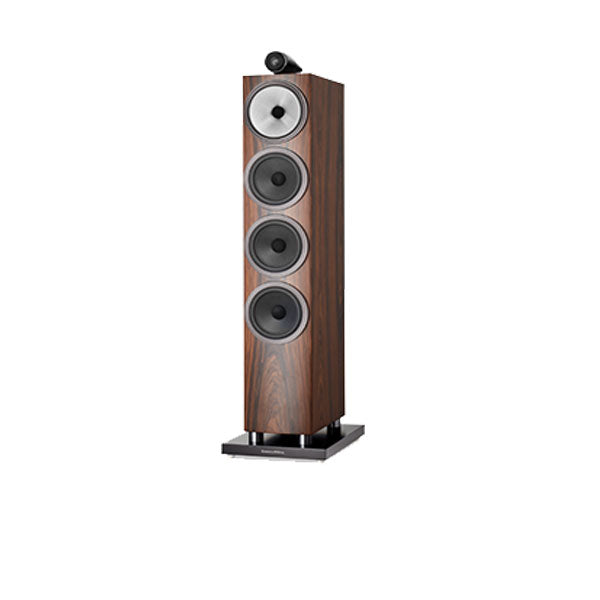

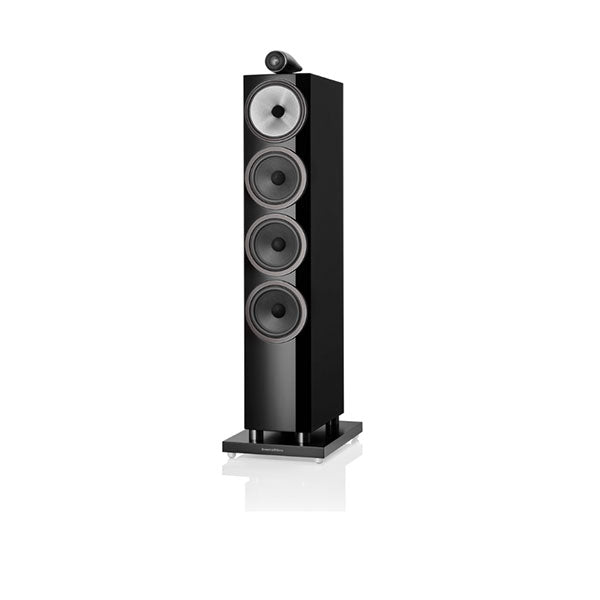

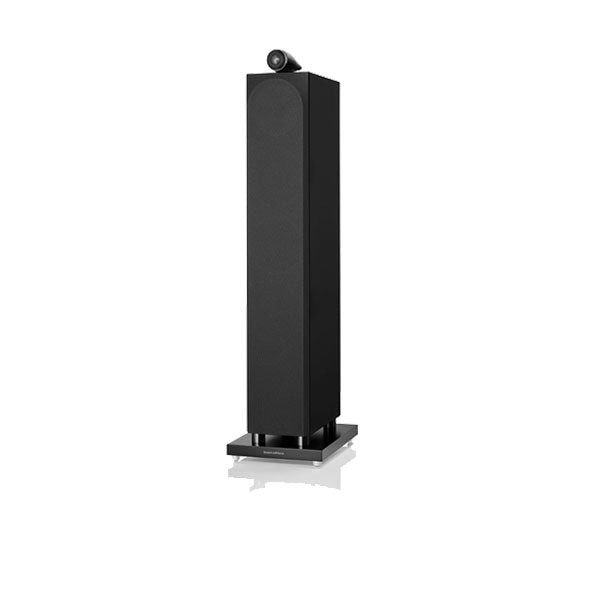

Bowers & Wilkins 702 S3 Floorstanding Speaker
- Premium-grade 3-way floorstanding speaker from B&W.
- Features a 1 Decoupled Carbon Dome tweeter that sits on top of the speaker.
- Incorporates a 6 Continuum cone FST driver for articulate and detailed midrange.
- Sports 3 x 6.5 Aerofoil Profile woofers for a deep bass response.
- Optimum crossover tuning for amazing power, loudness and clarity.
- Minimal and classy aesthetics that emanates a high-end appeal.
- Inspired by technologies found in B&W's flagship and iconic speakers.
- Timbre-matched with speakers from the B&W 700 S3 series
Height: 1010 mm (39.8 in) cabinet only
1138 mm (44.8 in) including tweeter and plinth
Width: 192 mm (7.6 in) cabinet only
290 mm (11.4 in) including plinth
Depth: 354 mm (13.9 in) cabinet only
391 mm (15.4 in) including grille and terminals
410 mm (16.1 in) including plinth
33.46kg (73.8 lb)
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™
3-way vented-box system
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bass
28Hz to 33kHz
46Hz - 28kHz ±3dB
90dB spl (2.83Vrms, 1m)
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz
8Ω (minimum 3.1Ω)
30W - 300W into 8Ω on unclipped programme
0.1Ω
Gloss Black
Satin White
Mocha
Black
Grey (Satin White only)
Goosebumps guaranteed
Our flagship, the 702 S3, is a state-of-the-art tower speaker that defines new standards for performance in its class. If you want the best, this is it.

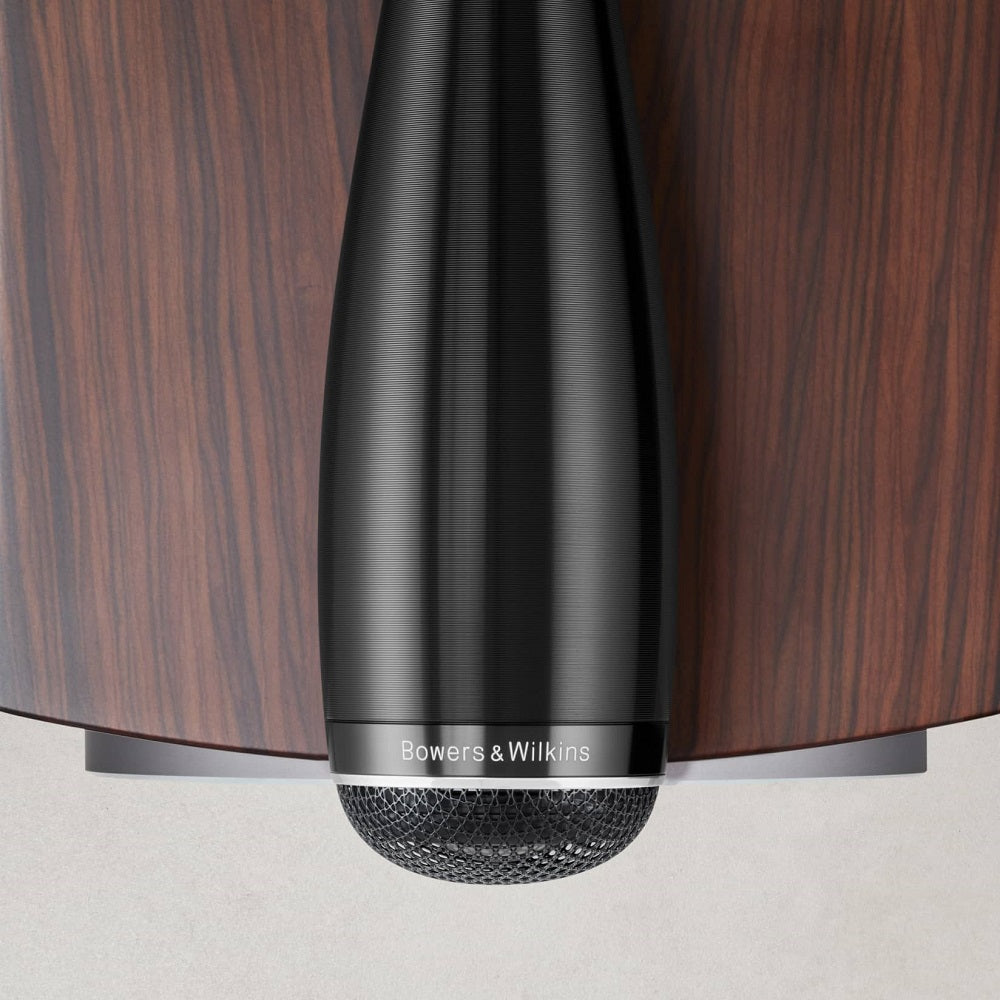

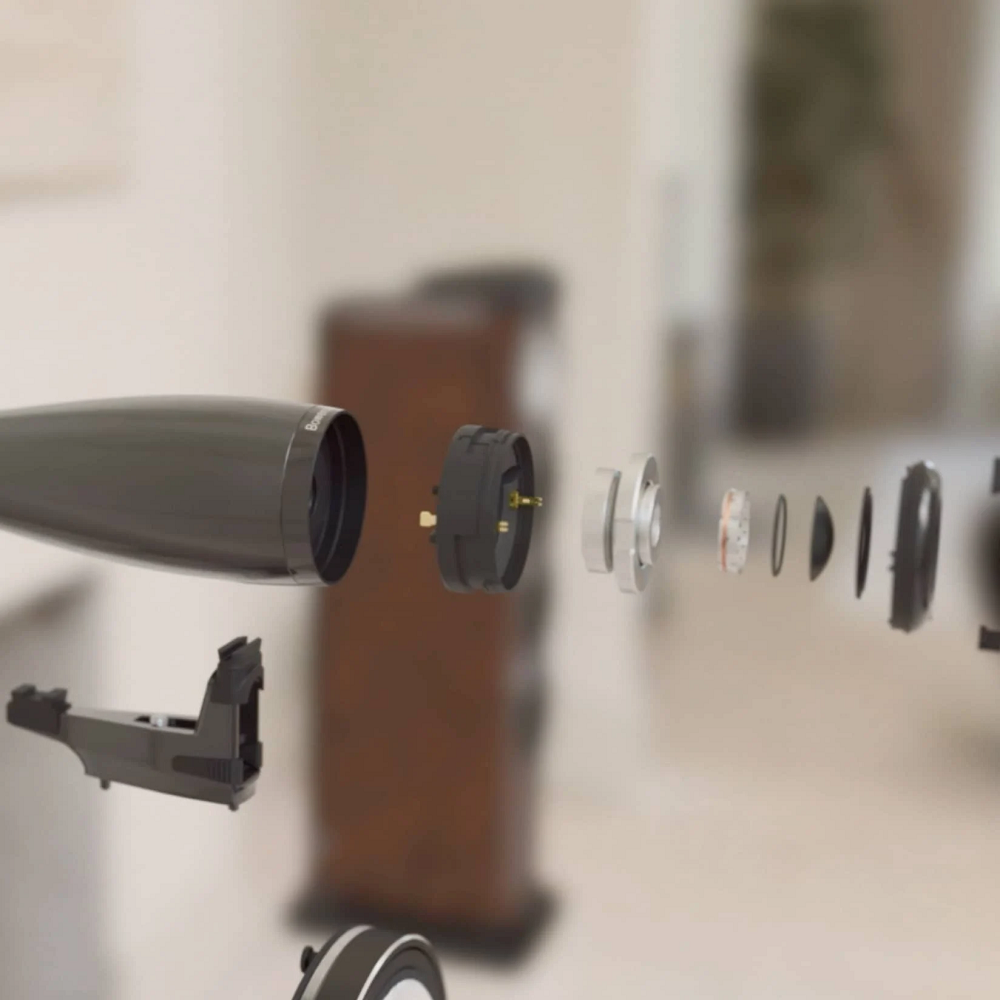

A house for high frequencies
The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Clean and clear
Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.

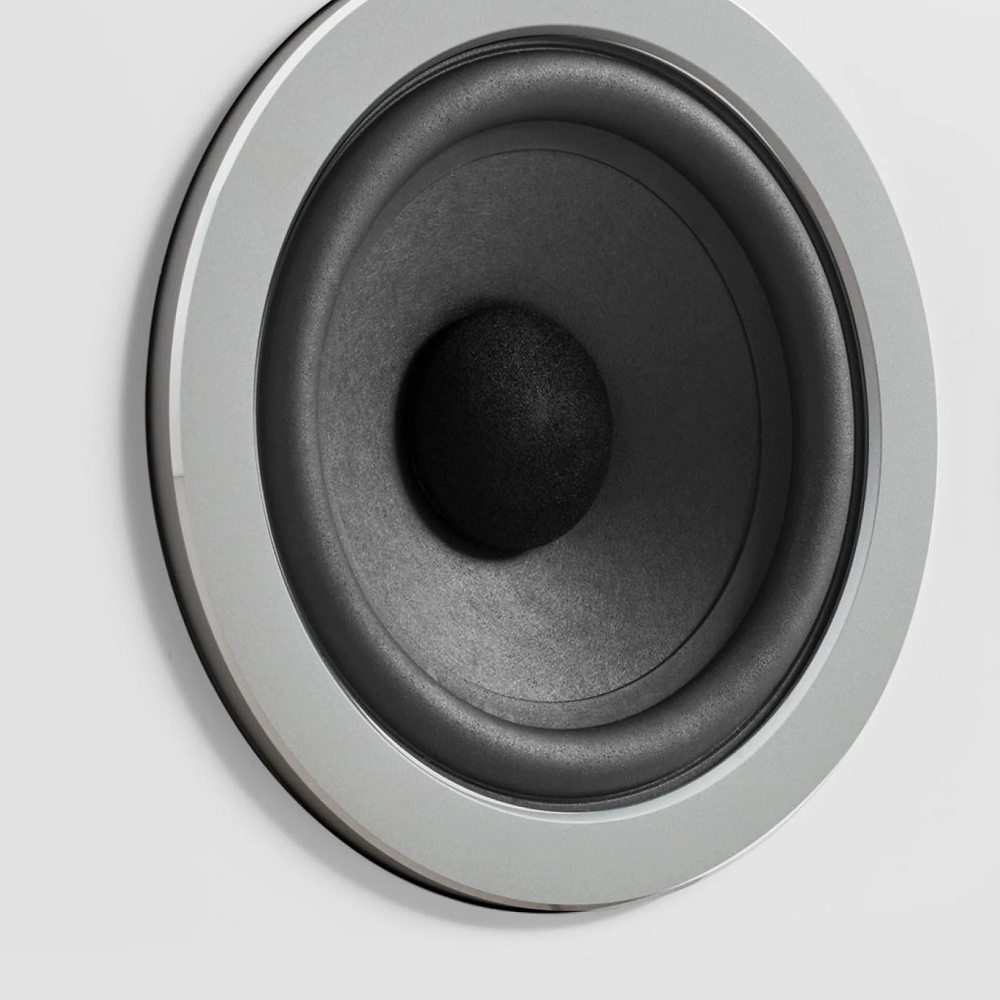

A triumph of science

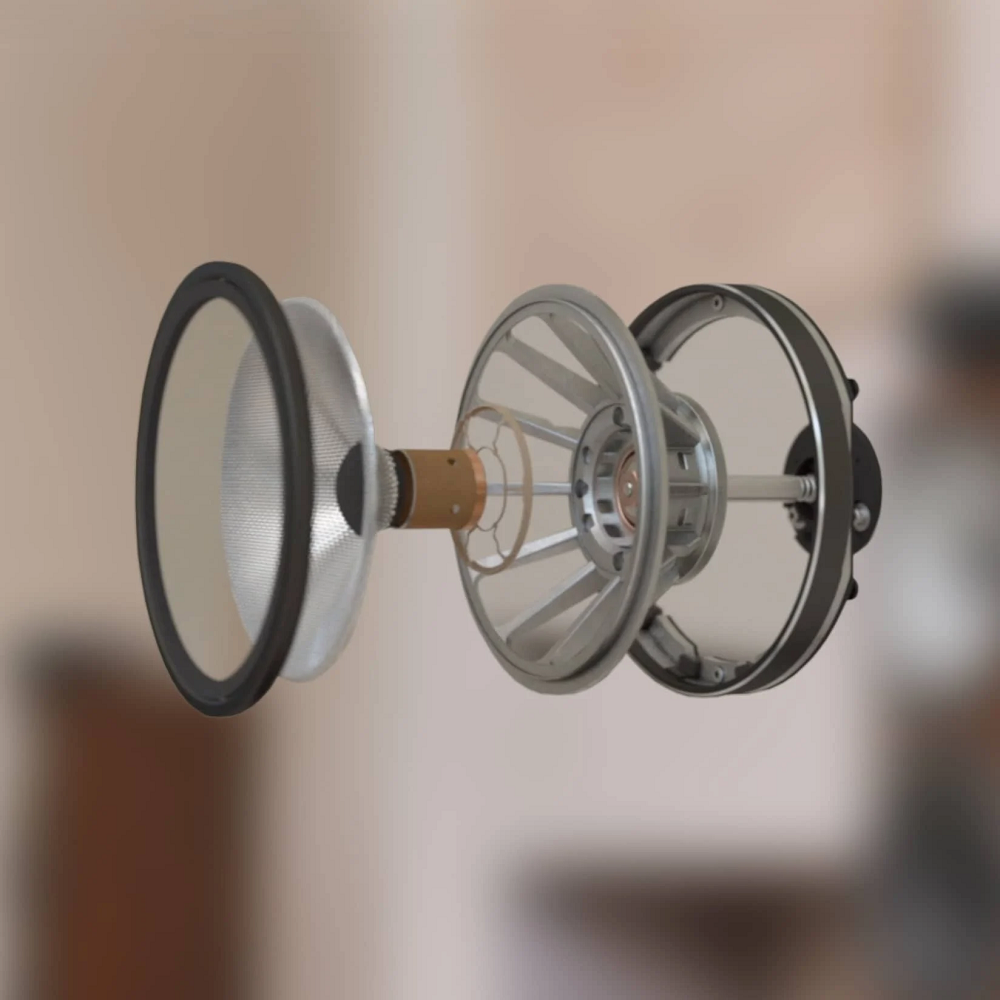

Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
Control App
Adjust calibration and correction easily using the dedicated DB4S smartphone app.
