Bowers & Wilkins 704 S3

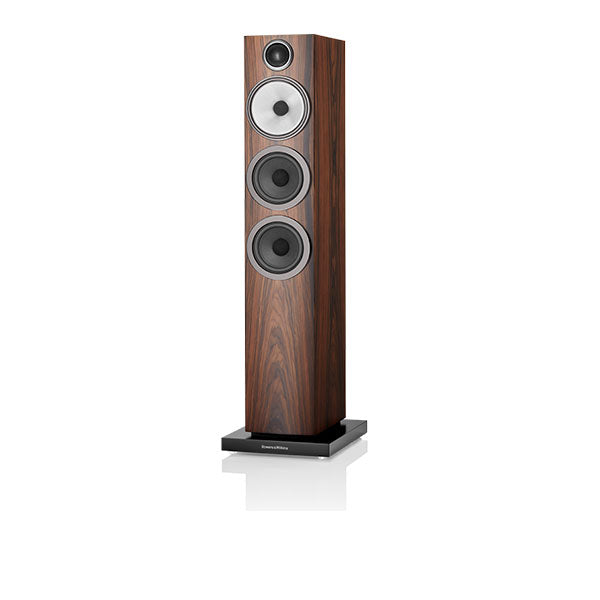

Bowers & Wilkins 704 S3 Floorstanding Speakers
Premium-grade 3-way compact floorstanding speaker from B&W.
Features a 1 Decoupled Carbon Dome tweeter that sits on top of the speaker.
Incorporates a 5 Continuum cone FST driver for articulate and detailed midrange.
Sports 2 x 5 Aerofoil Profile woofers for a deep bass response.
Optimum crossover tuning for amazing power, loudness and clarity.
Minimal and classy aesthetics that emanates a high-end appeal.
Inspired by technologies found in B&W's flagship and iconic speakers.
Timbre-matched with speakers from the B&W 700 S3 series.
Height: 925 mm (36.4 in) cabinet only
964 mm (38.0 in) including tweeter and plinth
Width: 165 mm (6.5 in) cabinet only
252 mm (9.9 in) including plinth
Depth: 263 mm (10.4 in) cabinet only
300 mm (11.8 in) including grille and terminals
321 mm (12.6 in) including plinth
20.53kg
Decoupled Carbon Dome tweeter
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™
3-way vented-box system
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone FST midrange
2x ø130mm (5 in) Aerofoil profile bass
43Hz and 33kHz
48Hz - 28kHz ±3dB
88dB spl (2.83Vrms, 1m)
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 300Hz - 20kHz
8Ω (minimum 3.1Ω)
30W - 150W into 8Ω on unclipped programme
0.1Ω

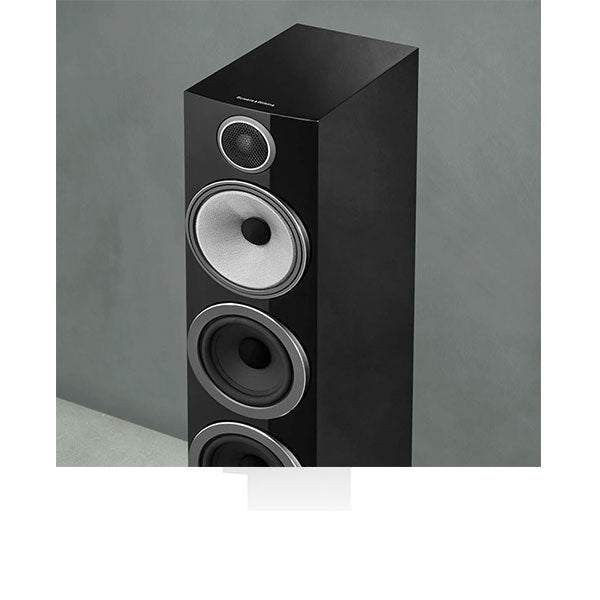

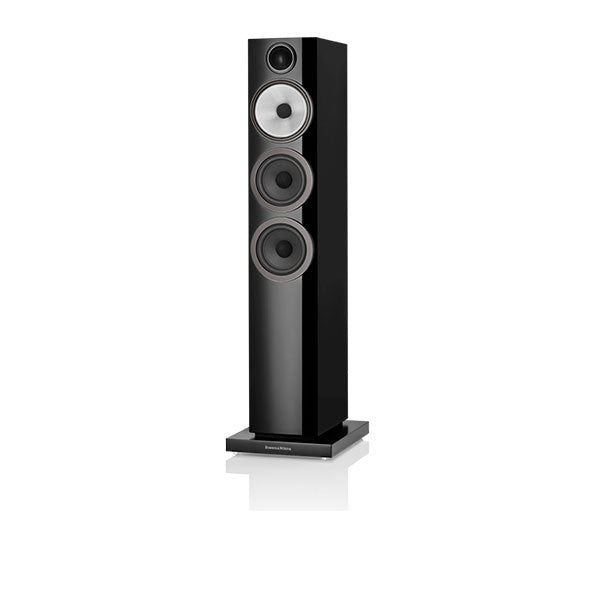

Gloss Black

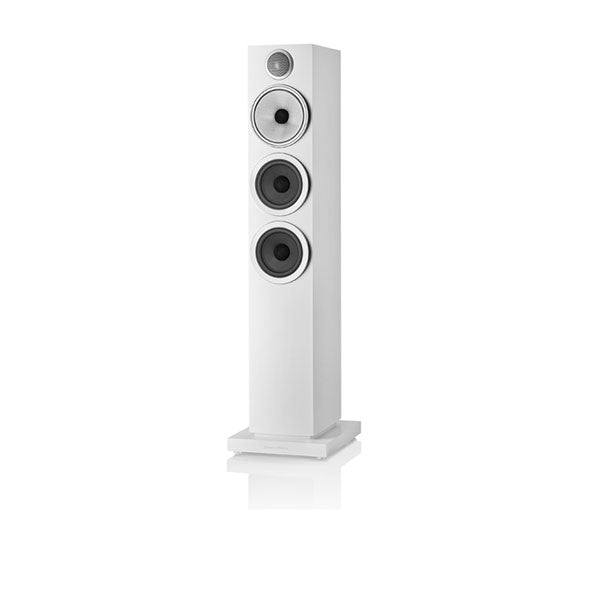

Satin White
Mocha

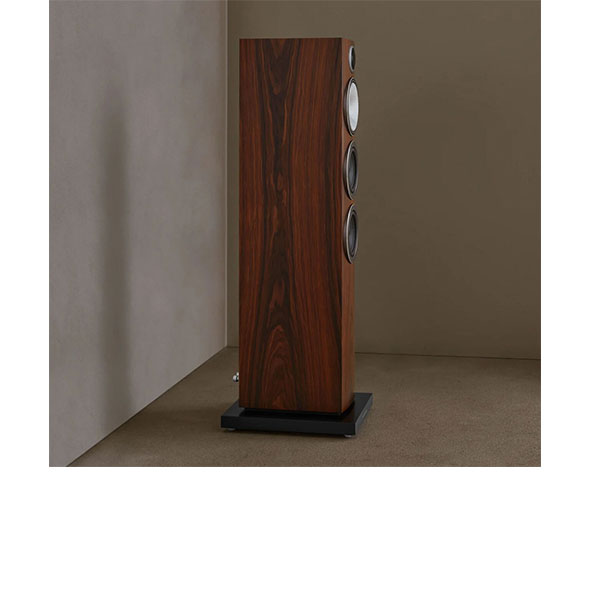

Rosenut (APAC only)
Black

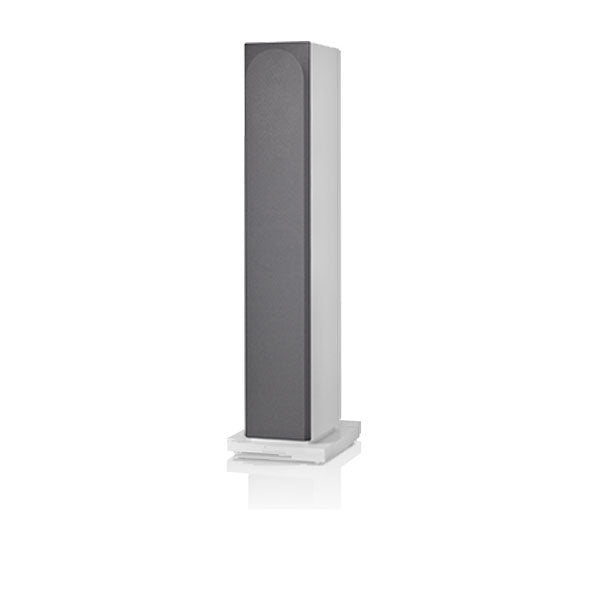

Grey (Satin White only)

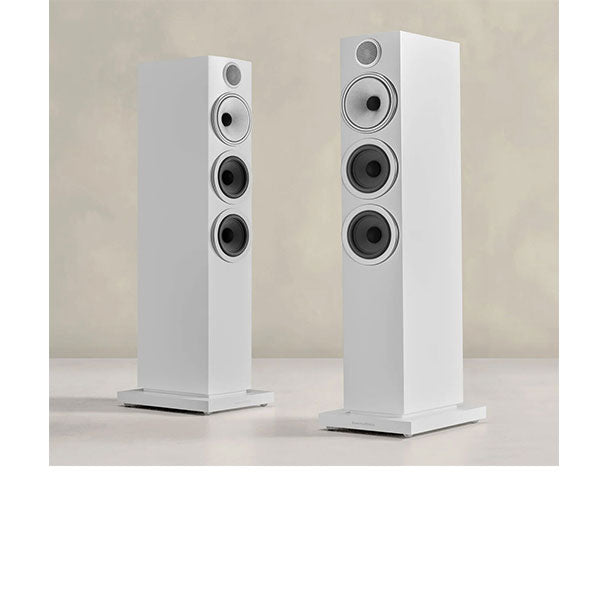

Slim design, big sound
This elegant tower loudspeaker is slimmer and easier to accommodate than ever. Perfect for superlative sound in smaller spaces.

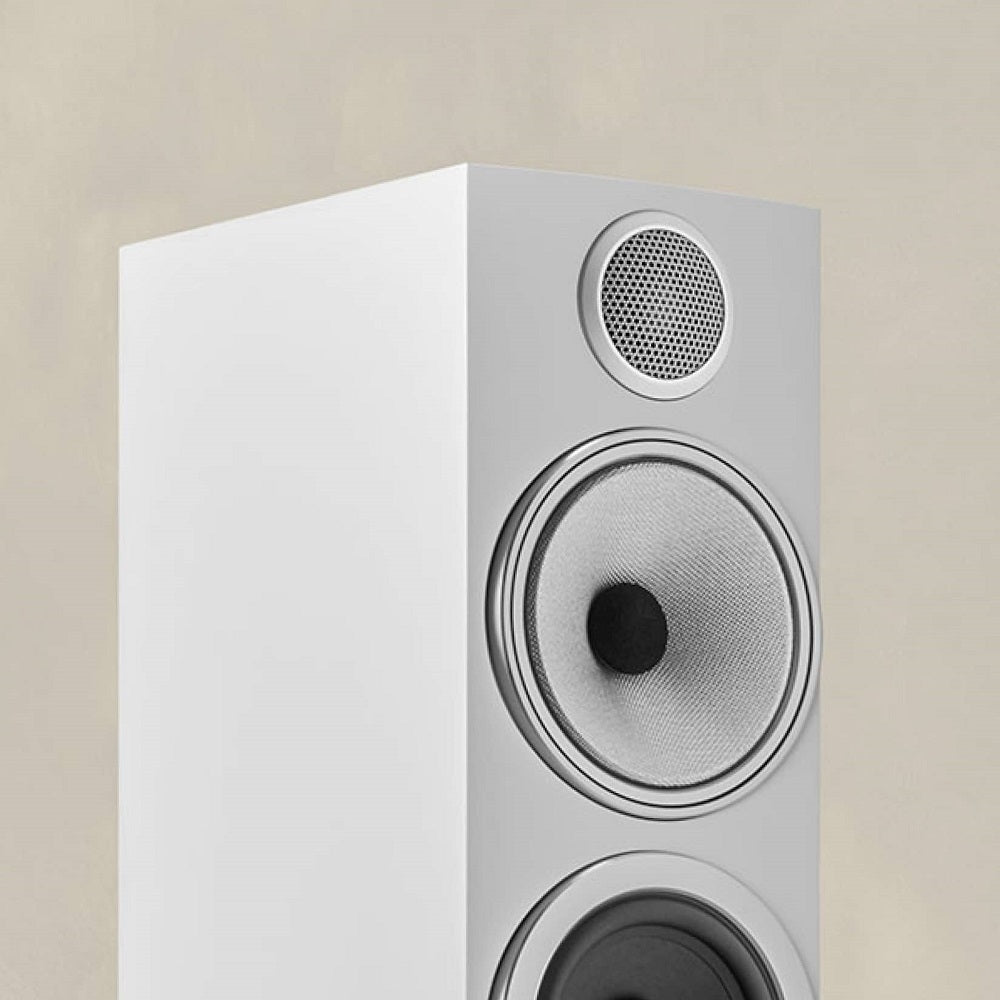

A house for high frequencies
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

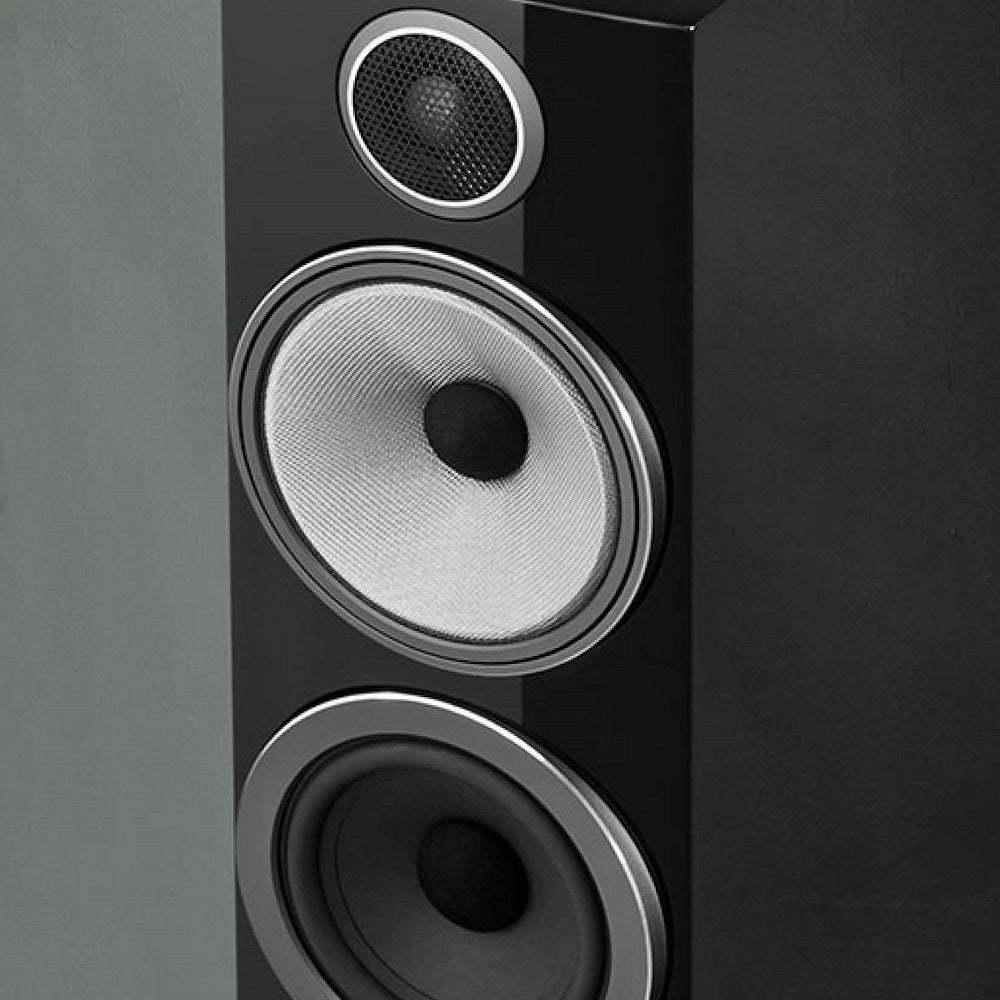

Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

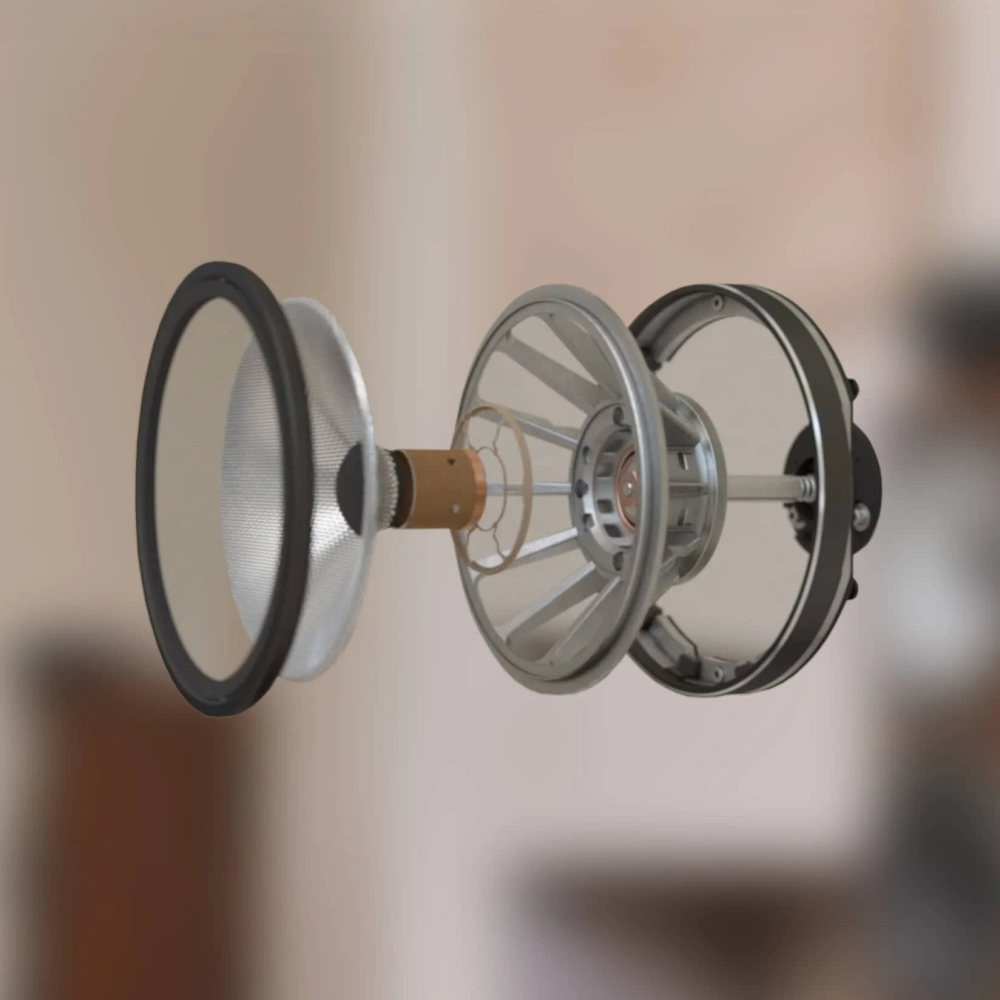

Clean and clear
Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.
A triumph of science
Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
