Bowers & Wilkins 705 S3
Bowers & Wilkins 705 S3 Bookshelf speaker
705 S3’s Carbon Dome tweeter is housed in a Solid Body Tweeter-on-Top enclosure evolved from the latest generation of 800 Series Diamond. That joins a new and subtly curved baffle endowed with an all-new ‘pod’ housing for its Continuum Cone bass/midrange driver.
Height: 345mm (13.6 in) cabinet only
413mm (16.3 in) including tweeter
Width: 192mm (7.6 in) cabinet only
Depth: 297mm (11.7 in) cabinet only
337mm (13.3 in) including grille and terminals
9.58kg (21.1 lb)
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone bass / midrange
Flowport™
0.1Ω
2-way vented-box system
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrange
45Hz and 33kHz
50Hz - 28kHz ±3dB
88dB spl (2.83Vrms, 1m)
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 150Hz - 20kHz
8Ω (minimum 3.7Ω)
30W - 120W into 8Ω on unclipped programme
Gloss Black
Satin White
Mocha
Black
Grey (Satin White only)

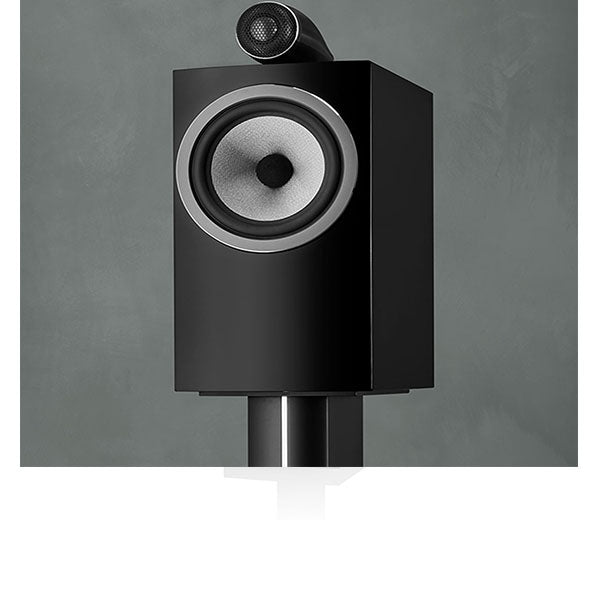

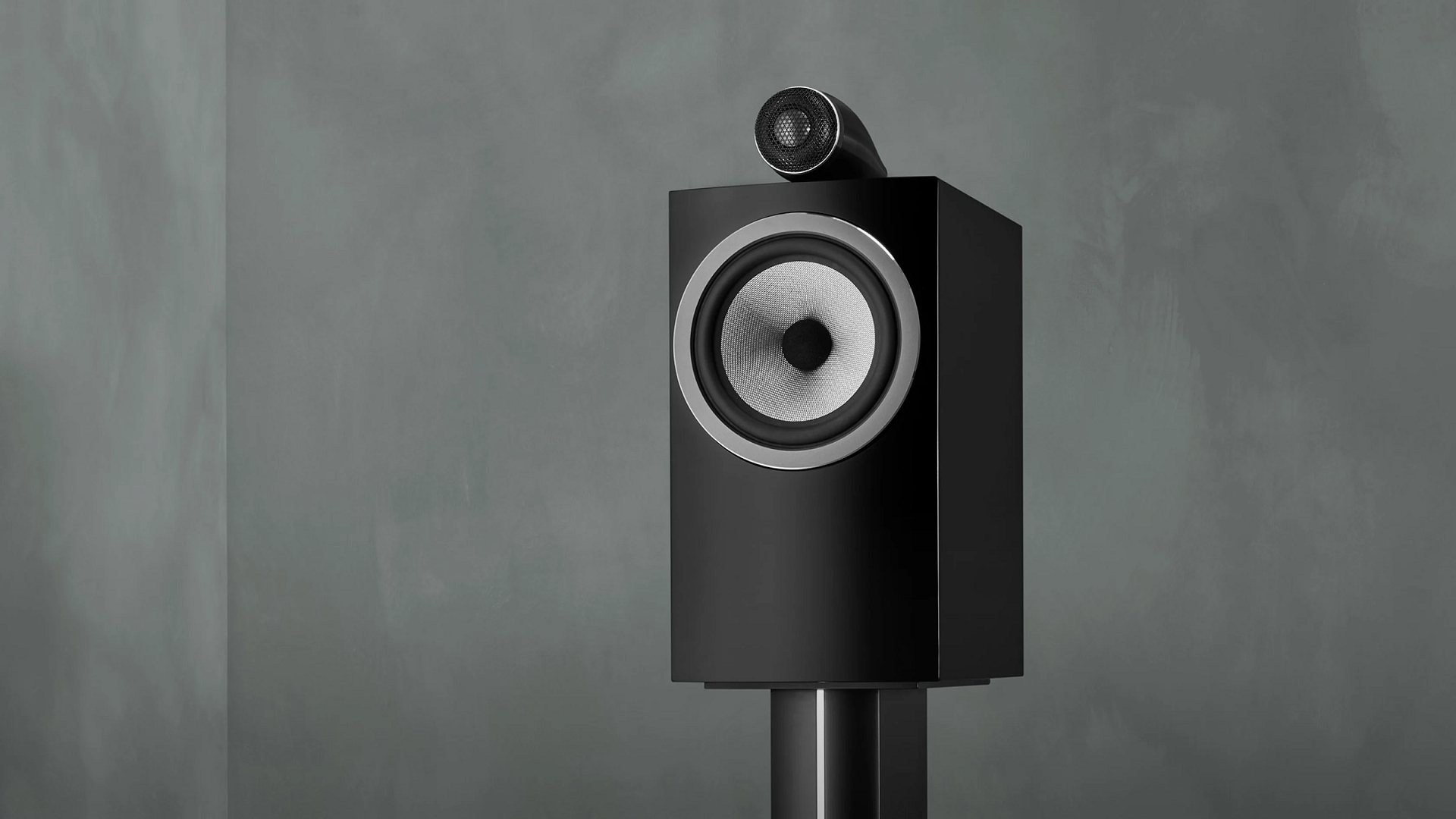

Experience the detail
This uncompromising two-way speaker reveals subtle nuances in music others miss. Its high-performance features include a solid body Tweeter-on-Top design borrowed from the 800 Series Diamond.

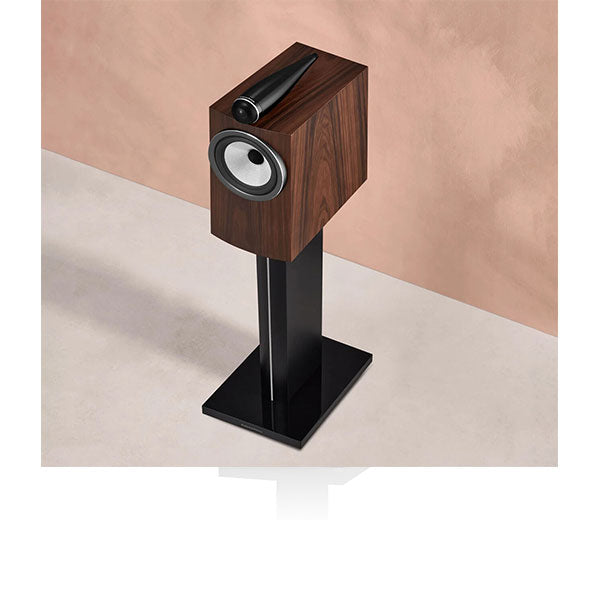

A house for high frequencies
The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.

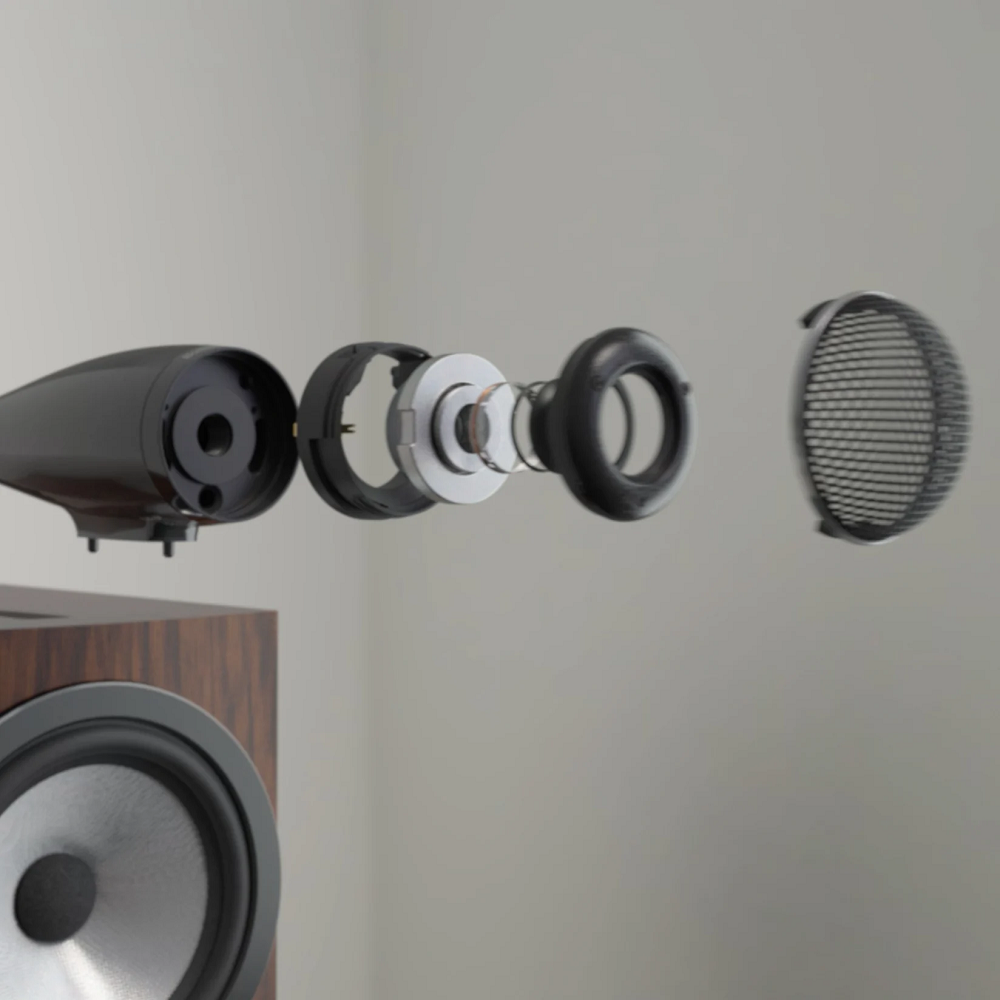

Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

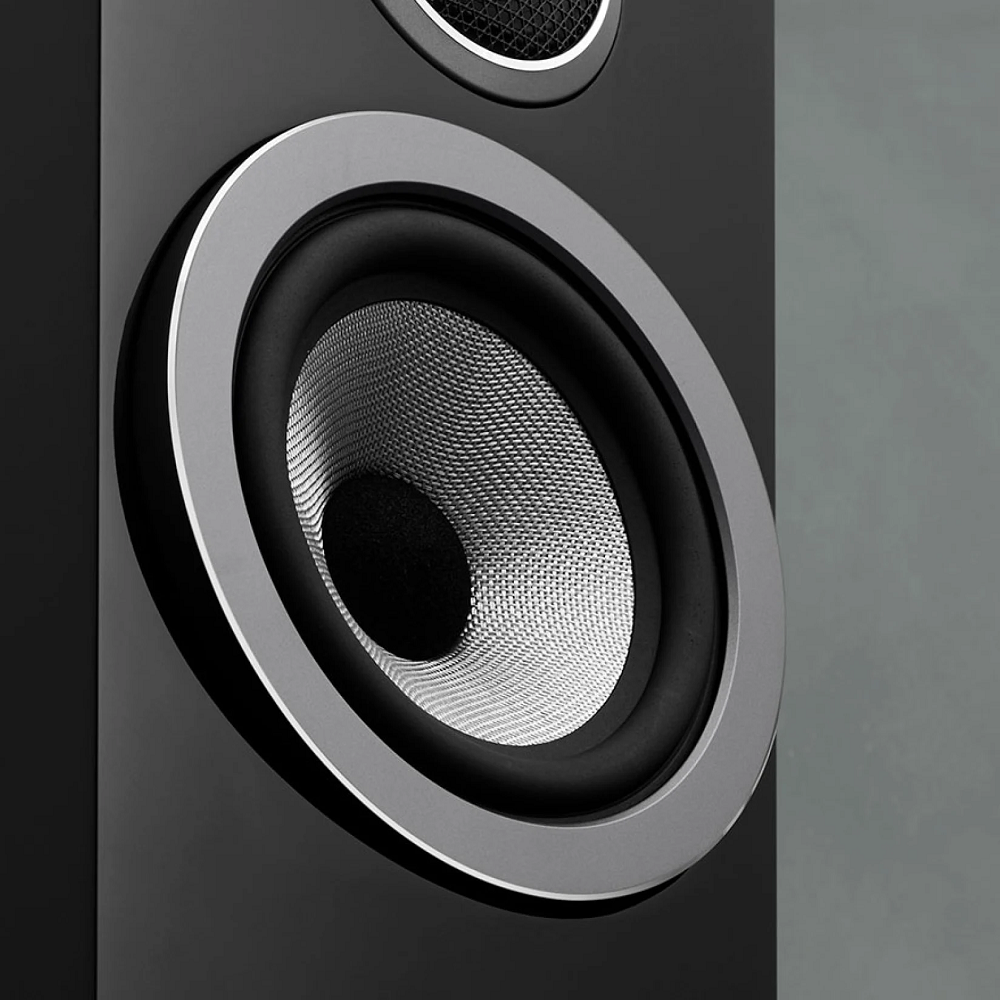

Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
