Bowers & Wilkins ASW610XP
Experience deep, powerful bass with Bowers & Wilkins ASW610XP. Ideal for home theatre systems, this high-performance subwoofer delivers precision and punch. Shop now for immersive sound. ASW610XP, the most powerful of the AWS Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theater system for larger rooms.
Bowers & Wilkins ASW610XP 500w Subwoofer Speaker
- ntuitive auto sense on/standby feature for power saving.
- Volume controls, low-pass filter frequency, bass roll-off alignment, & phase switch.

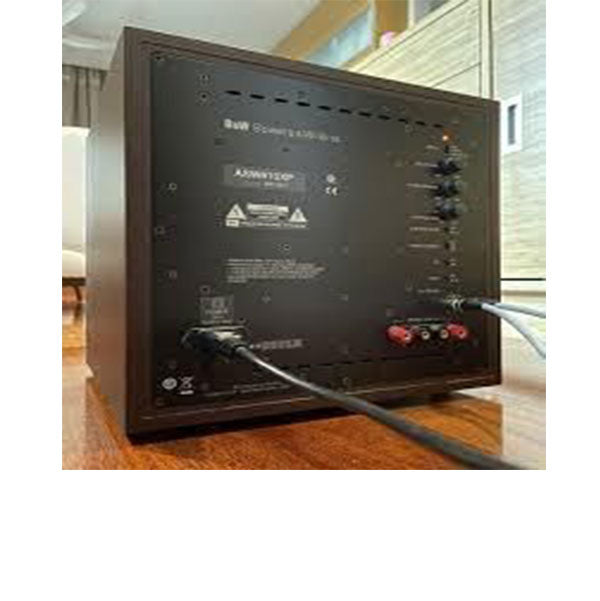

- Stereo Line In (RCA Phono), Speaker In (Binding post), & 12v trigger (3.5mm jack) inputs.
- Robust closed MDF wood box with a vinyl wrap built for the long run.
- Efficient & powerful 500 Watts Class D amplifier built-in.

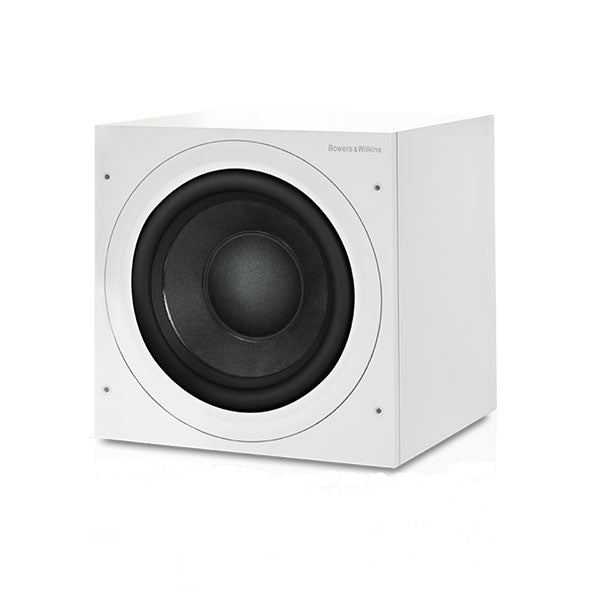

- Sports a long-throw 10" Kevlar® cone woofer in a front-firing placement.
18.65kg (41.12 lb)
Height: 325mm (12.8in) not including feet or spikes
337mm (13.3in) including feet
353mm (13.9in) including spikes
Width: 325mm (12.8in)
Depth: 348mm (13.68in) not including grilles
375mm (14.8in) including grilles and controls
ø250mm (10 in) Paper / Aramid fibre cone long-throw
±3dB 25Hz – 40 / 140Hz adjustable (EQ at A)
Input level (line in)
Input level (speaker in)
Low-pass filter frequency (line in only)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch
Active closed-box subwoofer system
-6dB at 18Hz and 25 / 140Hz adjustable (EQ at A)
Line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency
98W / 1W standby
33kΩ
>80dB
-6dB at 18Hz (position A)
-6dB at 23Hz (position B)
-6dB at 28Hz (position C)
Black
White
Black
Grey

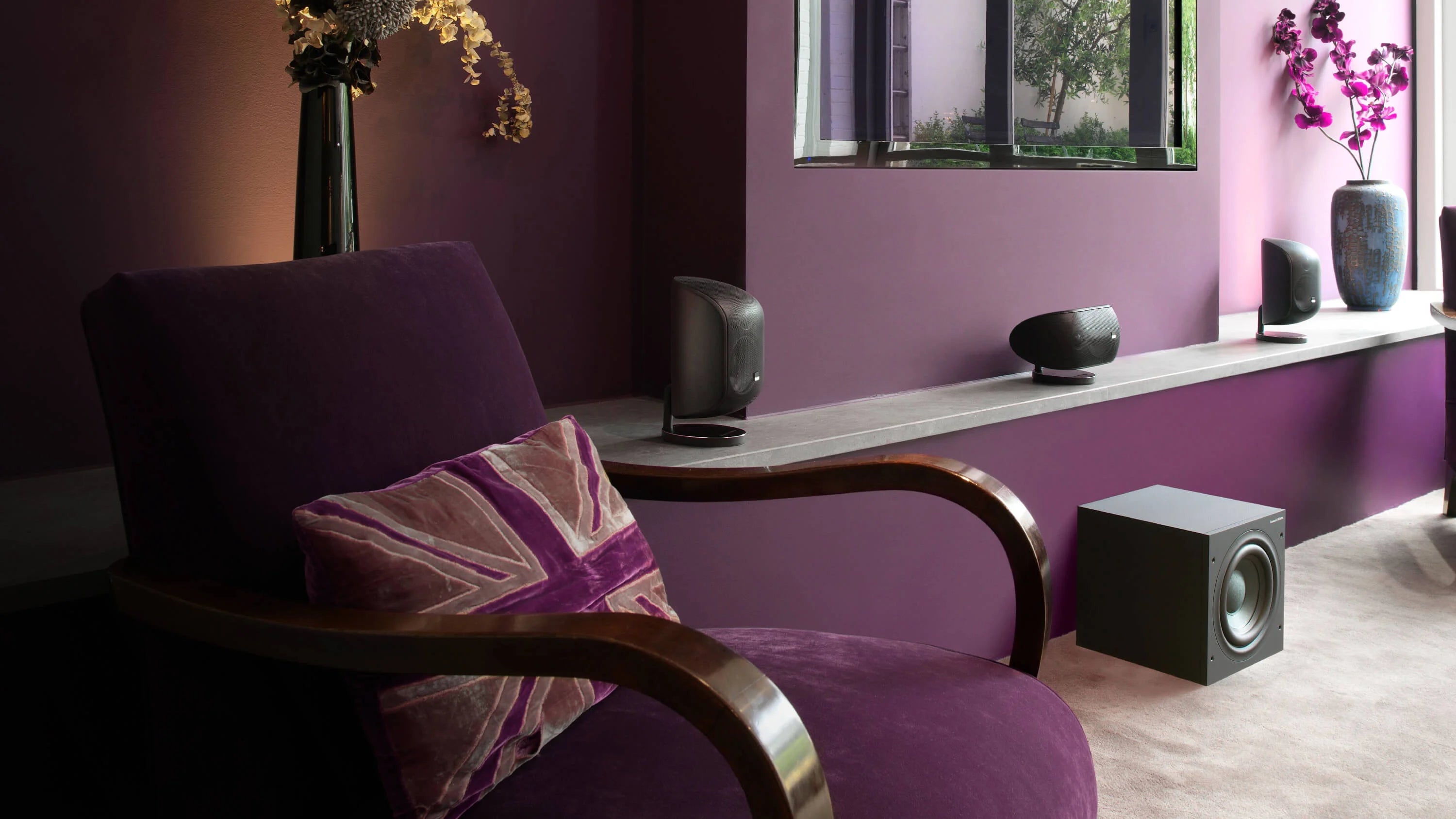

Boost your bass

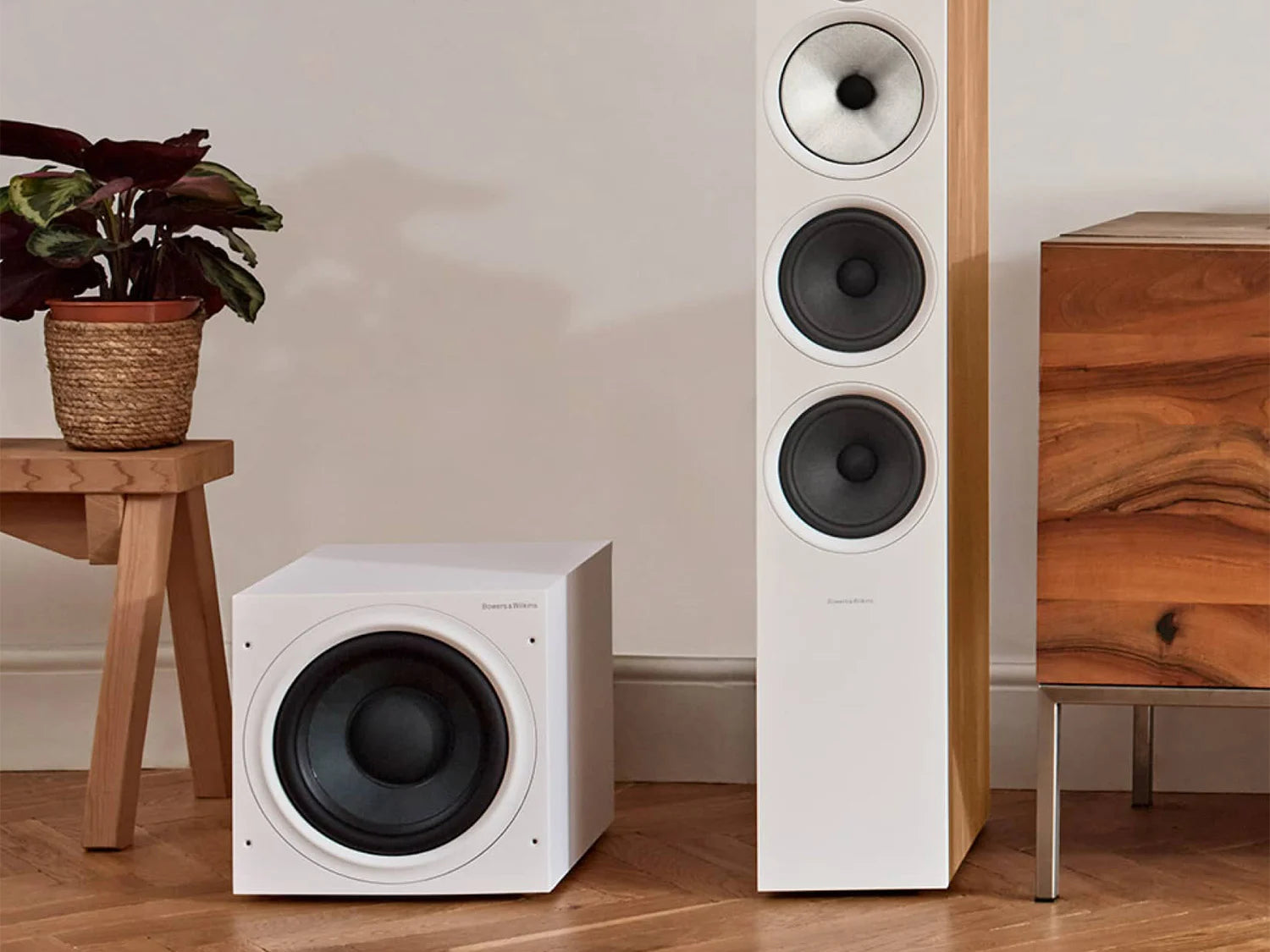

Tuned for powerful bass
A big driver isn't enough: ASW610XP's combines paper pulp, Aramid fiber and resin for stiffness and accuracy.

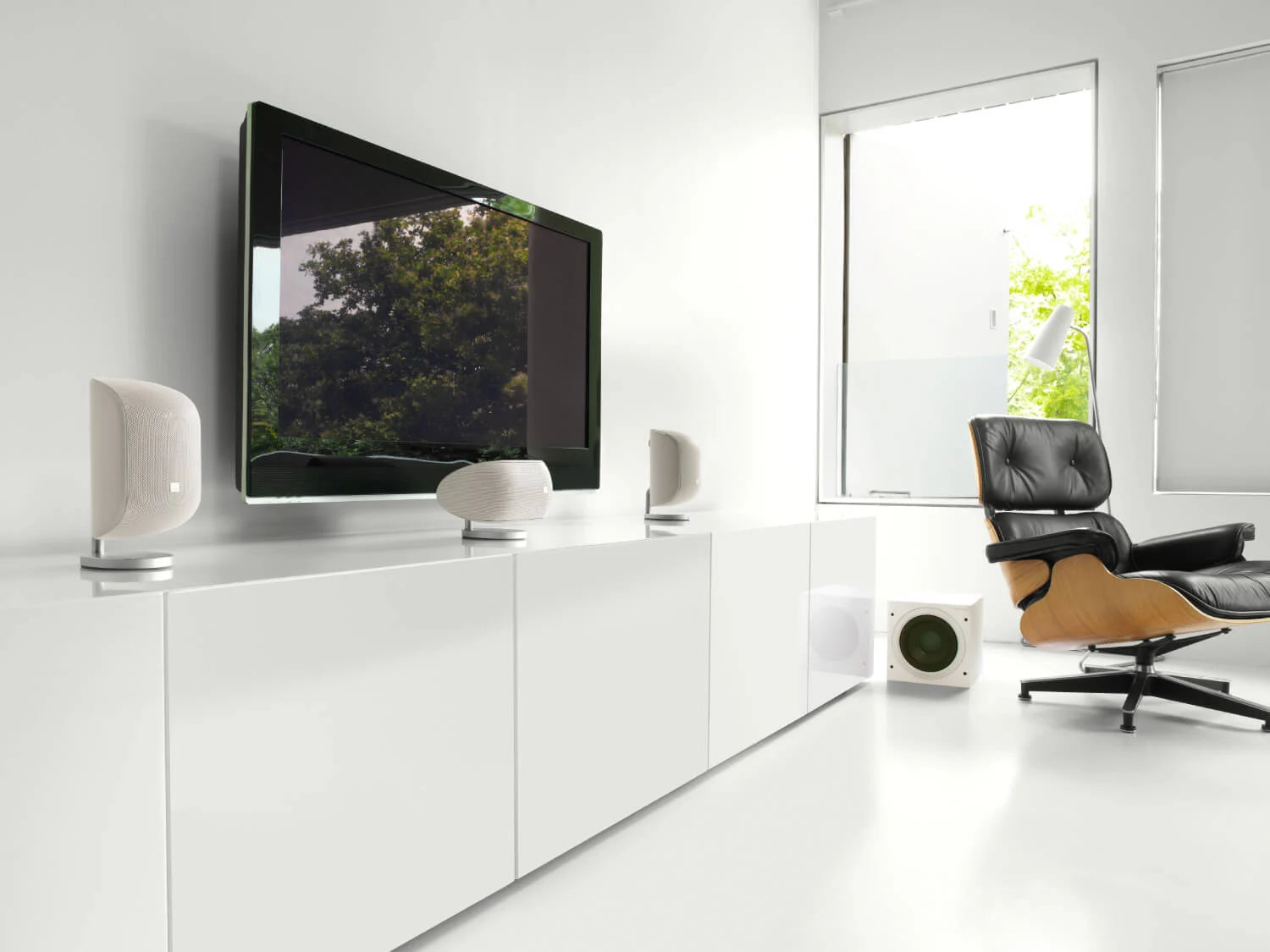

All the power you’ll need
ASW610XP may be compact, but it packs a gutsy amplifier designed for punch and cool operation.
