Bowers & Wilkins CCM632
The CCM632 is a single 75mm (3in) full-range driver with a beautifully well-balanced sound, that sidesteps traditional small speaker issues yet still takes up less than 150mm (6in) diameter space installed. The CCM632 also features Bowers & Wilkins innovative ZipDogs™ fixing method.

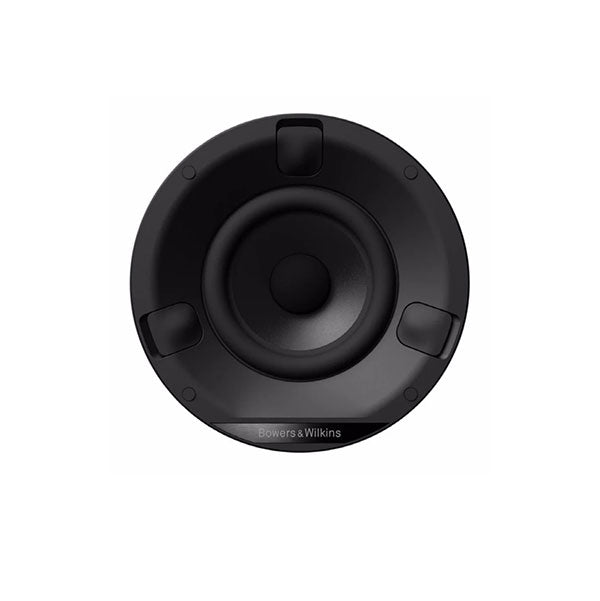

Bowers & Wilkins CCM632 In Ceiling Speaker
In-ceiling speakers, designed to squeeze into small spaces or be used in multiples for diffuse, background sound, are really difficult to get right. If the driver’s too small, there won’t be enough bass without adding a bulky subwoofer, but the common alternative is a 2-way where the tweeter sits in front of a small bass/midrange driver. The problem with these is the driver fires around the tweeter’s body, inevitably leading to coloration. The new Bowers & Wilkins CCM632 is a single 75mm (3inch) full-range driver with a beautifully well-balanced sound, that sidesteps traditional small speaker issues yet still takes up less than 150mm (6”) diameter space installed.
The CCM632 also features Bowers & Wilkins new and innovative ZipDogs fixing method. These make short work of installation and cope with almost any thickness of the mounting panel.
2-way in-ceiling system
1x ø25mm (1in) Nautilus™ swirl loaded aluminum dome tweeter
1x ø150mm (6in) blue aramid fiber cone bass/midrange
45Hz – 50kHz
25 – 150w
88dB
8 ohms (4.5 ohms)
Frame Dimensions
Frame Diameter: 9.5 "
Depth Behind Surface: 5.2 "
Cut-out diameter: 8 "
Protrusion: 0.2 "
C6
C6
Shipping: 10 lbs
714346323807
CI 600 Series
1x Ø75mm (3 in) paper cone full-range
112Hz - 16kHz
8 Ohms (5 Ohms)
84dB (2.83V, 1m)
Recommended 10W – 60W
