Bowers & Wilkins CCM663SR
The CCM663SR ceiling speaker features a woven Aramid Fibre coned twin voice-coil 150mm (6in) bass/midrange driver with an offset array of two 25mm (1in) soft dome tweeters. Thanks to its highly accurate and natural sound, Aramid Fibre features on our most advanced high-performance hi-fi speakers and it brings the same qualities to the CCM663SR.
Bowers & Wilkins CCM663SR In Ceiling Speakers

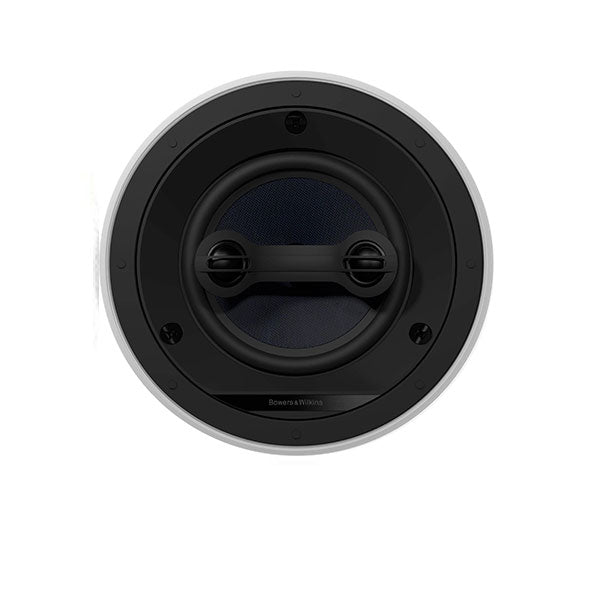

The combination of convenience and performance that is a feature of the entire custom installation range is no better demonstrated than by the CCM663SR ceiling speaker. It marries a woven Aramid Fibre coned twin voice-coil 150mm (6in) bass/midrange driver with an offset array of two 25mm (1in) soft dome tweeters. Thanks to its highly accurate and natural sound, Aramid Fibre features on our most advanced high-performance hi-fi speakers and it brings the same qualities to the CCM663SR. The twin voice coils and tweeters combine the stereo signal to enable the use of just one ceiling speaker in an installation zone without the loss of one audio channel. The CCM663SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel.
2-way dual channel in-ceiling system
2x ø20mm (1in) soft dome tweeter
1x ø150mm (6in) blue aramid fiber cone bass/midrange
48Hz – 30kHz48Hz – 30kHz
25 – 80w (per channel)
83dB (per channel)
89dB (both channels driven)
8 ohms (4 ohms) (per channel)
rame Dimensions
Frame Diameter: 9.5 "
Depth Behind Surface: 5.2 "
Cut-out diameter: 8 "
Protrusion: 0.2"
C6
6C
Shipping: 10 lbs
714346310364
CI 600 Series
2x ø20mm (1in) soft dome tweeter
1x ø150mm (6in) blue Aramid Fibre cone bass/midrange
8 Ohms (4 Ohms per channel)
83dB (per channel)
89dB (both channels driven)
Recommended 25 – 80w (per channel)
