Bowers & Wilkins CCM664SR

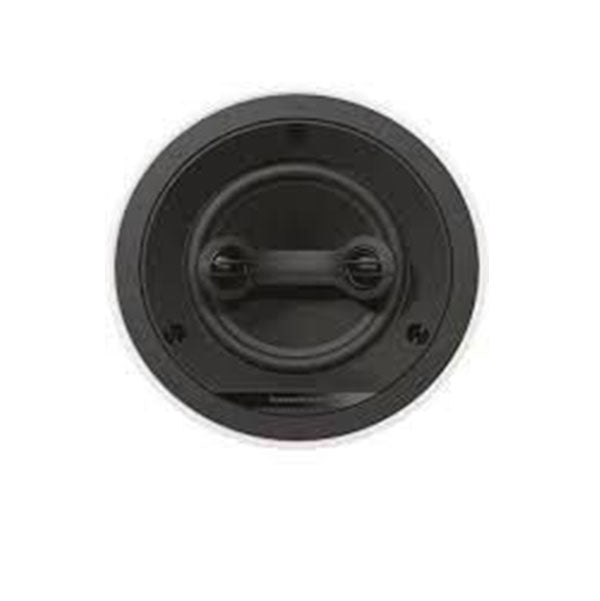

Enjoy immersive stereo sound with the Bowers & Wilkins CCM664SR in-ceiling speakers. Compact, powerful, and perfect for discreet home audio. The CCM664SR is a dual, two-way ceiling speaker featuring a 150mm (6in) woven glass fibre cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel.
Bowers & Wilkins CCM664SR In Ceiling Speakers
The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogs and plug-and-play functionality it is quick and easy to install.
2-way dual channel in-ceiling system
2x ø20mm (1in) soft dome tweeter1x ø150mm (6in) blue aramid fiber cone bass/midrange
48Hz – 30kHz48Hz – 30kHz
25 – 80w (per channel)
83dB (per channel)
89dB (both channels driven)
8 ohms (4 ohms) (per channel)
Frame Dimensions
Frame Diameter: 9.5 "
Depth Behind Surface: 5.2 "
Cut-out diameter: 8 "
Protrusion: 0.2"
C6
C6
Shipping: 10 lbs
714346310371
CI 600 Series
2x ø20mm (1in) soft dome tweeter
1x ø150mm (6in) black glassfiber cone bass/midrange
8Ohms (4Ohms per channel)
Recommended 25- 80w (per channel)
