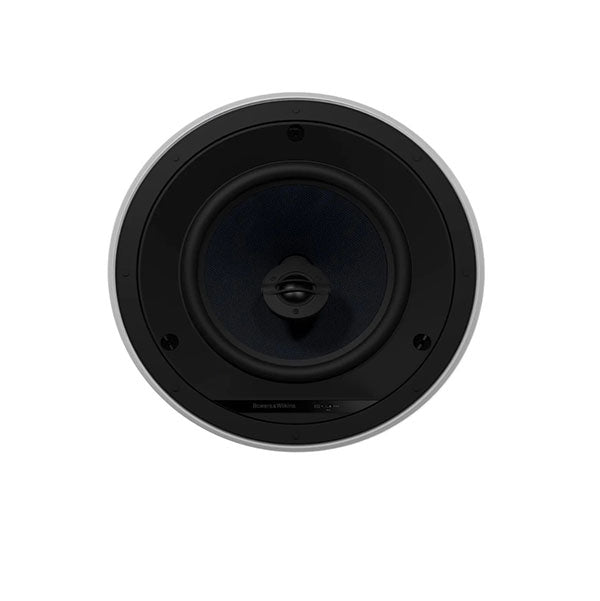

Bowers & Wilkins CCM665

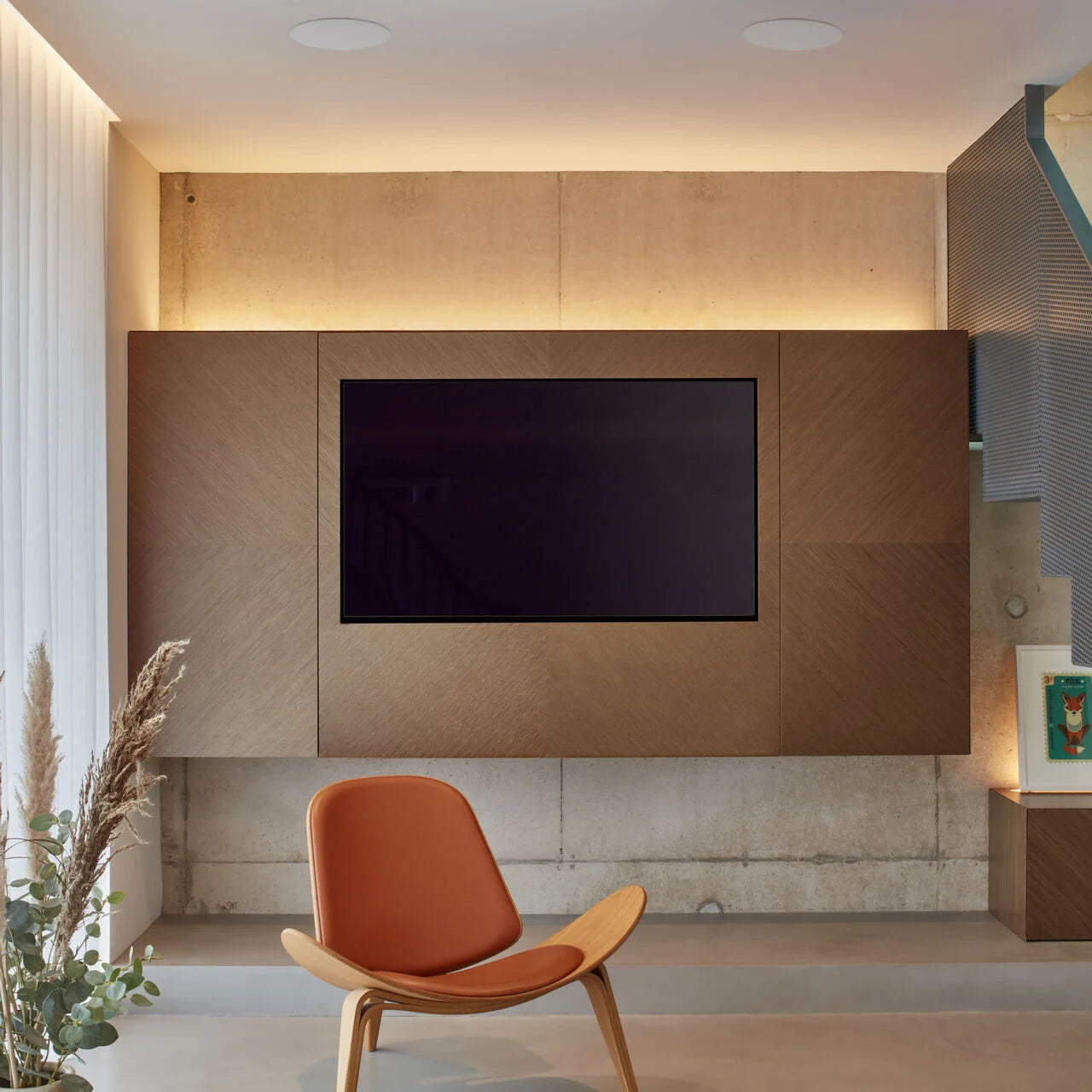

CCM665 is a high-performance ceiling speaker that’s simplicity itself to install and use. It features a two-way design, with a 150mm (6in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. A perfect speaker for those indulgent extra locations – the bathroom, the kitchen - that define the real luxury of custom installed audio.
Bowers & Wilkins CCM665
Sale price
Regular price (/)
Bowers & Wilkins CCM665 2-Way In-Ceiling Speaker
- Driver Configuration: It features a 2-way in-ceiling system design.
- Driver Material: Equipped with a 1-inch soft dome tweeter for clear highs and a 6-inch black glassfibre cone bass/midrange driver for rich lows.
- Frequency Range: Offers a wide frequency response ranging from 45Hz to 35kHz (-6dB), ensuring full spectrum audio reproduction.
- Recommended Amplifier Power: Supports amplifier power from 25 to 130 watts, suitable for various audio setups.
- Sensitivity SPL: Delivers an SPL of 87dB at 2.83V and 1 meter, ensuring efficient power utilization and impactful sound.
Description
2-way in-ceiling system
Drive Units
1x ø25mm (1in) soft dome tweeter
1x ø150mm (6in) black glassfibre cone bass/midrange
Frequency Range (-6dB)
45Hz – 35kHz
Recommended Amp Power
25 – 130w
Sensitivity SPL (2.83V, 1m)
87dB
Impedance Nominal (min)
8 ohms (4.5 ohms)
Approximate Dimensions
Frame Dimensions
Frame Diameter: 9.5 "
Depth Behind Surface: 5.2 "
Cut-out Dimensions
Cut-out diameter: 8 "
Protrusion: 0.2 "
Pre-mount Kit
C6
Recommended Back Box
C6
Approximate Weight
Shipping: 10 lbs
UPC
714346311705
Series
CI 600 Series
Impedance
8 Ohms (4.5 Ohms)
Sensitivity
87dB
Total Amp Power
Recommended 25 - 130w
