Bowers & Wilkins CCM682

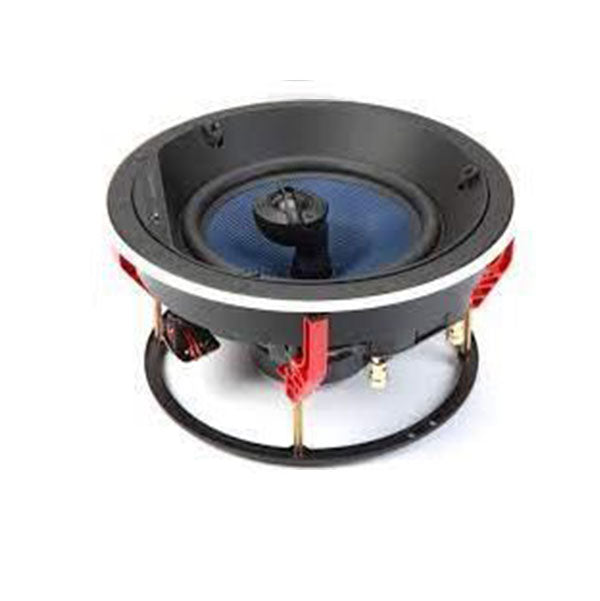

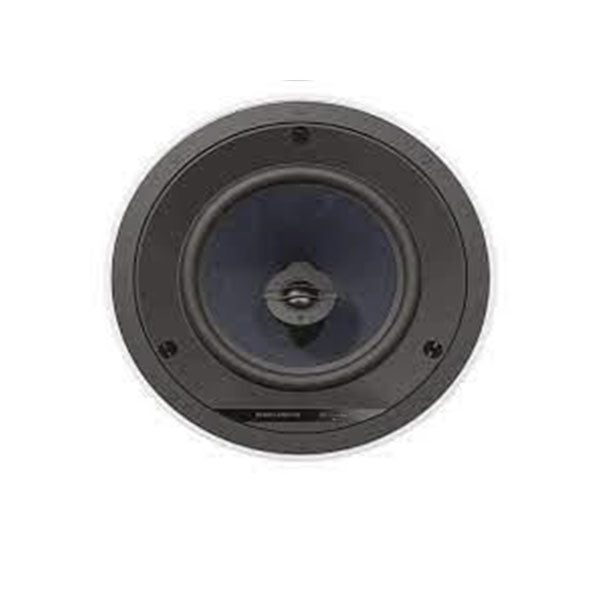

Experience immersive audio with Bowers & Wilkins CCM682 in-ceiling speakers. Perfect for high-end home setups, featuring 8" bass driver, Nautilus tube tweeter, and rich, room-filling sound. The CCM682 is a high-performance ceiling-mount speaker that features a 200mm (8in) Aramid Fibre cone bass/midrange driver and an aluminium dome tweeter in a neat circular die-cast chassis. Its 30mm coil and 100mm magnet ensure an incredibly efficient and reliable speaker with outstanding sound quality.
Bowers & Wilkins CCM682 In Ceiling Speakers
- 8" blue aramid fiber cone woofer.
- 1" aluminium dome tweeter.
- Low distortion, high resolution drive unit technologies.
- Adjustable EQ and tweeter directivity to optimize sound.
- Higher power handling.
2-way in-ceiling system
1x ø25mm (1in) Nautilus™ swirl loaded aluminum dome tweeter
1x ø150mm (8in) blue aramid fiber cone bass/midrange
35Hz – 50kHz
25 – 150w
89dB
8 ohms (4.5 ohms)
Frame Dimensions
Frame Diameter: 11.4 "
Depth Behind Surface: 5.2 "
Cut-out diameter: 9.8 "
Protrusion: 0.2"
C8
C6
Shipping: 10 lbs
714346310388
CI 600 Series
1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter
1x ø200mm (8in) blue Aramid Fibre cone bass/midrange
8Ohms (minimum 4.5Ohms)
89 dB
Recommended 25 – 150w
