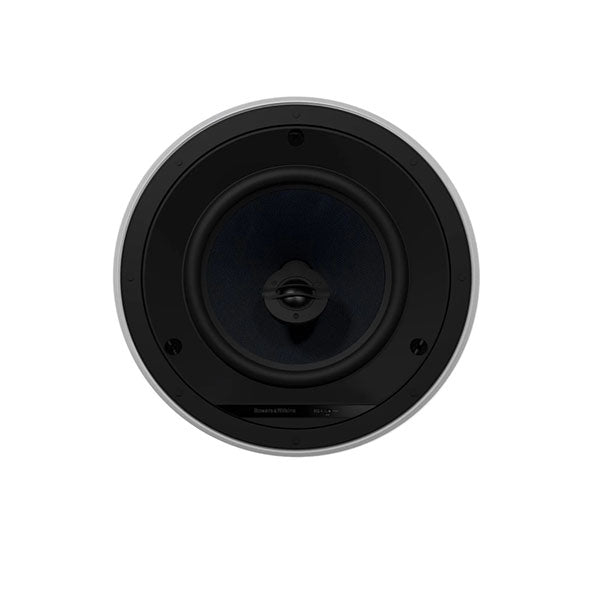

Bowers & Wilkins CCM684
The CCM684 is a high-performance ceiling speaker that’s simple to install and use. Its two-way design features a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. Plus, the tweeter housing pivots for an adjustable off-axis treble response.
Bowers & Wilkins CCM684 In Ceiling Speakers
2-way in-ceiling system
1x ø25mm (1in) soft dome tweeter
1x ø200mm (8in) black glassfibre cone bass/midrange
35Hz - 35kHz
25 - 130w
88dB
8Ω (4.5Ω)
Frame Dimensions
Frame Diameter: 11.4 "
Depth Behind Surface: 5.2 "
Cut-out diameter: 9.8 " Protrusion: 0.2 "
C8
C6
Shipping: 10 lbs
714346311736
CI 600 Series
1x ø25mm (1in) soft dome tweeter
1x ø200mm (8in) black glassfiber cone bass/midrange
8Ohms (minimum 4.5Ohms)
88 dB
Recommended amplifier power 20W – 130W
