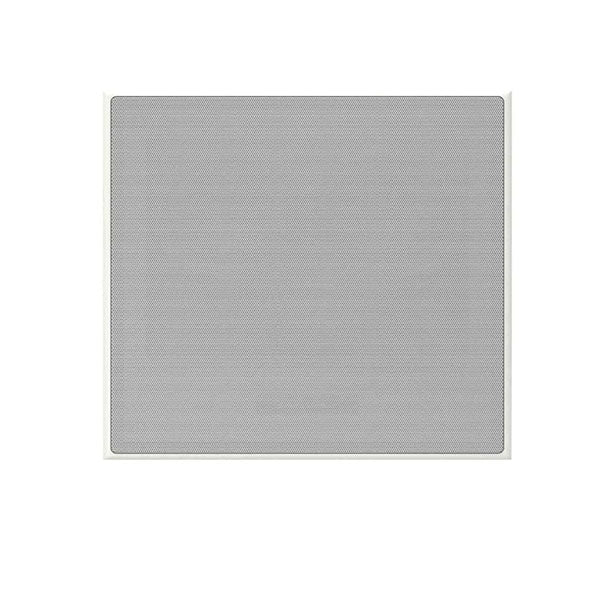

Bowers & Wilkins CCM7.3 S2
The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers.
Bowers & Wilkins CCM7.3 S2
Sale price
Regular price (/)
Bowers & Wilkins CCM7.3 S2 3-way Square type Internally Angled In-ceiling Speaker
- It has 3-Way configuration sound system.
- It has 1x Ø 25mm (1in) Carbon Dome high-frequency driver.
- It has 1x Ø 100mm (4in) Continuum cone FST midrange driver.
- It has 2x Ø 130mm (5in) Aerofoil profile bass driver.
- It deliver attenuates sound transfer between spaces and optimises sound quality.
Design
3-way in-ceiling system
Technical Features
Carbon Dome tweeter
Continuum cone FST midrange
Aerofoil profile bass cones
Drive units
1x Ø 25mm (1") Carbon Dome high-frequency
1x Ø 100mm (4") Continuum cone FST midrange
2x Ø 130mm (5") Aerofoil profile bass
Frequency range (-6dB)
-6dB at 52Hz and 33kHz
Frequency Response -3dB
55Hz - 28kHz ±3dB
Sensitivity
90dB spl (2.83Vrms, 1m)
Impedance Nominal (min)
8 Ohm (Minimum 3.1 Ohm)
Recommended amplifier power
25W - 200W into 8 Ohm on unclipped program
PMK
7C
Frame Height
14"
Frame Width
14"
Cutout Height
13.1"
Cutout Width
13.1"
Height With PMK
13.2"
Width With PMK
13.2"
Protrusion
0.3"
Depth
7.66"
Unit
19.84 lbs
Shipping
23 lbs
