Bowers & Wilkins CCM7.5 S2

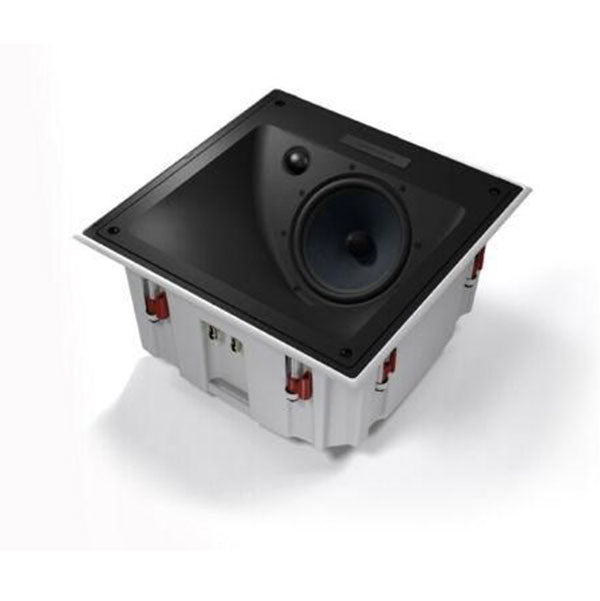

High-performance in-ceiling speaker with a 1" Carbon Dome tweeter and 7" Continuum cone, angled design for optimal sound direction. Designed for down-firing, in-ceiling use, CCM7.5 S2 can be used as the left, centre, right and rear-channel rear speakers in a discreet home cinema system. It features a 25mm (1in) Carbon Dome tweeter and a 180mm (7in) Continuum cone mid/ bass cone angled to the mounting surface to ensure you hear the correct balance of sound.
Bowers & Wilkins CCM7.5 S2 2 Way In-Ceiling Speaker
- It has 2-Way sound configuration system.
- It has 1xØ 25mm (1in) Carbon Dome high-frequency driver.
- It has 1x Ø 180mm (7in) Continuum cone mid/bass driver.
- It has unique QuickDogsTM fixing method.
2-way in-ceiling system
Carbon Dome tweeter
Continuum mid/bass
1x Ø 25mm (1") Carbon Dome high-frequency
1x Ø 180mm (7") Continuum cone mid/bass
-6dB at 25Hz - 33kHz
32Hz - 28kHz ±3dB
90dB spl (2.83Vrms, 1m)
2nd and 3rd harmonics (90dB, 1m)
<1% 70Hz - 33kHz
<0.5% 100Hz - 28kHz
8 Ohm (Minimum 4.8 Ohm)
25W - 150W into 8 Ohm on unclipped program
BB 6C
GR68SQ
Frame Diameter: 11.4"Depth (Behind Surface): 5"Cutout Diameter: 10"Protrusion: 0.33"
Unit: 6.83 lbs
Shipping: 10 lbs
714346332205
700 Series, Cinema 7 Series Marine Series
2nd and 3rd harmonics (90dB, 1m) <1% 70Hz - 33kHz
<0.5% 100Hz - 28kHz
1x ø25mm (1in) Carbon Dome high-frequency
1x ø180mm (7in) Continuum cone mid/bass
32Hz - 28kHz ±3dB
-6dB at 25Hz - 33kHz
8Ohms (4.8Ohms minimum)
90dB spl (2.83Vrms, 1m)
Recommended 25W - 150W into 8Ohms on unclipped program
Carbon Dome tweeter
