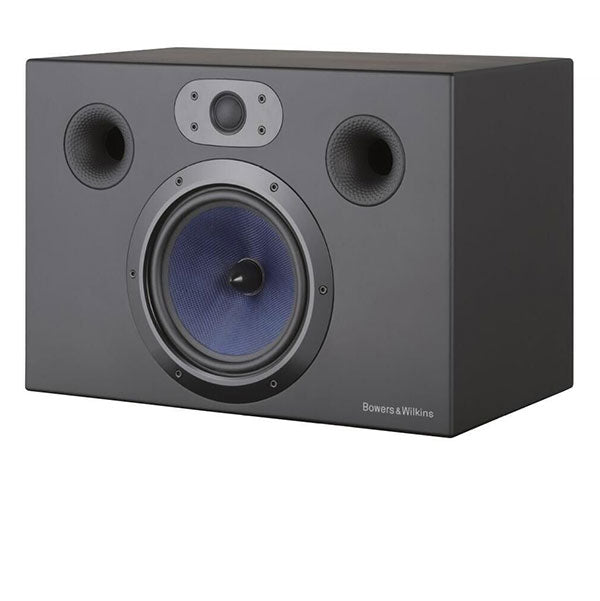

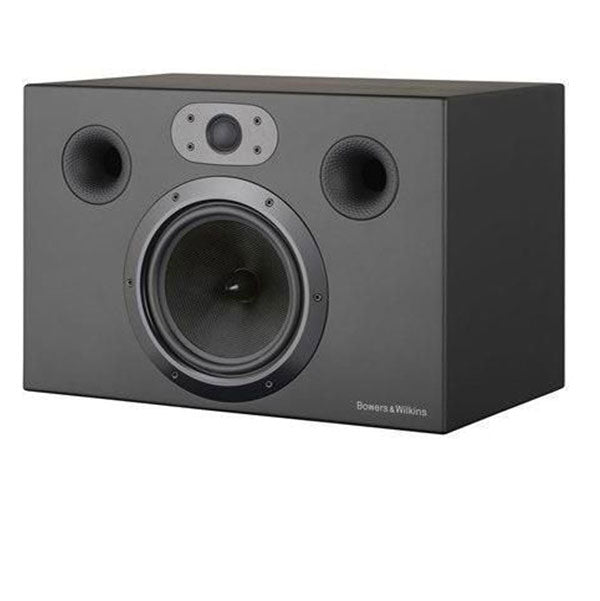

Bowers & Wilkins CT7.5 LCRS
The entry-level speaker in the range, the CT7.5 LCRS delivers outstanding spaciousness, imaging and definition through its single 7in Aramid Fibre CT700 Series bass/midrange drive unit.
Bowers & Wilkins CT7.5 LCRS
Sale price
Regular price (/)
Bowers & Wilkins CT7.5 LCRS On wall speakers
- It has 2-Way configuration sound system.
- It has Nautilus tube-loaded tweeter drivers.
- It has Aramid Fibre bass/midrange cone Flowport driver.
- It delivers outstanding spaciousness, imaging and definition through its single 7 inch Aramid Fibre.
- It has Magnetically attached grille.
Description
2-way vented-box system
Drive units
1x ø25mm (1 in) cloth dome high-frequency
1x ø180mm (7 in) woven Kevlar® cone bass/midrange
Frequency range
6dB at 48Hz and 28kHz
Frequency response
55Hz – 22kHz ±3dB on reference axis
Dispersion
Within 2dB of reference response
Horizontal: over 60º arc
Vertical: over 10º arc
Sensitivity
92dB spl (2.83V, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 100Hz – 20kHz
Nominal impedance
8Ω (minimum 4.6Ω)
Crossover frequency
4kHz
Recommended amplifier power
50W – 120W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
DimensionsDimensions
Height: 305mm (12 in)
Width: 444mm (17.5 in)
Depth: 265mm (10.5 in)
Depth with grille: 288mm (11.3 in)
Net Weight
11.6kg (25.6 lb)
Finishes
Cabinet Black painted
Grille Black cloth
