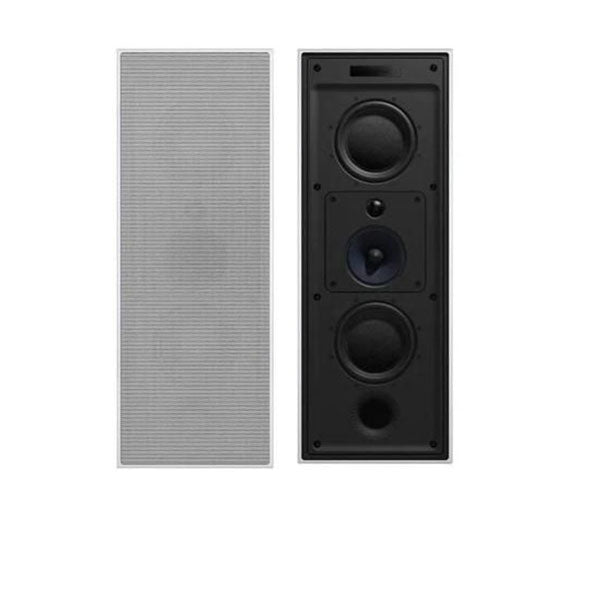

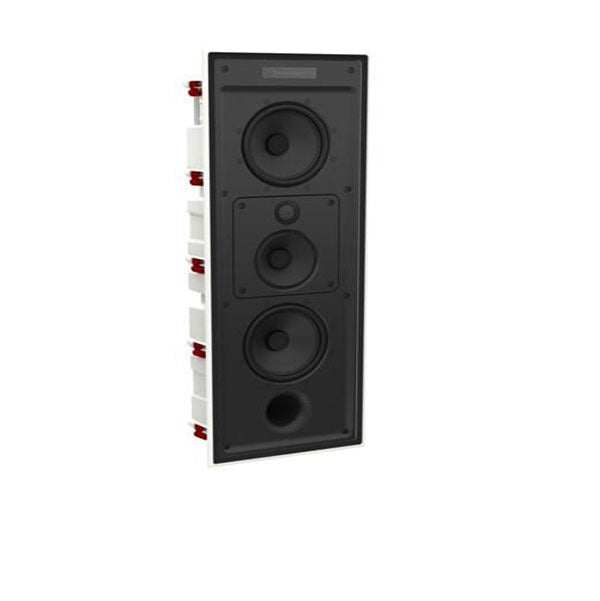

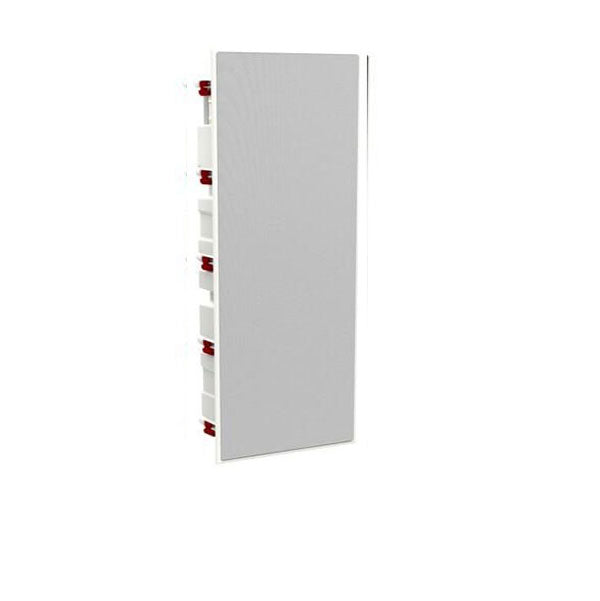

Bowers & Wilkins CWM7.3 S2

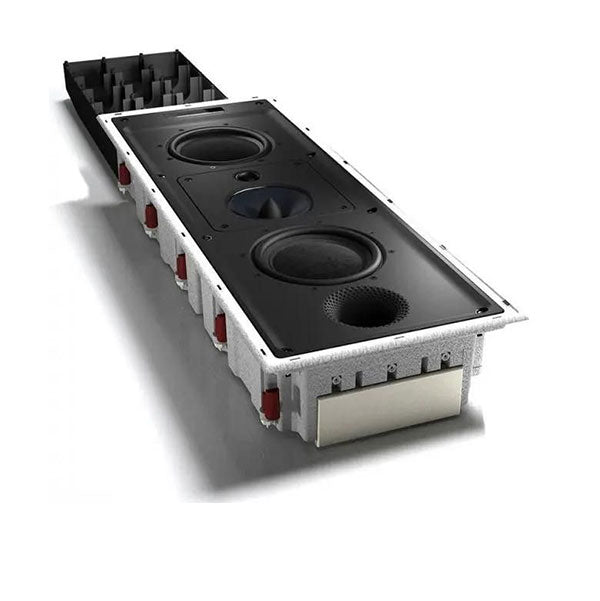

The CWM7.3 S2 features an integrated backbox that optimises its performance, cuts down on sound transference through walls and also makes it easy to retrofit. Its design incorporates twin 150mm (6in) Aerofoil profile bass drivers, a 100mm (4in) Continuum cone FSTTM mid-range driver and a Carbon Dome 25mm (1in) tweeter.
Bowers & Wilkins CWM7.3 S2 In Wall Speakers
- It has 3-Way sound configuration system.
- It has 1x Ø 25mm (1 in) Carbon Dome high-frequency drivers.
- It has 1x Ø 100mm (4 in) Continuum cone FST midrange driver.
- It has 2x Ø 150mm (6 in) Aero-foil profile bass driver.
- It gives center channel for stellar quality, crystal clear dialogue and center-stage sound effects.
CWM7.3-S2
back , white
Frame height:736mm (29in)
Frame width:276mm (11in)
Depth (behind surface):102mm (4.02in)
Cut-out height:711mm (28in)
Cut-out width:251mm (9.9in)
Cut-out width with w/PMK:715mm (28.1in)
Cut-out width w/PMK:256mm (10.1in)
Reservoir box height:460mm (18.1in)
Reservoir box width:220mm (8.7in)
Protrusion:7mm (0.28in)
12.4 kg
3-way in-wall system
1x ø25mm (1 in) Carbon Dome high-frequency
2x ø100mm (4 in) Continuum cone mid/bass
2x ø150mm (6 in) Aerofoil profile bass
-6dB at 43Hz and 33kHz
45Hz - 28kHz ±3dB
90dB spl (2.83Vrms, 1m)
2nd and 3rd harmonics (90dB, 1m)
<1% 80Hz - 33kHz
<0.5% 120Hz - 33kHz
8Ω (minimum 3.1Ω)
25W - 200W into 8© on unclipped programme
7.3W
Back box: White Grille: White
