Bowers & Wilkins CWM7.4 S2

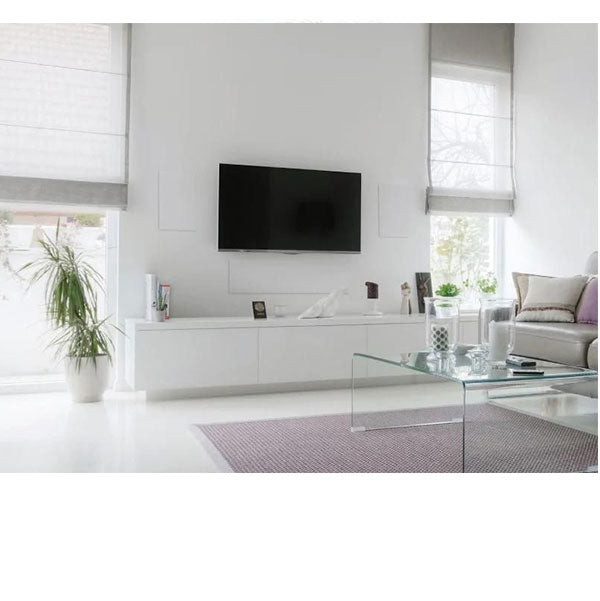

Experience rich, detailed audio with Bowers & Wilkins CWM7.4 S2 in-wall speaker. Ideal for home cinema setups. Easy to install, high-end sound—perfect for immersive listening. Designed for wall-mounted left, centre and right speaker positions in a discreet home cinema system, CWM7.4 S2 can also be mounted beside, above or below the screen. Its 2.5-way configuration features a single Carbon Dome tweeter, twin 100mm (4in) Continuum cone midrange units and twin 100mm (4in) Aramid Fibre/paper bass cones.
Bowers & Wilkins CWM7.4 S2 In Wall Speakers
- 2.5-way in-wall system
- 1" Carbon Dome Tweeter
- 2 x 4" Continuum Cone Midrange
- 2 x 4" Aramid Fibre/Paper Bass
- 25 - 150W
Carbon Dome tweeter / Continuum midrange / Aramid Fibre/Paper bass cones
2½-way in-wall system
1x ø25mm (1 in) Carbon Dome high-frequency / 2x ø100mm (4 in) Continuum cone mid/bass / 2x ø100mm (4 in) Aramid Fibre/Paper profile bass
-6dB at 43Hz - 33kHz
45Hz - 28kHz ±3dB
86dB spl (2.83Vrms, 1m)
2nd and 3rd harmonics (90dB, 1m) / <1% 80Hz - 33kHz / <0.5% 120Hz - 33kHz
8Ω (minimum 4.9Ω)
25W - 150W into 8Ω on unclipped program
714346332007
700 Series
2nd and 3rd harmonics (90dB, 1m)
<1% 80Hz - 33kHz
<0.5% 120Hz - 33kHz
1x ø25mm (1 in) Carbon Dome high-frequency
2x ø100mm (4 in) Continuum cone mid/bass
2x ø100mm (4 in) Aramid Fibre/Paper profile bass
45Hz - 28kHz ±3dB
-6dB at 43Hz - 33kHz
8Ohms (minimum 4.9Ohms)
86dB spl (2.83Vrms, 1m)
Recommended 25W - 200W into 8Ohms on unclipped program
Carbon Dome tweeter
