Bowers & Wilkins HTM81 D4
The centre-channel speaker is arguably the most important in home theatre – and the HTM81 D4 has an enviable array of advanced technologies to reinforce that point, including Solid Body tweeter-on-top, a decoupled Continuum™ Cone midrange drive unit and twin 200mm (8-in) Aerofoil™ bass cones.
Bowers & Wilkins HTM81 D4 center-channel speaker
- Diamond tweeter.
- Solid body Tweeter-on-Top.
- Continuum cone FSTâ„¢.
- Anti-Resonance plug.
- Biomimetic Suspension.
- Matrixâ„¢.
- Aerofoil cone bass units.
- The HTM81 D4 is ideal for uncompromised home theatre listening.
Height: 334mm (13.1 in)
Width: 847mm (33.3 in)
Depth: 371mm (14.6 in)
32.20kg (71 lb)
Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ cone bass units
Flowport
3-way vented-box system
1x ø25mm (1in) Diamond dome high-frequency
1x ø150mm (6in) Continuum cone FST midrange
2x ø200mm (8in) Aerofoil cone bass units
20Hz to 35kHz
28Hz to 28kHz (+/-3dB from reference axis)
90dB (on axis at 2.83Vrms at 1m)
2nd and 3rd harmonics (90dB,1m on axis)
<1% 80Hz – 20kHz
<0.3% 100Hz – 20kHz
8Ω (minimum 3.0Ω)
50W – 500W into 8Ω on unclipped programme
0.1Ω
Gloss Black
White
Black
Grey

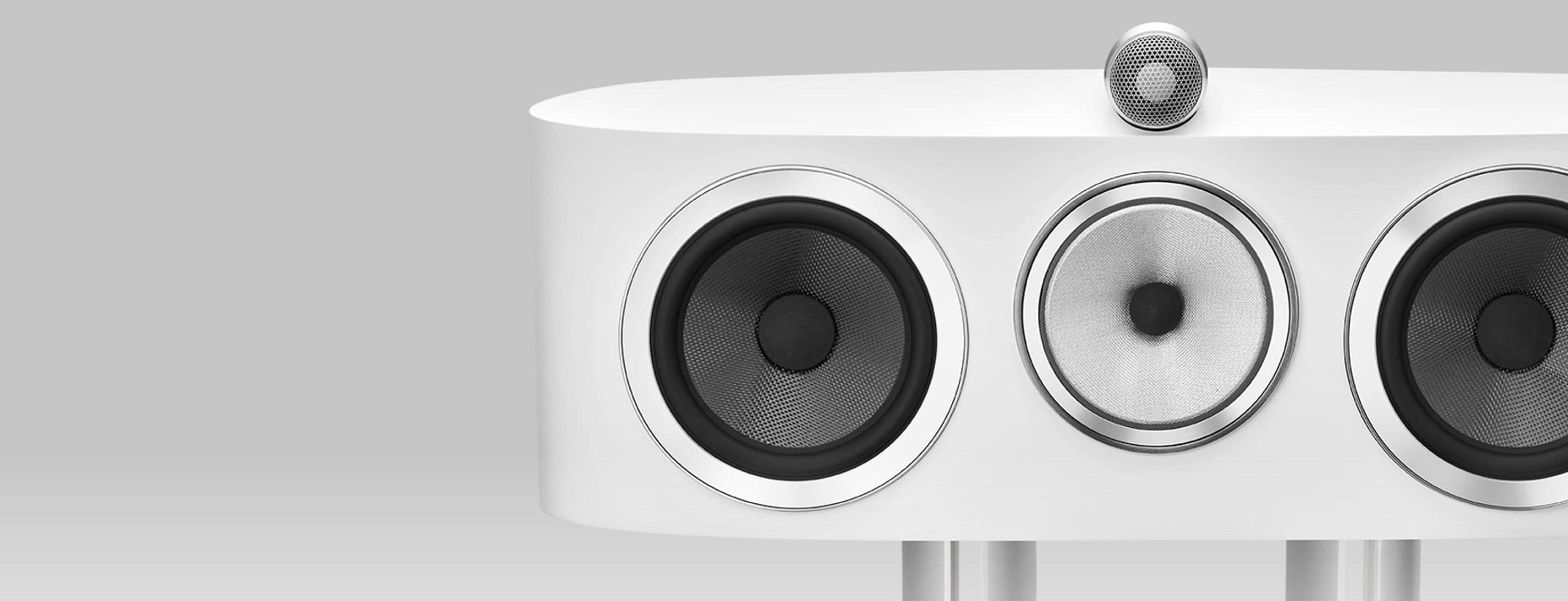

At the center of it all
The center-channel speaker is arguably the most important in home theater – and the HTM81 D4 has an enviable array of advanced technologies to reinforce that point, including Solid Body tweeter-on-top, a decoupled Continuum™ Cone midrange drive unit and twin 200mm (8-in) Aerofoil™ bass cones.

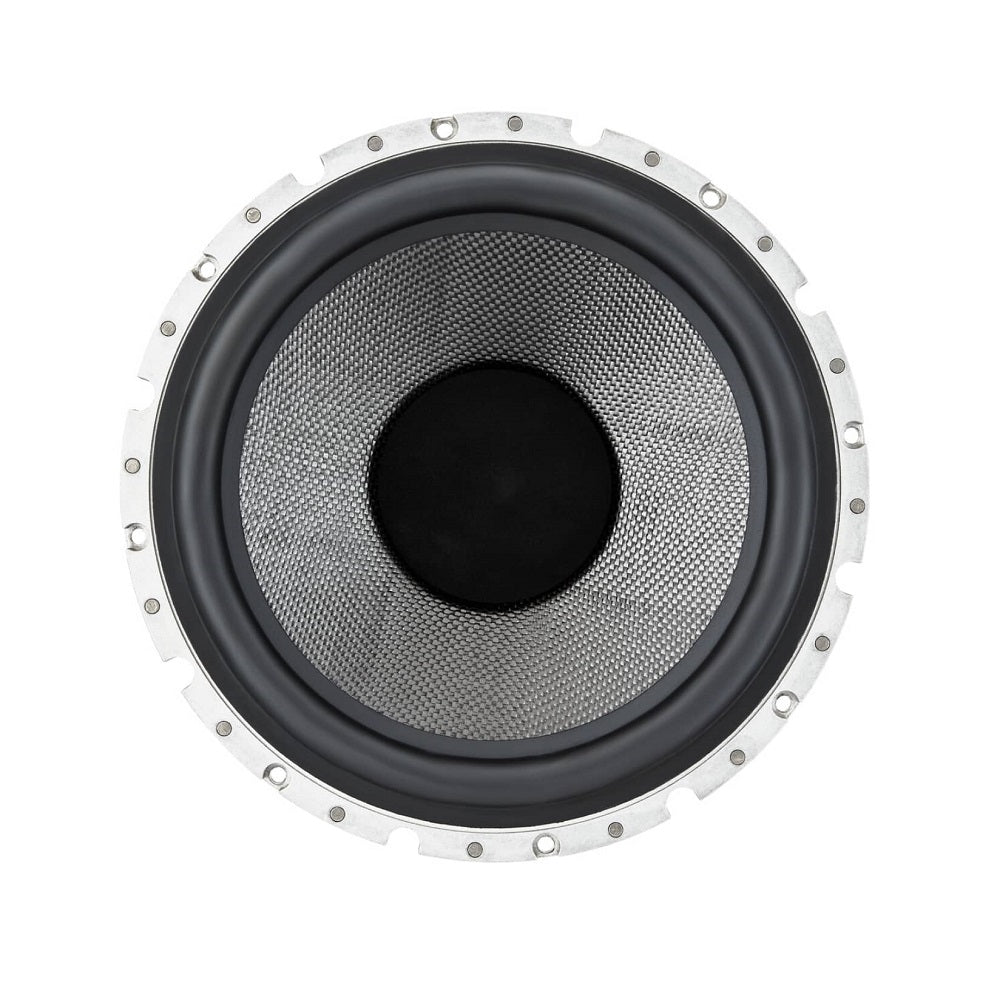

Aerofoil bass cone
Our Aerofoil bass cone technology remains an outstanding solution to the conundrum of combining low mass and high stiffness in bass cones, thanks to its carbon-fiber skin and variable-profile foam core. Now, we have added the foam Anti-Resonance Plug for lower distortion and even cleaner bass.

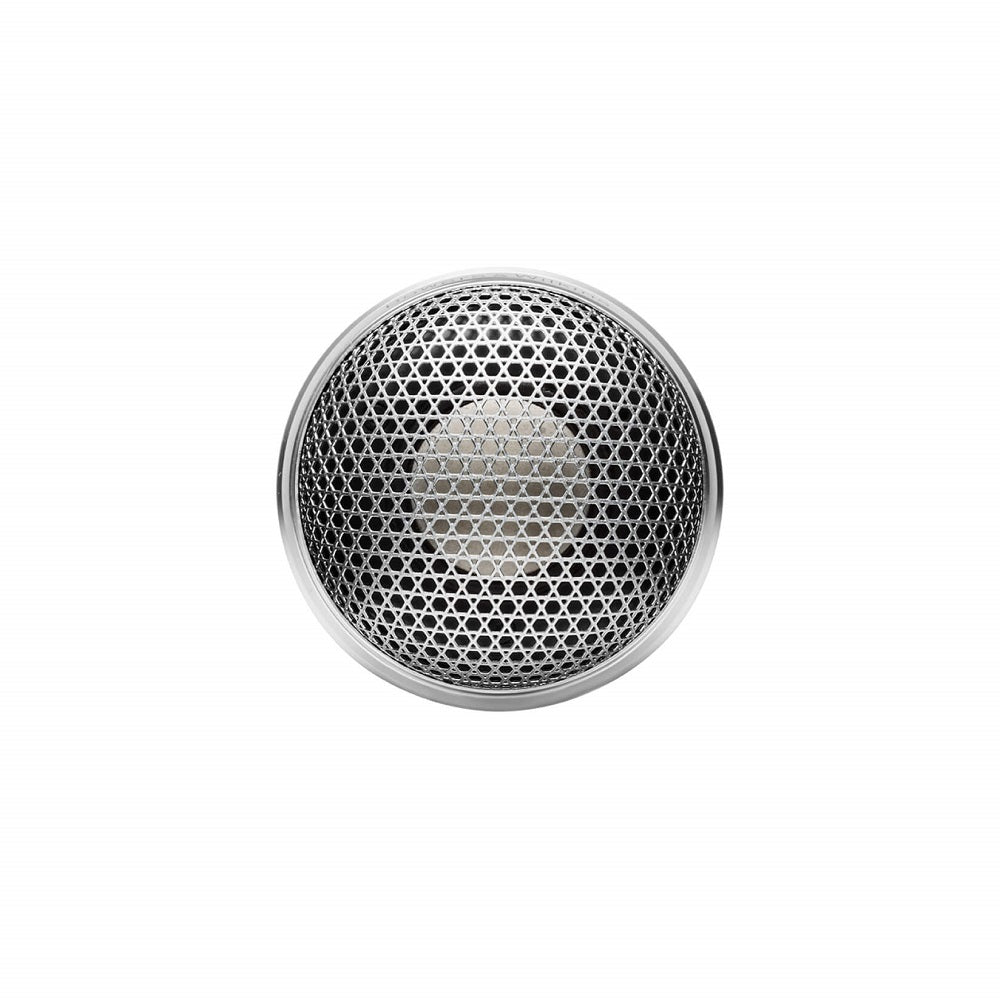

Diamond dome tweeter
One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond dome tweeter is the perfect combination of low mass, exceptional stiffness and outstanding accuracy. 15 years after we introduced it, we haven’t found a better tweeter dome technology.

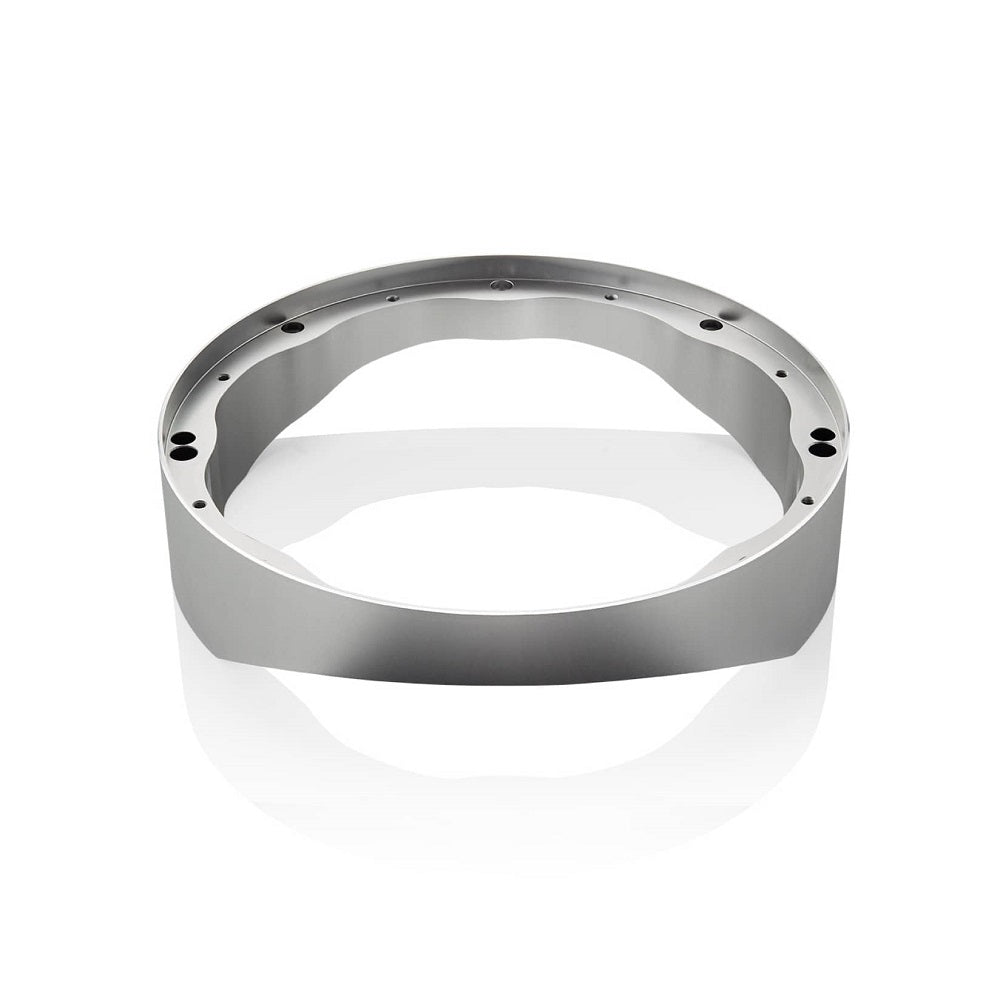

Aluminum bass pods
HTM81 D4 mounts two Aerofoil bass cones in twin solid aluminum bass pods, each of which is clamped into an aluminum plate fixed to the stiffest part of its curved cabinet. Formed as single pieces of metal, these stiff structures provide the perfect mechanical location for those powerful bass cones.

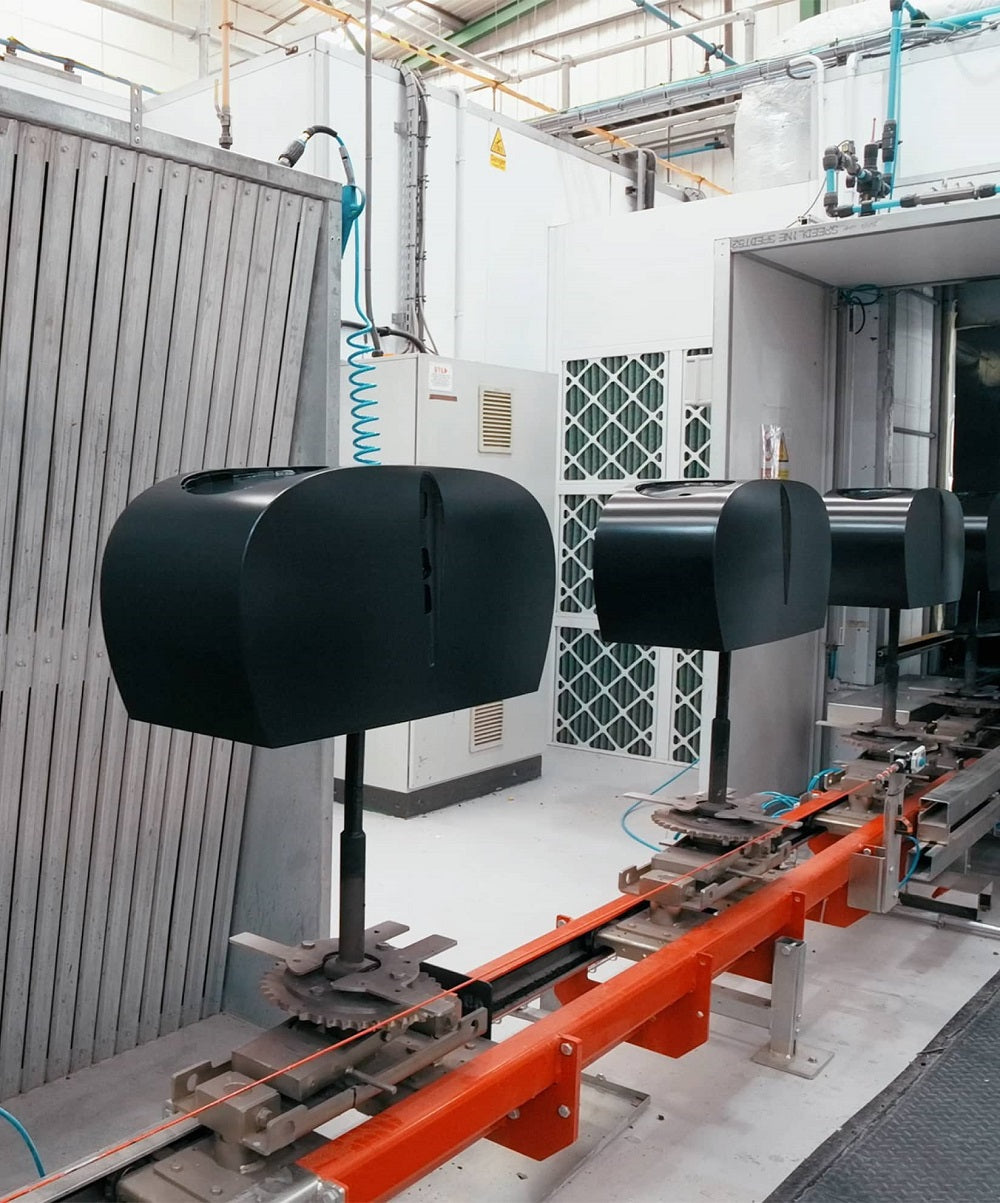

The science of sound
Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.
