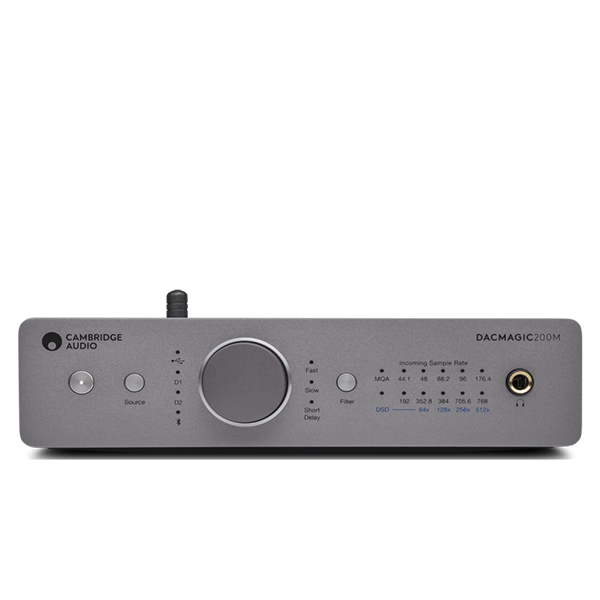

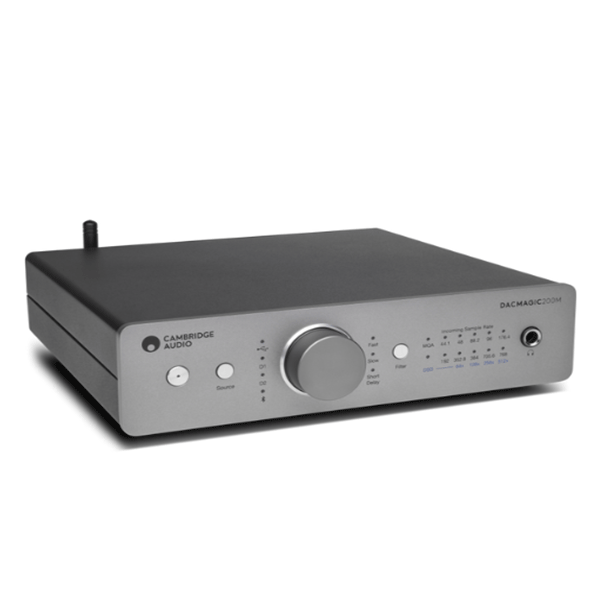

Cambridge Audio DacMagic 200M
The Cambridge Audio DacMagic 200M is a high-performance digital-to-analog converter (DAC) and headphone amplifier designed to elevate your audio experience. With its advanced features and versatile connectivity options, it caters to audiophiles seeking pristine sound quality from various digital sources.
Cambridge Audio DacMagic 200M Digital to Analogue Converter
- Dual ESS SABRE ES9028Q2M Reference DACs – one per channel, handles digital audio up-to 24-bit/768kHz or DSD512
- Digital Inputs: 2 pairs of optical & coaxial terminals, plus USB Audio – for audio sources incl. CD & Blu-ray players, laptops, games consoles etc.
- Analogue Outputs: ¼” headphone, XLR & RCA connectors – for max. versatility
- Bluetooth aptX input – wirelessly receive digital audio from smart devices
- Supports MQA – for approved studio-quality digital audio
- Compact half-width hi-fi unit – available in lunar grey or special edition black
Dual ESS ES9028Q2M DACs
Selectable, Fast – Slow – Short delay
10Hz to 50kHz (±1dB)
<0.0005% (A-Weighted)
>115dB (A-Weighted)
< -110dB
<50 Ohms (unbal), <100 Ohm (bal)
2.1V rms (fixed or variable – user selectable)
4.2V rms (fixed or variable – user selectable)
16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-24bit (USB)
44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB)
Full decoding (Core + Renderer)
v4.2, A2DP profile, SBC and AptX codecs
Yes
< 0.001% at 1kHz 0dBFS @ 100mW into 32ohm
> 115dB (A-Weighted)
>300mW @ 32ohm, >65mW @ 150ohm
10 Ohm to 600 Ohm
52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)
1.2kg/2.6lbs
Why You Need Some DacMagic
Perhaps your vintage amp lacks the digital inputs for today’s listening choices. Maybe the DACs in your hi-fi setup just need a helping hand. Or you hate how your computer down-samples audio streams before they’ve hit your headphones. One thing’s for sure, DacMagic 200M is a dedicated hi-fi separate that beats integrated DACs for pure sound performance.
Why You Need Some DacMagic
Perhaps your vintage amp lacks the digital inputs for today’s listening choices. Maybe the DACs in your hi-fi setup just need a helping hand. Or you hate how your computer down-samples audio streams before they’ve hit your headphones. One thing’s for sure, DacMagic 200M is a dedicated hi-fi separate that beats integrated DACs for pure sound performance.

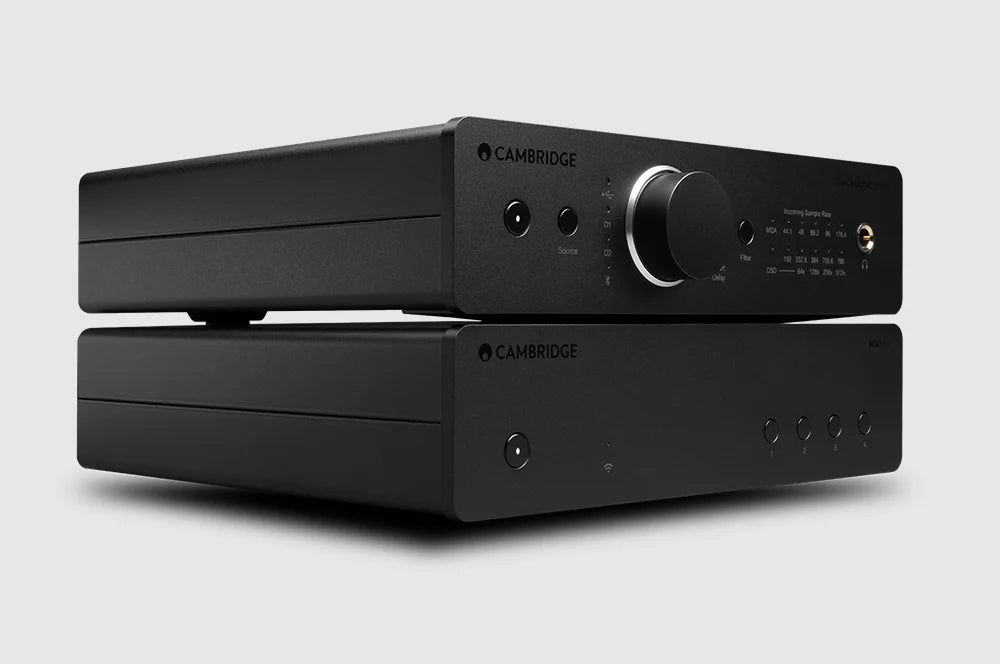

Desktop Dream Team
DacMagic 200M can be used with a variety of digital sources, maybe kit you already own. Alternatively, you can pair it with its sibling – our MXN10 compact network player. These half-width hi-fi heroes share the same family look and are now available in a choice of special edition black or lunar grey. Together they make a very credible desktop hi-fi system – or ‘head-fi’ if you prefer.
Desktop Dream Team
DacMagic 200M can be used with a variety of digital sources, maybe kit you already own. Alternatively, you can pair it with its sibling – our MXN10 compact network player. These half-width hi-fi heroes share the same family look and are now available in a choice of special edition black or lunar grey. Together they make a very credible desktop hi-fi system – or ‘head-fi’ if you prefer.

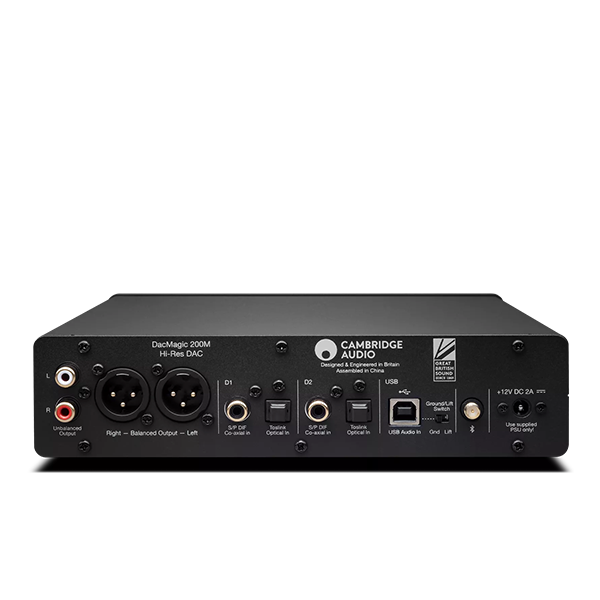

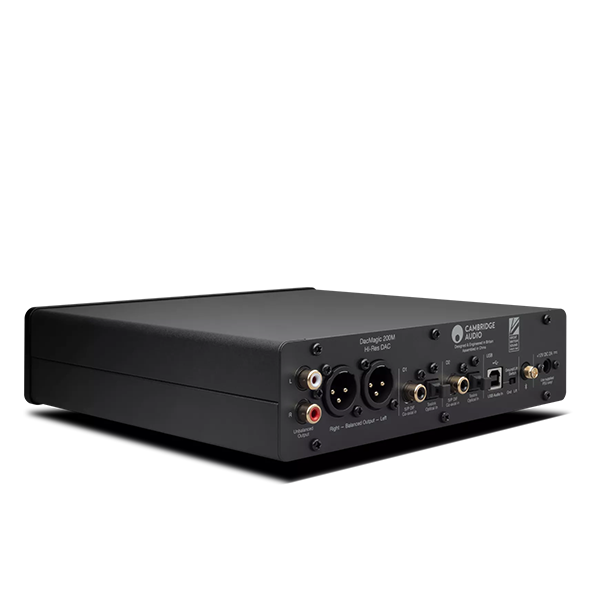

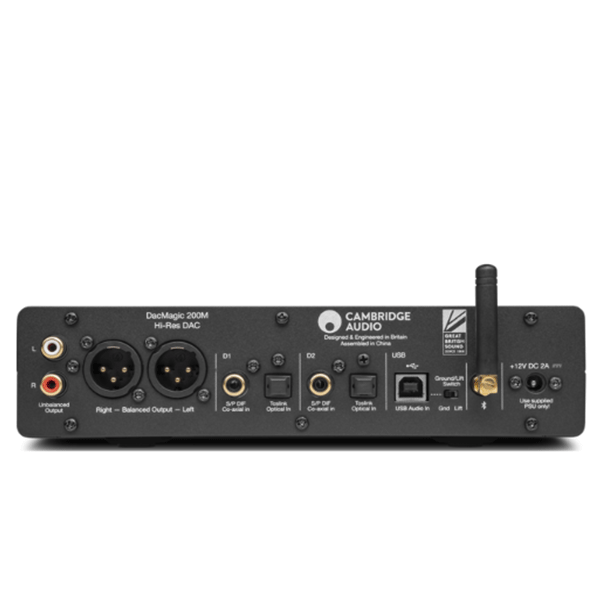

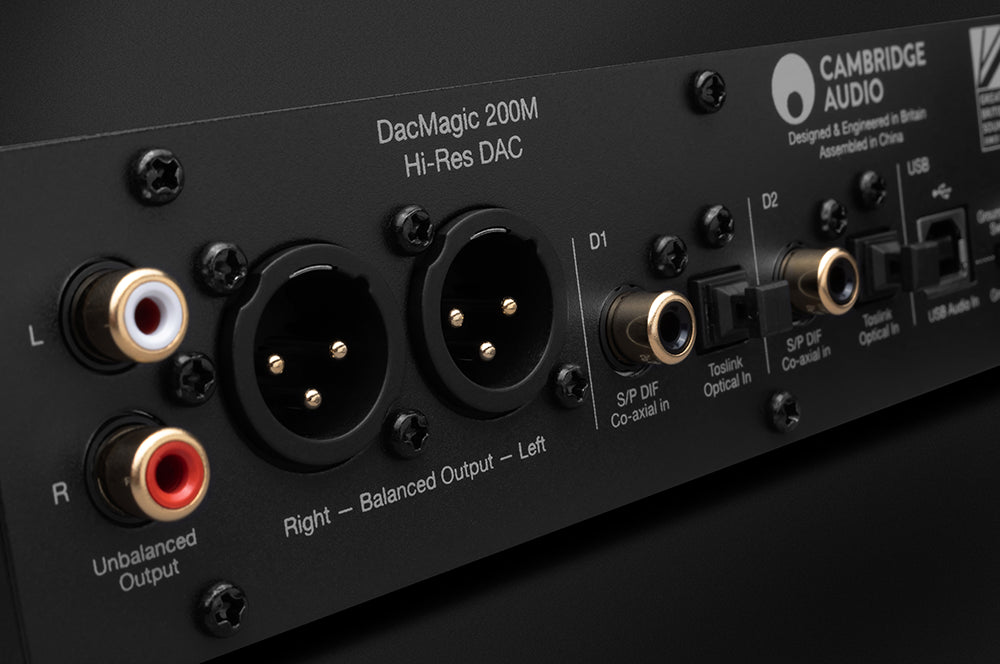

Vital Connections
Being compact, but not miniscule, means that DacMagic 200M has room for a plethora of digital inputs and analogue outputs. Two pairs of co-ax and optical inputs, a USB computer in and Bluetooth aptX for wireless connection keep the most demanding listener happy. A pair of balanced XLRs, unbalanced RCAs and a ¼” (6.3mm) headphone-out complete the picture.
Vital Connections
Being compact, but not miniscule, means that DacMagic 200M has room for a plethora of digital inputs and analogue outputs. Two pairs of co-ax and optical inputs, a USB computer in and Bluetooth aptX for wireless connection keep the most demanding listener happy. A pair of balanced XLRs, unbalanced RCAs and a ¼” (6.3mm) headphone-out complete the picture.
Sounds Like Team Spirit
Looking for fast, accurate retrieval with no upsampling to keep your music intact? Then DacMagic 200M’s powerful XMOS processor can handle 1000 million instructions per second, to send digital information to the dual DACs, which work asynchronously at a clock speed of 100Mhz to convert digital to analogue in a ‘bit perfect’ way.
Sounds Like Team Spirit
Looking for fast, accurate retrieval with no upsampling to keep your music intact? Then DacMagic 200M’s powerful XMOS processor can handle 1000 million instructions per second, to send digital information to the dual DACs, which work asynchronously at a clock speed of 100Mhz to convert digital to analogue in a ‘bit perfect’ way.

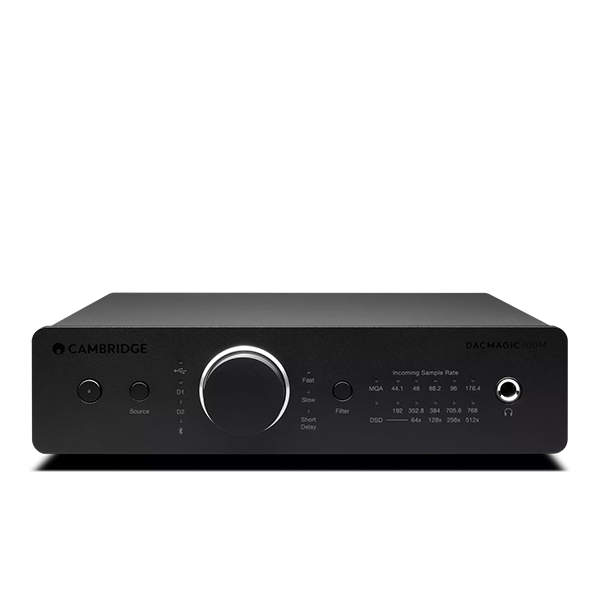

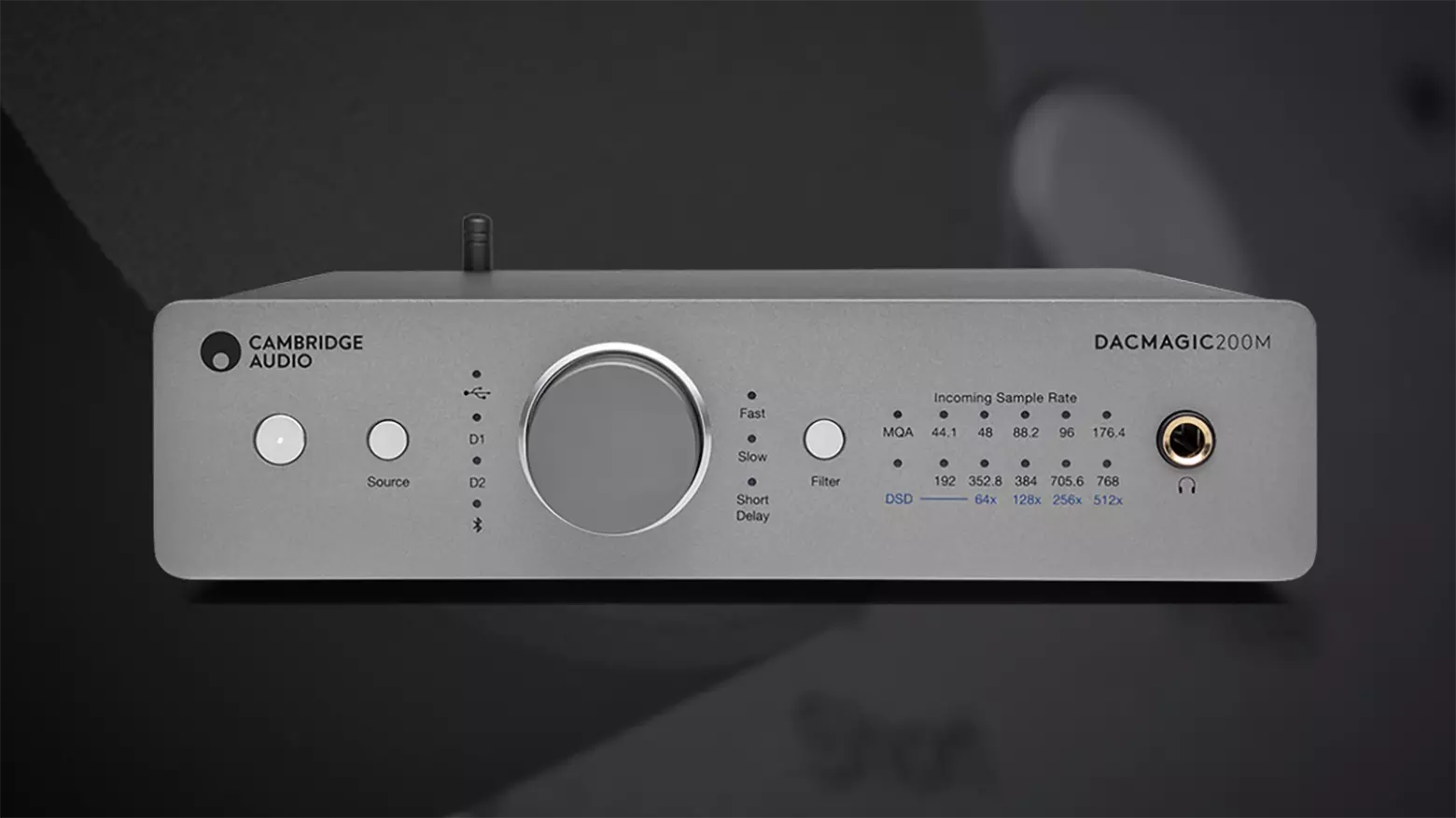

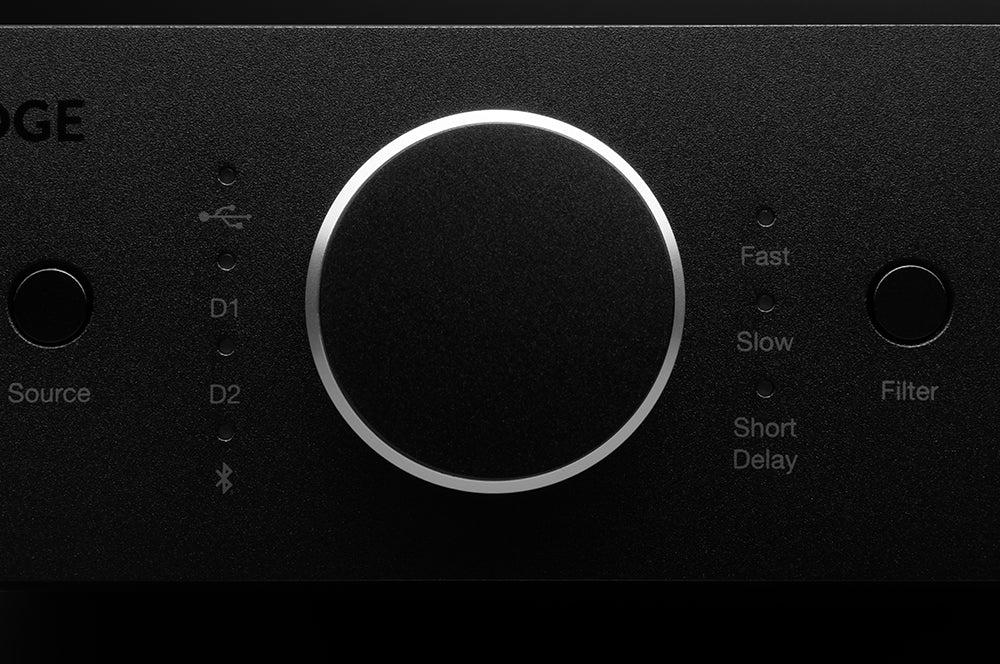

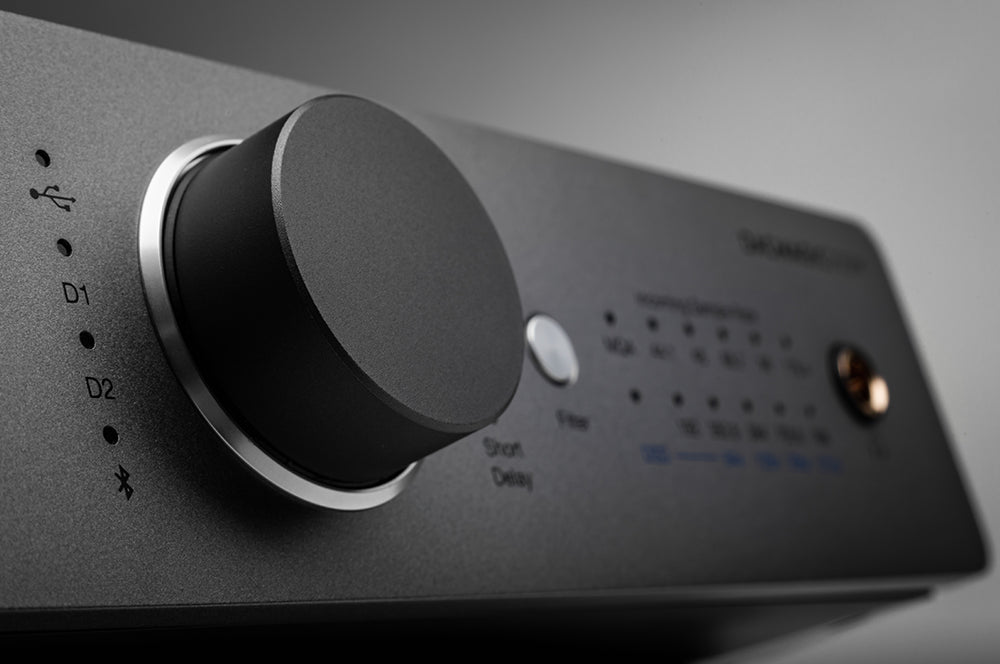

Choice and Status

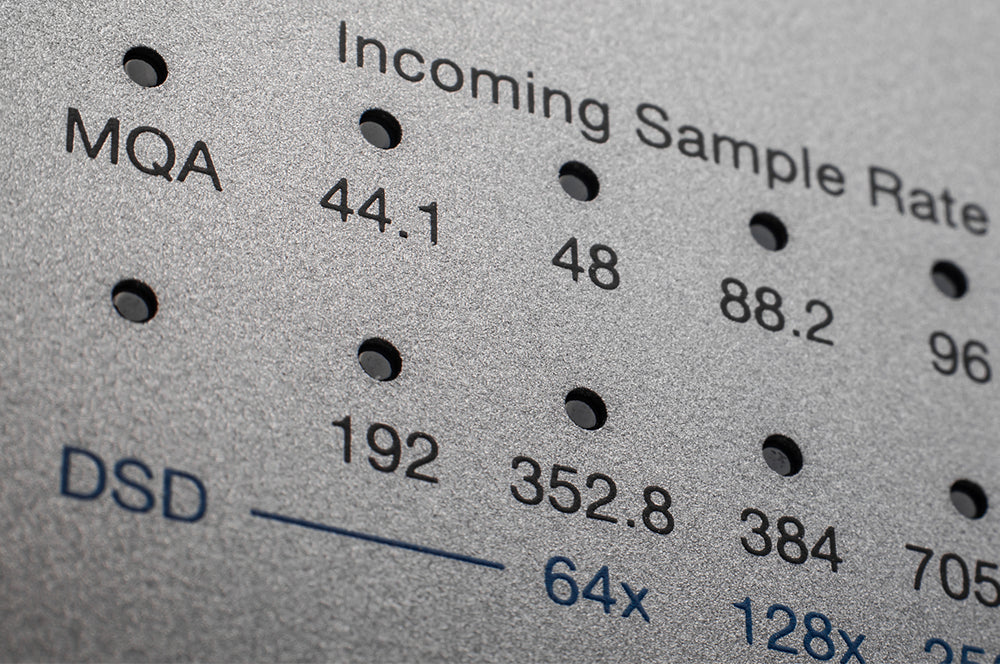

DacMagic 200M’s aluminium fascia has a button to select one of 4 possible digital inputs, another to pick one of 3 digital filters to suit your listening taste, and a volume control if you’re using it as a headphone amp. There are LED lights to confirm your input and filter selection, with additional ones that indicate the incoming music resolution.
Choice and Status
DacMagic 200M’s aluminium fascia has a button to select one of 4 possible digital inputs, another to pick one of 3 digital filters to suit your listening taste, and a volume control if you’re using it as a headphone amp. There are LED lights to confirm your input and filter selection, with additional ones that indicate the incoming music resolution.

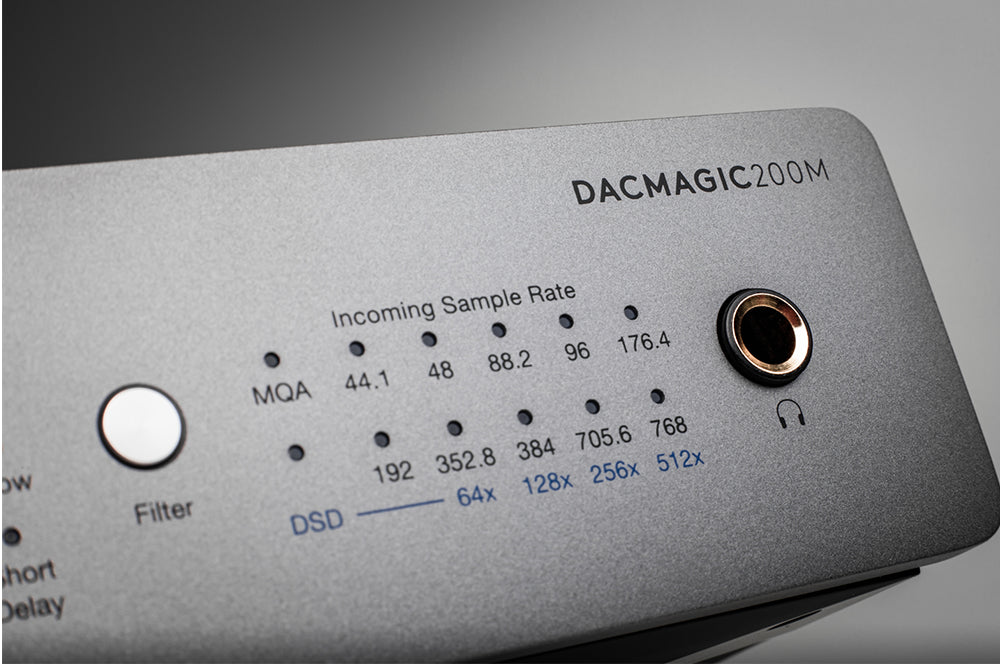

MQA: Studio Quality Audio
If you’re signed up to Tidal’s premium service, you can enjoy MQA music files. A green LED, on DacMagic 200M’s fascia, confirms it’s a genuine MQA music file. While a blue MQA LED indicates that you’re listening to a file approved by the artist/producer or verified by the copyright holder as accurate to the original recording. Put simply, blue is best.
MQA: Studio Quality Audio
If you’re signed up to Tidal’s premium service, you can enjoy MQA music files. A green LED, on DacMagic 200M’s fascia, confirms it’s a genuine MQA music file. While a blue MQA LED indicates that you’re listening to a file approved by the artist/producer or verified by the copyright holder as accurate to the original recording. Put simply, blue is best.

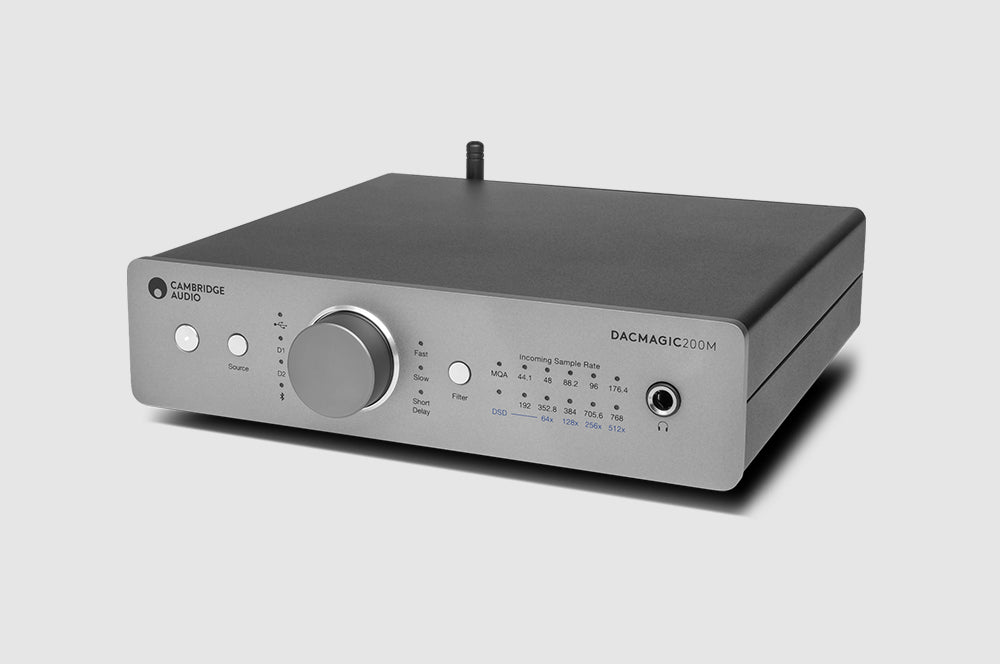

Designed for Real Life
DacMagic 200M’s small enough to fit a desktop, but big to hold its own in a stack. Within its half-width hi-fi separates form, it delivers a sonic upgrade that’s way bigger than the steel and aluminium case it comes in – now in a choice of lunar grey or special edition black finish. Take our 60-day home trial to hear it for yourself.
Designed for Real Life
DacMagic 200M’s small enough to fit a desktop, but big to hold its own in a stack. Within its half-width hi-fi separates form, it delivers a sonic upgrade that’s way bigger than the steel and aluminium case it comes in – now in a choice of lunar grey or special edition black finish. Take our 60-day home trial to hear it for yourself.
