Cambridge Audio EXA100
The beating heart of EX, our EXA100 integrated amplifier took three years to develop; more than a thousand dedicated days of tuning at our London HQ has created a massive step up in power and performance from the CX Series amps.
Cambridge Audio EXA100 Integrated Stereo Amplifier

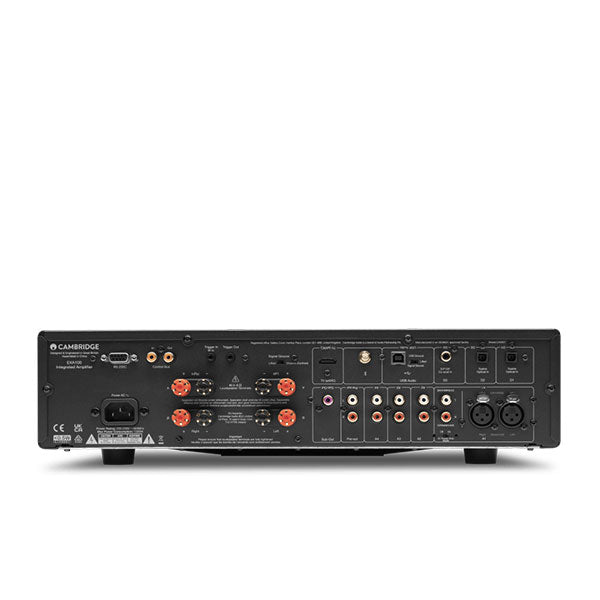

- Digital Connectivity: Get your TV, CD, USB drives and more connected via HDMI eARC, TOSLINK, Coaxial & USB Audio digital inputs
- Balanced XLR Inputs: Enjoy the best possible analogue sound quality with these premium analogue connections.
- ESS ES9018K2M SABRE32 DAC: For exceptional digital-to-analogue conversion; tuned in London like no other for peak performance.
- Power Amp Mode: For use with a dedicated preamp or as part of a multi-channel system.
- Dual Speaker Zones: Why limit the fun to just one room? Two sets of speaker outputs offer a second zone option.
100W RMS into 8 Ohms @ <1%THD+N, 155W RMS into 4 Ohms @ 1kHz <1%THD+N
Class-A/B
ES9018K2M
Yes
<3Hz – >40kHz +/-1dB
Yes
Yes
4 pairs
1 pair
2
1
USB Type B conforming to USB Audio Class 1 or USB Audio Class 2 (user selectable)
5.0 aptX HD
1 (eARC compatible)
RCA pre-out
Yes
1 x RCA
Yes
TOSLINK: 16/24-bit 32-96kHz
Coax SPDIF: 16/24-bit 32-192kHz
PCM up to 24bit/192kHz
USB Audio Class 1: Up to 24-bit 96kHz (asynchronous) | USB Audio Class 2: Up to 24-bit 384kHz (asynchronous) and up to DSD-256
5.0 A2DP/AVRCP supporting SBC, aptX and aptX HD codecs
Yes
<0.002% 1kHz at 80% of rated power (8 Ohms) | <0.02% 20Hz – 20kHz at 80% of rated power
>91 dB
>90
Input A2-A4 (unbalanced) 395mV RMS
Input A1 (balanced) 100 kOhm Input A2-A4 (unbalanced) 45 kOhm
>160 at 1kHz
1 x RCA
1200w
<0.5W
115 x 430 x 341mm (4.5 x 16.9 x 13.4”)
12.8kg (28.2Lbs)
Power cords, Remote control, Welcome letter, Registration Card, Safety guide
Digital Love
From its exceptional hi-res DAC to the HDMI eARC input and Bluetooth aptX HD, EXA100 is a digital audio powerhouse. Whatever music service or source device you choose, EXA100 will breathe new life into your digital sounds.

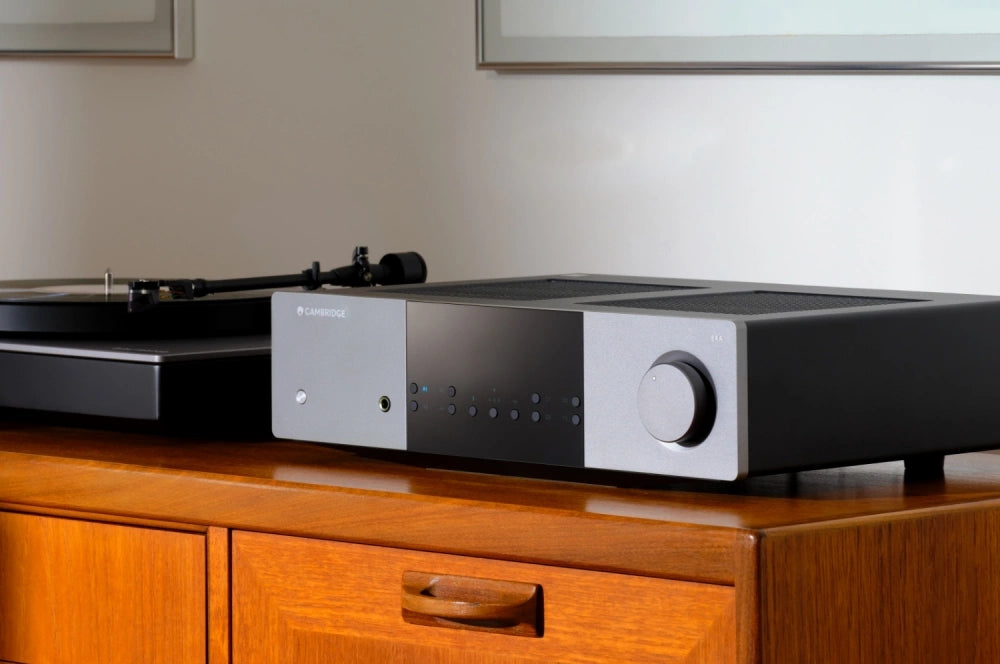

Different Class
Boosted by trickledown technology from our flagship Edge M monobloc power amplifier, EXA100 uses its 100W of beautifully refined Class AB amplification to drive even high-end speakers with ease.
Effortless power with bags of control.
Sounding Great Since 1968
Back in the Summer of Love, our P40 amplifier was the very first to feature a toroidal transformer – and transformed audio forever.

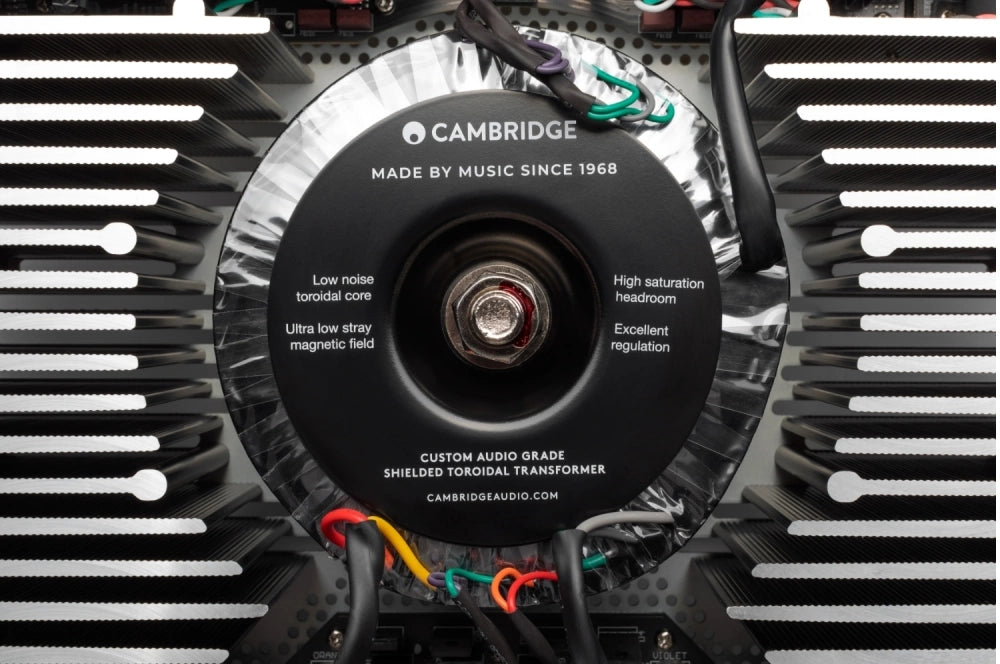

EXA100’s advanced toroidal transformer is amply shielded, super-quiet and flanked by heavy-duty heat sinks for impeccable performance that’s more than worthy of extending the P40 legacy.

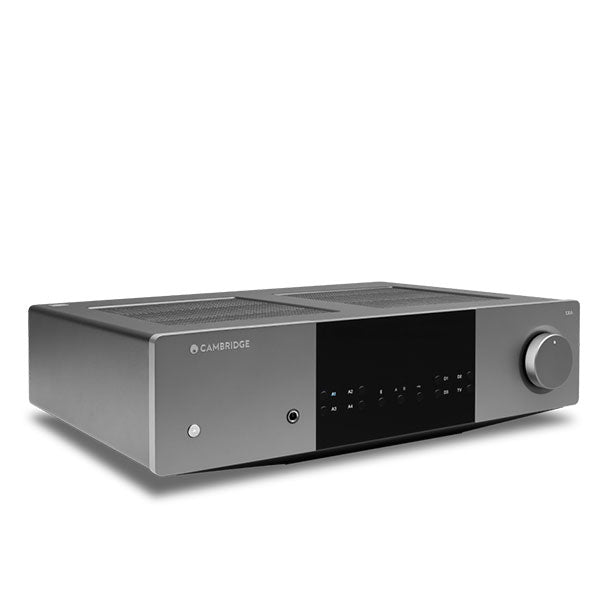

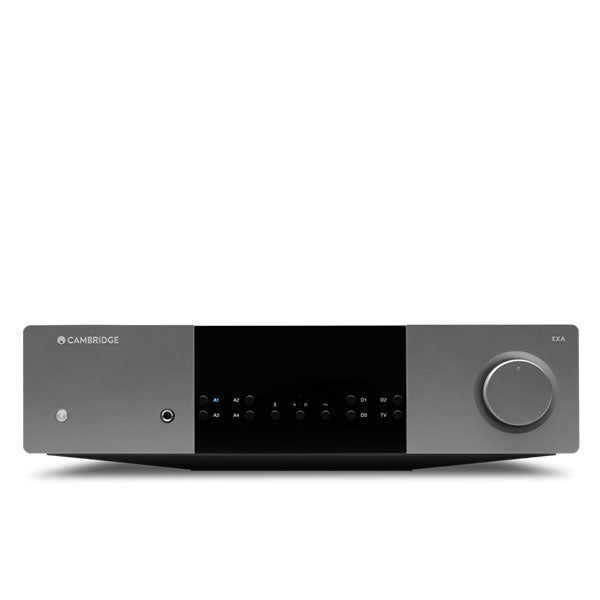

A Strong Look

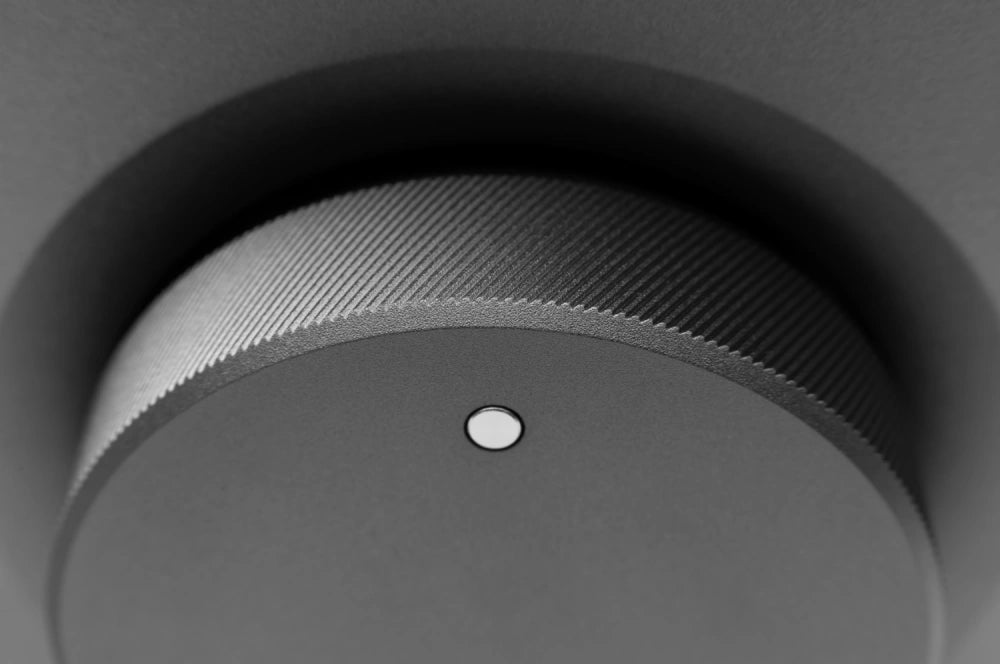

Our innovation doesn’t stop on the inside: the EXA100 has a stunning new design, complete with a milled aluminium front panel and a tactile knurled volume knob you can’t keep your hands off.
This jaw-dropping amp looks as powerful as it sounds.

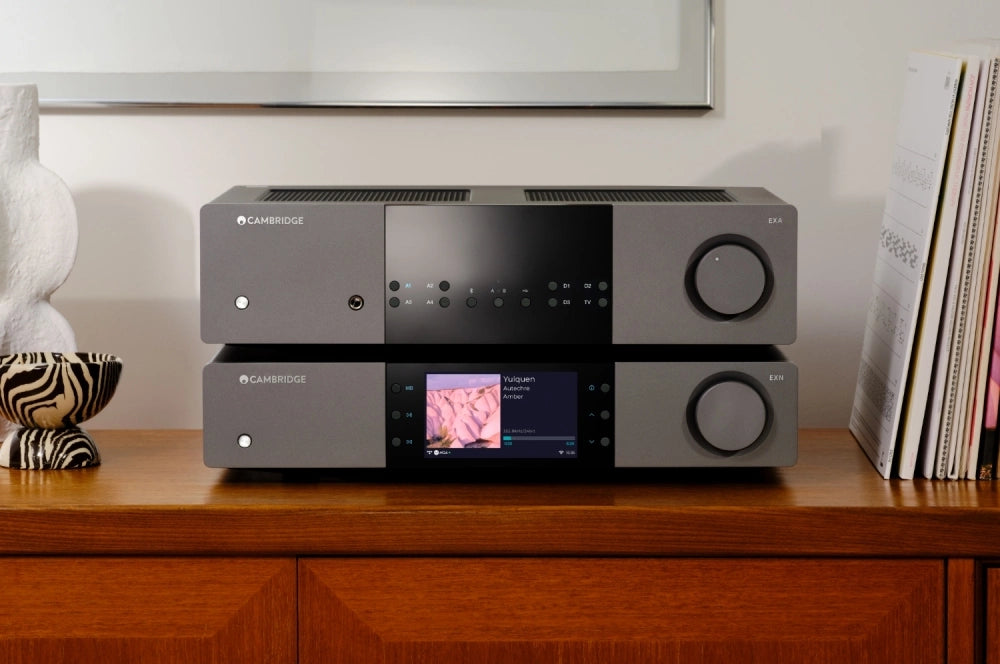

Power to the People
Switch it to Power Amp Mode and the EXA100 pairs brilliantly with any pre-amp, giving flexibility you never knew you needed – whether in a stereo or multi-channel system.

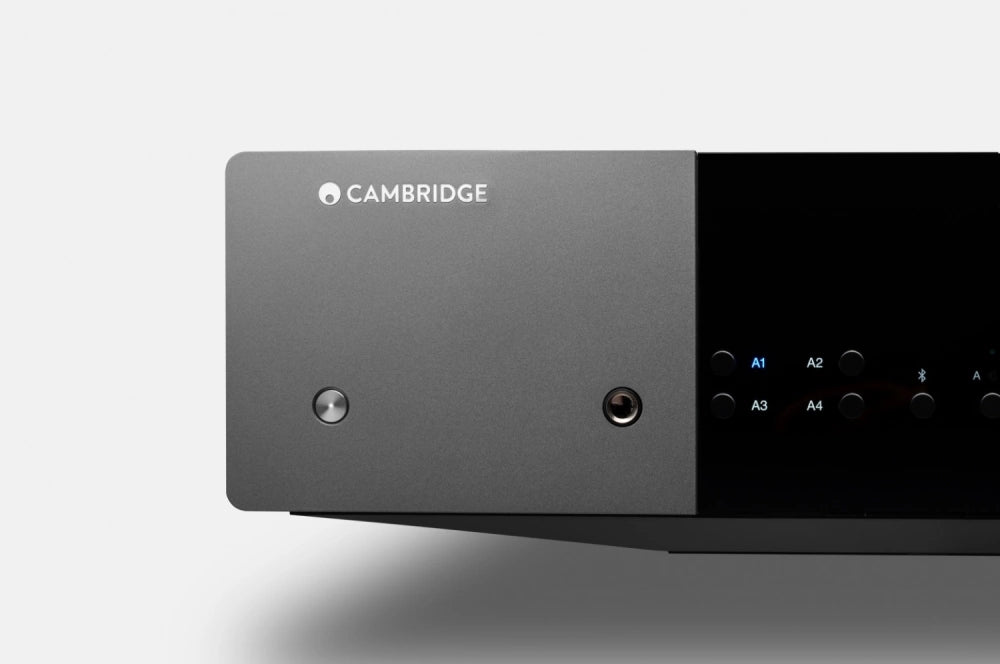

And The Beat Goes On
To ensure a longer, happier listening life for our amps and the speakers they power, we developed an exceptional proprietary protection system, CAP.
It uses an array of different methods to detect potential issues, such as power and temperature overloads, and take preventive action. So you can just relax and enjoy the music, worry-free.
