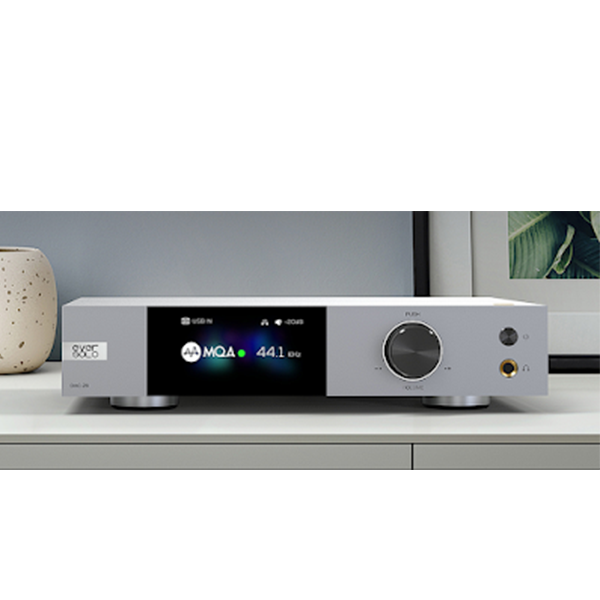

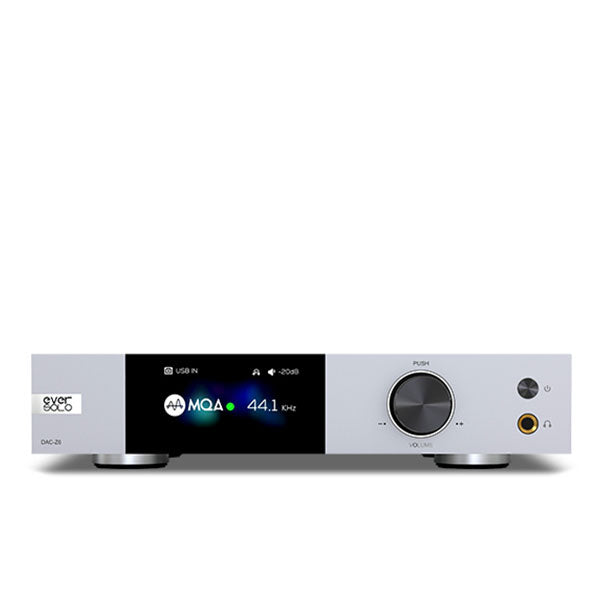

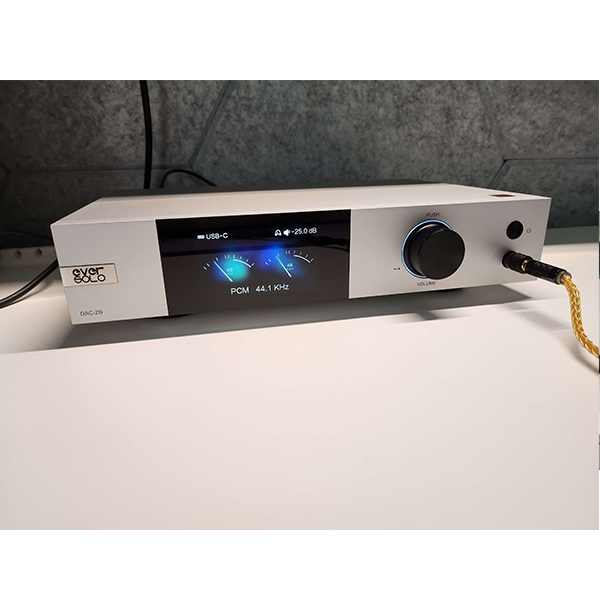

Eversolo DAC-Z6

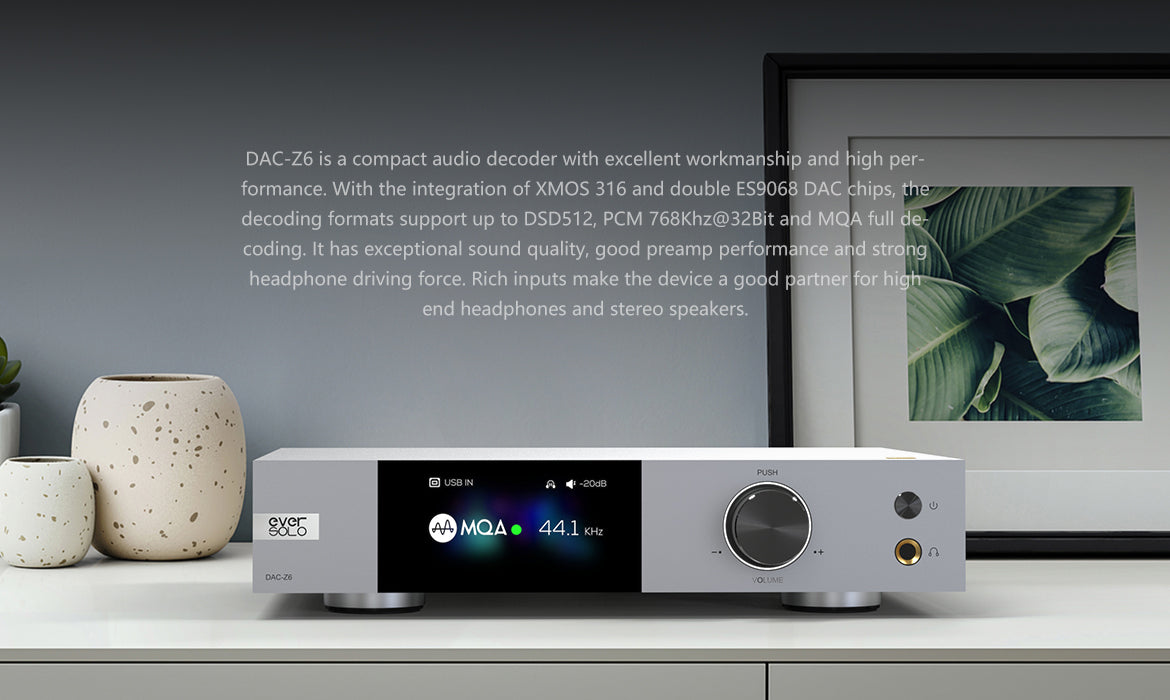

The Eversolo DAC-Z6 is a high-fidelity digital-to-analog converter and headphone amplifier designed to deliver exceptional audio performance. Its compact and elegant aluminum alloy chassis houses advanced components and features aimed at audiophiles and discerning listeners.
Eversolo DAC-Z6 Digital to Analog Converter

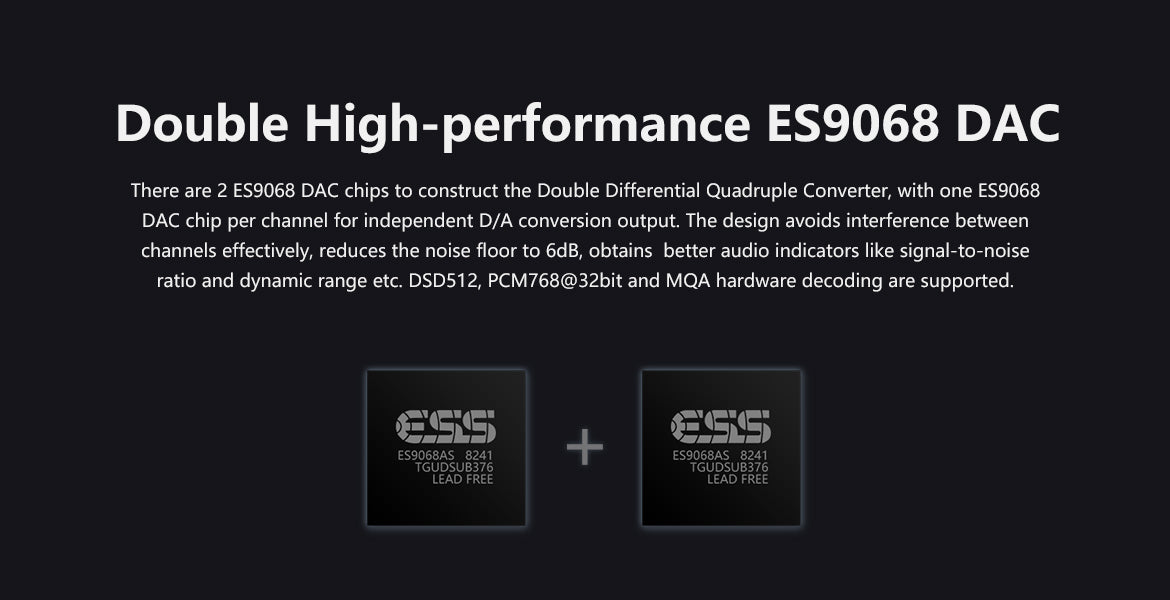

- Dual ES9068 D\A converter chip, independent decoding for dual channel.
- The 3rd generation XMOS XU316 with higher performance and faster speed.

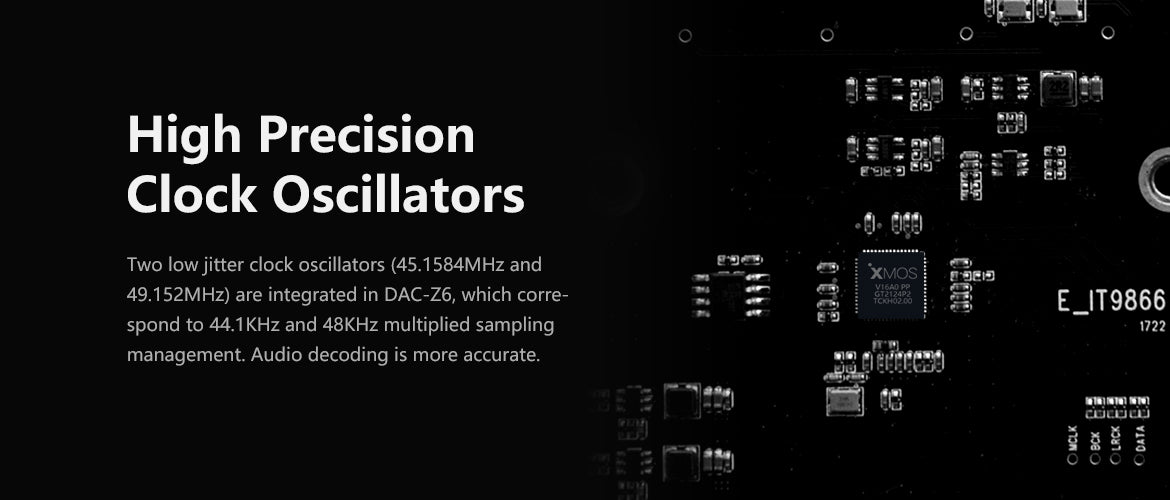

- High precision, low jitter dual clock oscillators synchronous processing.
- Up to DSD512 Native, PCM768Hz@32Bit decoding.
- Optical, Coaxial and USB support MQA full decoding and rendering.
- Qualcomm QCC5125 Bluetooth 5.0 module, APTX HD/LDAC protocol.

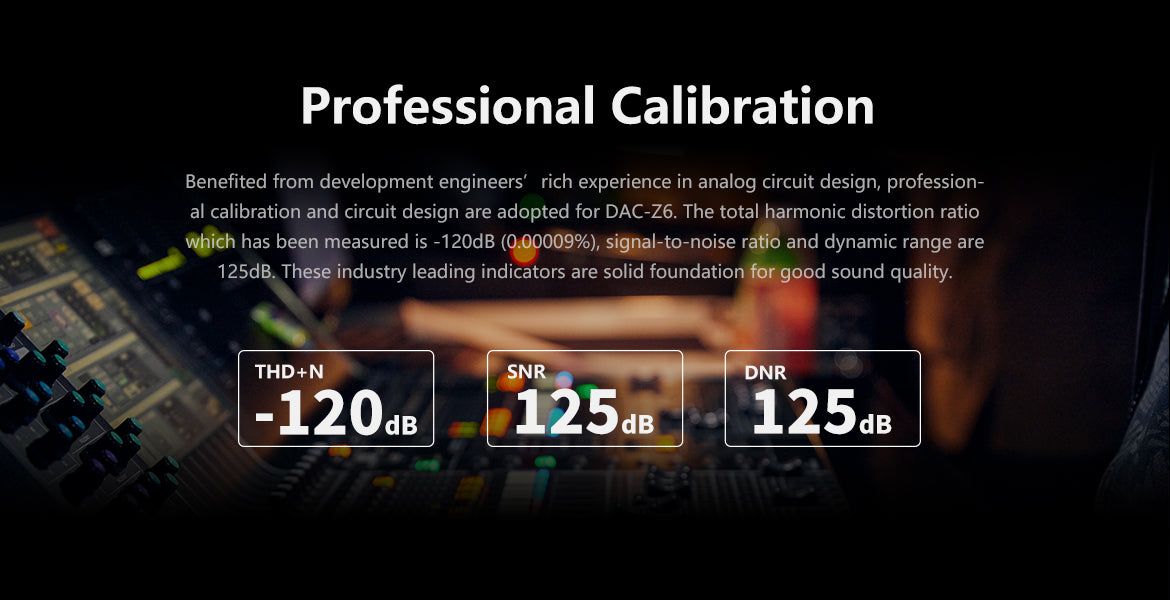

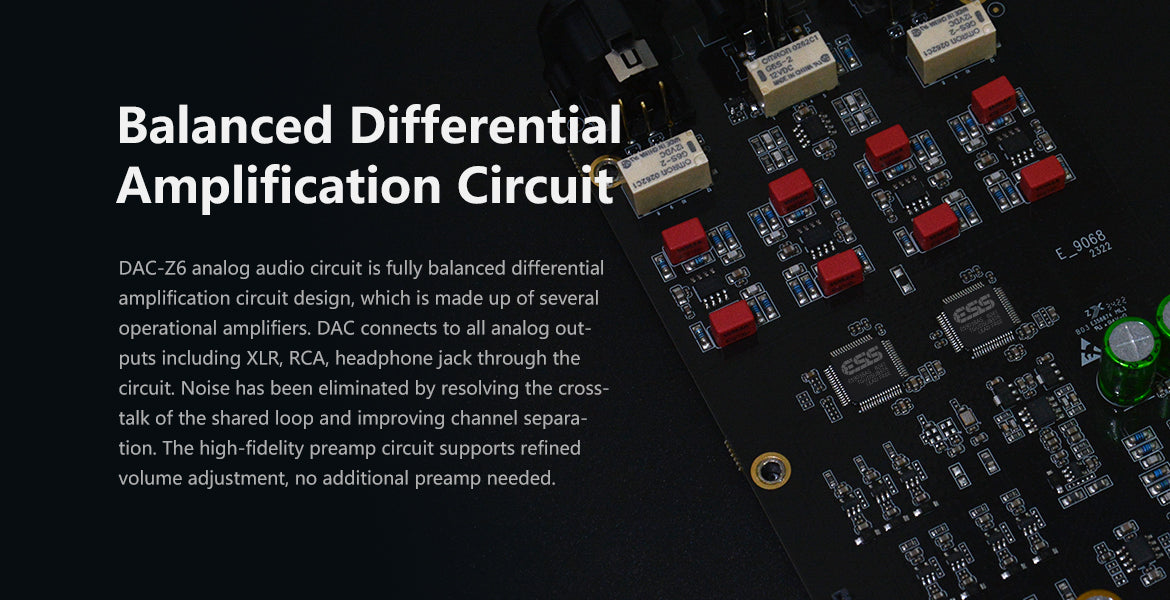

- Fully balanced audio architecture, differential amplifier circuit and professional calibration.

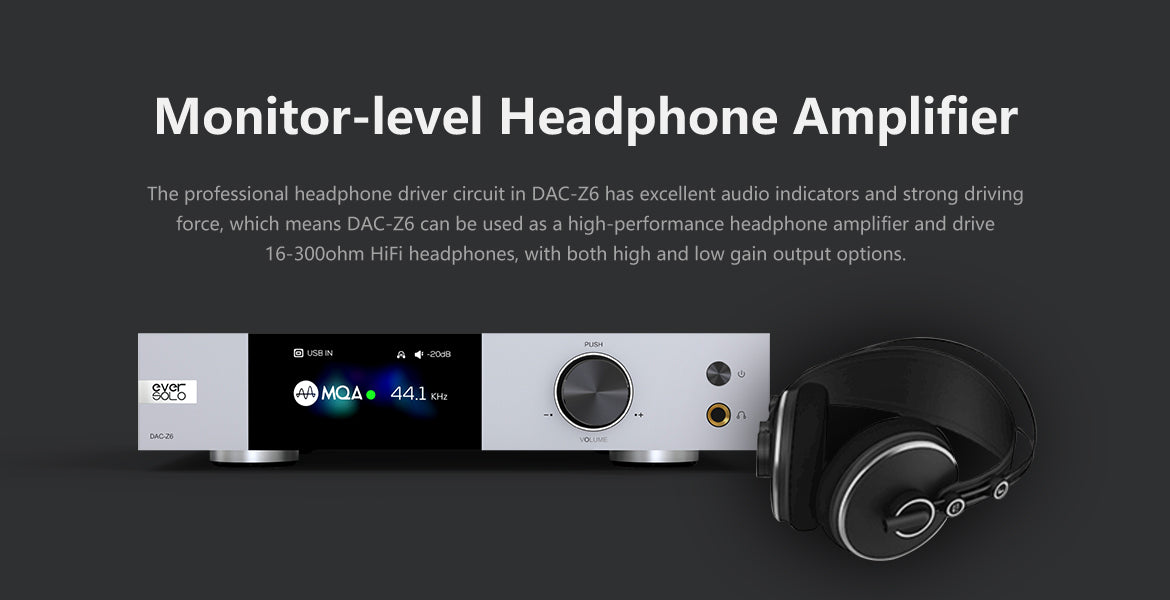

- High-performance headphone amp output, 16-300 ohm headphone driver.

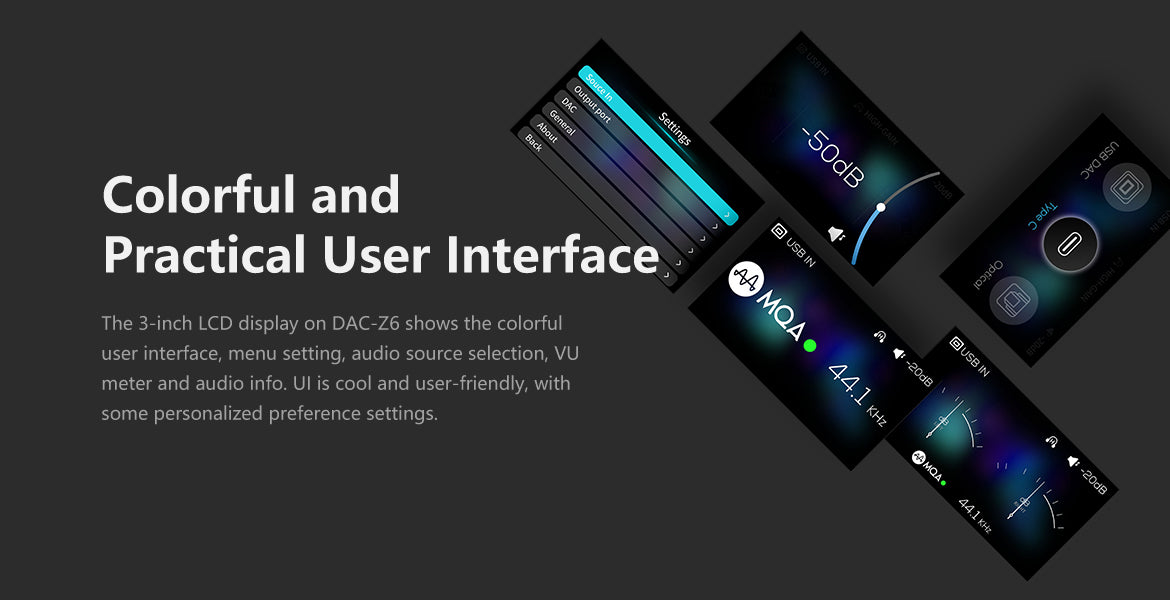

- 3-inch LCD screen, with diverse VU meter modes.

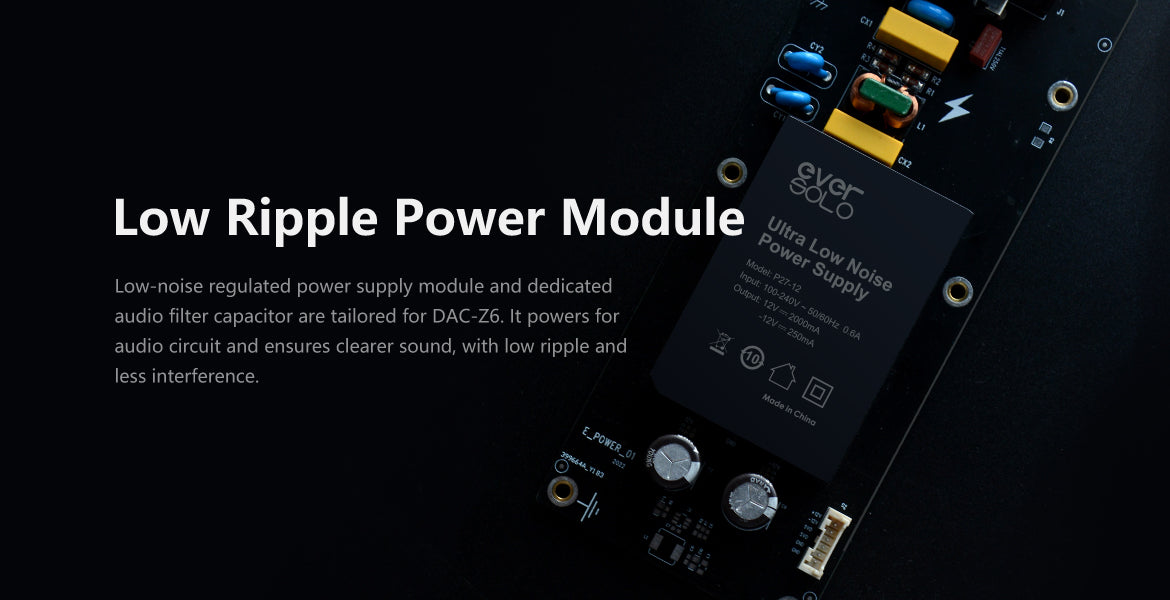

- Low ripple power supply to ensure a purer power source.

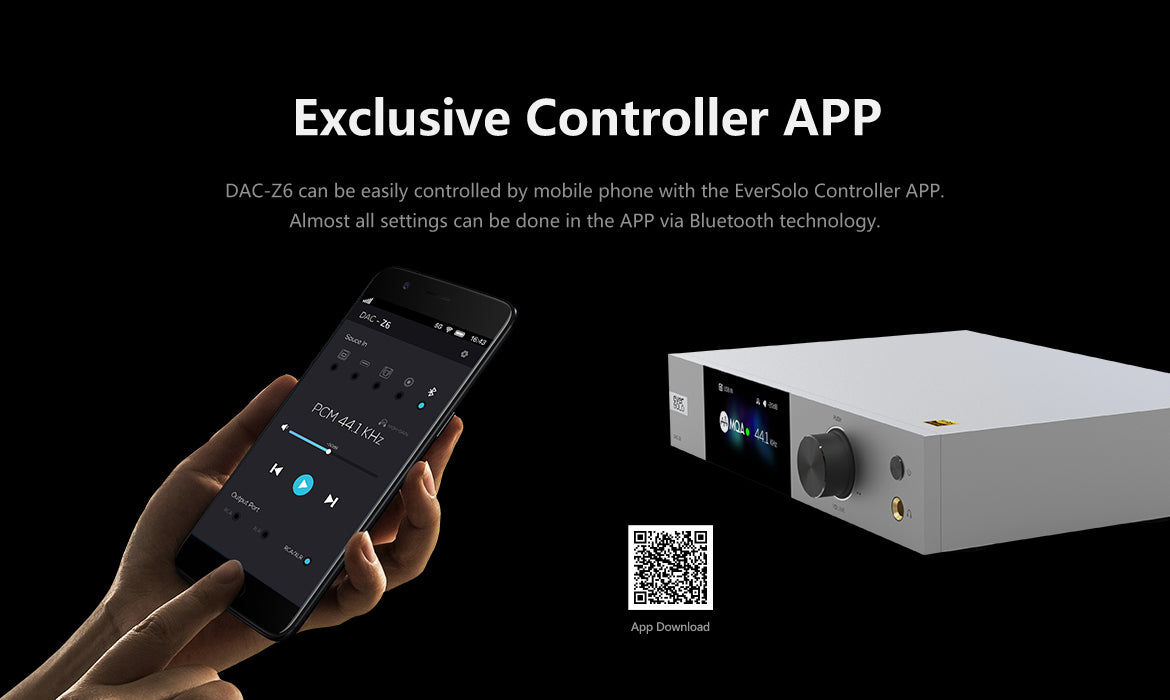

- Exclusive mobile phone controller APP for global control.
EverSolo DAC-Z6
3-inch LCD screen

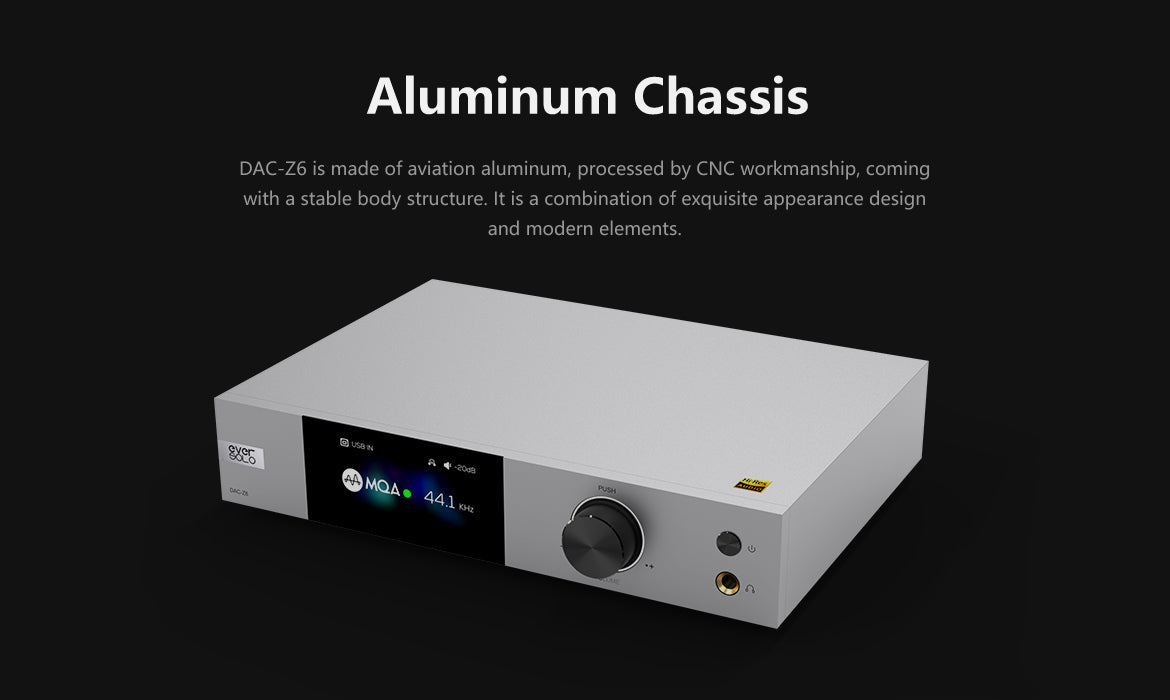

Aluminum Alloy
ES 9068*2
XMOS XU316
RT 6863*6
high quality switching power supply with low noise
Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol
Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA
Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA
Up to stereo PCM 192Khz 24Bit, DSD64 Dop,MQA
Up to stereo PCM 192Khz 24Bit, DSD64 Dop,MQA

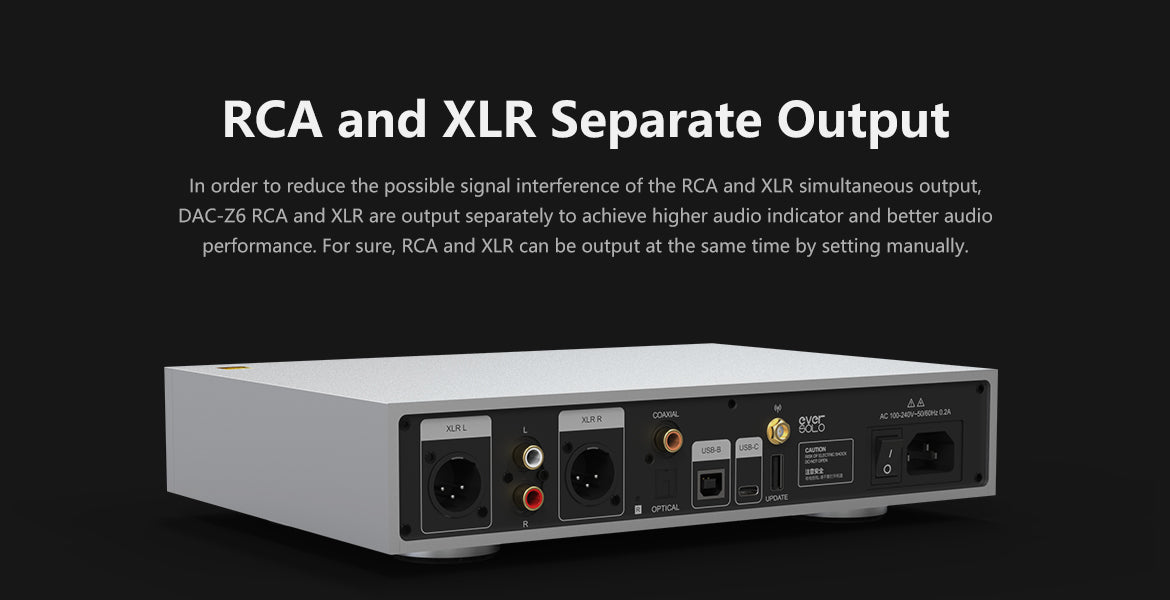

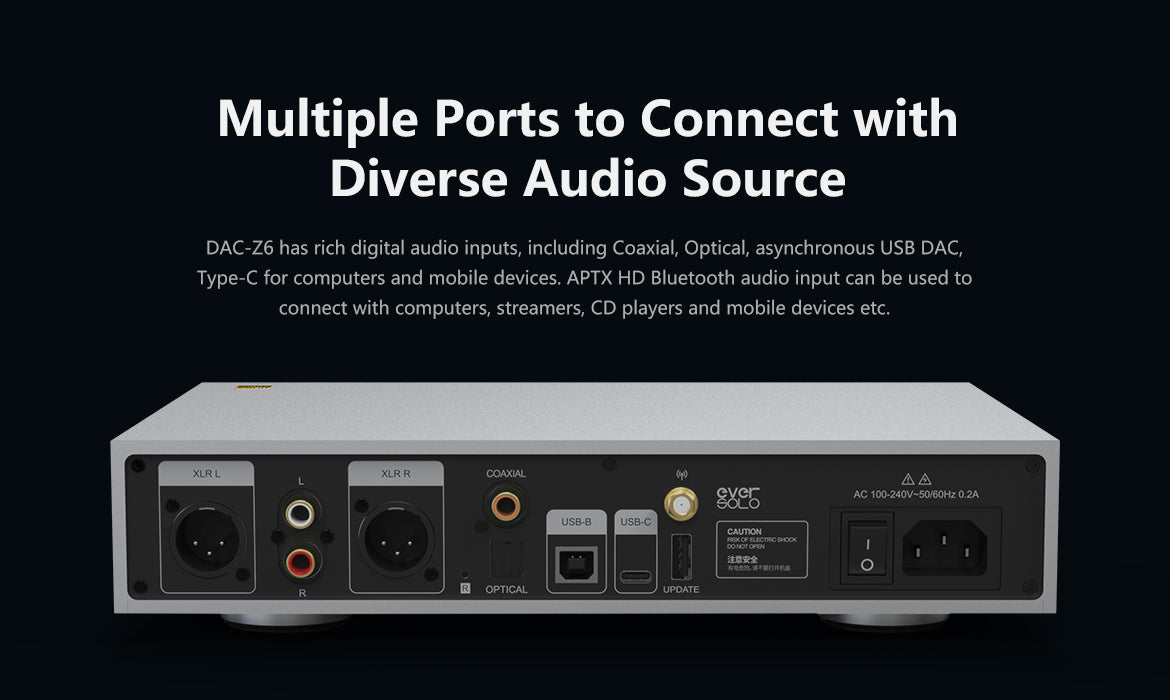

Preamp output: XLR(balanced)+RCA, Headphone output: 6.3mm single-ended
USB2.0*1（only for firmware upgrade）

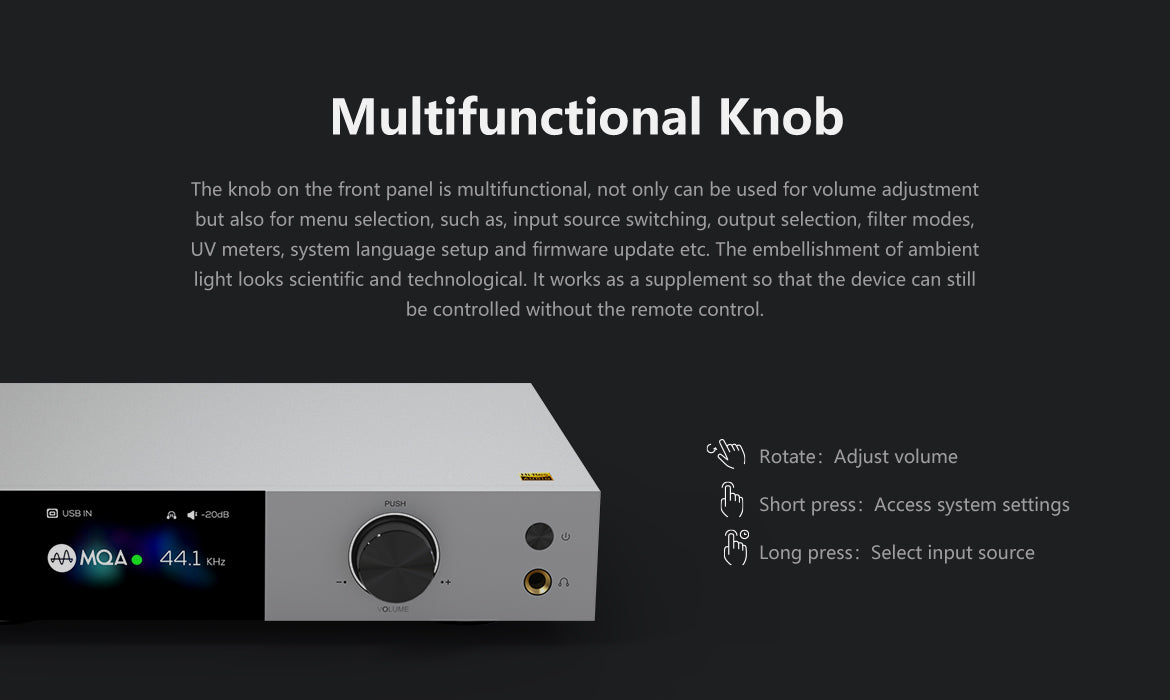

Remote control, Mobile APP control, Knob control
16-300Ω (low gain mode:16-32Ω/high gain mode:32-300Ω)
Output Level(Vrms)：4.1Vrms@0dBFS
THD+N@A-wt：0.000094%@1kHz（-120dB@1kHz）
THD+N@No-wt：0.000117%@1kHz（-118dB@1kHz）
Noise@No-wt ：<3uVrms
SNR)@No-wt：125@1kHz
frequency response：20Hz-20kHz(±0.15dB)
CROSSTALK：-123dB@1kHz
DNR)@No-wt：125dB@1kHz
Output Level(Vrms)：2.1Vrms@0dBFS
THD+N@A-wt：0.000116%@1kHz(-118dB@1kHz)
THD+N@No-wt：0.000138%@1kHz(-117dB@1kHz)
Noise@No-wt ：<2.5uVrms
SNR)@No-wt：21dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
CROSSTALK：-118dB@1kHz
DNR)@No-wt：121dB@1kHz
Output Level(Vrms)：1.2Vrms@0dBFSMax Power：： 45 mW@32ΩTHD+N@A-wt：0.00028%@1kHz(-111dB@1kHz)THD+N@No-wt：0.00031%@1kHz(-110dB@1kHz)Noise@No-wt ：<3.5uVrmsSNR)@No-wt：114dB@1kHzfrequency response：20Hz-20kHz(±0.15dB)DNR)@No-wt：114dB@1kHz
Output Level(Vrms)：2.8Vrms@0dBFS
Max Power： 26 mW@300Ω
THD+N@A-wt：0.00014%@1kHz(-117dB@1kHz)
THD+N@No-wt：0.00016%@1kHz(-116dB@1kHz)
Noise@No-wt ：<3.5uVrms
SNR)@No-wt：121dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
DNR)@No-wt：121dB@1kHz
AC 110~240V 50/60Hz
9W
270mm(W) * 187mm(D)* 50mm(H)
Remote control*1, Power cable*1, User manual*1
