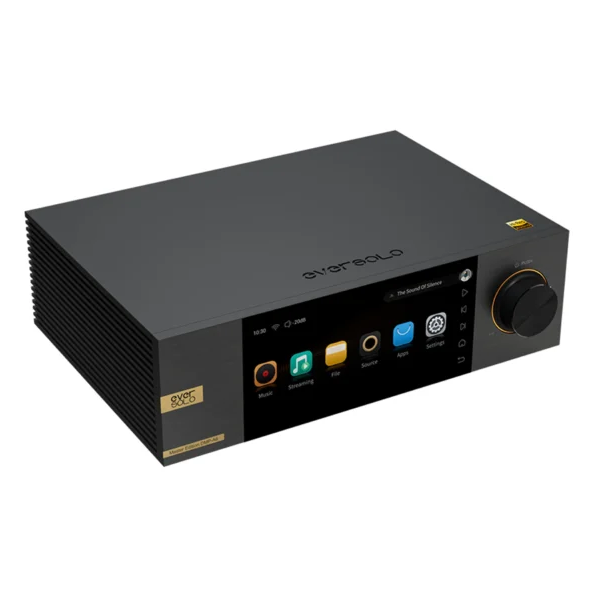

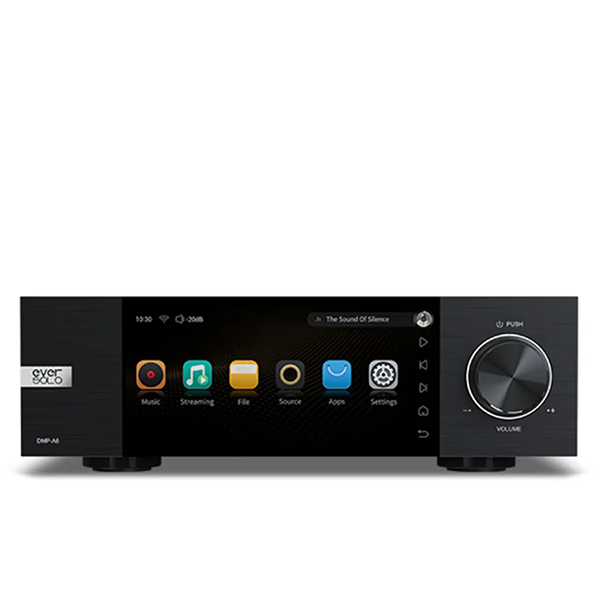

Eversolo DMP-A6

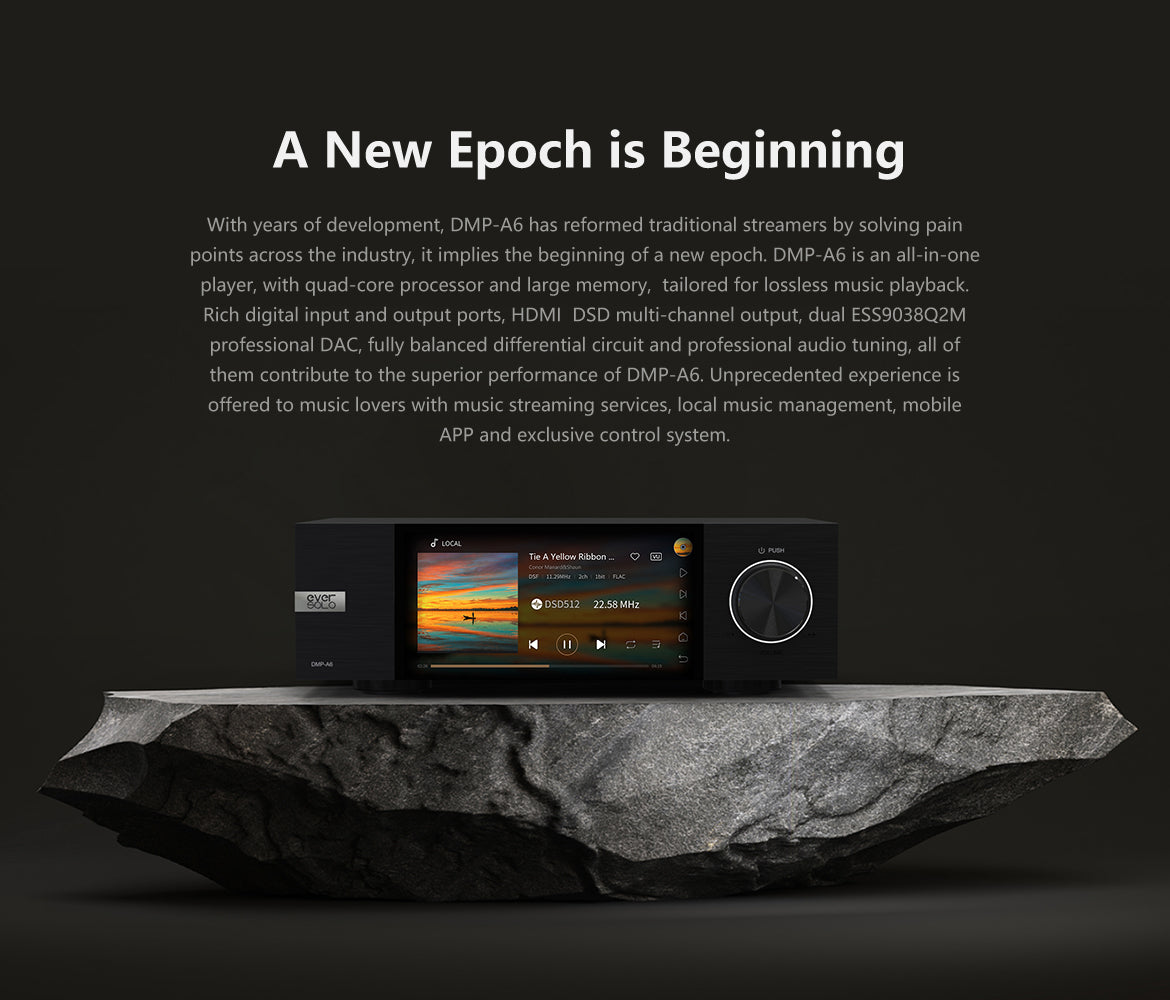

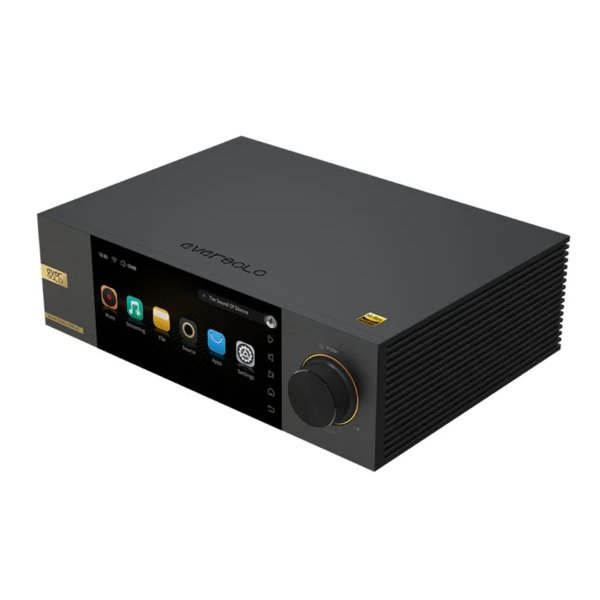

Eversolo DMP-A6 Digital Audio Music Streamer
- Solid aluminium alloy chassis, brushed panel.
- Quad-core ARM Cortex-A55 professional processor.

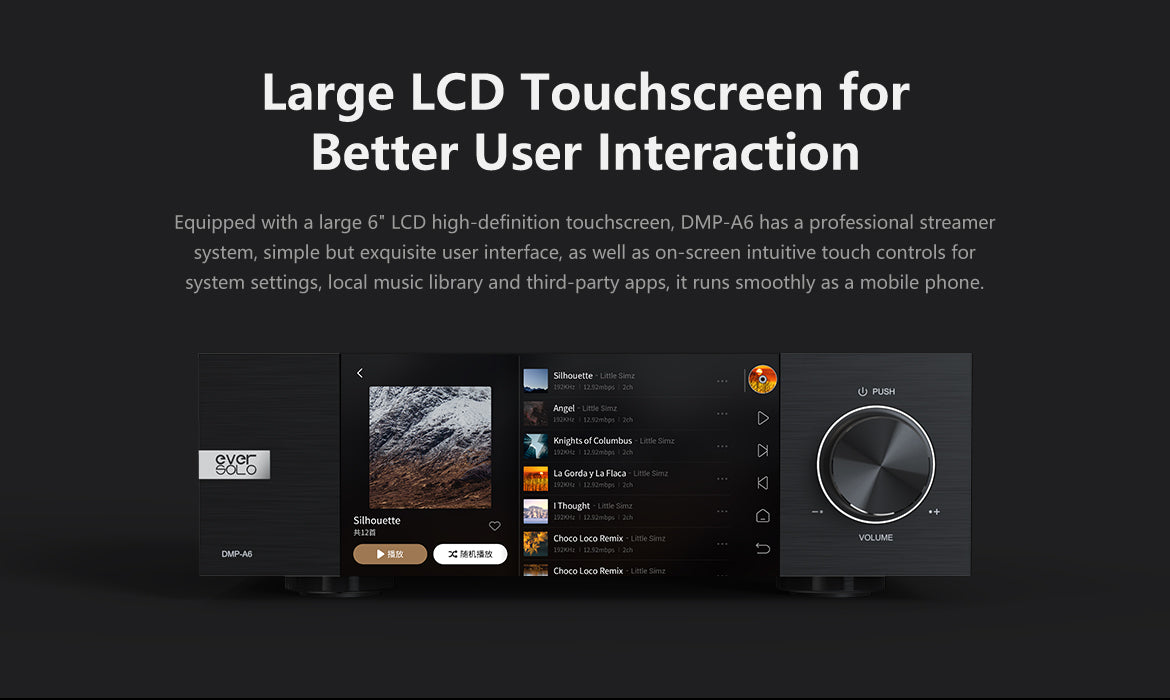

- 6" large LCD colour touchscreen, easy control.
- Based on Android 11, deeply tailored system.
- 4GDDR+32GeMMC large memory for masses of applications.

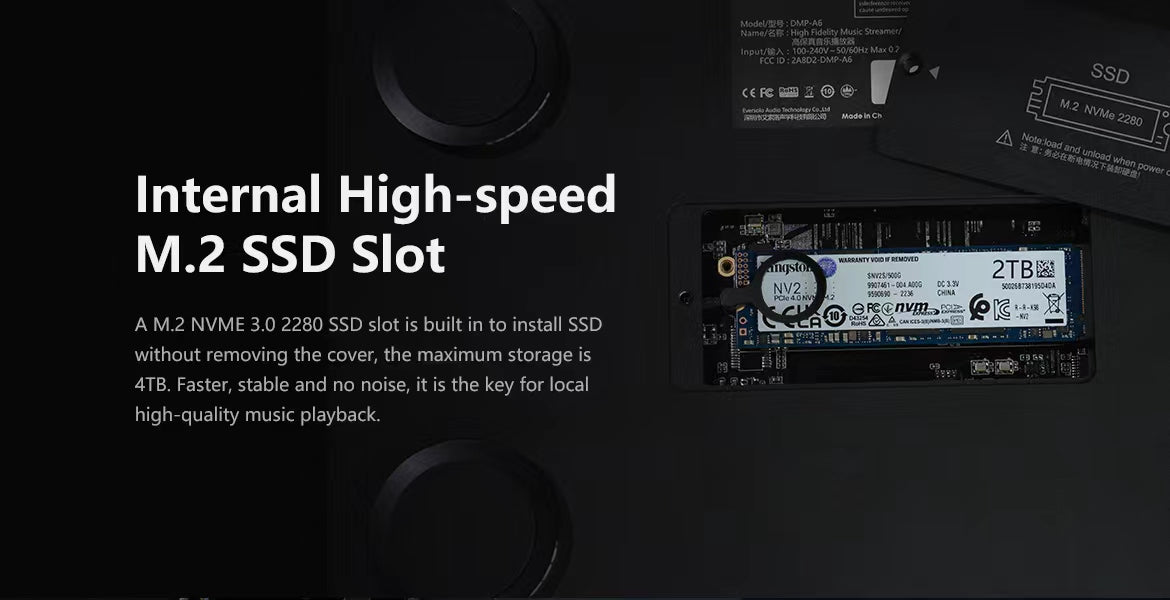

- Support M.2 NVME 3.0 SSD (not included), up to 4TB.
- 2xES9038Q2M DAC for independent stereo decoding.
- Support DSD512 Native, PCM768KHz@32Bit, MQA full decoding.
- The 3rd generation XU316 for higher performance and processing speed.

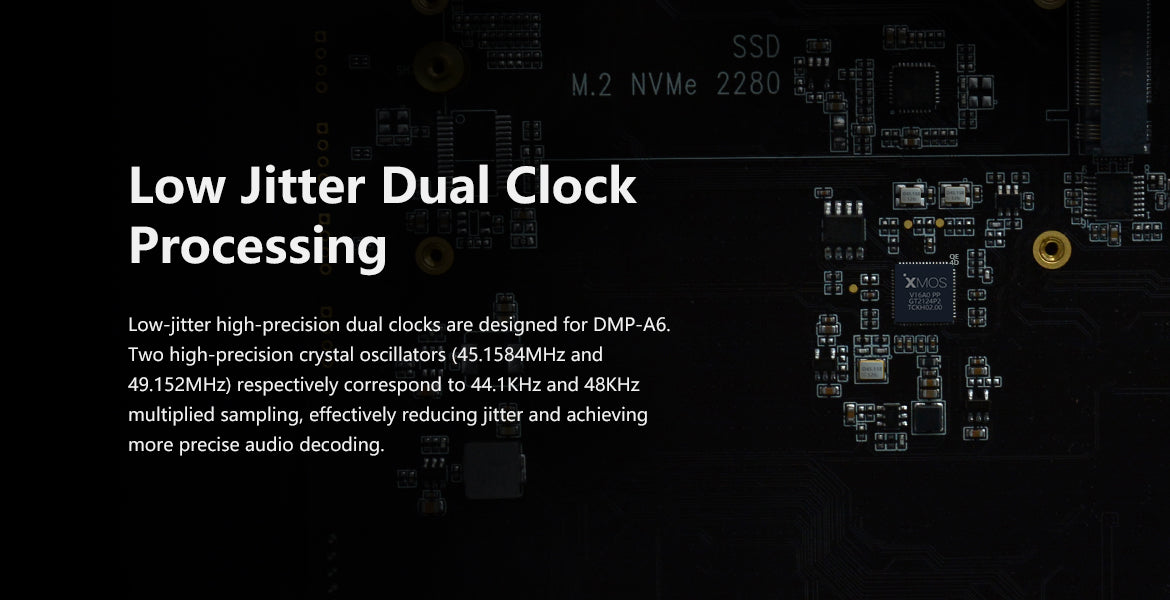

- Low-jitter dual clock synchronous processing with higher accuracy.

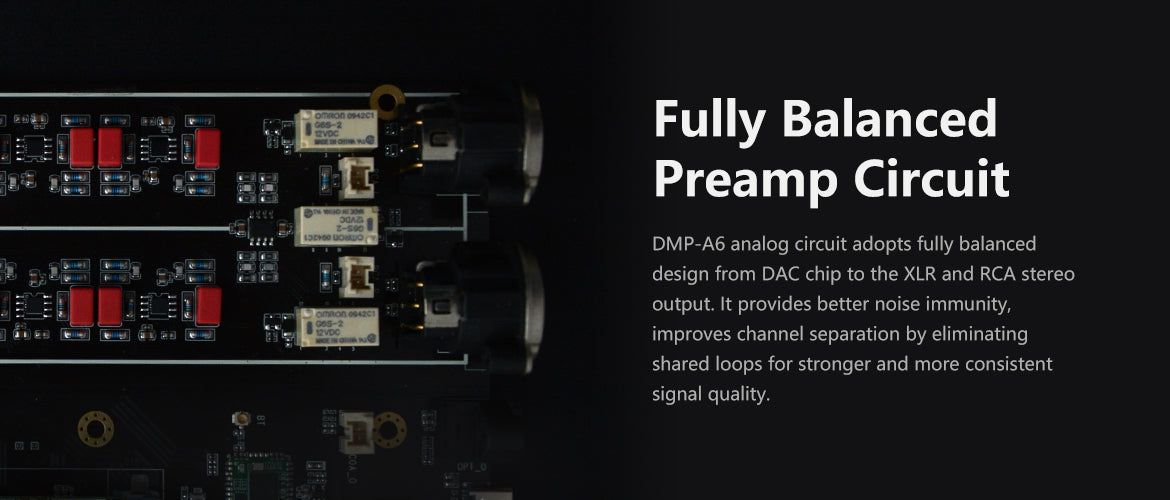

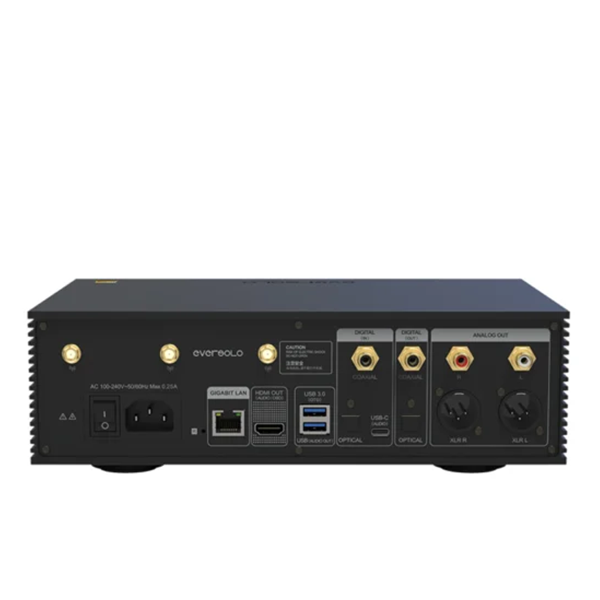

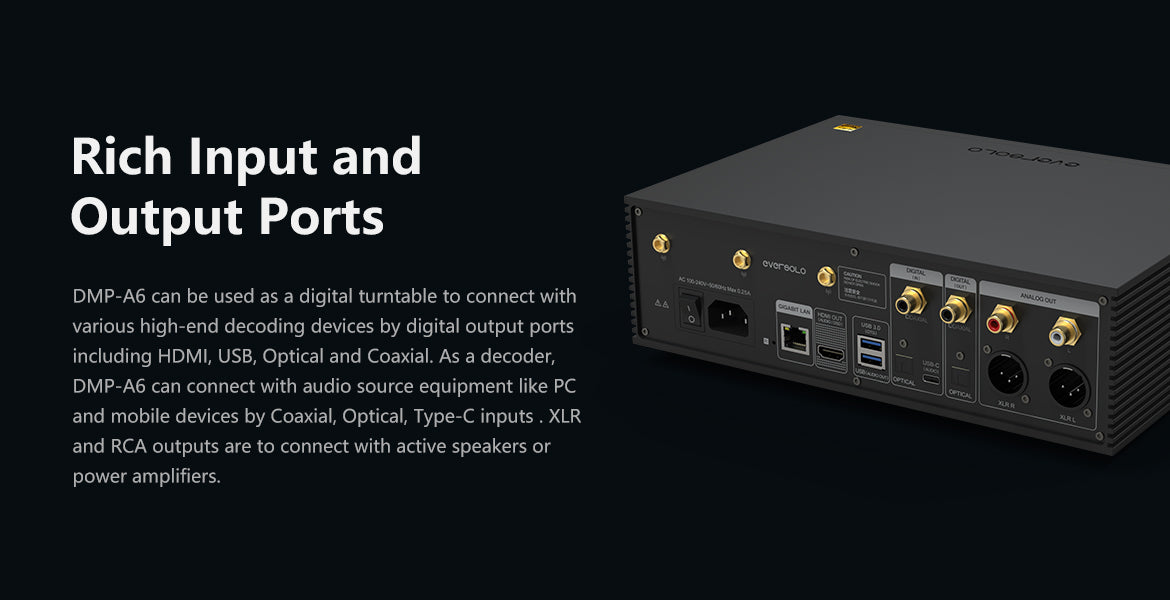

- Fully balanced circuit, XLR balanced and RCA single-ended hi-fi pre-out.

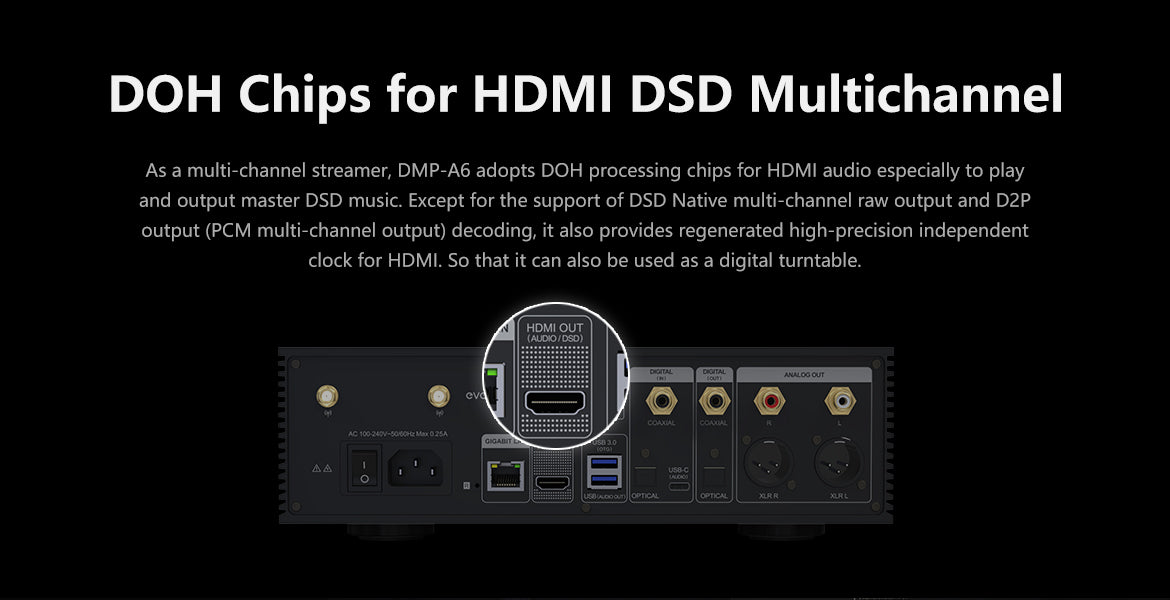

- 2x DOH chips, support HDMI DSD Native and D2P multi-channel output(Up to 5.1).
EVERSOLO DMP-A6
6" LCD touchscreen
4GDDR4 +32GeMMC
ES 9038Q2M*2
XMOS XU316
OPA1642

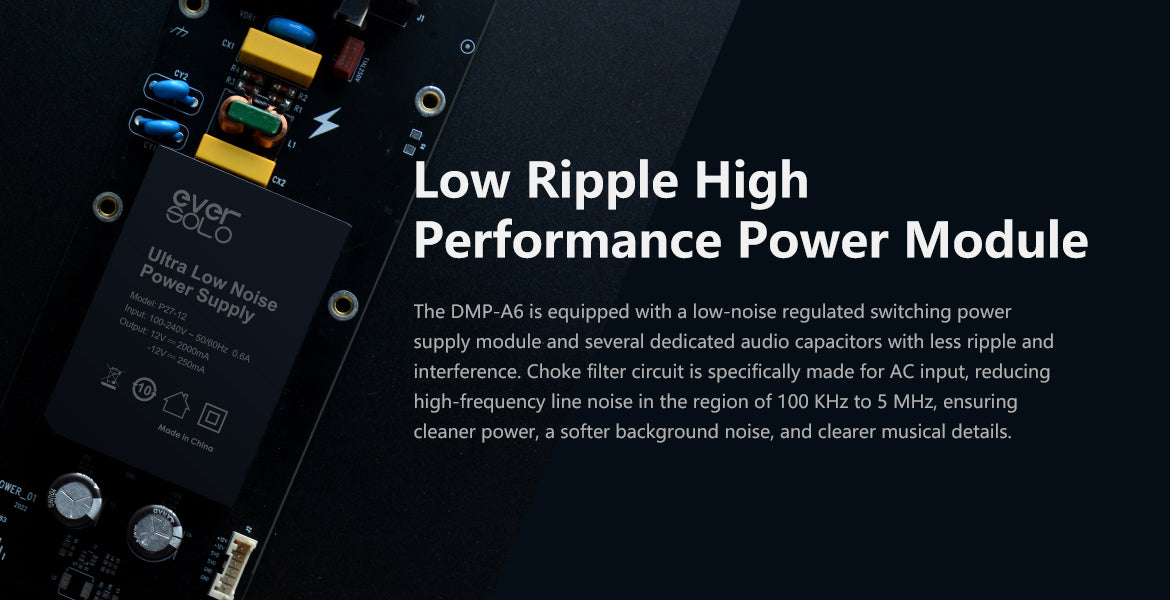

Low noise, high quality switching power supplies
M.2 NVME 3.0 2280 protocol, up to 4TB
USB3.0*2
RJ-45(10/100/1000Mbps)
WiFi 2.4G+5G dual band
Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Tidal, Qobuz, Highresaudio, Amazon, WebDAV, UPnP
Air Play, DLNA, Spotify, Tidal Connect, Qobuz Connect etc.
BLuetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
USB Audio Compatibility: Windows (7, 10), Mac, Android, IOS
Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA
Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA
DSD64 Native multi-channel/PCM192KHz multichannel raw output(Up to 5.1)
Mobile App,Touch screen control
Output level: 5.2V
Frequency response: 20Hz~20KHz(±0. 15dB)
Dynamic range: > 128dB
SNR: >128dB
THD+N: <0.00009%(-120dB) @A-wt
Crosstalk: >-125dB
Output level: 2.6V
Frequency response: 20Hz~20KHz (±0. 2dB)
Dynamic range: > 124dB
SNR: >124dB
THD+N: <0.00011%(-119dB)@A-WT
Crosstalk: >-124dB
AC 110~240V 50/60Hz
13W
L 187mm* W 270mm* H 90mm
Power cable*1, USB cable*1,Screwdriver*1,user manual*1
