Grandview Crystal Series Motorized Screen
The Grandview Crystal Series Motorized Screen is designed to deliver reliable, high-quality projection performance in both professional and home environments. Enclosed in a robust octagonal metal casing finished in white, it features a quiet French Somfy synchronous motor and welded helix rollers to ensure smooth, flat screen operation. It comes standard with WP5 fiberglass mat fabric (1.0 gain, 160° viewing angle), and offers a wide range of control interfaces—IR, RF, RS485, dry contact, 3–12 V trigger, central/IP control—making it extremely versatile and easy to automate.
Share:
Grandview Crystal Series Motorized Screen
Sale price
Regular price (/)
Grandview Crystal Series Motorized Screen Office & Conference Room Screens
- Durable octagonal metal casing in sleek white finish
- Quiet operation with Somfy synchronous motor and helix rollers
- Standard 92″–120″ screen sizes in 4:3, 16:9, and 16:10 ratios
- Multi-interface control options: IR, RF, RS485, dry contact, 3–12 V trigger, central/IP control
- WP5 fiberglass screen fabric with 1.0 gain and 160° viewing

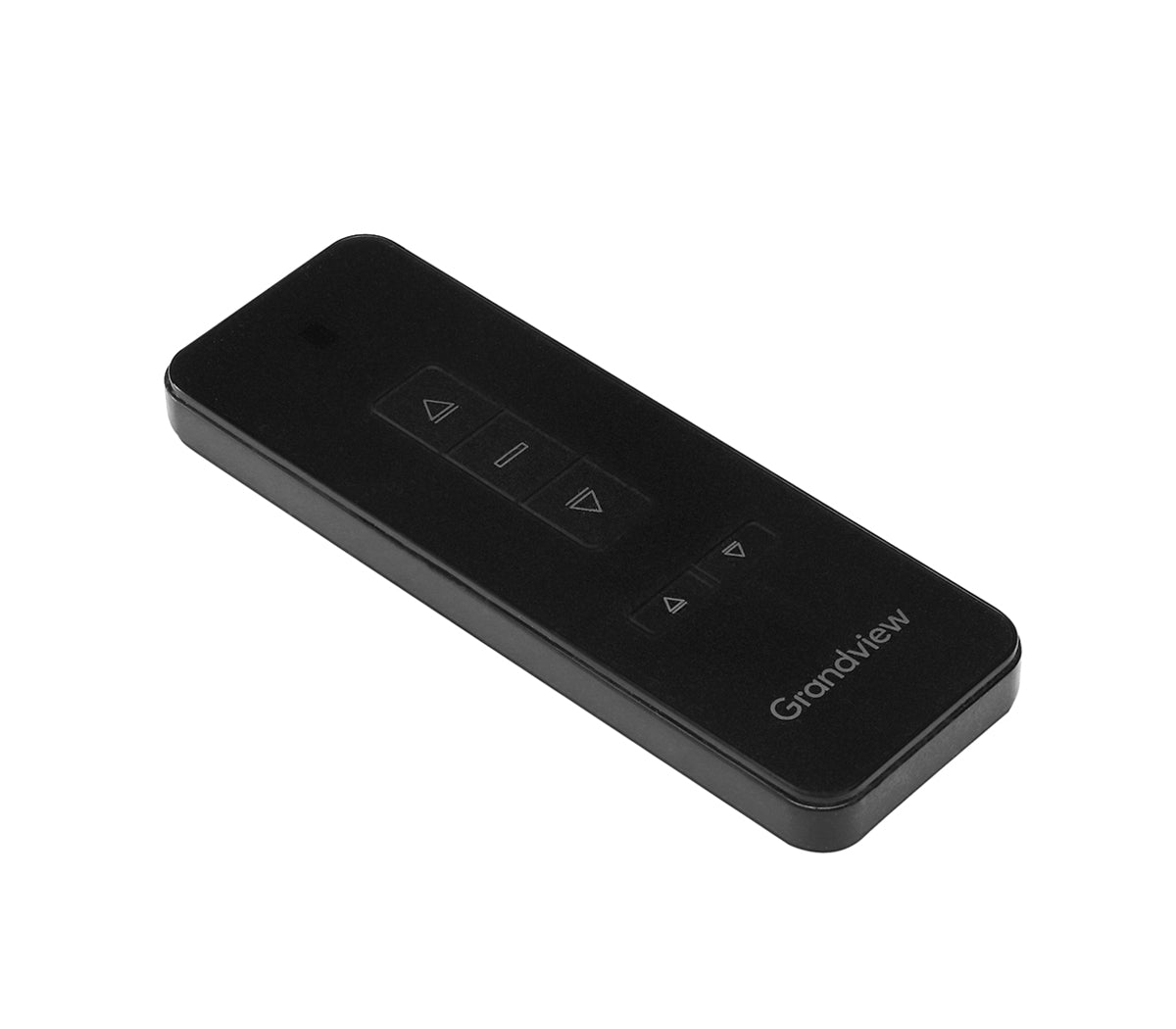

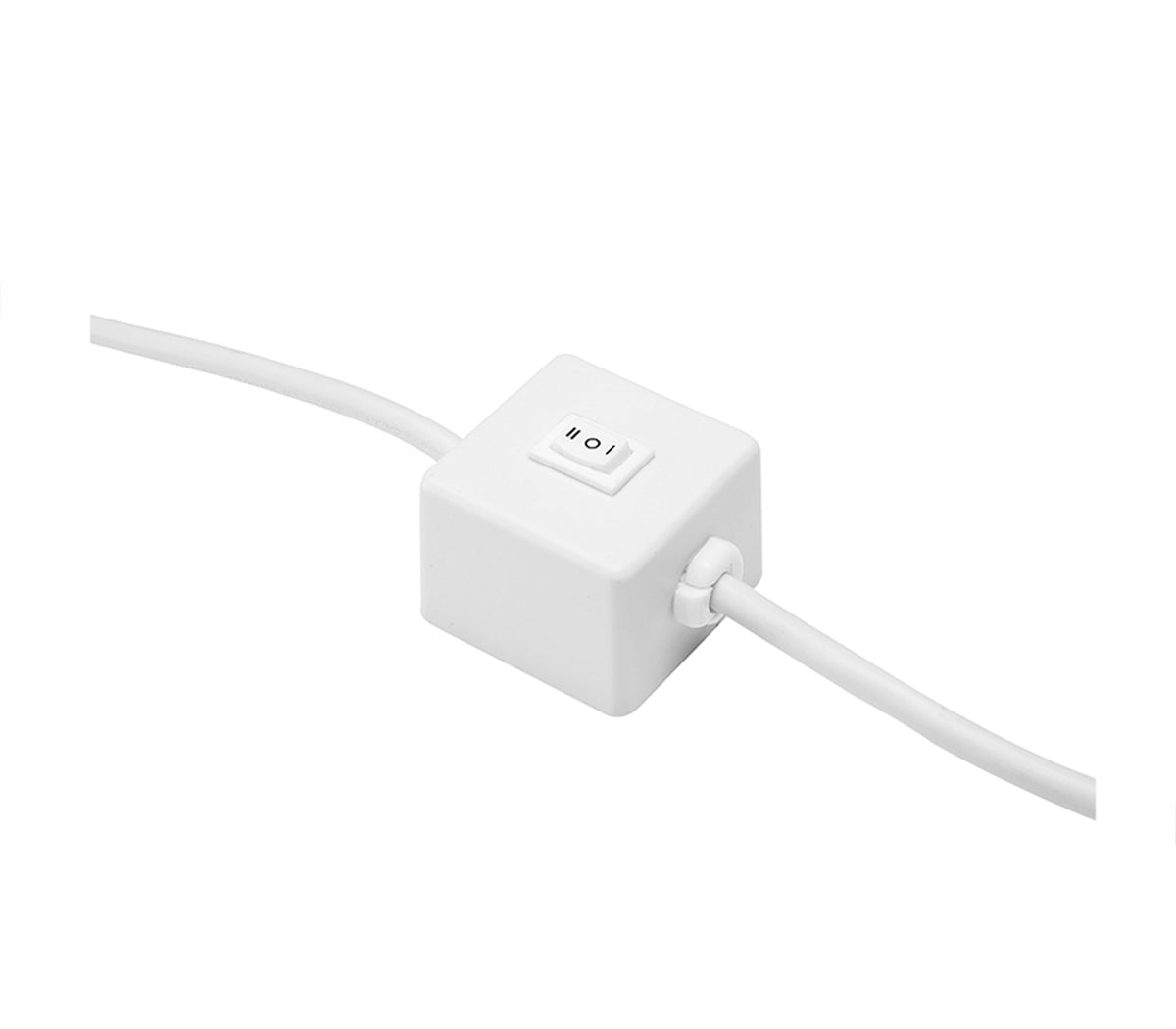

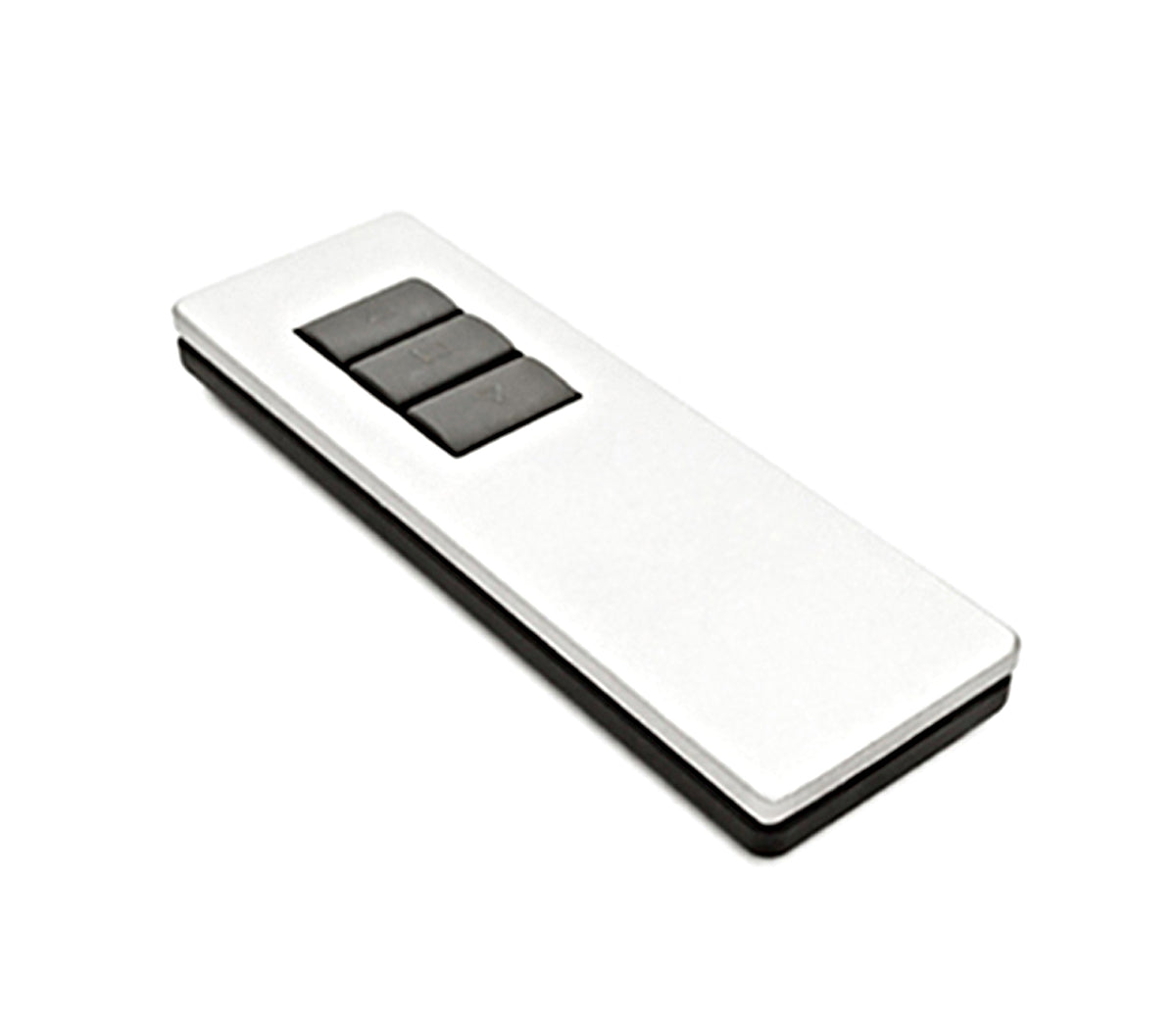

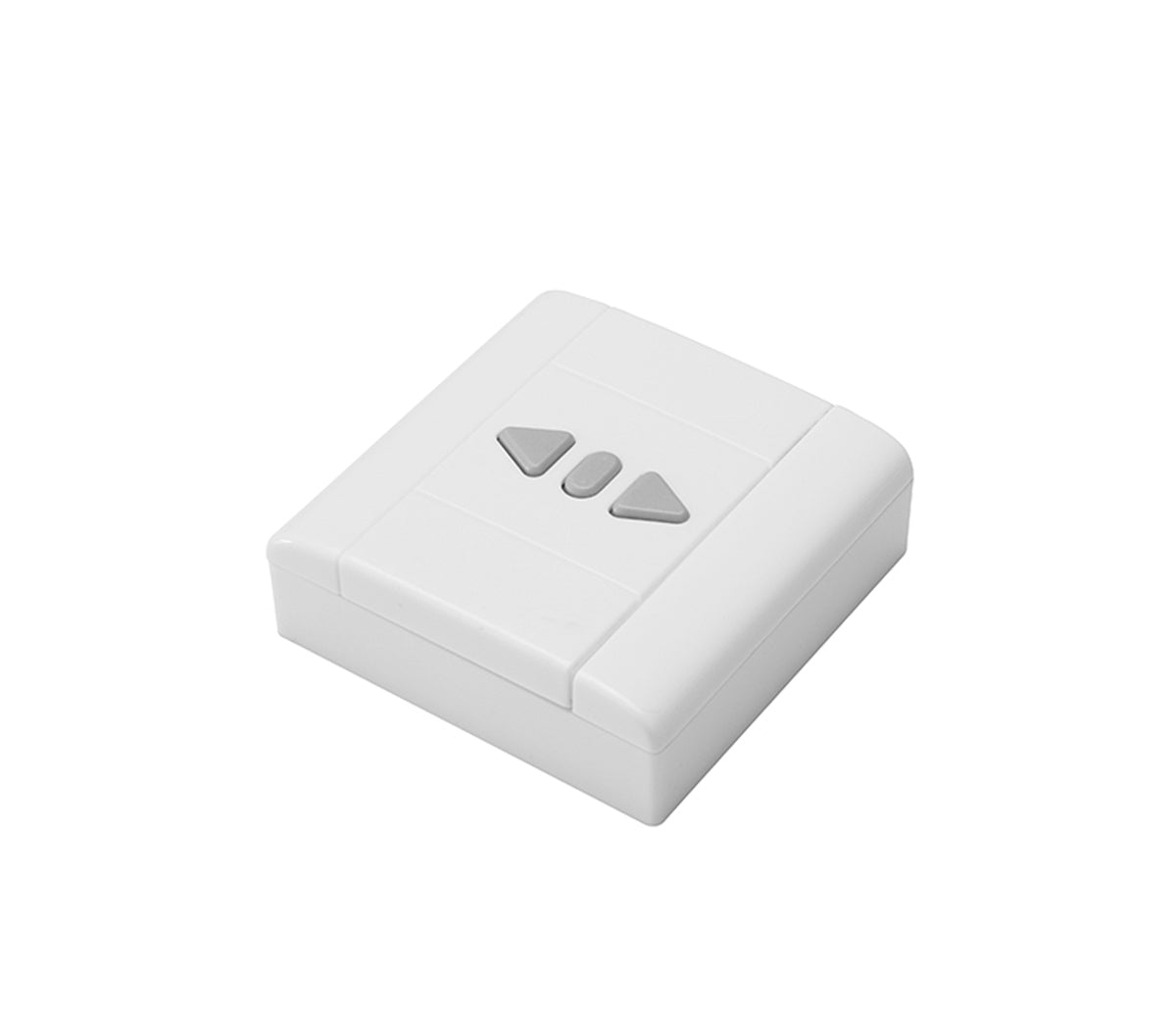

- In-line switch included, with optional wall switch and RF remote
- Wall or ceiling mountable for flexible installation
- Ideal for classrooms, boardrooms, and home theaters needing reliable automation and quiet operation
Series
Crystal Series Motorized Screen
Casing
Octagonal sheet-metal, white finish
Diagonals & Ratios
92″–120″ available in 4:3, 16:9, 16:10
Viewing Fabric
WP5 fiberglass, matte white, gain 1.0, 160°
Motor & Mechanism
Quiet French Somfy synchronous motor, helix rollers

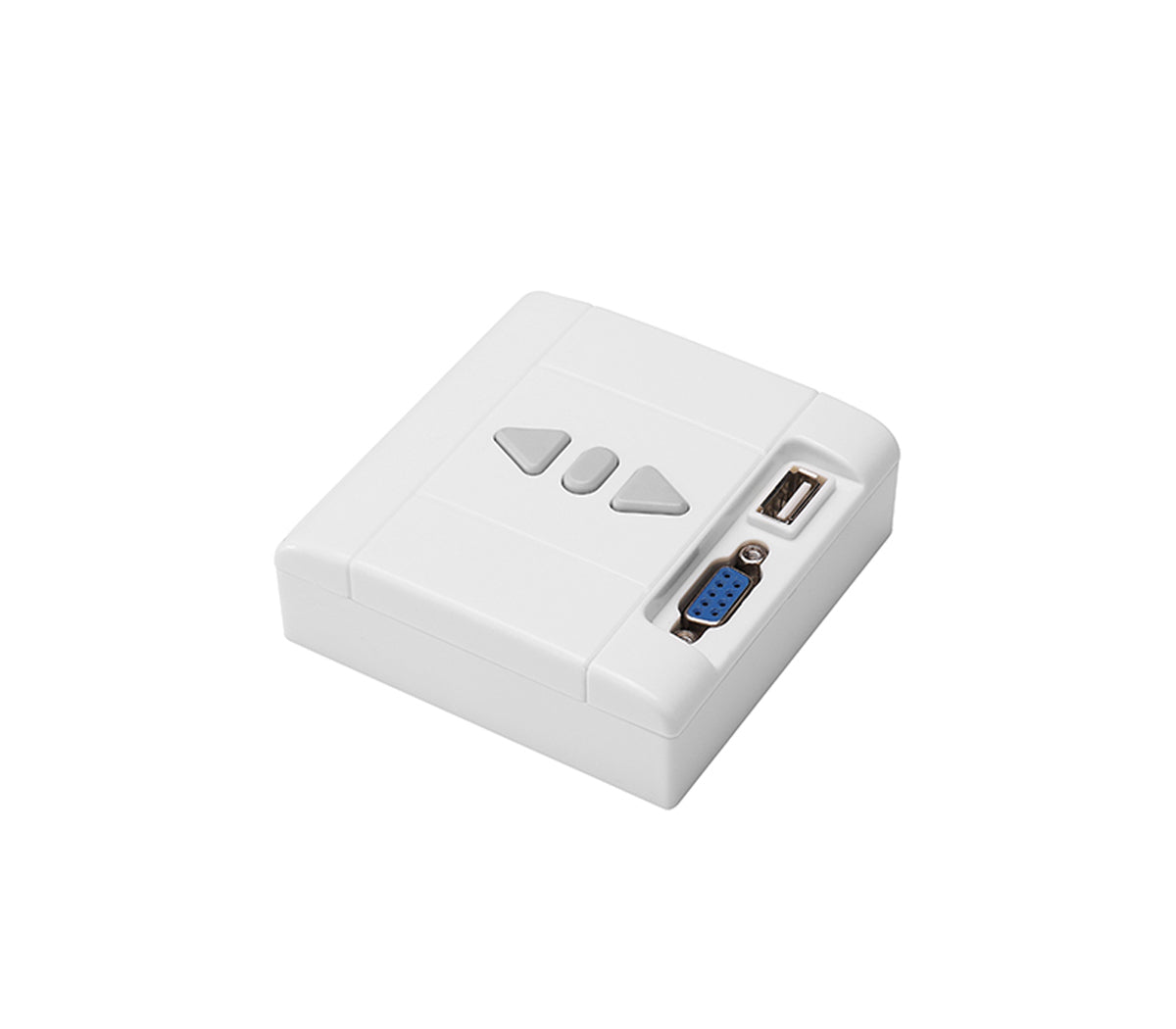

Control Interfaces
IR, RF, RS485, dry contact, 3–12 V trigger, central/IP
Standard Control
In-line wall switch; optional RF remote

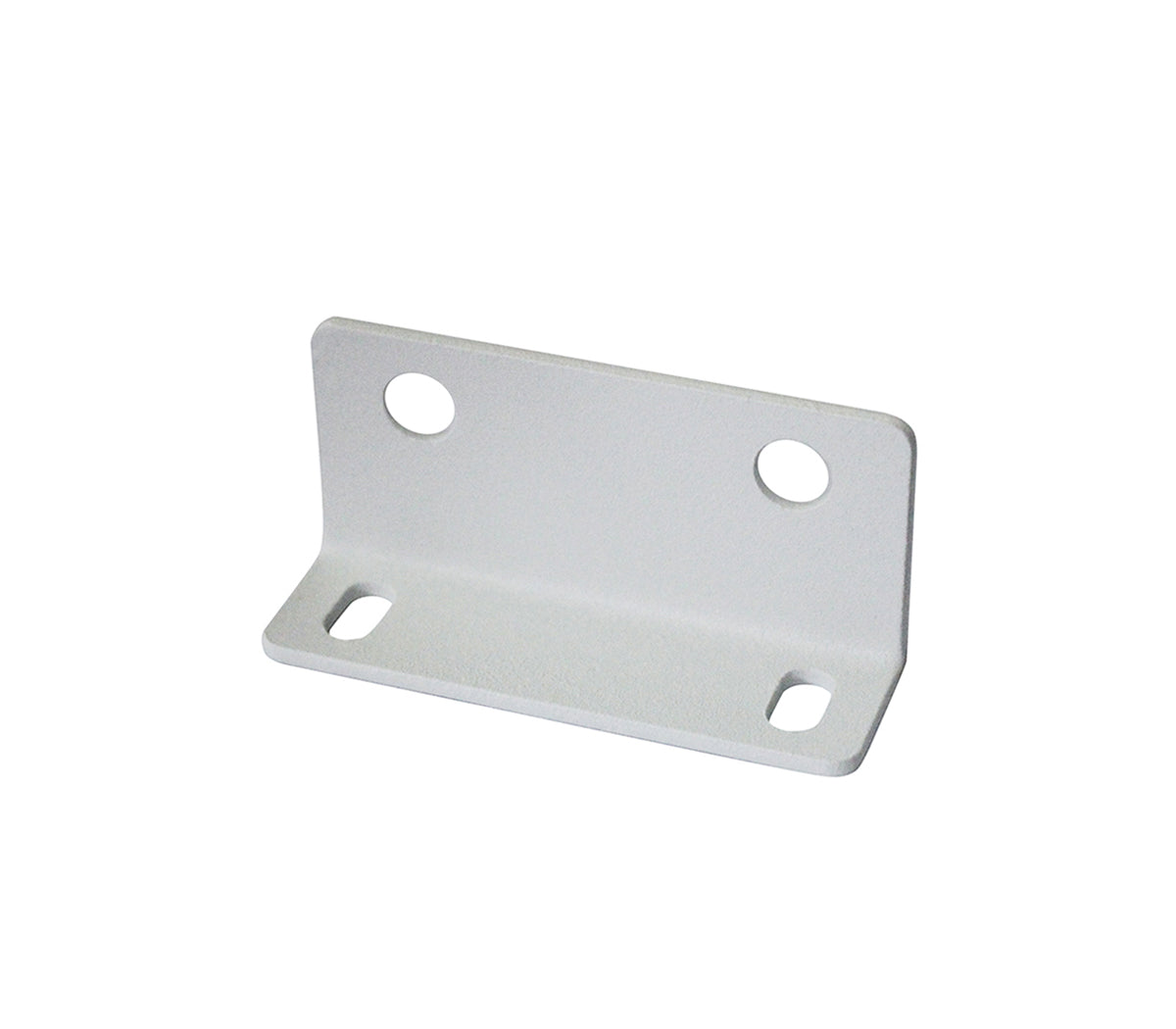

Mounting Options
Wall, ceiling-mounted or suspended
Viewing Area & Dimensions
E.g., 100″ 16:9 → 2,030 × 1,145 mm, 1,596 mm height; 120″ → 2,340 × 1,755 mm
Casing Dimensions
Approx. casing height 96 mm, width 70 mm
Use Case
Boardrooms, classrooms, home cinemas, AV venues
Standard Accessories
