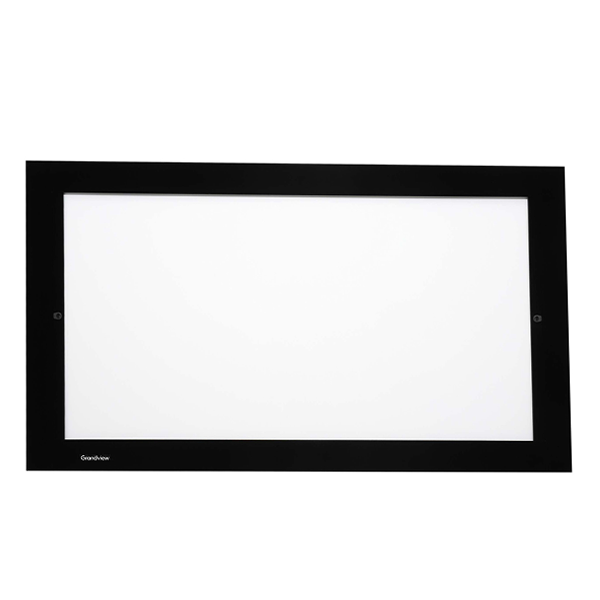

Grandview Dual-Masking Series Fixed Frame Screen
Versatile fixed-frame projector screen with dual masking for multiple aspect ratios, sleek velvet frame, and a flat, immersive viewing surface for home cinema. The Grandview Dual‑Masking Series Fixed Frame Screen is a versatile projector screen tailored for home cinema enthusiasts and professional screening environments. It supports both horizontal and vertical adjustable masking, allowing seamless switching between formats such as 16:9, 2.35:1, and 4:3. The 100 mm velvet-wrapped aluminum frame, combined with a multi-point tensioning system and innovative self-retracting masking mechanism, ensures a perfectly flat and visually immersive surface. Sleek, user-friendly, and manually adjustable, it offers customization without the need for power or motors
Share:
Grandview Dual-Masking Series Fixed Frame Screen
Regular price (/)
Grandview Dual-Masking Series Fixed Frame Screen (Home Theatre Projector Screen)

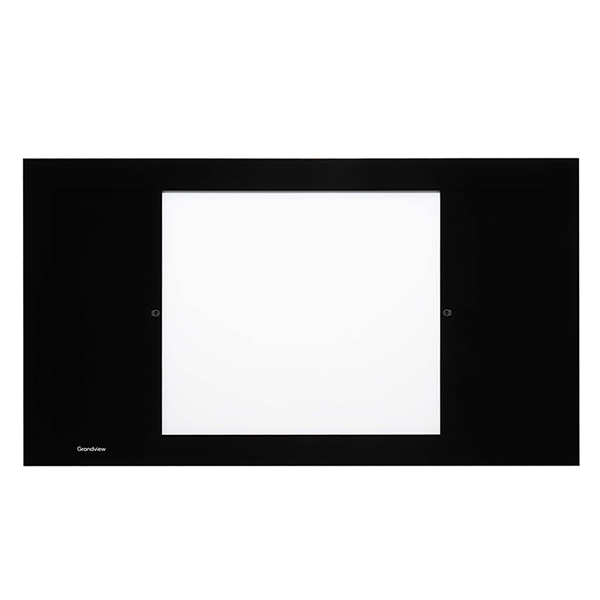

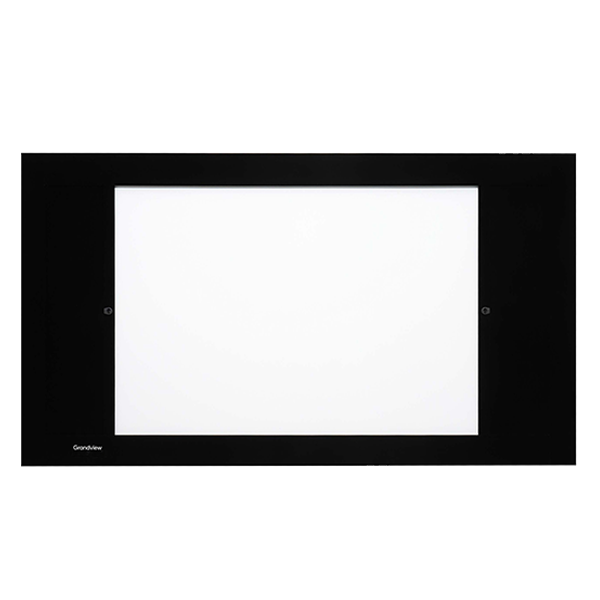

- Adjustable masking system supports both horizontal and vertical masking, enabling easy format switching
- Self-retracting mechanism for smooth, motor-free operation
- 100 mm velvet-wrapped aluminum frame enhances contrast and light absorption
- Multi-point tension design keeps the screen surface flat and wrinkle-free

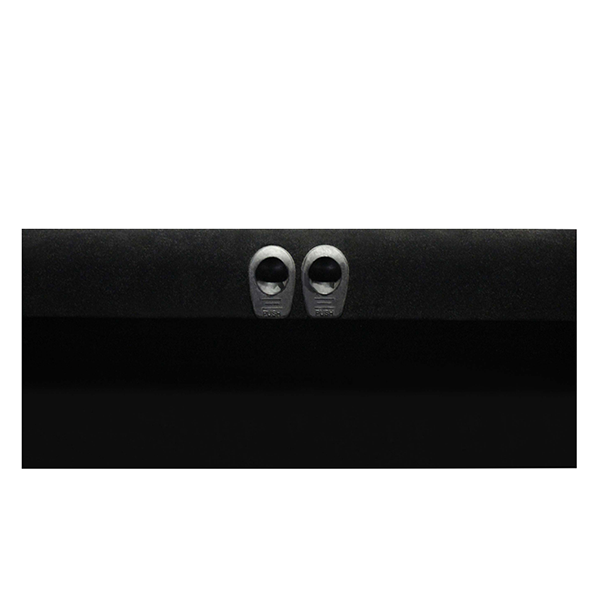

- Manual control via one-touch button, maintaining simplicity and reliability
- Wall-mounted installation with rapid bracket system for quick setup

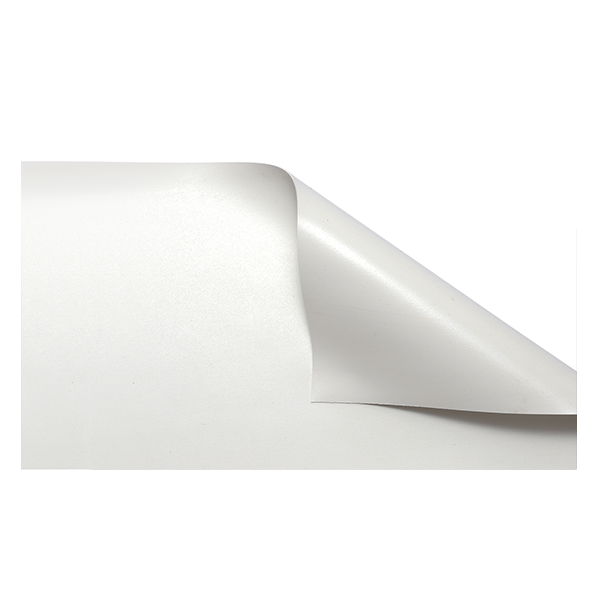

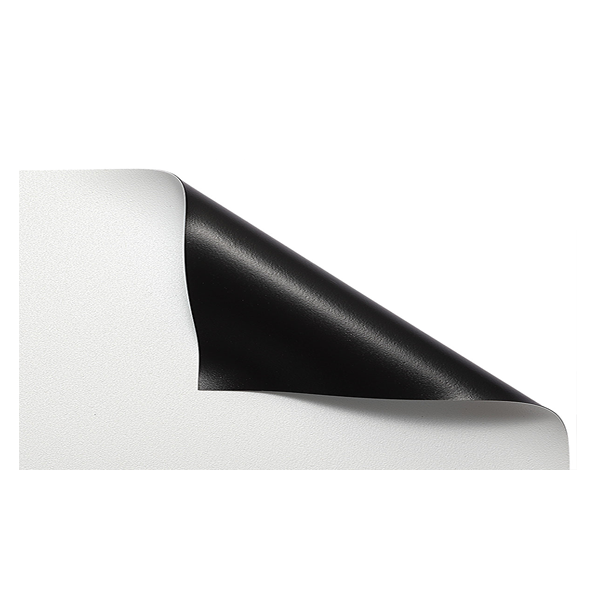

- Wide range of fabric options, including UHD130, WW5, WB7, GG3, AW6—supports 130°–160° viewing angles with gains from 0.8 to 1.3
Product Model
Dual‑Masking Series Fixed Frame Screen
Bezel Width
100 mm velvet-wrapped
Frame Material
Aluminum alloy, velvet finish
Sizes Available
84″, 92″, 100″, 106″, 110″, 120″, 125″, 130″, 132″
Aspect Ratio Support
16:9 native; adjustable to 2.35:1 / 4:3 formats
Masking Types
Horizontally adjustable, Vertically adjustable
Masking Mechanism
Manual self-retraction via one-button control
Tensioning System
Multi-point tension design
Wall Mount
Included rapid installation bracket system
Fabric Options & Gains
UHD130 (1.3, 130°), WW5 (1.0, 160°), WB7 (1.0,160°), GG3 (0.8, 160°), AW6 (0.8,150°)
Viewing Angle Range
130°–160°, fabric-dependent
Frame Operation
Manual, no motors or electricity required
Profile Control
Horizontal masking (2.35:1 → 16:9/4:3), Vertical masking (16:9 → 2.35:1)
Installation Type
Wall-mounted with one-button uninstall feature
