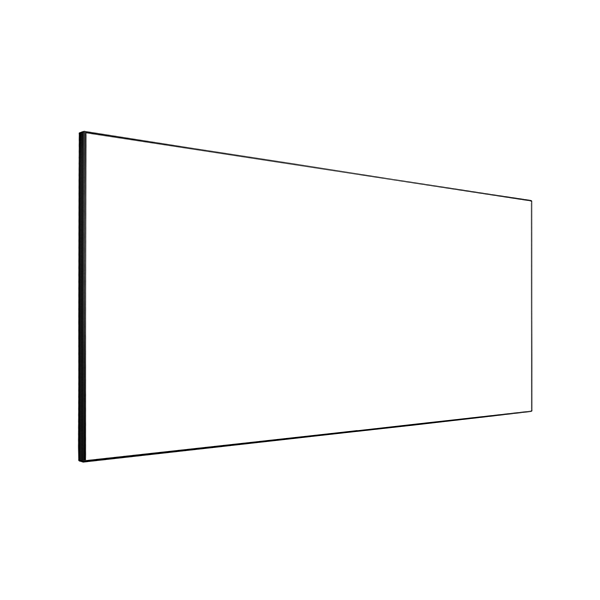

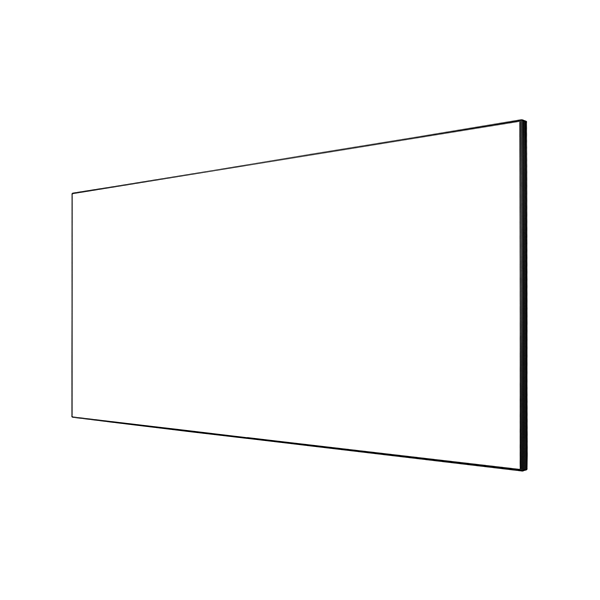

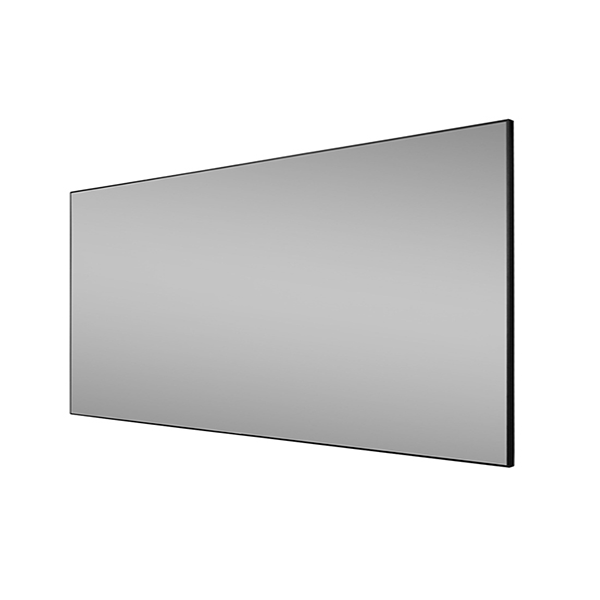

Grandview Edge Series Fixed Frame Screen - R2
The Grandview Edge Series Fixed Frame Screen – R2 is engineered for sleek, high-performance projection in dedicated home theaters and professional AV environments. With a minimal 12 mm bezel encased in a velvet-wrapped aluminum frame, it offers maximum image area with minimal visual distraction. Its multi-point tensioning system keeps the screen surface perfectly flat and ripple-free, while lightweight, compact packaging ensures easy transport and installation. It supports a wide selection of screen materials—including high-gain, ambient-light-rejection, and acoustic-weave fabrics—which makes it suitable for both standard and ultra-short-throw projectors, as well as for acoustically sensitive setups.

Grandview Edge Series Fixed Frame Screen - R2
Sale price
Regular price (/)
Grandview Edge Series Fixed Frame Screen - R2 (Home Theatre Projector Screen)
- Ultra-slim 12 mm bezel for a modern, full-screen aesthetic

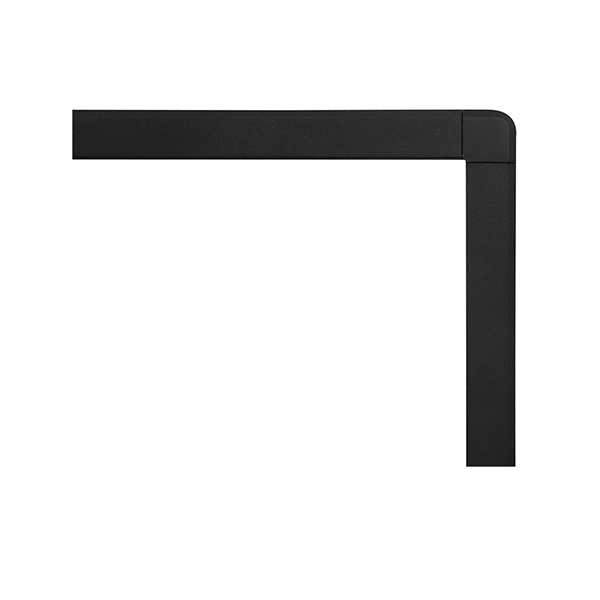

- Velvet-wrapped aluminum frame enhances contrast by damping stray light
- Multi-point tension design ensures a mirror-flat projection surface
- Flush wall installation with just 6.5 mm clearance from the wall
- Supports Full HD, 4K, 8K, HDR, and 3D viewing formats
- Wall-mountable and lightweight, fitting sizes ranging from 77″ to 150″
- Customizable screen materials: UHD130, WW5, DY1C/D/D‑UW, DY2C‑P, DY3, DY3‑T, DY4, DY5, DY7
- Available with acoustic-weave fabric for seamless speaker integration
Model
Edge Series Fixed Frame Screen – R2
Bezel Width
12 mm
Frame Material
Extruded aluminum with black velvet trim
Wall Gap
~6.5 mm flush mount
Tension System
Multi-point steel rod tensioning
Supported Resolutions
Full HD, 4K, 8K, HDR, 3D
Screen Size Options
77″, 80″, 84″, 92″, 96″, 100″, 106″, 110″, 112″, 120″, 130″, 145″, 150″
Aspect Ratios
16:9, 16:10
Screen Materials/Gain
UHD130 (gain 1.3, 130°), WW5 (1.0, 160°), DY1C (1.6, narrow angle), DY1D (1.3), DY2C‑P (1.5), DY3/DY3‑T (0.5), DY4 (0.6), DY5 (0.6), DY7 (1.2), DY1D‑UW acoustic
Installation Tools
Hanging plate, Allen key, tension hook, EPE mat, mounting brackets
Applications
Home theaters, media rooms, conference and AV environments
