Integra DRX-2.4
The Integra DRX-2.4 is a high-performance 7.2-channel network AV receiver engineered for immersive home theater experiences. Designed for audiophiles and custom installation professionals, this receiver combines robust power amplification with advanced audio and video processing, supporting the latest HDMI 2.1 features, immersive surround formats, and multi-room network streaming. With professional-grade connectivity and integration features, the DRX-2.4 delivers cinematic audio fidelity and seamless system control for sophisticated home entertainment setups.

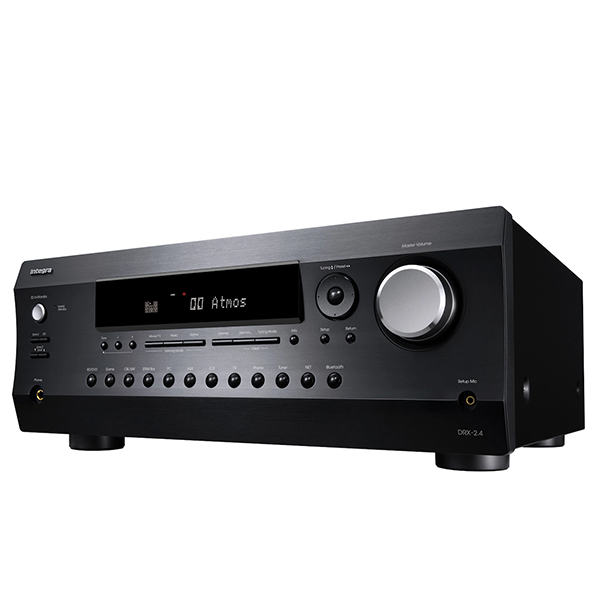

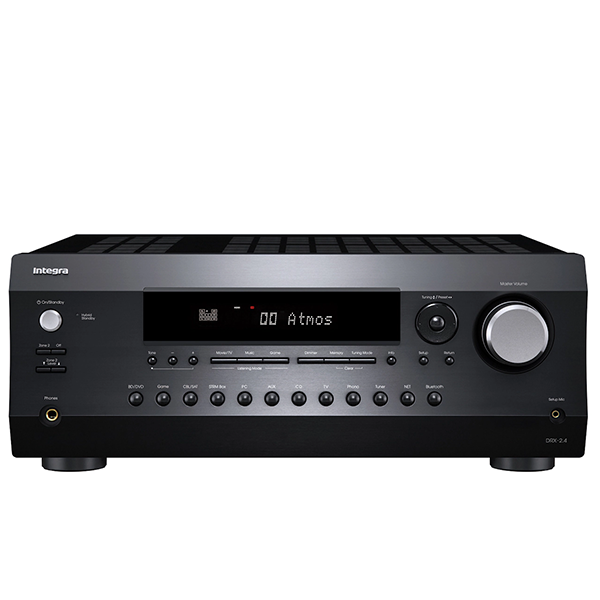

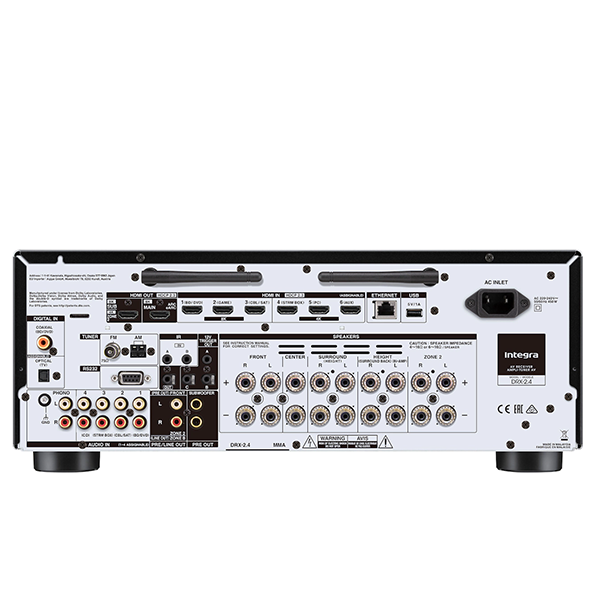

Integra DRX-2.4 AV Receiver
- 7.2-channel network AV receiver with powerful amplification.
- Supports Dolby Atmos® and DTS:X® immersive surround formats.
- HDMI 2.1 with 8K/60 Hz passthrough and HDR10+, ensuring next-gen video compatibility.
- Advanced Dolby Atmos Height Virtualization for enhanced dimensional sound.
- Multi-zone audio support with Zone 2 pre-outs and independent streaming.
- Integrated Wi-Fi, Bluetooth, and Ethernet for network streaming and multi-room audio.
- Built-in support for popular streaming services (e.g., Spotify, TIDAL) and voice assistants.
- Custom installation-friendly features: web setup, HDMI diagnostics, remote monitoring compatibility.
5.1.2-channel Dolby Atmos® and DTS:X® playback
Dolby Atmos Height Virtualization
Dolby Surround® and DTS® Neural:X upmixing
VRR, ALLM, QFT, DSC, QMS, and eARC supported on HDMI inputs 1–3, Main Out, and Sub/Zone 2 Out (Sub Mode)
Inputs 1–3: HDMI 2.1 (8K/60AB, 4K/120AB); Inputs 4–6: HDMI 2.0b (4K/60); Main+Sub output: simultaneous 8K/60AB & 4K/120AB; Main+Zone 2: 8K/60AB & 4K/60
HDMI Main Out with eARC for high-quality encoded audio; Sub/Zone 2 Out with OSD
Bluetooth® v4.2 + LE (A2DP v1.2, AVRCP v1.3); RX: SBC/AAC; TX: SBC / Qualcomm® aptX™ / aptX HD
Dedicated DACs for synced or independent D/A distribution to Zone 2 & Zone 3 via HDMI/SPDIF/NET, speaker outputs, and pre-outs
Share MAIN audio source to a wireless headphone dock via Zone B line-out
Built-in MM phono equalizer and SACD playback via HDMI (2.8 MHz, 2-ch/multichannel)
AccuReflex™ phase-matching for Dolby Atmos-enabled speakers
DSP-based Vocal Enhancer for clearer vocals and dialogue
80 W per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-channel driven, FTC)
Low-impedance amplifier system with 4-ohm speaker-driving capability
Massive custom transformer with hand-selected audio components
Non-phase-shift amp-circuit topology for clear, cohesive sound
Optimum Gain Volume Circuitry
Precision DAC supporting 192 kHz / 24-bit multichannel D/A conversion
VLSC™ (Vector Linear Shaping Circuitry) filtering for Front L/R channels
PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio
Front L/R speaker bi-amping capability in 5.2-channel configuration
Bass and treble controls for Front L/R channels

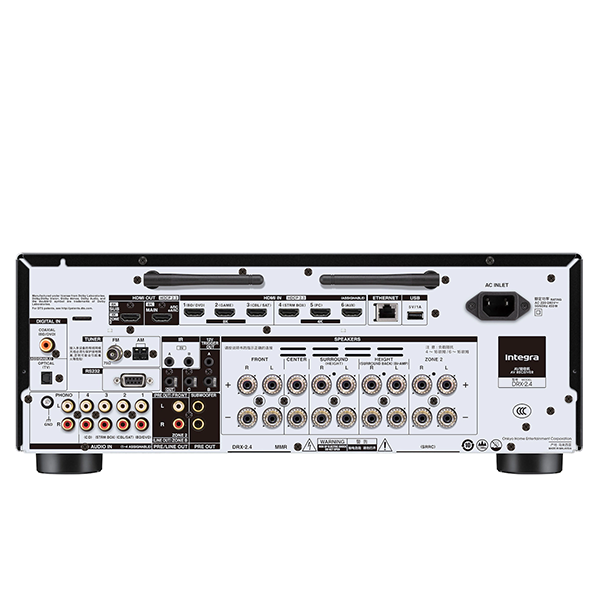

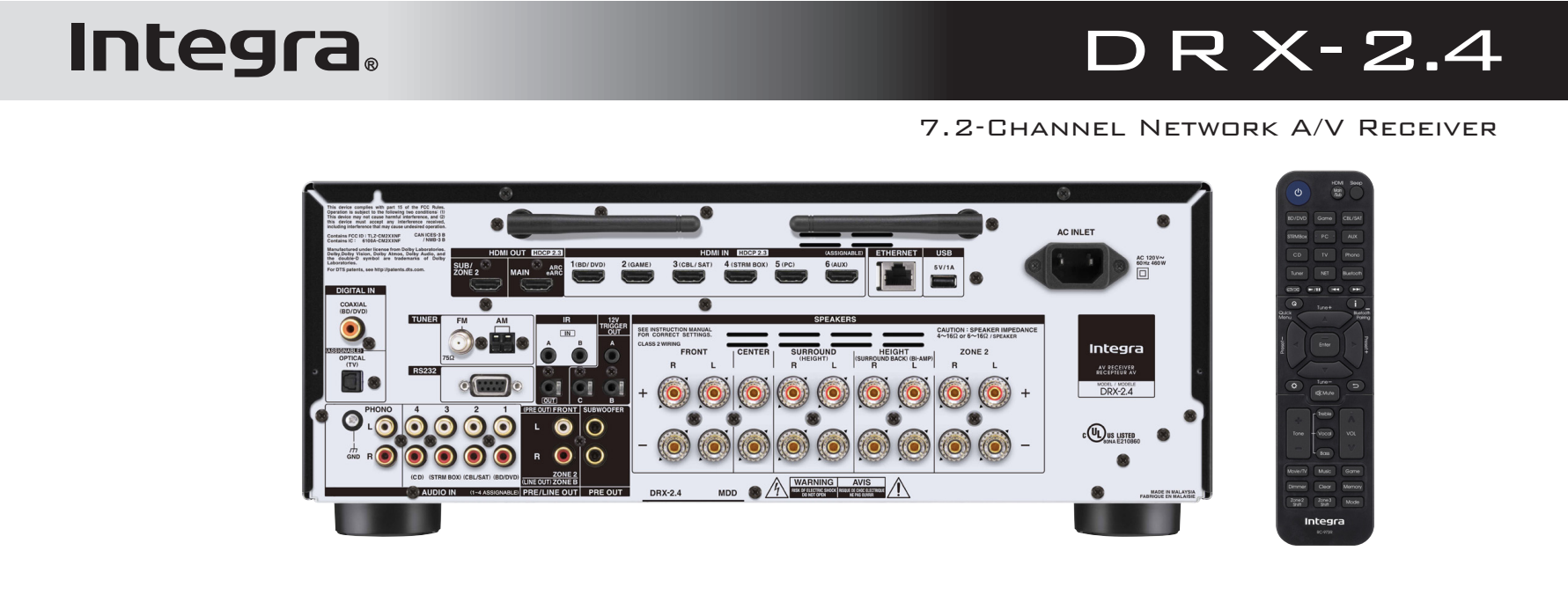

6 HDMI inputs, HDMI Main Out with eARC, Sub/Zone 2 Out
2 rear digital inputs: 1 optical and 1 gold-plated coaxial (assignable)
4 rear gold-plated analog RCA inputs (assignable)
Gold-plated phono input with built-in MM equalizer for turntable connection
Rear USB input (5 V / 1 A) for audio playback
Front gold-plated 3.5 mm AccuEQ setup microphone input
Gold-plated 6.35 mm (1/4") headphone jack
9 gold-plated, banana-plug-ready speaker posts with transparent knobs (including Zone 2)
Dedicated gold-plated Zone 2 speaker outputs
Gold-plated Front L/R pre-out, Zone 2 pre-out, and Zone B line-out (analog RCA)
Dual subwoofer pre-outs
Ethernet LAN terminal
Isolated quad-core SoC board with high-speed 802.11ac (2×2 MIMO) Wi-Fi®
Amazon Music HD, Spotify®, TIDAL, TuneIn, Pandora®, Deezer
Supports multiple Sonos Connect/Port control with Volume Passthrough mode
Multi-room music support with Alexa
Works with Hey Google and Chromecast built-in™
AirPlay 2 multi-room audio with Siri voice control
DTS Play-Fi® multi-room audio via Integra Music Control App
Compatible with Integra Remote app for iPad®, iPhone®, and Android™
FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
40 Stations
AC 120 V~, 60 Hz
460 W
0.1 W
17 1/8"x 6 7/8"x 14 13/16"
(435 x 174 x 376.5 mm)
21.2 lbs.
(9.6 kg)
