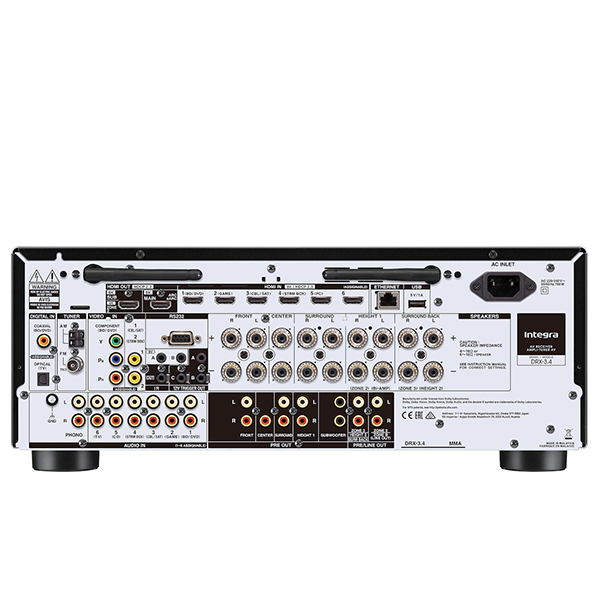

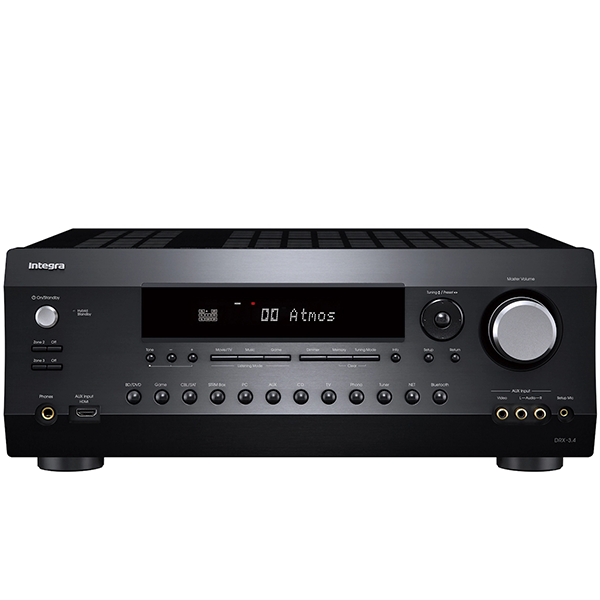

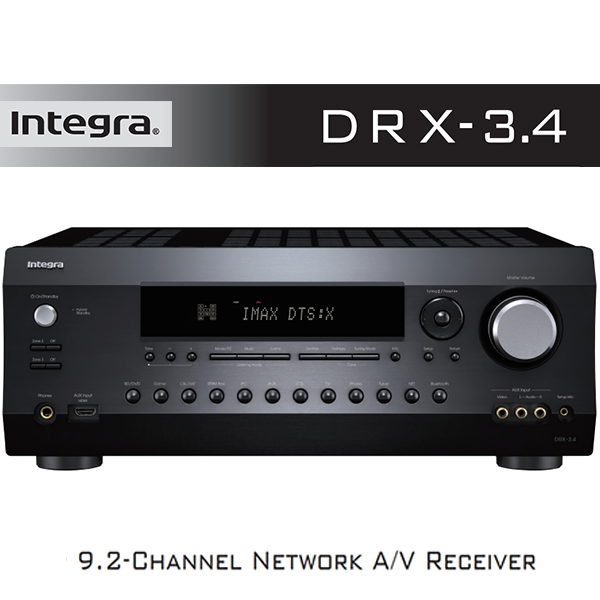

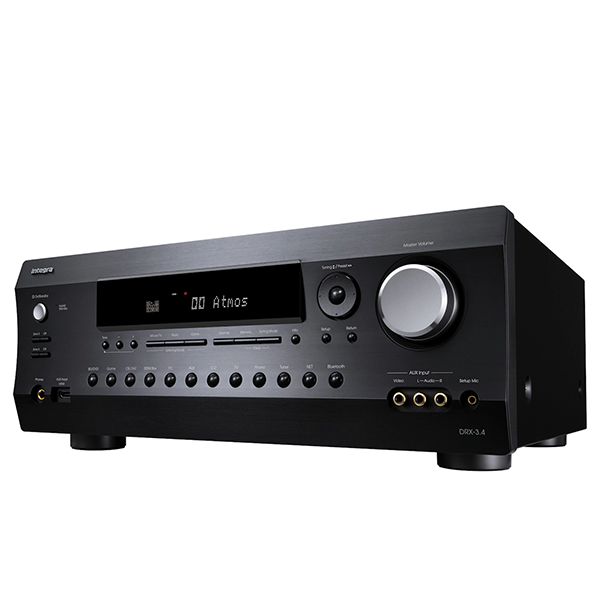

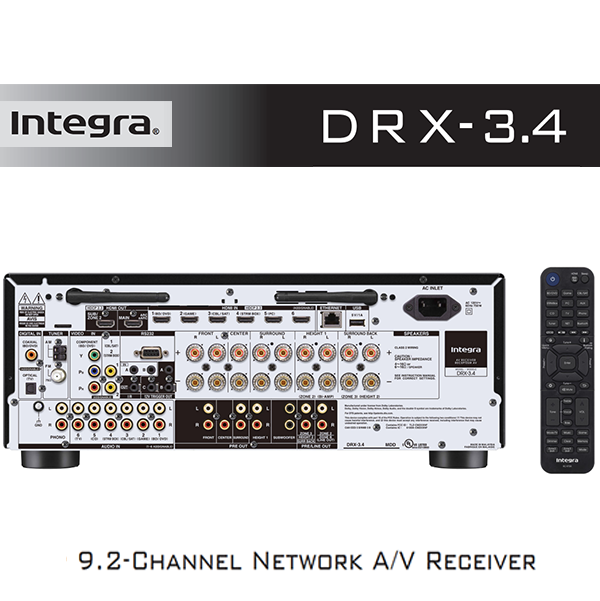

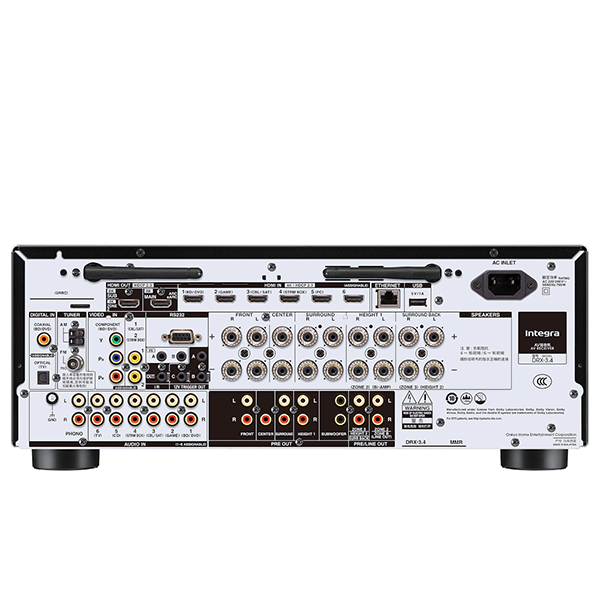

Integra DRX 3.4

5.2.4 / 7.2.2-channel Dolby Atmos® and DTS:X® playback

Dolby Atmos Height Virtualization

Dolby Surround® and DTS® Neural:X upmixing

HDMI® inputs 1–3 support up to 8K/60AB and 4K/120AB; HDMI® inputs 4–6 support up to 8K/60B and 4K/120AB

Supports HDR10+, Dolby Vision™, HDR10, HLG, BT.2020, VRR, DSC, ALLM, QFT, QMS, eARC, DeepColor™, x.v.Color™, LipSync, and HDCP 2.3 on HDMI® inputs 1–6

Front HDMI® input supports up to 4K/60 with HDMI 2.0 features

HDMI Main Out with eARC for high-quality encoded audio; Sub/Zone 2 Out with OSD

Bidirectional Bluetooth® v4.2 + LE (A2DP v1.2, AVRCP v1.3); RX: SBC/AAC; TX: SBC / Qualcomm® aptX™ / aptX HD

9.2-channel multichannel pre-outs

Dedicated DACs for synced or independent D/A distribution to Zone 2 and Zone 3 via HDMI / SPDIF / NET, speaker outputs, and pre-outs

Share any MAIN audio source to a wireless headphone dock via Zone B line-out

Built-in MM phono equalizer and SACD playback via HDMI (2.8 MHz, 2-channel/multichannel)

Dirac Live® Room Correction with multi-point acoustic calibration

AccuReflex™ phase-matching for Dolby Atmos-enabled speakers

DSP-based Vocal Enhancer for clearer vocals and dialogue

100 W per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-channel driven, FTC)

IMAX® Enhanced certified for IMAX® digital remasters

Low-impedance amplifier system with 4-ohm speaker-driving capability

Massive custom transformer with hand-selected audio components

Non-phase-shift amp-circuit topology for clear and cohesive sound

Optimum Gain Volume Circuitry

Precision DAC supporting 192 kHz / 24-bit multichannel D/A conversion

VLSC™ (Vector Linear Shaping Circuitry) filtering for Front L/R channels

Front L/R speaker bi-amping capability in 5.2 / 7.2 / 5.2.2-channel configurations

PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio

Independent bass and treble tone controls for all channels

Isolated quad-core SoC board with high-speed 802.11ac (2×2 MIMO) Wi-Fi®

Amazon Music HD, Spotify®, TIDAL, TuneIn, Pandora®, and Deezer

Supports multiple Sonos Connect/Port control with Volume Passthrough mode

Multi-room music support with Alexa

Works with Hey Google and Chromecast built-in™

AirPlay 2 multi-room audio with Siri voice control

DTS Play-Fi® multi-room audio via Integra Music Control App

Compatible with Integra Remote app for iPad®, iPhone®, and Android™

Roon Tested certified

Network playback of DSD (11.2 / 5.6 / 2.8 MHz), FLAC, WAV (RIFF), ALAC, and AIFF up to 192 kHz / 24-bit

Ethernet support for setup and IP control via web browser

FM 87.5 MHz–107.9 MHz

AM 530 kHz–1,710 kHz

40 Stations

AC 120 V~, 60 Hz

750 W

0.1 W

17 1/8"x 6 7/8"x 14 13/16"

(435 x 174 x 376.5 mm)

24.3 lbs.

(11.0 kg)
