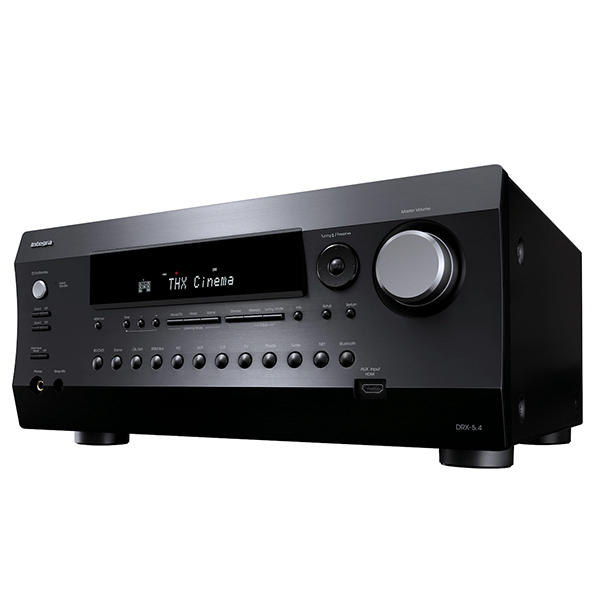

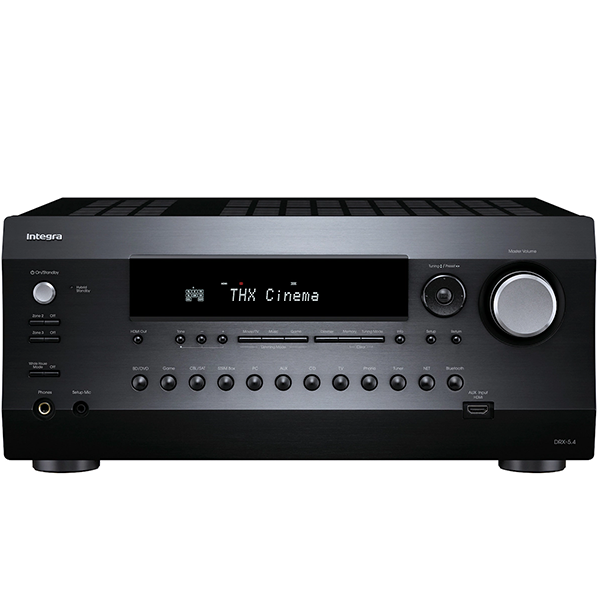

Integra DRX 5.4
The Integra DRX-5.4 is a high-end 9.2-channel network A/V receiver designed for serious home theater and custom installation systems. It delivers theater-reference Dolby Atmos® and DTS:X® surround sound, powerful amplification, advanced video support, network streaming, and integrator-friendly control features — perfect for modern high-performance setups.

Integra DRX 5.4 | 9.2-Channel AV Receiver
- 9.2-channel AV receiver with powerful amplification
- Supports Dolby Atmos® and DTS:X® surround sound
- HDMI 2.1 with 8K/60Hz and 4K/120Hz video support
- HDR support including Dolby Vision™, HDR10+, and HLG
- Built-in Dirac Live® room correction
- THX® Certified Select and IMAX® Enhanced
- Wi-Fi and Ethernet network connectivity
- Multi-room and multi-zone audio support
- Works with popular streaming and control systems
- Designed for professional custom-installation use
5.2.4 / 7.2.2-channel Dolby Atmos® and DTS:X®
Dolby Atmos Height Virtualization
Dolby Surround® and DTS® Neural:X
Up to 8K/60AB and 4K/120AB passthrough
Up to 8K/60B and 4K/120AB passthrough
HDR10+, Dolby Vision™, HDR10, HLG, BT.2020
VRR, DSC, ALLM, QFT, QMS
eARC, DeepColor™, x.v.Color™, LipSync, HDCP 2.3
Up to 4K/60, HDMI 2.0 features
11.2-channel processing
11.2-channel pre-outs
7.2.4-channel
HDMI Main Out with eARC, Sub / Zone 2 Out with OSD
Bluetooth® 4.2 + LE
A2DP v1.2, AVRCP v1.3
SBC, AAC
SBC, Qualcomm® aptX™, aptX™ HD
Supports 5.2.4-ch + Zone 2 speakers
5.2.4-ch to 5.2.2-ch + Zone 2
Dedicated DACs for Zone 2 & Zone 3
HDMI / SPDIF / Network
Zone 2 & Zone 3 speaker outputs and pre-outs
MAIN audio via Zone B line-out
MM Phono Equalizer
Via HDMI (2.8 MHz, 2-ch / Multichannel)
Dirac Live® multi-point calibration
AccuReflex™ phase-matching
DSP-based Vocal Enhancer
120 W per channel, 20 Hz–20 kHz, 0.08% THD, 2-ch driven (FTC)
250 W per channel, 1 kHz, 10% THD, 1-ch driven
THX® Certified Select
IMAX® Enhanced certified
4-ohm speaker-driving capability
Low-impedance amp system
Massive custom transformers
Customized 15,000 μF capacitors
Copper busbar capacitor-to-amp connection
Non-phase-shift amp-circuit design
Audio-grade parts with separate digital and analog boards
Extruded anti-resonant aluminum heat-sink
192 kHz / 24-bit multichannel D/A conversion
Precision DAC
VLSC™ filtering (Front L/R)
PLL jitter-cleaning for SPDIF
Front L/R bi-amping (5.2 / 7.2 / 5.2.2-ch)
Independent bass and treble for all channels
FM 87.5 MHz–107.9 MHz AM 530 kHz–1,710 kHz
40 Stations
AC 120 V~, 60 Hz
850 W
0.1 W
17 1/8"x 7 13/16"x 15 5/16" (435 x 198 x 388.5 mm)
30.9 lbs. , (14.0 kg)
