Luxman CL-38uC
The CL-38uC uses SRPP (Shunt Regulated Push Pull) circuitry for all stages to achieve the highest sound quality possible.A genuine phono equalizer is included, the MC-low and MC-high impedance (gain) inputs each have independent MC transformers and are selectable using the MC impedance lever switch.Tone controls enable the listener to fine tune the sound quality.Refined exterior design and newly added balanced inputs make this vacuum tube control amp a new standard for its generation.

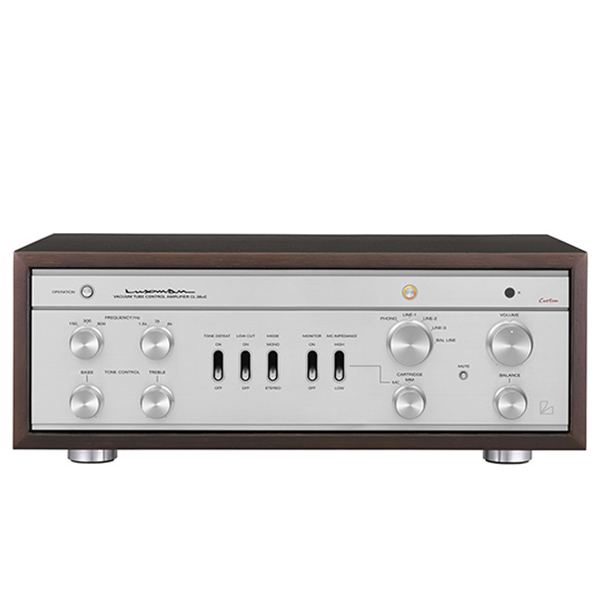

Luxman CL-38uC Vaccum Tube Pre-Amplifier

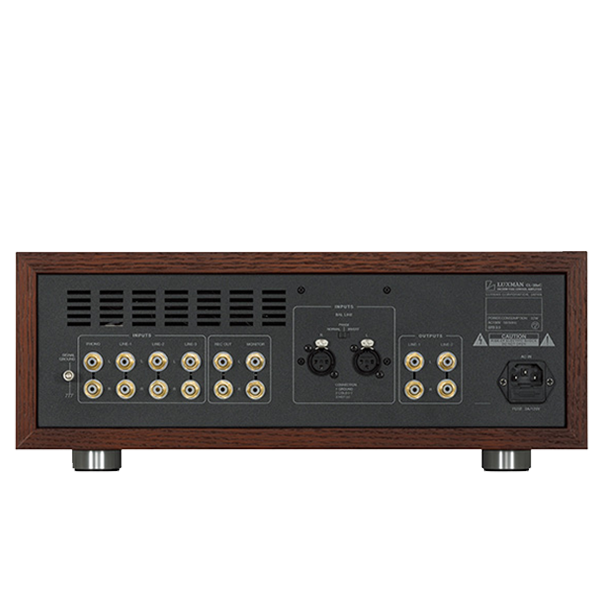

This unit uses transformer equipped balanced inputs. Since the maximum input level at the balanced inputs is equivalent to 2.5 Volts, please be aware that the audio signal may be distorted if you connect a device with a higher output level (higher output voltage). There is no problem when using Luxman products (CD players etc.). For details, please refer to the instruction manual for the equipment to be used.
PHONO (MM): 2.0mV/47kΩ
PHONO (MC high): 0.3mV/100Ω
PHONO (MC low): 0.08mV/30Ω
LINE: 190mV/50kΩ
BAL.LINE: 190mV/20kΩ *2
Rated 1V/300Ω
PHONO: 20Hz to 20kHz (±0.5dB)
LINE/BAL.LINE: 10Hz to 70kHz (within -3.0dB)
0.006% or less (1kHz)0.06% or less (20Hz to 20kHz)
PHONO (MM): 68dB or more
PHONO (MC high): 63dB or more
PHONO (MC low): 60dB or more
LINE/BAL.LINE: 100dB or more
±8dB, selectable frequency range
BASS: 150/300/600Hz,
TREBLE: 1.5k/3k/6kHz
30Hz(-6dB/oct.)
SRPP
ECC83S×3, ECC82×5
230V~(50Hz)/115V~(60Hz)
35W
440(W) x 169(H) x 307(D) mm
19mm front panel knob of and 12mm rear panel
terminals are included in the depth measurement
13.3kg (main unit)
Remote control (RA-19), Power cable

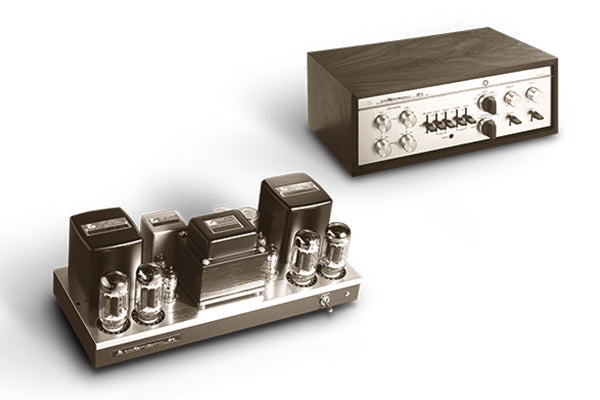

LUXMAN's vacuum tube amplifier legacy
Since the launch of our SQ-5A vacuum tube integrated amplifier in 1961, we have continued making vacuum tube amps without a break. We have produced many models that are highly valued as signature models and satisfied music lovers are enjoying them to this day, even several decades after their release. The CL-38uC and MQ-88uC combine LUXMAN's history of producing fine vacuum tube products and the traditional wisdom and skills gained along the way.

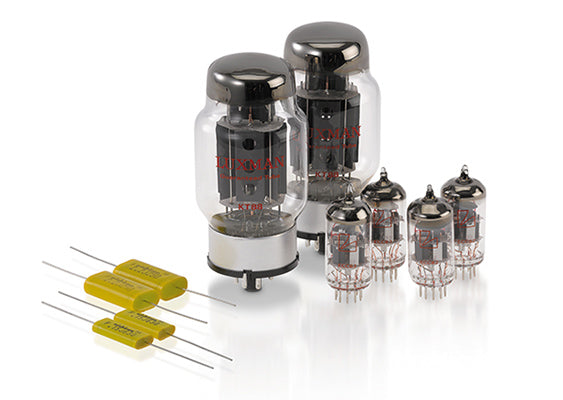

The essence of high-end products:selected high quality components
Due to their relatively simple circuitry, vacuum tube amplifiers are greatly affected by the quality of individual components, hence we utilize LUXMAN's own high-quality transformers and blocking capacitors. Further customization comes in the form of Nichicon made, high voltage, metalized polypropylene film coupling capacitors, which have been introduced for their supple, natural tone. Improved audio quality has been realized by shortening the internal wiring

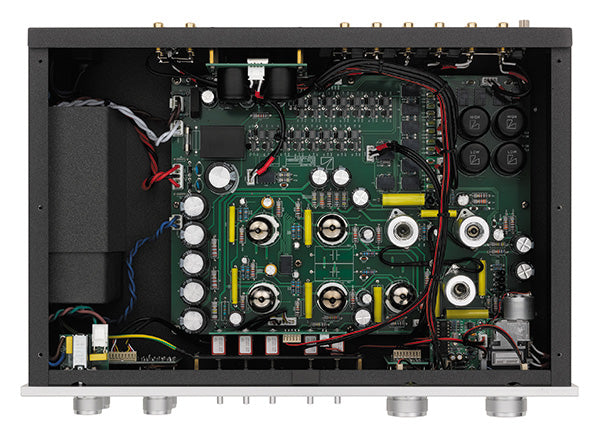

Standard size chassis in traditional wooden case
We have retained the outer wooden case, as it represents the tradition of the 38 series. The chassis has been expanded to a width of 440mm which is the standard size for current LUXMAN products. The internal chassis acts as an omnidirectional shielded metal enclosure. In order to prevent magnetic flux leakage and eliminate noise, the toroidal power transformer and choke transormer have integral shielded cases.

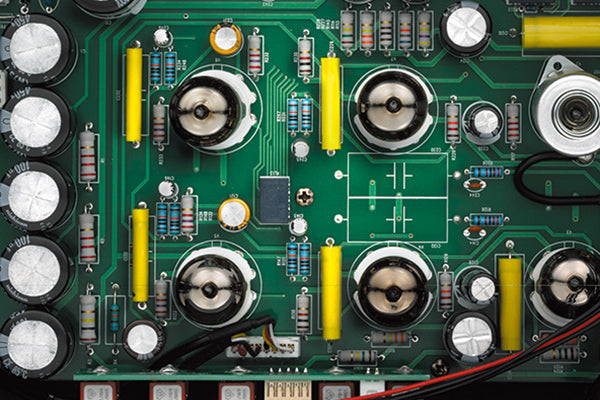

Elegant construction with SRPP circuitry
The CL-38uC's SRPP circuitry, used for the phono equalizer section, tone control section and amp section, ensures a flat frequency response and has other advantages, such as a low output impedance (300 ohm), low distortion and extended vacuum tube life. The elegant construction of such a control amplifier in a dedicated enclosure allows us ample space to mount a full complement of vacuum tubes inside, realizing clear and accurate musical expression and enviable sound quality which we feel will attract many music lovers and enthusiasts.

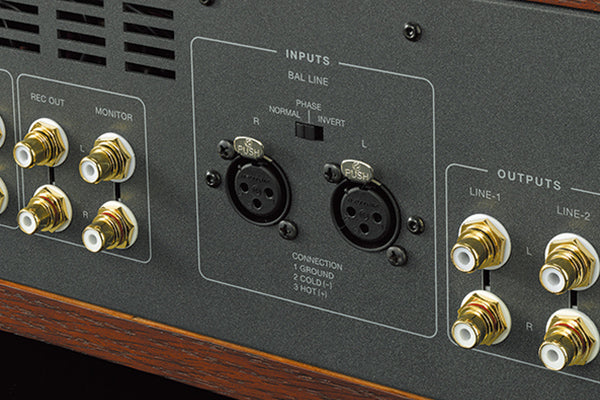

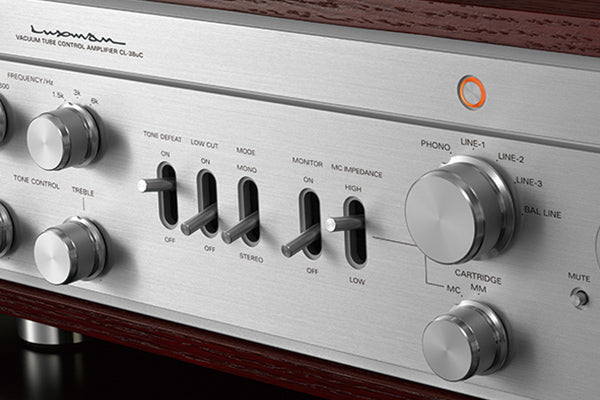

New features, balanced inputs and various controls
The CL-38uC’s balanced input terminals have dedicated transformers, improving integration with other high-end equipment. The built-in phono equalizer circuit is compatible with MM and MC cartridges and is equipped with step-up transformers for MC cartridges an independent left & right two step gain selector. The three-position switchable crossover frequencies for bass and treble tone controls enable the listener to fine tune the signal to the desired tonal character.

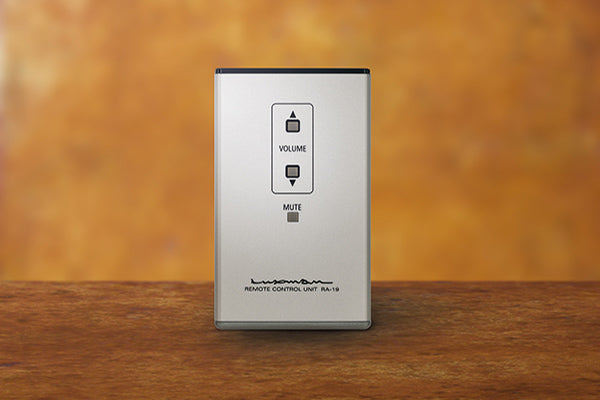

Dedicated remote control
The CL-38uC comes with a compact aluminum remote control, making it easy to control the volume smoothly from your listening position.
