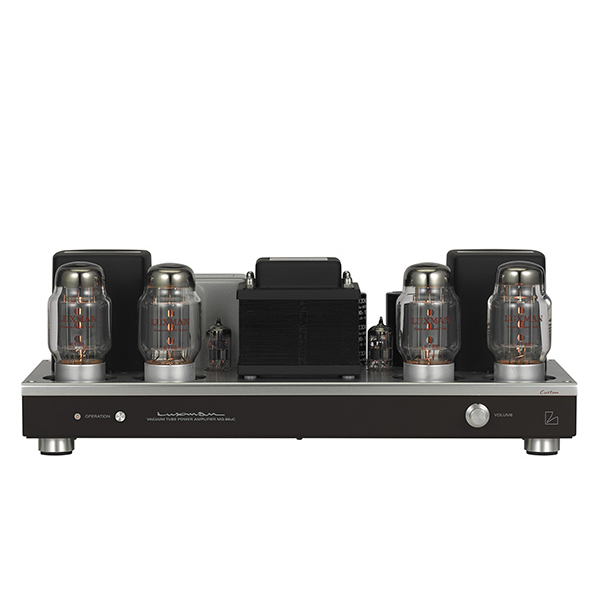

Luxman MQ-88uC
The MQ-88uC has an elegant dark brown finish, realizing a modern classical appearance reminiscent of our finest legacy products. This model’s improved clarity and warm, accurate audio reproduction, unique to vacuum tube products, and the quality of the components and engineering shine through. We strongly feel that the introduction of new technology and added customization will prove integral to this model’s appeal as a modern day vacuum tube amplifier.
Luxman MQ-88uC Vaccum Tube Amplifier

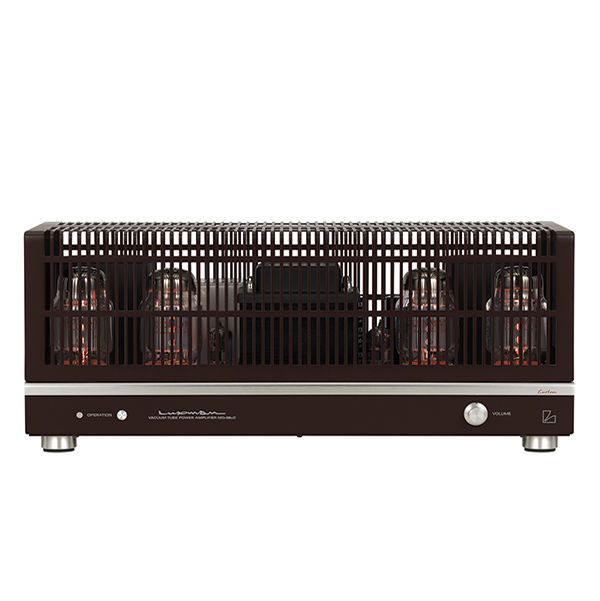

The main chassis of the MQ-88uC has a dark brown finish, different to the black finish of the MQ-88u. We feel this finish better matches our products with wooden exterior cases. The hairline finished aluminum top panel and matt black aluminum die-cast power transformer housings make for a harmonious match, fine quality and beauty being important to our designs.
25W + 25W (4Ω, 8Ω, 16Ω)
890mV/25W
32kΩ
20Hz to 20kHz (+0, -0.5dB)10Hz to 100kHz (+0, -3.0dB)
0.1% (1kHz/1W)
0.5% (20Hz to 20kHz/1W)
105dB
Driver: Mullard, Output tubes: Triode connection
ECC83S×2, ECC82×2, KT88×4
230V~(50Hz)/115V~(60Hz)
170W, 140W (under no signal)
440(W) x 184(H) x 230(D) mm
17mm front panel knob of and 28mm rear panel
terminals are included in the depth measurement
16.1kg (main unit)
Power cable
Width of part a: 14.5mm or less
Width of part b: 7.5mm or more
*Connection may be difficult
depending on the shape of the Y-lug terminal.
LUXMAN's vacuum tube amplifier legacy
Since the launch of our SQ-5A vacuum tube integrated amplifier in 1961, we have continued making vacuum tube amps without a break. We have produced many models that are highly valued as signature models and satisfied music lovers are enjoying them to this day, even several decades after their release. The CL-38uC and MQ-88uC combine LUXMAN's history of producing fine vacuum tube products and the traditional wisdom and skills gained along the way.

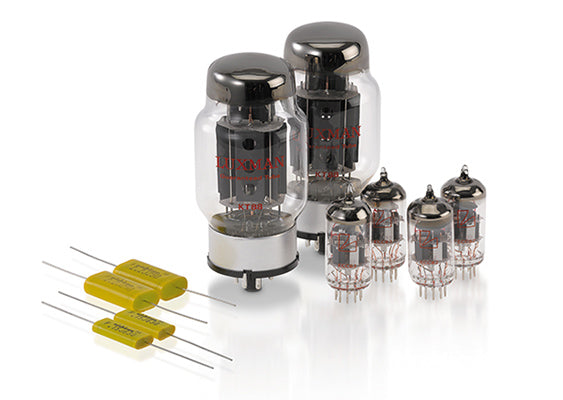

The essence of high-end products:selected high quality components
Due to their relatively simple circuitry, vacuum tube amplifiers are greatly affected by the quality of individual components, hence we utilize LUXMAN's own high-quality transformers and blocking capacitors. Further customization comes in the form of Nichicon made, high voltage, metalized polypropylene film coupling capacitors, which have been introduced for their supple, natural tone. Improved audio quality has been realized by shortening the internal wiring.

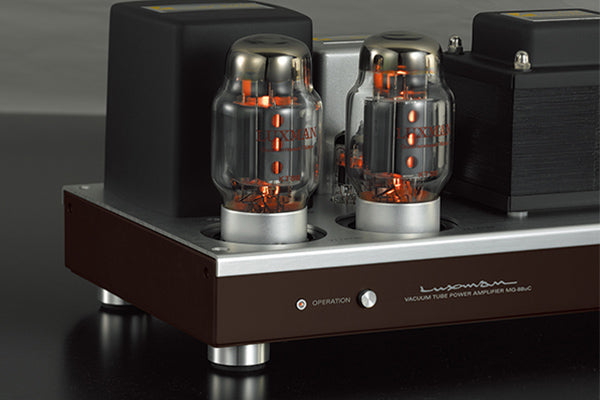

JJ Electronic KT88 output tubes
The KT-88 output tubes used in the MQ-88uC, made by JJ Electronic, are known for their power and rich sound quality. The triode configuration employed achieves longer vacuum tube life and a highly transparent timbre that vacuum tube amps are known for. The paralleled first stage feeds a driver stage featuring performance proven Mullard circuitry. For the final stage, we have adopted a Mullard compatible push pull configuration to achieve an output power of 25 Watts per channel at 4, 8 and 16 ohm with very low distortion.

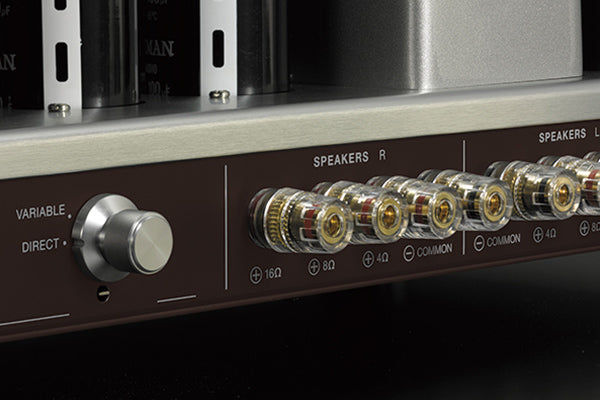

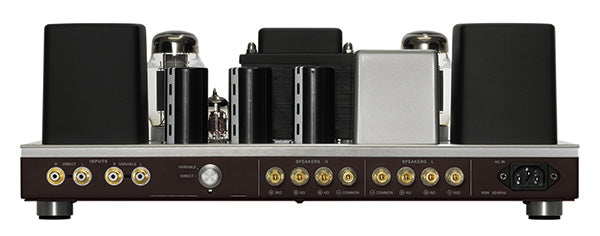

Independent speaker terminals for 4, 8 and 16 ohm speakers
The MQ-88uC has independent 4, 8 and 16 ohm speaker terminals to better match with and bring out the best abilities of any kind of speakers, allowing powerful music reproduction with very low distortion. The unit features a variable input (volume adjustable) mode in which the signal bypasses the input section, connecting a source device, such as a CD player, directly to the output section.

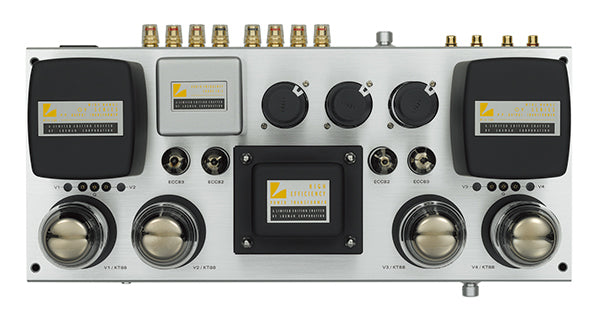

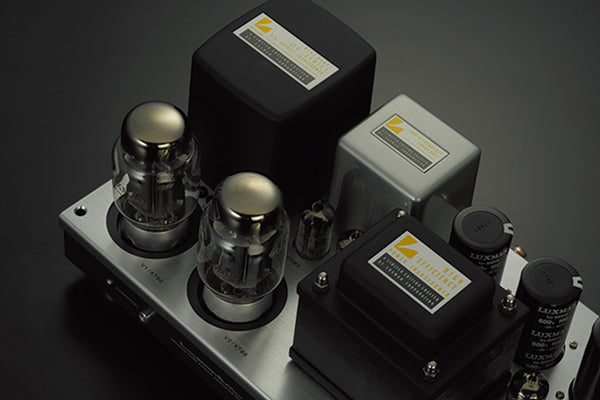

Output transformers and power supply
Output transformers play an important role in determining the sound quality and performance of a vacuum tube amp. LUXMAN’s classic amplifier products featured OY15 type output transformers with die-cast aluminum housings. These have been redesigned and reproduced with the original shape. The power supply section features a highly stable El type power transformer in tandem with custom designed blocking capacitors yielding steadfast sound quality and excellent drivability.

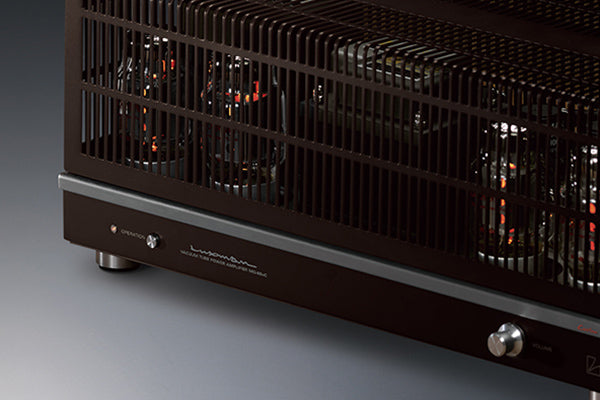

New exterior finish
The main chassis of the MQ-88uC has a dark brown finish, different to the black finish of the MQ-88u. We feel this finish better matches our products with wooden exterior cases. The hairline finished aluminum top panel and matt black aluminum die-cast power transformer housings make for a harmonious match, fine quality and beauty being important to our designs.
