Marantz Cinema 40
The Marantz Cinema 40 AV Receiver. It's designed to elevate your home theater experience with premium audio technology, state-of-the-art features, and exquisite craftsmanship, delivering a cinematic adventure like no other. Whether you're into movies, gaming, or music, the Marantz Cinema-40 will redefine your audio-visual journey. Keep reading to explore the remarkable features that make this AV receiver a must-have for any home entertainment enthusiast.

Marantz Cinema 40 Premium 9.4 Channel Av Receiver
- Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.
- Cinema 40 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology
- A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials
- It has Dolby Atmos, DTS:X Auro 3D, and 8K Ultra HD plus HEOS® Built-in streaming Technologies.
- Cinema 40 is a statement piece and reference level A/V Receiver.
Number of Powered Channels: 9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 125 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 165 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 235 W
70% Guarantee: Yes
Discrete Power Amplifier: Yes
Amplifier Topology: Class A/B
Current Feedback Topology: Yes
Bi-Amp Drive: assignable
DTS: DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround
Other: IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H
Max Number of Processing (Preamp) Channels: 11.4
Composite In / Out: 2 / 0
Component In / Out: 1 / 0
HDMI In / Out: 7 / 3
Multi-Room Video Out via HDMI: Yes
Analog In / Fixed Level Out: 5 in / 0 out
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 2 / 2
Multi-Room Out: analog / digital: 2 / 0
Multichannel Preamp Out: 11.4
Subwoofer Out: 4 (independent)
7.1 multichannel input: No
Number of Speaker Terminals: 11
Speaker A / B: assignableMulti-Room Speaker Terminal: assignable
Front Inputs: USB-A
USB Audio / Made for iPod / Made for iPhone: Yes / No / No
AM/FM Tuner: Yes
Total HDMI Inputs / No. Support 8K: 7 / 7
HDCP2.3 support: Yes
HDMI Outputs: Main / Zone: 2 / 1
Analog to HDMI Video Conversion: Yes
HDMI Upscaling: 1080P/4K to 8K
Max resolution @ framerate: 8K @ 60Hz, 4K @ 120Hz
Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable Refresh Rate / Quick Frame Transport: Yes / Yes
HDMI Pass-Through in Standby Mode: Yes
CEC: Yes
DSD Audio over HDMI: Yes
Auto LipSync: Yes
Front Display: 2 line FLD + port hole OLED
GUI Languages: 9
Setup Assistant: Yes
Smart Select on Remote: Yes
ECO Mode: Yes
Auto Power off: Yes
Sleep Timer: Yes
Available Colors: Black/Silver-Gold
Metal Front Panel: Yes
System Remote Control: RC048SR
Power Consumption in W: 710
Power Consumption No-Sound (ECO on/off) in W: 65 / 110
Standby Consumption in W: 0.2
CEC Standby Consumption in W: 0.5
Network Standby Consumption in W: Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches: 17.3 x 16.2 x 7.3
Antenna:Vertical :(W x D x H) in inches: 17.3 x 16.2 x 10
W/o Antenna:(W x D x H) in inches: 17.3 x 15.8 x 7.3
Weight in lbs: 33.3
What's in the box: Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord

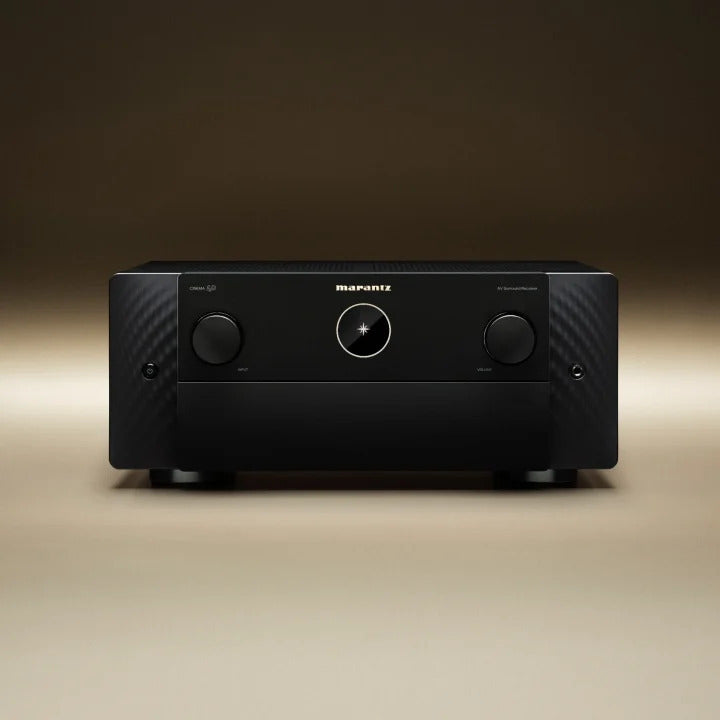

Immersive Audio Experience
The Marantz 40 AVR AV Receiver offers a powerful 9.4 channel configuration that delivers an immersive audio experience. With support for advanced surround sound formats like Dolby Atmos,DTS:X, and Auro-3D,users can enjoy multi-dimensional audio that surrounds them from all angles, creating a true theater-like atmosphere in the comfort of their homes.
Immersive Audio Experience
The Marantz 40 AVR AV Receiver offers a powerful 9.4 channel configuration that delivers an immersive audio experience. With support for advanced surround sound formats like Dolby Atmos,DTS:X, and Auro-3D,users can enjoy multi-dimensional audio that surrounds them from all angles, creating a true theater-like atmosphere in the comfort of their homes.


High-Resolution Audio Support
The Cinema 40 AV Receiver offers a wide variety of high-resolution audio formats like FLAC, ALAC, and WAV, ensuring music reproduction with exceptional clarity and accuracy. This means users can enjoy their favorite tracks with studio-like precision and enjoy every nuance of the music they love.
High-Resolution Audio Support
The Cinema 40 AV Receiver offers a wide variety of high-resolution audio formats like FLAC, ALAC, and WAV, ensuring music reproduction with exceptional clarity and accuracy. This means users can enjoy their favorite tracks with studio-like precision and enjoy every nuance of the music they love.


Advanced Room Calibration
The technology of Marantz advanced room calibration provides you with a premium audio experience and improves the user’s speaker system and specific room. When users try this first time, included setup assistant guides users through the configuration process which makes things easy for users.
Advanced Room Calibration
The technology of Marantz advanced room calibration provides you with a premium audio experience and improves the user’s speaker system and specific room. When users try this first time, included setup assistant guides users through the configuration process which makes things easy for users.

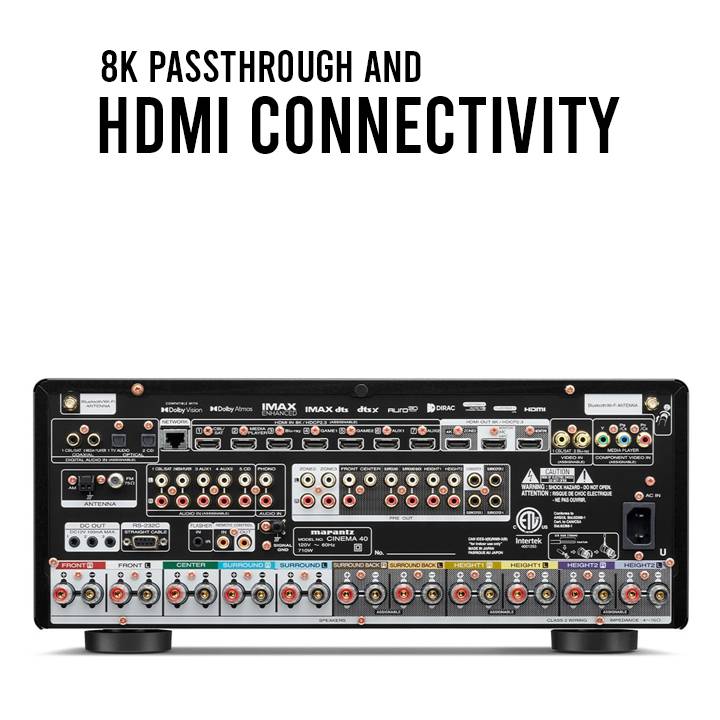

8K Passthrough and HDMI Connectivity
The AVR Cinema 40 Marantz is equipped with multiple HDMI inputs and outputs that include support for 8K passthrough. This feature enables seamless integration withUltra HD Blu-ray players, gaming consoles, and other 8K-capable devices, delivering stunning visuals to complement the exceptional audio performance.
8K Passthrough and HDMI Connectivity
The AVR Cinema 40 Marantz is equipped with multiple HDMI inputs and outputs that include support for 8K passthrough. This feature enables seamless integration withUltra HD Blu-ray players, gaming consoles, and other 8K-capable devices, delivering stunning visuals to complement the exceptional audio performance.
