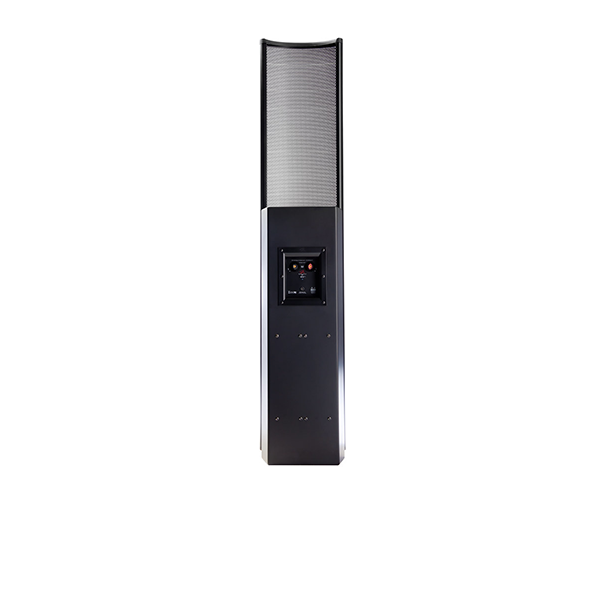

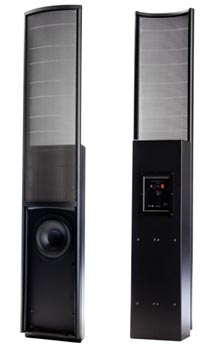

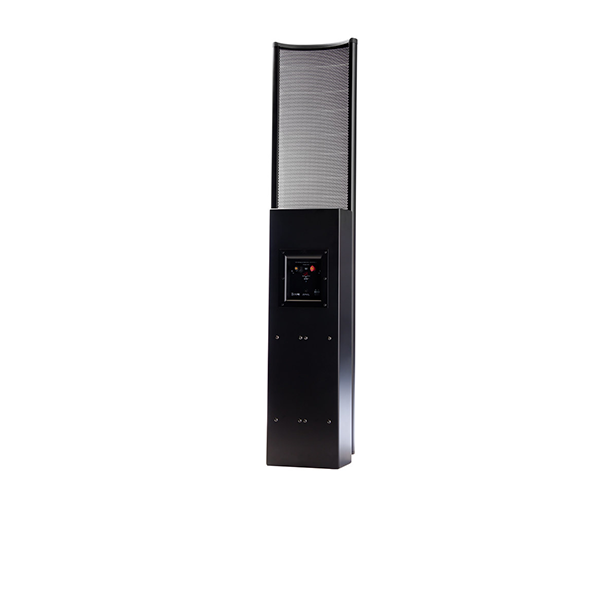

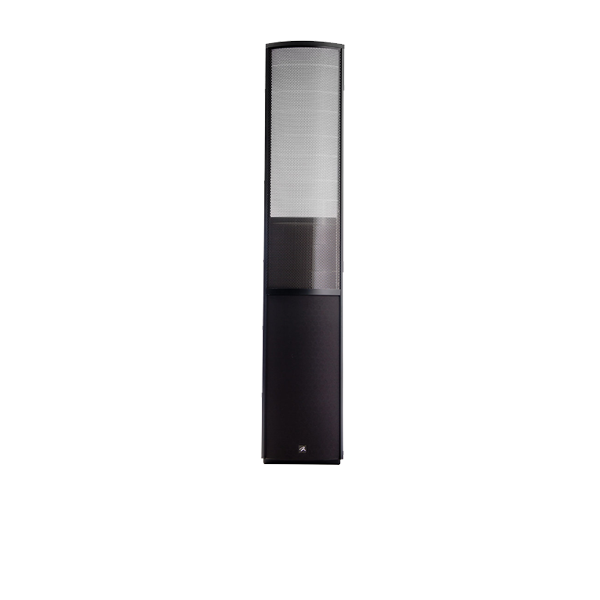

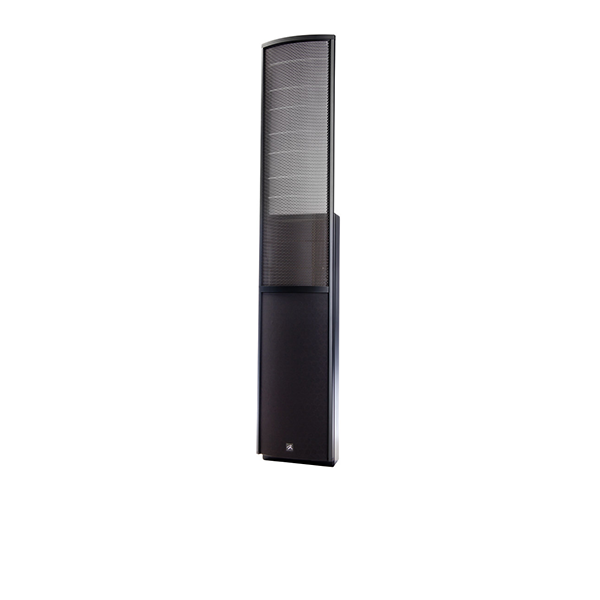

Martin Logan EFX
Martin Logan EFX On Wall Speaker
- Hybrid on-wall electrostatic speaker featuring a CLS™ XStat™ transducer housed in an ultra-rigid AirFrame™ for exceptional detail and dynamics
- Slim 6.5-inch deep profile with included pivoting wall bracket, allowing precise aiming toward the listening position
- Proprietary Vojtko™ filtering network, hand-built with polypropylene capacitors, air-core inductors, and a custom E-I core transformer for low distortion
- Custom tool-less 5-way binding posts plus an integrated low-voltage DC power supply for simplified cable management and setup
- Frequency response of 68 Hz–22 kHz ±3 dB for full-range performance in surround applications
- Sensitivity of 90 dB/2.83 V/m, ensuring efficient playback with a variety of amplifiers
- Nominal impedance of 6 Ω (1.3 Ω @ 20 kHz), compatible with 4, 6, or 8 Ω rated amplifiers
- Recommended amplifier power of 20–300 W per channel to drive the electrostatic panel and woofer optimally
68–22,000 Hz ±3dB
20—300 watts per channel
30°
28" (71cm) line source
90 dB/2.83 volts/meter
6 Ohms, 1.3 @ 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
530Hz
XStat™ CLS™ electrostaic transducer » Panel Dimensions: 28" x 8.6" (71 x 22cm) » Radiating Area: 241 in² (1,562 cm² )
6.5" (16.5cm) high excursion, fiber cone with extended throw drive assembly; bass reflex
Custom-wound E-I core transformer, air core coils, metal film capacitors
Custom 5-way binding posts
Max: 2W each Standby: <1W each
24.5 lbs. (11.1 kg)
48.8" x 9.4" x 6.5 " (123.9cm x 23.8cm x 16.5cm)

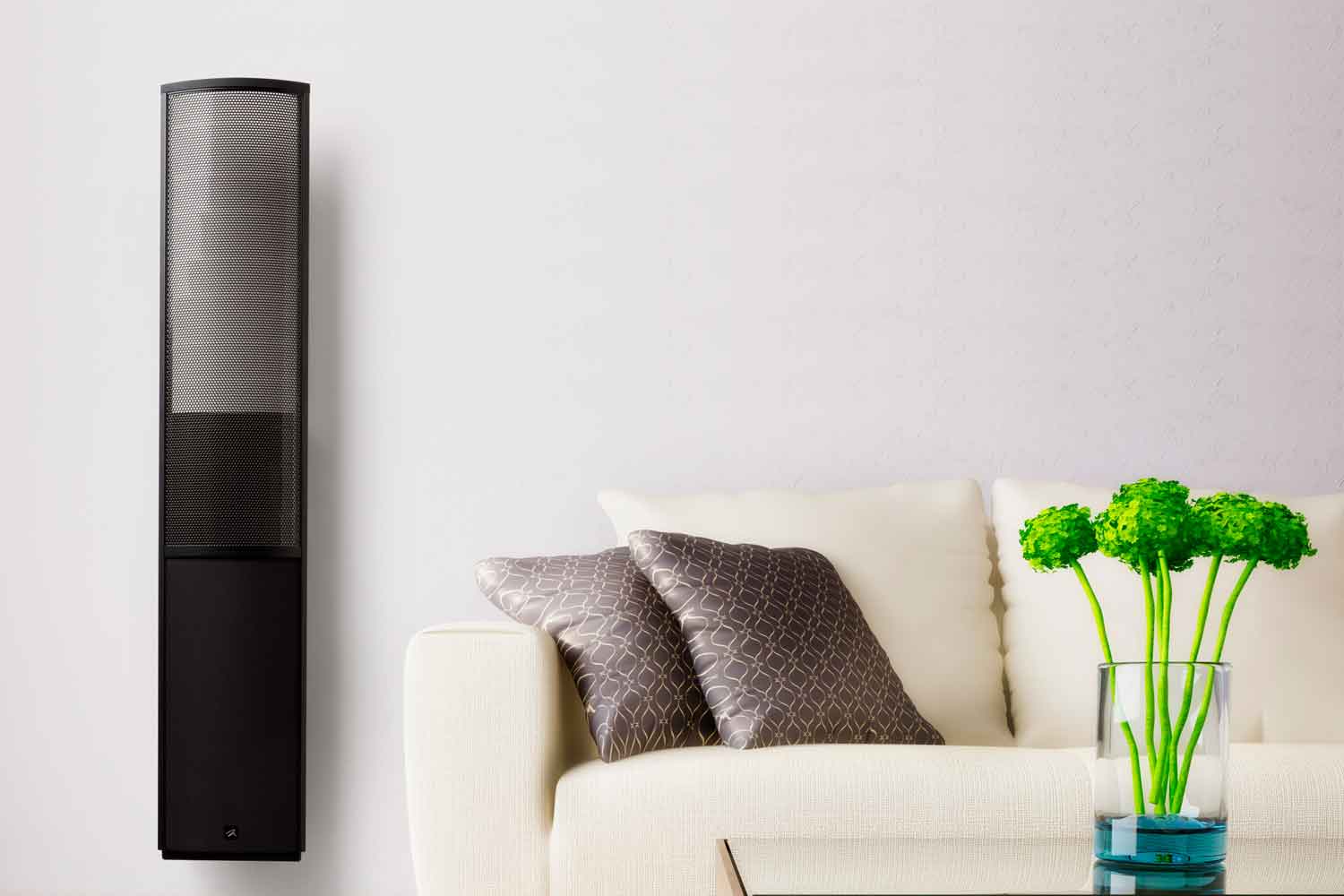

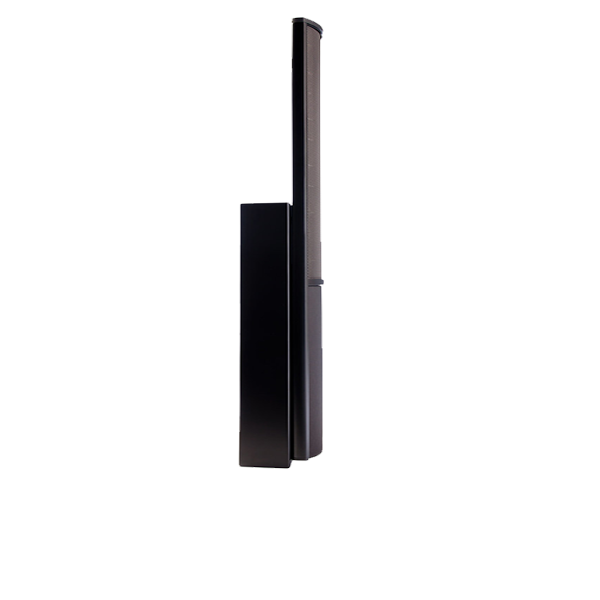

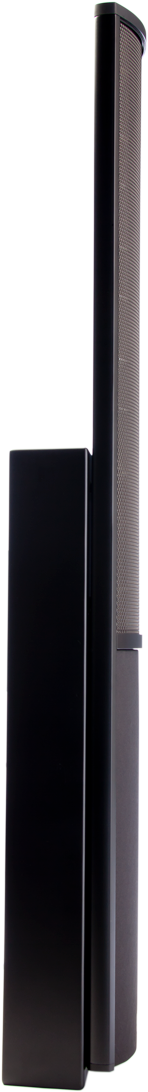

Slim On-Wall Profile
If you won't settle for anything but electrostats next to your new flatscreen TV, the EFX is the perfect solution at just 6.5-inches deep. Free up precious floorspace by mounting EFX to your wall with the included wall brackets. The EFX is also the ultimate high-performance home theater surround speaker and complements MartinLogan's entire line of electrostatic loudspeakers. EFX rotates with the pivoting wall bracket to easily focus your surround sound experience.
Advanced Vojtko Filtering
Proprietary Vojtko filtering technology is utilized for EFX's electrostatic transducer. This audiophile quality network, derived from the CLX, is carefully hand-built using precision point-to-point wiring, polypropylene capacitors, massive air-core coils, and a custom wound E-I core transformer—flawlessly preserving micro-acoustic subtleties while effortlessly handling the broadest range of dynamics contained within even the most demanding sonic source.
Custom 5-Way Binding Posts and Low-Voltage Power Supply
MartinLogan's proprietary tool-less binding posts simplify cable connection and management. EFX features custom 5-way binding posts and provide the ultimate level of flexibility for connection and setup. To further simplify setup and cable management, the EFX features a low-voltage DC power supply eliminates the need for a traditional, heavy IEC power cord.
Surround Yourself with EFX
MartinLogan is proud to introduce the slim, on-wall EFX™ hybrid electrostatic loudspeaker, featuring XStat™ technology, dramatically reducing cabinet size, yet establishing new standards for efficiency, dynamics and precision.
CLS™ XStat Transducer
Housed within a radical, ultra-ridged extruded aluminum AirFrame™, the EFX's new CLS XStat transducer builds upon the legacy of MartinLogan's electrostatic heritage with the incorporation of advanced vacuum bonding and MicroPerf stat panels, providing even greater efficiency and precision.
