Martin Logan Helos 22

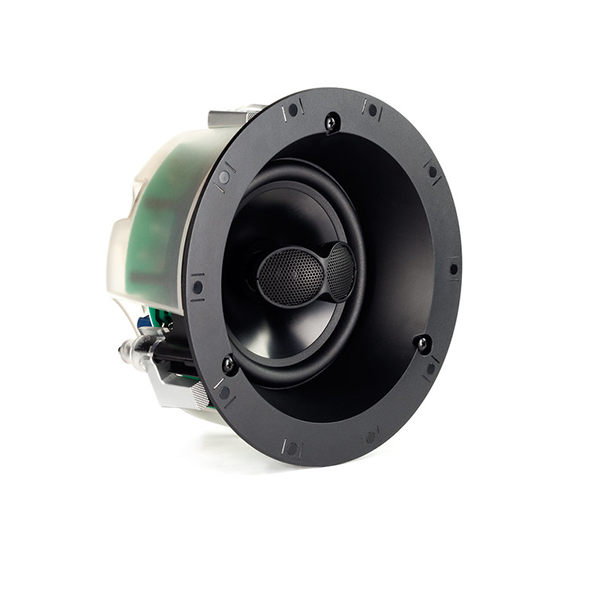

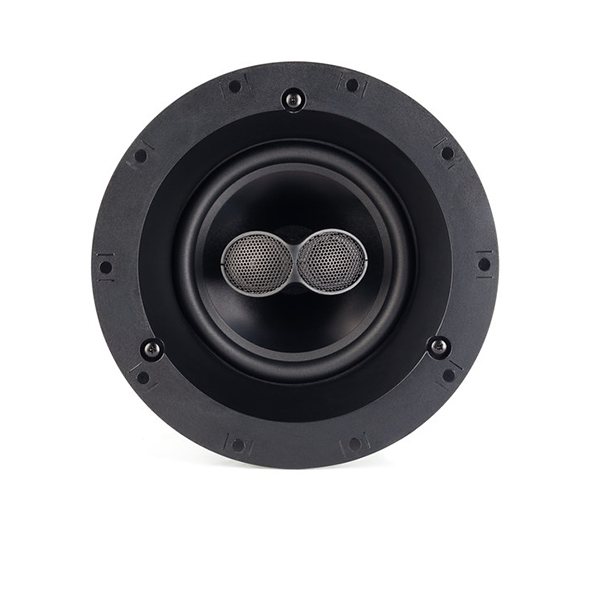

Helos 22 is a high-resolution stereo in-ceiling loudspeaker featuring dual 0.75-inch neodymium soft dome tweeters, an aluminum cone woofer, and proprietary Vojtko crossover topology.
Martin Logan Helos 22 In Ceiling Speaker
Stereo Sound from a Single Speaker
Helos 22 features dual tweeters and a dual voice coil woofer. This design allows the speaker to provide stereo sound from a single speaker, ideal for use in small rooms such as bathrooms, small offices, entryways, and kitchens. Helos 22 also bridges to deliver mono sound reproduction with wide dispersion. You can use Helos 22 for almost any application.
47–20,000 Hz ±3dB
Pivoting Tweeter Stem
20—200 watts per channel
20 watts × 20 watts ‒ 100 watts × 100 watts
89 dB/2.83 volts/meter
Mono: 4 Ohms. Stereo: 8 Ohms × 8 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
2600 Hz
Two 0.75" (1.9 cm) neodymium soft-dome tweeters
6.5" (16.5 cm) cast basket, high rigidity aluminum cones with extended throw drive assembly, thermal protection
Air core coils, polyester capacitors
Stereo binding posts (bridge for mono)
4.5 lbs. (2 kg)
8.35" dia.
(21.2 cm dia.)
.2" (.45cm)
4.9" (12.3 cm)

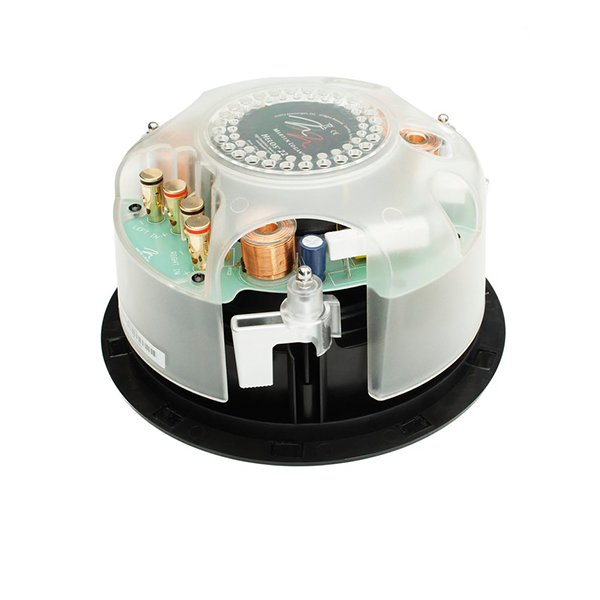

Installer Friendly
A robust mounting-lock system allows quick, trouble-free installation. When not in use, the constant-control mounting locks are held securely within a self-contained housing. When moved into place during installation, they couple the speaker's chassis firmly to the ceiling. And if the speaker is ever removed, the locks retract and latch themselves back in their housings.
Each Helos 22 speaker comes with a full-size installation template that features quick-reference instructions, and die-cut guides for marking the cutout hole.

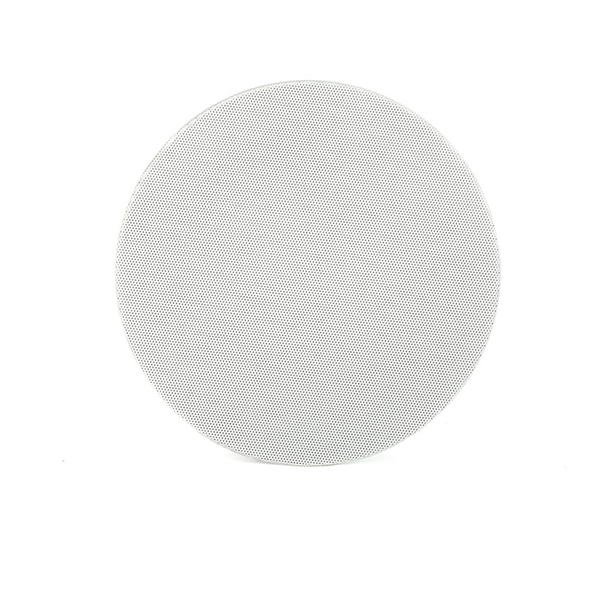

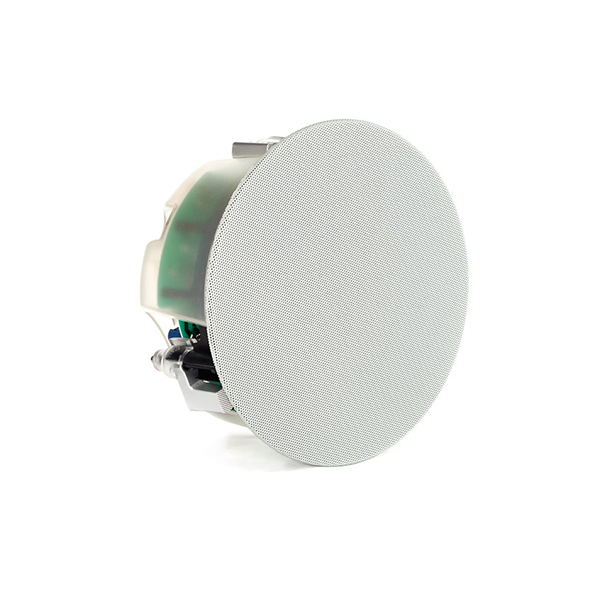

Stealthy Grilles
MartinLogan's new Helos speakers feature ultra-low profile, paintable micro perforated grilles with no visible bezel for an near invisible integration into any wall or ceiling. A magnetic system secures grilles easily into place, reducing the risk of warping or damage during installation.

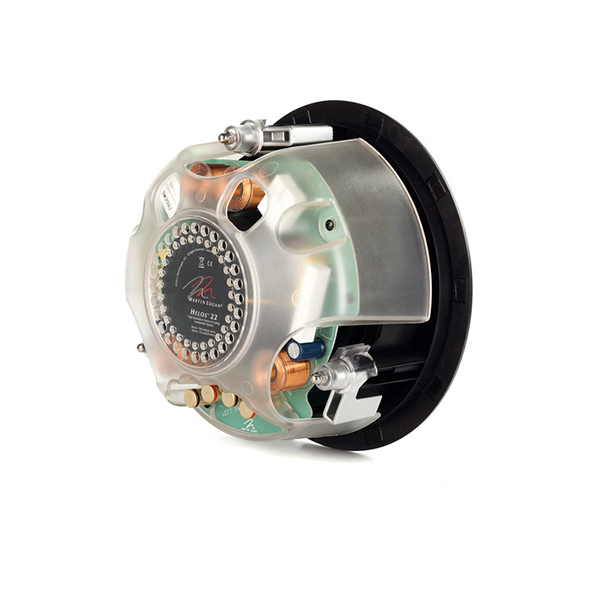

Precision-Built, Advanced-Topology Vojtko™ Crossover
Carefully hand-built using only the finest polyester capacitors and air-core coils, the crossover employ's MartinLogan's proprietary Vojtko topology for vanishingly low distortion and seamless driver integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source.
Multi Application Use

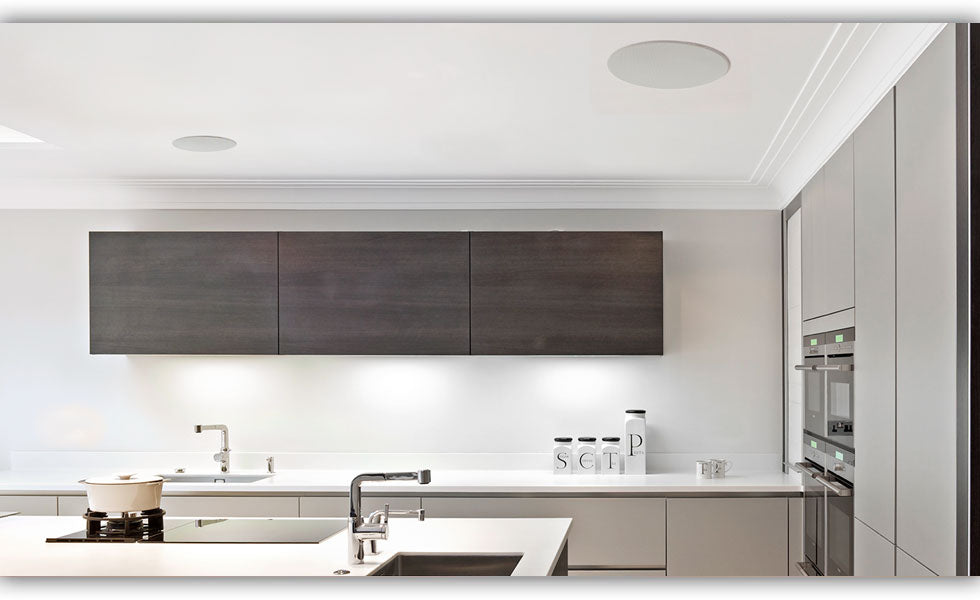

Helos 22 is suitable for use in small rooms. Designed for use as a single stereo speaker in distributed audio or a wide dispersion home theater surround.
Stereo from a Single Speaker
ONE used at the center of a small room for stereo music.
ONE at the front of a room with a television for stereo sound.
Multiple Surround Channels from a Single Speaker
ONE at the rear of a room for 5.1 home theater for both left/right surround channels.
TWO at the rear of a room for 7.1 home theater for left side/rear surround channels, and right side/rear surround channels.
Wide Dispersion Sound from Any Location!
ONE at the front of a room for a wide dispersion 5.1 or 7.1 center channel.
TWO at the front of a room for wide dispersion stereo sound or wide dispersion 5.1 or 7.1 left/right front channels.
TWO at the rear of a room for wide dispersion 5.1 left/right rear channels.
FOUR at the rear of a room for wide dispersion 7.1 left/right side and rear surround channels.
