Martin Logan IW6
Martin Logan IW6 In Wall Speaker
- Driver Configuration: Equipped with a 6.5-inch mineral-filled polypropylene cone woofer and a 0.75-inch ferrofluid-damped titanium dome tweeter, ensuring clear highs and robust mids.
- Frequency Response: Delivers a range from 55 Hz to 20,000 Hz, capturing both deep bass and detailed treble.
- Sensitivity: Rated at 89 dB, allowing for efficient performance with a variety of amplifiers.
- Impedance: Compatible with 8-ohm systems, ensuring broad amplifier compatibility.
- Power Handling: Recommended amplifier power ranges between 15 to 60 watts, suitable for both background music and more dynamic listening.
- Crossover Frequency: Set at 2,500 Hz for seamless integration between the woofer and tweeter.
- Design: Features an ultra-low-profile, paintable micro-perforated grille with no visible bezel, allowing for near-invisible installation.
55–20,000 kHz
90 Watts
89dB
Compatible with 8 ohms
2,500 Hz
0.75” (1.9cm) titanium dome
6.5” (16.5cm) mineral-filled poly cone
Push style accommodates wire up to 12AWG
3.5 lbs. (1.6 kg)
11.15” x 8.12” x 3.47”
(28.3 x 20.6 x 8.8cm)
10-1/8” x 7-1/16”
(25.7 x 18cm)
0.31” (0.8cm)
3.17” (8.1cm)
W6 Bracket

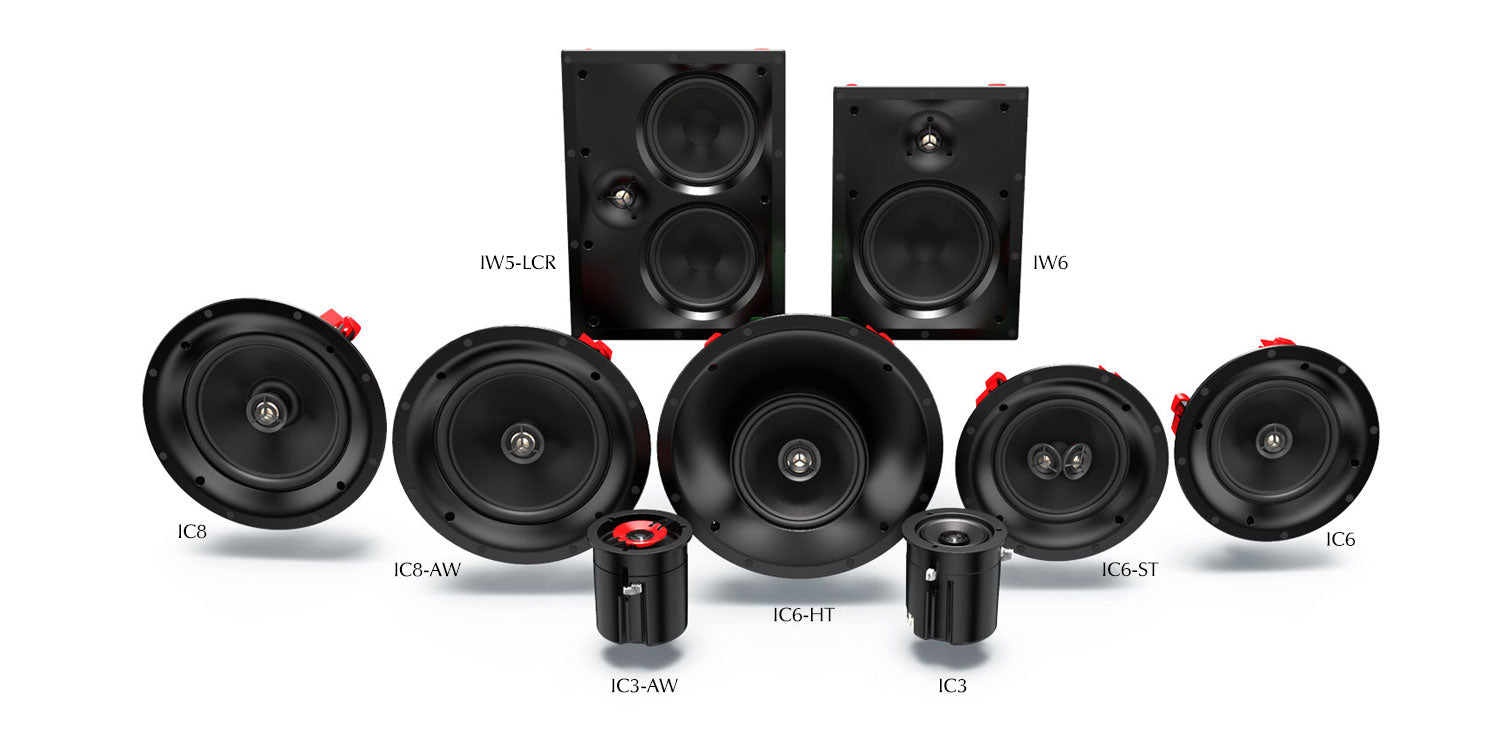

Titanium Dome Tweeters and Poly Cone Woofers
Titanium dome tweeters used throughout the Installer Series are ferrofluid damped and cooled for smooth high-frequency performance with amazing clarity across a wide listening area. Mineral-filled polypropylene cone bass/midrange drivers feature robust computer-optimized ferrite magnets and high-power motor structures to deliver detailed midrange performance and clean, extended bass response.
Titanium Dome Tweeters and Poly Cone Woofers
Titanium dome tweeters used throughout the Installer Series are ferrofluid damped and cooled for smooth high-frequency performance with amazing clarity across a wide listening area. Mineral-filled polypropylene cone bass/midrange drivers feature robust computer-optimized ferrite magnets and high-power motor structures to deliver detailed midrange performance and clean, extended bass response.

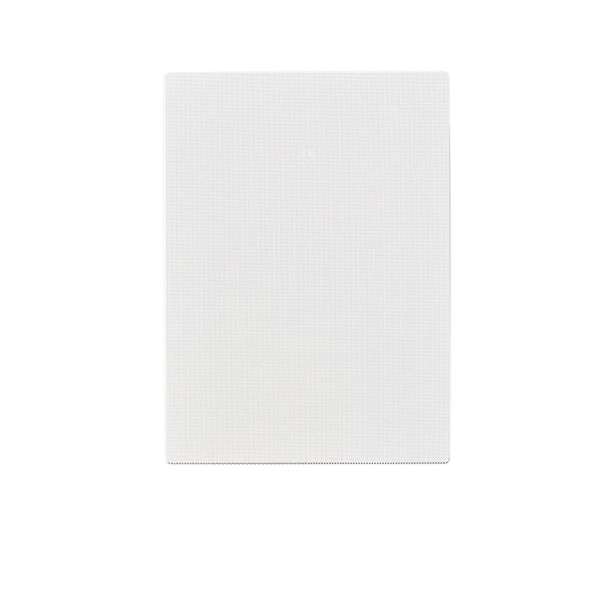

Micro-Perforated Grilles
Installer Series speakers feature ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation. To match modern aesthetics, optional square grilles are available for most in-ceiling models (excludes all-weather versions).
Micro-Perforated Grilles
Installer Series speakers feature ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation. To match modern aesthetics, optional square grilles are available for most in-ceiling models (excludes all-weather versions).

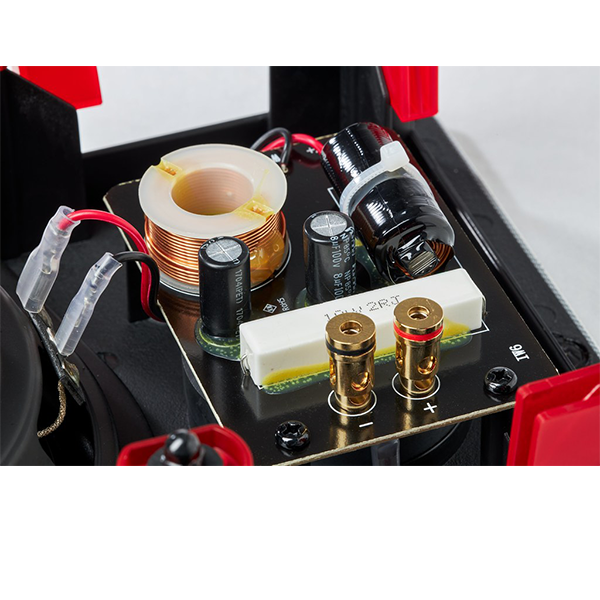

Precision Crossovers& Spring-Loaded Binding Posts
Carefully hand-built using only the finest polyester capacitors and air-core coils, Installer Series crossovers employ MartinLogan’s proprietary Vojtko topology for vanishingly low distortion and seamless driver integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. Spring-loaded binding posts feature a larger wire access hole and connect via banana plug, pin, or 12AWG bare wire.
Precision Crossovers& Spring-Loaded Binding Posts
Carefully hand-built using only the finest polyester capacitors and air-core coils, Installer Series crossovers employ MartinLogan’s proprietary Vojtko topology for vanishingly low distortion and seamless driver integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. Spring-loaded binding posts feature a larger wire access hole and connect via banana plug, pin, or 12AWG bare wire.

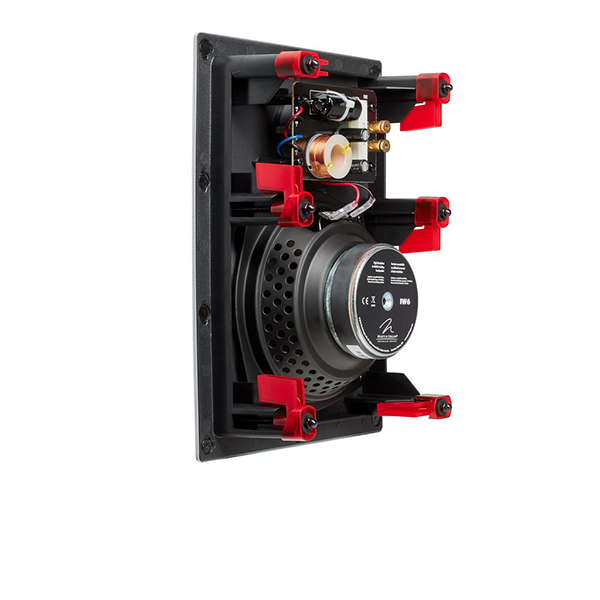

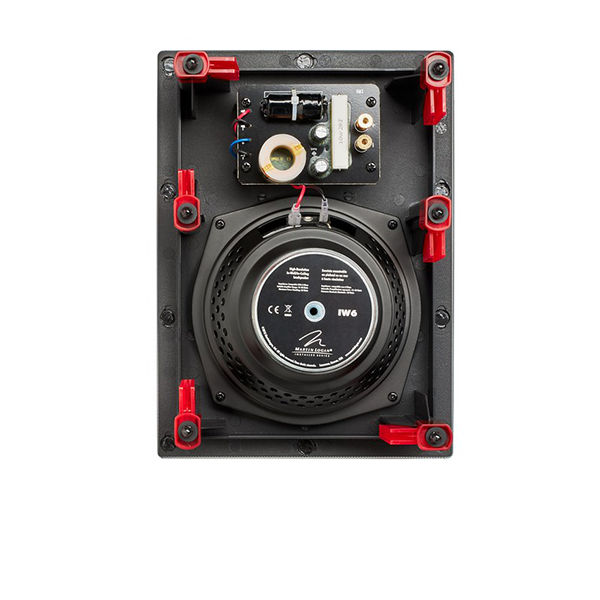

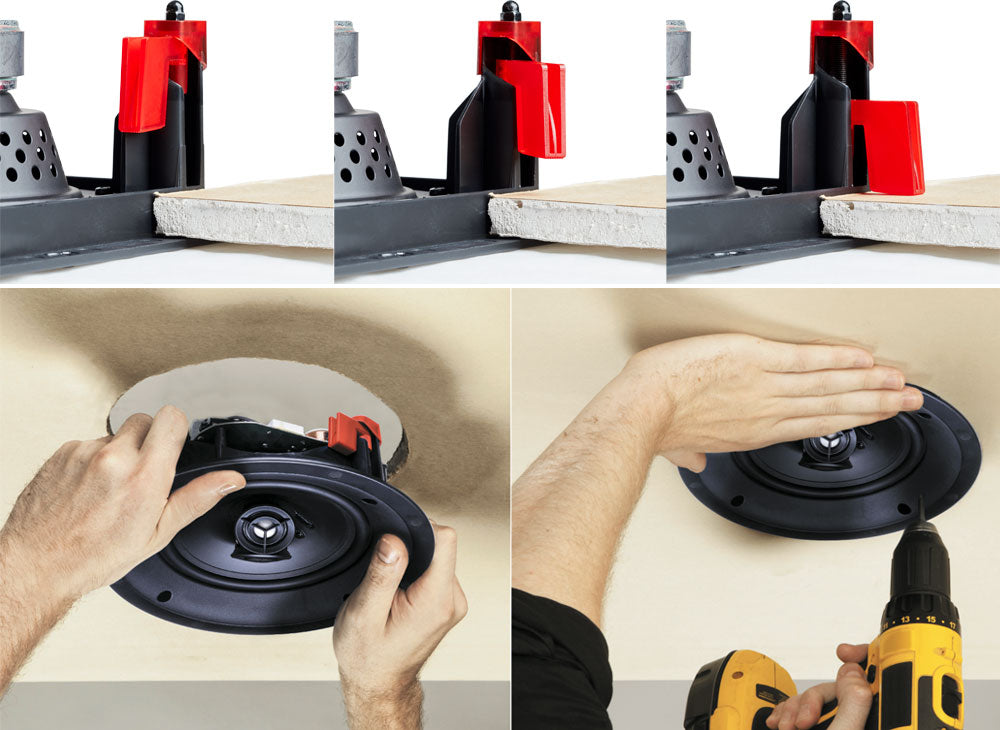

Robust Mounting-Lock System
A simple, yet robust mounting-lock system allows quick, trouble-free installation. Pocketed screw holes help hold the drill steady, making installation a snap. When not in use, mounting locks are held securely within a self-contained housing. When moved into place, they couple the chassis firmly to the ceiling or wall, increasing the rigidity of surfaces. If ever removed, the locks retract and latch back in their housings. Each speaker includes a full-size installation template featuring quick-reference instructions, and die-cut guides for marking the cutout hole.
