Martin Logan Motion 2i
The Motion 2i offers audiophile-grade sound in a remarkably compact package. By pairing a Folded Motion tweeter with a sealed 3.5″ woofer, it delivers detailed highs, clean mids, and surprising dynamic range. The precision Vojtko crossover ensures seamless integration, while the sleek cabinet and wall/desk-friendly mount options provide versatile installation—including upside-down positioning for elevated placement.
Martin Logan Motion 2i On Wall Speaker
- Folded Motion® tweeter: Unique ribbon-like driver offers a large surface area, low distortion, lightning-fast response, and wide dispersion—delivering clarity akin to electrostatic speakers
- 3.5″ polypropylene woofer: Sealed non-resonant chamber with rigid dust cap provides tight, clean mids and balanced low-end
- Precision Vojtko crossover topology: Features premium air-core coils, steel-laminate inductors, and film/electrolytic capacitors for smooth driver integration and thermal protection
- Compact, stylish enclosure: Gloss-black curved cabinet looks elegant and fits well on shelves, desks, or walls—mountable upright or upside-down via included brackets
- Easy connectivity: Push-style binding posts (supporting banana plugs) recessed into the back for clean setup
110–23,000 Hz ± 3dB
20—100 vatios por canal
80°
80°
86 dB / 2.83 voltios / metro
6 ohmios Compatible con amplificadores de 4, 6 u 8 ohmios.
3,800 Hz
Transductor de movimiento plegado de 0.94 "× 1" (2.4 cm × 2.5 cm) con diafragma de 2.8 "× 1.25" (13.3 cm × 4.4 cm)
Cono de polietileno de 3,5 "(8,9 cm) con cesta de acero estampada. Formato de cámara asimétrica no resonante. Tapa antipolvo rígida y estructurada para reducir los modos de ruptura del cono. Sellado.
Bobina de núcleo de aire a medida e inductores laminados de acero DCR bajo. Condensadores de película de poliéster en serie y condensadores electrolíticos de bajo DF en paralelo. Sistema general de protección térmica / corriente.
Empuje estilo con conectores de banana
3.4 lbs. (1.54 kg)
10 "x 4.7" x 4.6 "
(25,5 cm x 11,8 cm x 11,7 cm)
Engineering, Without Compromises
What makes the Motion Series sound so amazing? MartinLogan's dedicated in-house engineering and design team started by utilizing and refining the most advanced, compact technologies and combining them with innovative engineering and time-honored cabinet construction techniques. The result is an emotionally engaging sound that rivals (and most times trounces) traditional loudspeakers of similar size and price. Our 'no compromise' philosophy gives Motion Series a unique sound you won't find anywhere else.
Sound Inspired by Electrostatic Speakers
The success of the Motion Series is directly attributed to its close relation to MartinLogan’s legendary ultra-high-end electrostatic loudspeakers. The desire to transmute that level of performance into a more traditional loudspeaker at a more affordable price drove the initial design imperatives that created the Motion Series.
Folded Motion® Tweeters
MartinLogan's signature Folded Motion tweeter utilizes an extremely low mass diaphragm that "squeezes" air, thus demanding significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that's able to deliver much of the high-frequency detail and speed of a large, dynamic electrostatic panel in a small space.
Proprietary Vojtko ™ Crossover Networks
Compact Motion Series speakers feature proprietary Vojtko crossover networks using custom air core coil inductors, low DCR steel laminate inductors, and polyester film and low-DF electrolytic capacitors for a seamless sonic presentation.
Vojtko crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko. His unique approach to crossover design is as big of a part of the "MartinLogan Sound" as are electrostatic and Folded Motion thin-film driver technologies. A Vojtko crossover isn't so much a set of design requirements as it is a philosophy. Vojtko crossovers are designed in such a way that all drivers are kept within their optimal frequency range and balanced with one another. The drivers themselves are as much a part of a Vojtko crossover as are capacitors and resistors. Before the design of any crossover begins, drivers are carefully selected or designed to operate within a very intentional frequency range and with precise and predictable performance parameters. Vojtko crossovers are always built from high-quality parts, and care is taken to avoid overly complex topologies—a straightforward objective due to the careful selection of woofers and tweeters. The final (and most critical) aspect of a Vojtko Crossover is that final voicing is conducted in a space that is indicative of a real-world environment. This pragmatic approach allows MartinLogan speakers to sound their best in real-world rooms.
Modern Curves and Luxurious Finish
After refining the perfecting the acoustic details, MartinLogan designers focused on elegant yet understated styling that complements flat-panel televisions and other high-end components. To achieve this, we gave compact Motion bookshelf and center channel speakers a flawless gloss black finish and compact, slender enclosures. Subtle curves, along with MartinLogan's signature perforated grille, add to the elegant and timeless look.
Easy Hookup

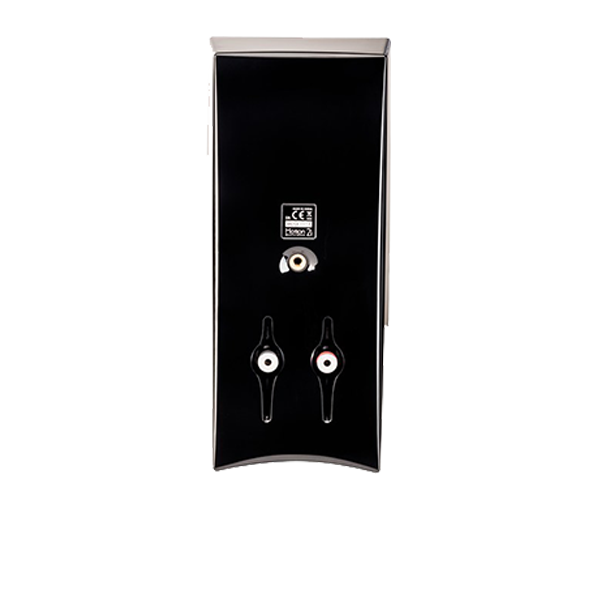

Convenient, high-quality, push-style binding posts are recessed into the speaker's cabinet along with curved guides that allow wires to slide into place effortlessly. These binding posts are also designed to facilitate the use of banana plug connectors.
Versatile Placement—On a wall, Shelf, or Stands
Not only do the curves on the compact Motion bookshelf speaker Series look great, but they also serve a purpose—allowing them to mount at two different angles with the included wall bracket. This means you can point sound directly toward the desired listening area for high or low wall mounting applications. Motion 2i and 4i speakers don't have to be mounted. In fact, they look and sound great on speaker stands, or sitting next to your TV on a shelf.
