Martin Logan Motion AFX (Per PC)

Martin Logan Motion AFX Dolby Atmos Enabled Speakers
- Dolby Atmos/DTS:X compatible – designed for ceiling-reflected height audio; no in-ceiling installation needed
- Folded Motion® tweeter – 0.75″ aluminum dome mounted at a precise upward angle for crisp, ultra-low distortion highs with wide dispersion
- 5.25″ polypropylene bass/midrange driver – delivers clear mid-bass and midrange, optimized for atmospheric effects

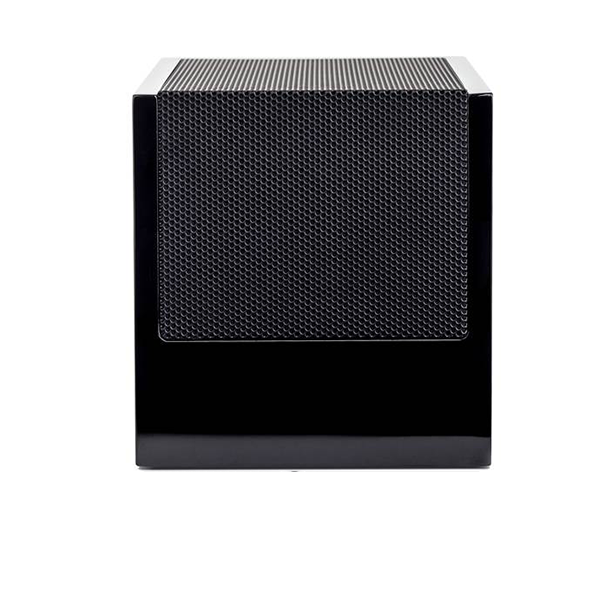

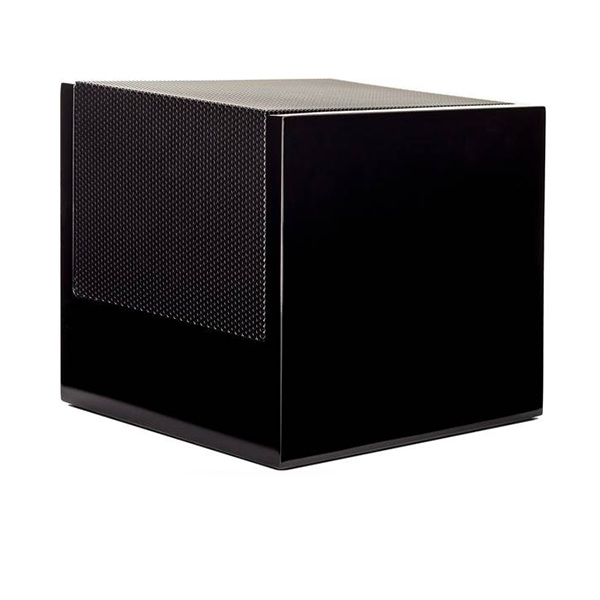

- Sealed, high-gloss black cabinet – acoustically optimized and visually matched to the Motion i-series speakers

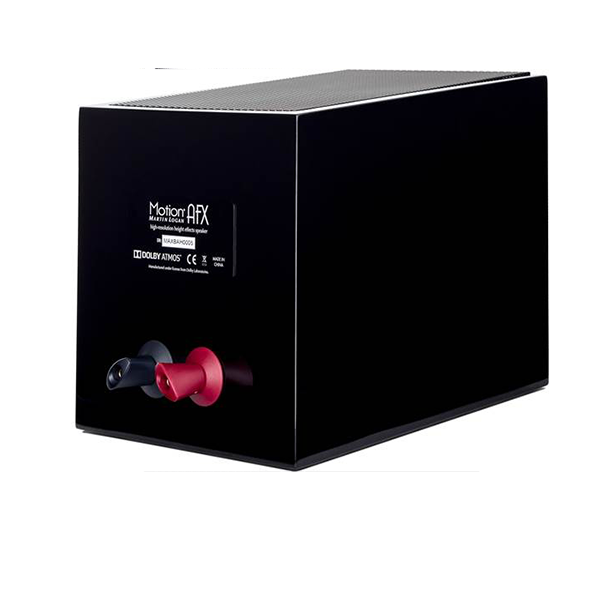

- Custom five-way binding posts – support banana plugs, spades, pin connectors, and bare wire for clean setup
90–20,000 Hz ±3dB
20—200 watts per channel
87 dB/2.83 volts/meter
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
2,000 Hz
0.75” (1.9cm) aluminum dome
5.25” (13.3cm) polypropylene cone with stamped steel basket.
Sealed
Custom air core and low dcr steel laminate inductors. Polyester film capacitors in series and low DF electrolytic caps in parallel.
Custom 5-way tool-less binding posts
8 lbs. (3.6 kg)
7.7" x 6.8" x 10 "
(19.5cm x 17.3cm x 25.4cm)

Dolby Atmos® Enabled Speakers
MartinLogan Motion AFX Dolby Atmos enabled speakers are designed to create a height layer of sound above the listener that better connects viewers with the richness, detail and clarity of the on screen experience.

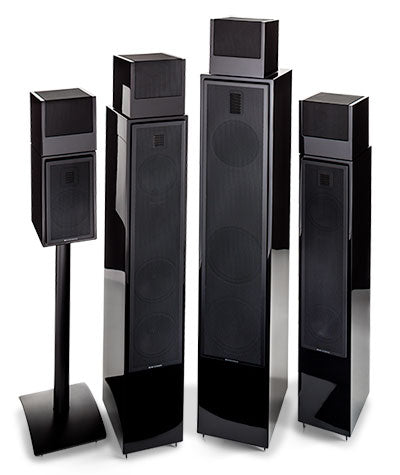

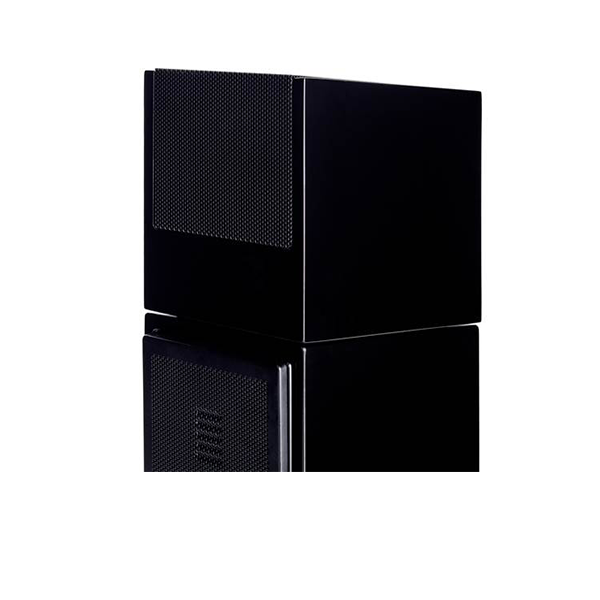

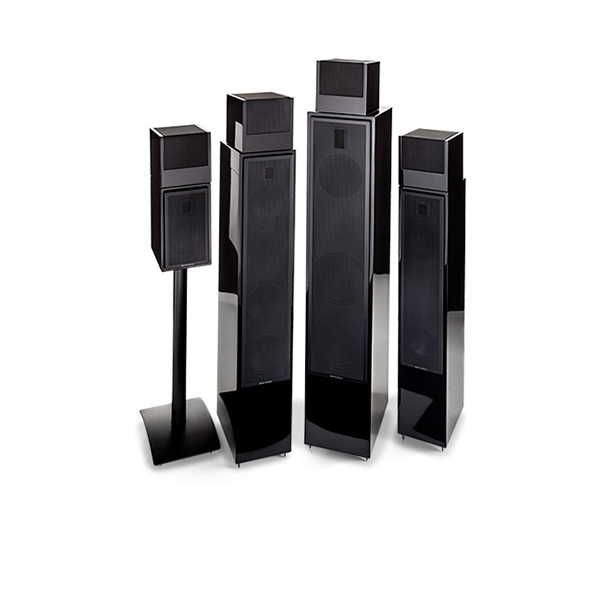

The Motion AFX is designed to sit on top of floorstanding and bookshelf speakers in MartinLogan’s Motion series. These models include the Motion 15, 20, 35XT, 40 and 60XT. Designed to reflect sound off of the ceiling in a Dolby Atmos entertainment system, The AFX will also work with other brands of speakers with a flat top. For systems where a speaker-top mounting is not possible, other installation options are available.
Dolby Atmos® Enabled Speakers
MartinLogan Motion AFX Dolby Atmos enabled speakers are designed to create a height layer of sound above the listener that better connects viewers with the richness, detail and clarity of the on screen experience.
The Motion AFX is designed to sit on top of floorstanding and bookshelf speakers in MartinLogan’s Motion series. These models include the Motion 15, 20, 35XT, 40 and 60XT. Designed to reflect sound off of the ceiling in a Dolby Atmos entertainment system, The AFX will also work with other brands of speakers with a flat top. For systems where a speaker-top mounting is not possible, other installation options are available.

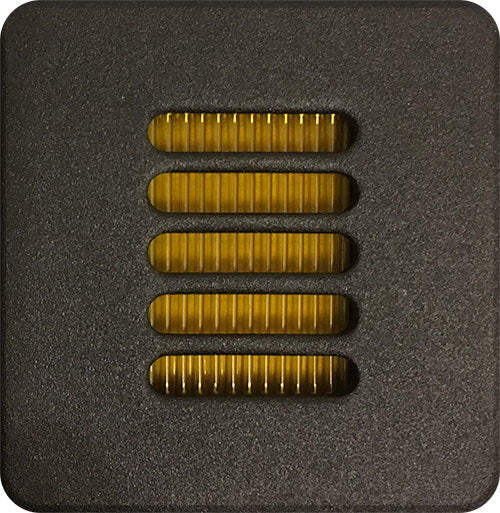

Folded Motion® Tweeters
The signature Folded Motion tweeters utilize extremely low mass diaphragms that "squeeze" air, and require significantly less excursion than the typical 1-inch dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.
Folded Motion® Tweeters
The signature Folded Motion tweeters utilize extremely low mass diaphragms that "squeeze" air, and require significantly less excursion than the typical 1-inch dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.

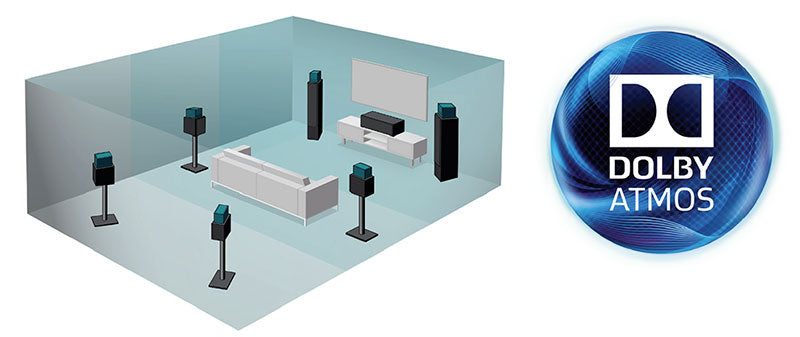

Immersive Dolby Atmos Experience
Dolby Atmos delivers captivating sound that places and moves audio anywhere in the room, including overhead, to bring entertainment alive all around the audience. Whether you are listening to music, movies, television shows, or playing your favorite video games, Dolby Atmos delivers the full impact of the entertainment experience.
Each Motion AFX speaker features a 0.75-inch aluminum dome tweeter and 5.25” polypropylene cone bass/midrange driver with stamped steel basket, all incorporated into a beautiful High Gloss Black cabinet. The shape of the Motion AFX cabinet is specifically designed to angle the drivers towards the ceiling in order to accurately deliver a Dolby Atmos sound experience above the listeners.
