Martin Logan Neolith
For those who appreciate accuracy and realism in their audio, the electrostatic transducer is the grail. For those who understand this truth in sound, we created a flagship loudspeaker: Neolith. Made-to-order, hand-delivered and professionally installed; in a world of same, Neolith proclaims different. In a world of artifice, Neolith delivers truth in sound.

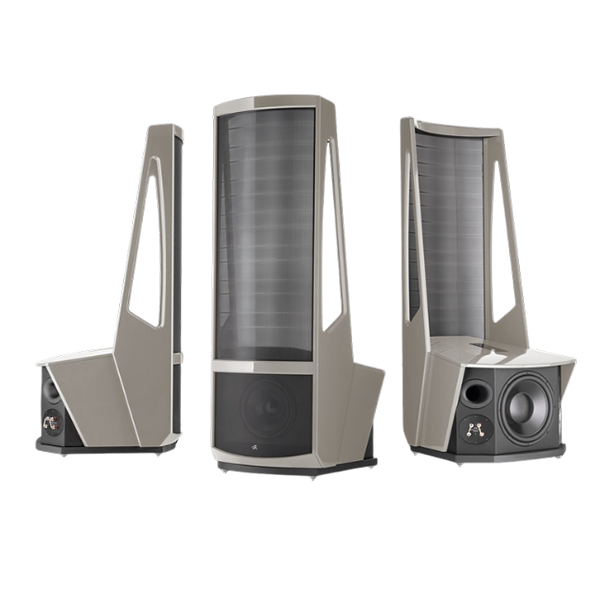

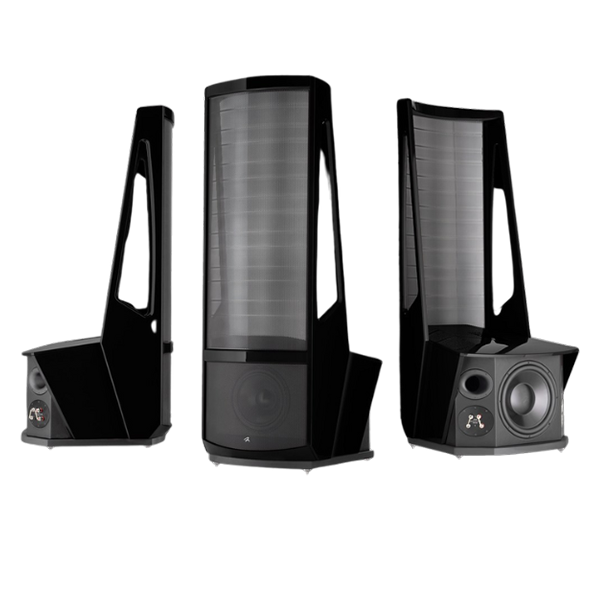

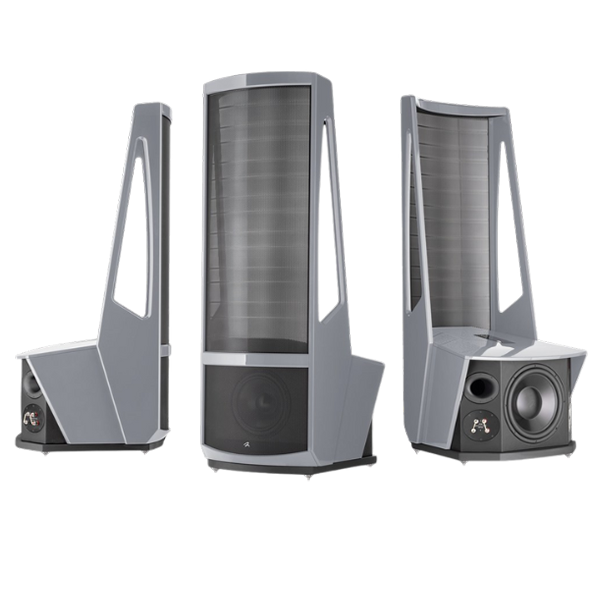

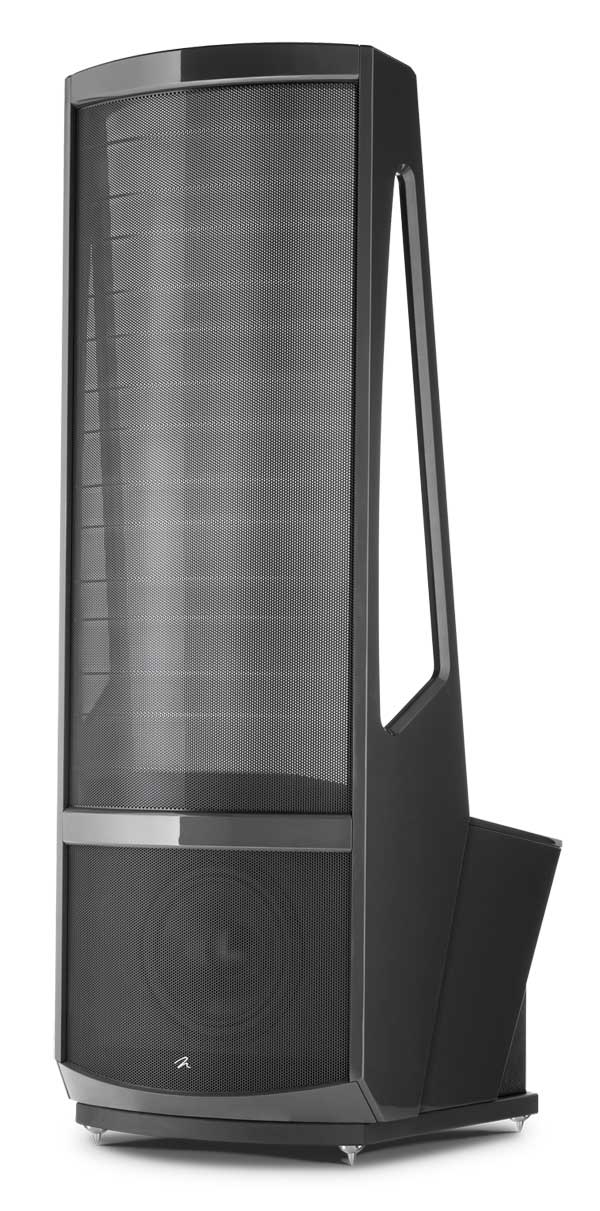

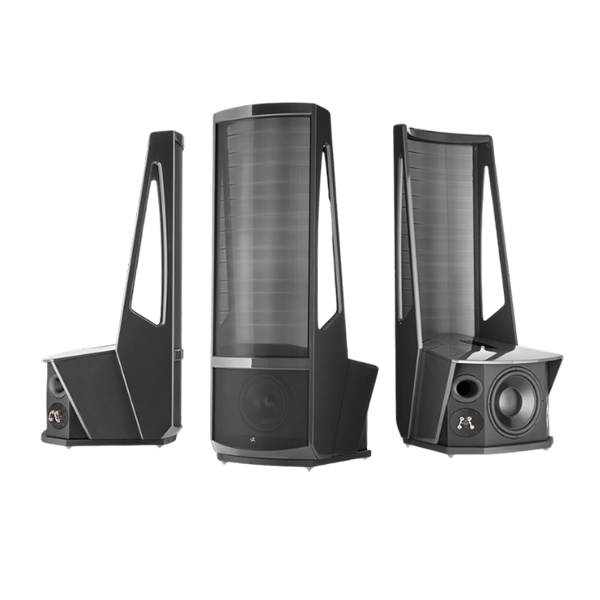

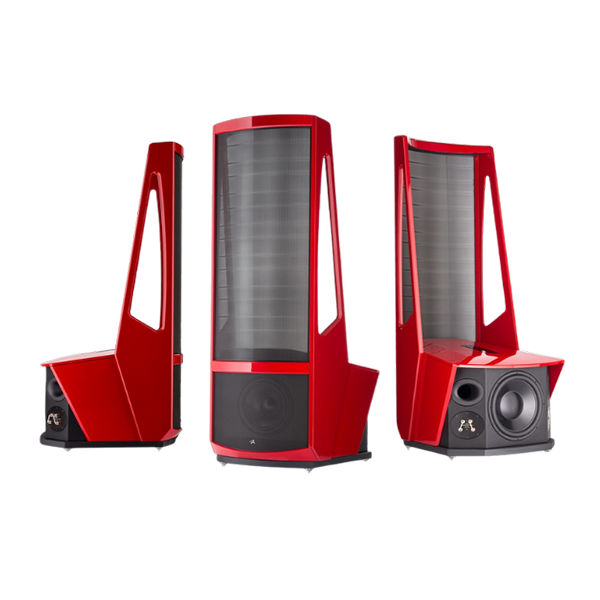

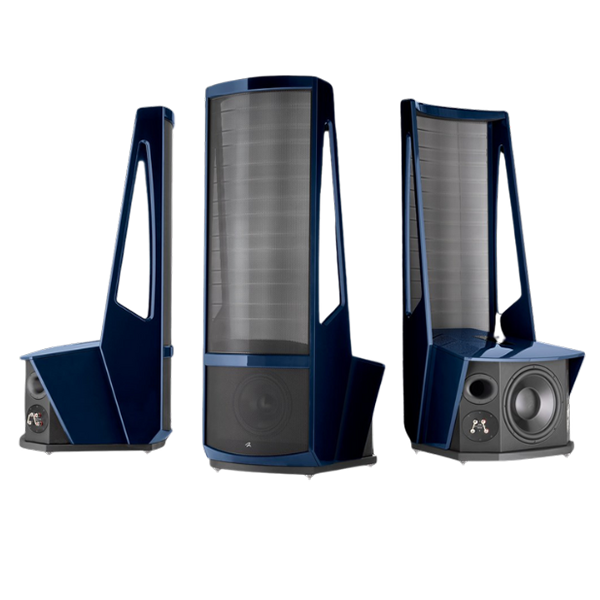

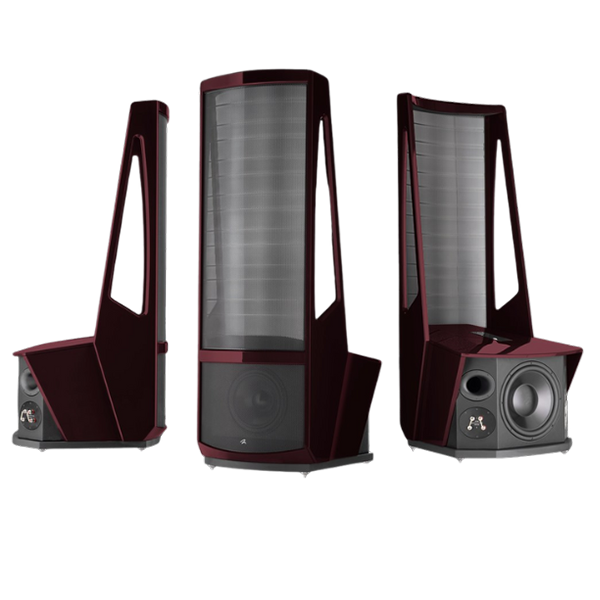

Martin Logan Neolith Floorstanding Speaker
For those who appreciate accuracy and realism in their audio, the electrostatic transducer is the grail. For those who understand thistruth in sound, we created a flagship loudspeaker:Neolith. Made-to-order, hand-delivered and professionally installed; in a world of same, Neolith proclaims different. In a world of artifice, Neolith delivers truth in sound.
23–22,000 Hz ±3dB
20—1300 watts per channel
30°
48" (122 cm) line source
90 dB/2.83 volts/meter
Nominal: 4 ohms, 0.43 ohms @ 20 kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers.
60, 250–400 Hz
XStat™ CLS™ electrostatic transducer » Panel Dimensions 48" x 22" (122 x 56cm)
» Radiating Area 1056 in² (6,832 cm² )
Rear: 15” (38.1cm) cast basket, high excursion, rigid aluminum cone with extended throw drive assembly. Extensively vented triple shorting ring motor and 4-layer coil to eliminate compression and distortion.Front: 12” (30.5cm) round cast aluminum alloy frame, high excursion, rigid carbon fiber sandwich cone with long throw design, 3-inch (7.5cm) diameter copper-clad aluminum flat wire voice coil, and vented pole piece and under-spider opening to reduce power compression.
Phenolic Resin Polymer: Dense substrate with superb mechanical strength to minimize cabinet vibrations caused by woofer cone motion counter forces to provide an ideal baffle for the electrostatic panel and woofers.
High-Pass Crossover: 1% resistors mounted to heat sinks, polypropylene capacitors, air core inductors, dual toroidal audio transformers to drive electrostatic element Low-Pass Crossover: 1% resistors mounted to heat sinks, toroidal inductors, supports user options to modify sound output via jumpers.
Bass Control: 0dB, -4dB, -8dBDistance Control: 3 meters (or less), 4 meters, 5 meters (or greater)
WBT-0705Ag nextgen™ 5-way bi-wire binding posts feature a filigree signal conductor made from fine silver for high conductivity. Fully insulated for CE and IEC conformity providing shock hazard protection. Free from eddy current effects. Max constant current 30 A, admissible peak current 200 A. Outer metal cap with palladium plated finish.
Standby: 1W each Max: 15W each
LED intensity control: On, Dim, Off
385 lbs. (175 kg)
74.8" x 30.3" x 34.2 " (189.9cm x 76.9cm x 87cm)
Unconstrained
Neolith is not for the faint of heart. As the embodiment of our philosophy of the truth in sound, its performance is unconstrained. It goes against the grain. In a world of small, Neolith says size is no impediment.
Breathtaking
Prepare yourself for an astonishing new audio experience; a bigger, bolder, no-holds-barred experience of breathtakingly articulate performance. The bespoke Neolith is the culmination of over 30 years of MartinLogan passion, engineering innovation and dedication to the ultimate truth in sound.
Uninhibited
Neolith features one of MartinLogan's largest electrostatic radiating surfaces, fully 35% larger than the Statement E2. Its proprietary curvilinear electrostatic transducer delivers an ideal wave launch; a detailed, ultrarealistic soundstage, reproducing nearly the entire mid-range and high frequency audio spectrum. It is utterly uninhibited by room limitations.
Visceral
Smoothly blended low-frequencies are provided by a 15-inch rear-firing ported woofer and 12-inch front-firing sealed mid-bass woofer. Combined, they deliver powerful, extremely accurate bass.
Detailed
And this is just the beginning. The details demand your attention. The exclusive advanced-topology Vojtko Crossover uses hand-selected components for optimum power handling. The passive Neolith design gives you more control, allowing single-wire or bi-amp connections with silver filigree WBT Binding Posts, plus a unique system of audio adjustment jumpers. The audaciously sculpted Neolith frame is made of non-resonant Phenolic Resin Polymer, smoothly finished in a premium automotive gloss. Its hand-crafted woofer cabinet is wrapped in elegant soft leather.
Unconstrained
Neolith is not for the faint of heart. As the embodiment of our philosophy of the truth in sound, its performance is unconstrained. It goes against the grain. In a world of small, Neolith says size is no impediment.
Breathtaking
Prepare yourself for an astonishing new audio experience; a bigger, bolder, no-holds-barred experience of breathtakingly articulate performance. The bespoke Neolith is the culmination of over 30 years of MartinLogan passion, engineering innovation and dedication to the ultimate truth in sound.
Uninhibited
Neolith features one of MartinLogan's largest electrostatic radiating surfaces, fully 35% larger than the Statement E2. Its proprietary curvilinear electrostatic transducer delivers an ideal wave launch; a detailed, ultrarealistic soundstage, reproducing nearly the entire mid-range and high frequency audio spectrum. It is utterly uninhibited by room limitations.
Visceral
Smoothly blended low-frequencies are provided by a 15-inch rear-firing ported woofer and 12-inch front-firing sealed mid-bass woofer. Combined, they deliver powerful, extremely accurate bass.
Detailed
And this is just the beginning. The details demand your attention. The exclusive advanced-topology Vojtko Crossover uses hand-selected components for optimum power handling. The passive Neolith design gives you more control, allowing single-wire or bi-amp connections with silver filigree WBT Binding Posts, plus a unique system of audio adjustment jumpers. The audaciously sculpted Neolith frame is made of non-resonant Phenolic Resin Polymer, smoothly finished in a premium automotive gloss. Its hand-crafted woofer cabinet is wrapped in elegant soft leather.

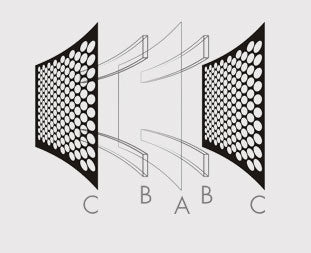

Parts of an Electrostatic Transducer
An electrostatic transducer has three components—stators, a diaphragm, and spars (non-conductive spacers that keep the tall assembly stationary)—assembled as a sandwich. The diaphragm is an ultra-light film impregnated with an electrically conductive material and stretched taut between two stators, which are perforated steel sheets coated with an insulator.
Parts of an Electrostatic Transducer
An electrostatic transducer has three components—stators, a diaphragm, and spars (non-conductive spacers that keep the tall assembly stationary)—assembled as a sandwich. The diaphragm is an ultra-light film impregnated with an electrically conductive material and stretched taut between two stators, which are perforated steel sheets coated with an insulator.

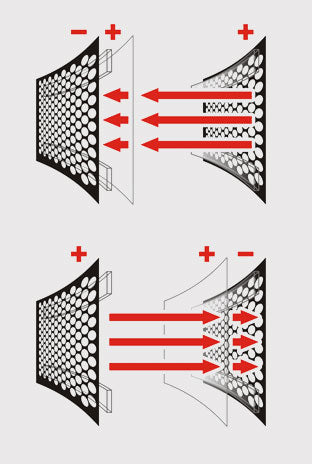

Electrostatic Forces at Work
When the speaker is operating, the diaphragm is charged with an electrostatic field of fixed positive voltage. The two stators, between which the diaphragm is stretched, are charged with voltages of equal strength but opposite polarity. These charges occur in instantaneously alternating pulses according the signal received from your audio equipment. When the charge on one stator is positive, the charge on the other is negative. Because like charges repel and opposite charges attract, the diaphragm's constantly positive charge will force it to move forward or backward depending on the stator charges. With this movement, an electrostatic transducer translates an electrical audio signal into the diaphragm motion that produces sound waves in your room.
Electrostatic Forces at Work
When the speaker is operating, the diaphragm is charged with an electrostatic field of fixed positive voltage. The two stators, between which the diaphragm is stretched, are charged with voltages of equal strength but opposite polarity. These charges occur in instantaneously alternating pulses according the signal received from your audio equipment. When the charge on one stator is positive, the charge on the other is negative. Because like charges repel and opposite charges attract, the diaphragm's constantly positive charge will force it to move forward or backward depending on the stator charges. With this movement, an electrostatic transducer translates an electrical audio signal into the diaphragm motion that produces sound waves in your room.
