Martin Logan Renaissance ESL 15A
Renaissance ESL 15A represents a major evolution in electrostatic design.
Featuring a 15-inch (CLS™) XStat™ electrostatic transducer, dual 12-inch PoweredForce Forward™ woofers powered by dual 500-watt Class-D amplifiers, and controlled by a 24-Bit Vojtko™ DSP Engine and ARC™ (Anthem Room Correction).
Martin Logan Renaissance ESL 15A Floorstanding Speaker
What makes a masterpiece? Is the “Mona Lisa” just a picture of a woman smiling, or is there more to it?
We consider something a masterpiece when uncommon skill and artistry shapes familiar elements in an unexpected way, revealing an essential truth.
For MartinLogan, the essential truth revealed by our skill and artistry is audio realism. Fittingly, our next generation of electrostatic loudspeakers debuts with the new Renaissance ESL 15A. Three decades of audio design and engineering innovation, distilled into a startling fresh loudspeaker ideal.
22–21,000 Hz ±3dB
20—700 watts per channel
30°
46" (116.9cm) line source
92 dB/2.83 volts/meter
4 Ohms, 0.5 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
300Hz
XStat™ CLS™ electrostatic transducer. » Panel Dimensions : 46" x 15" (117 x 38cm). » Radiating Area : 690 in² (4,446 cm² )

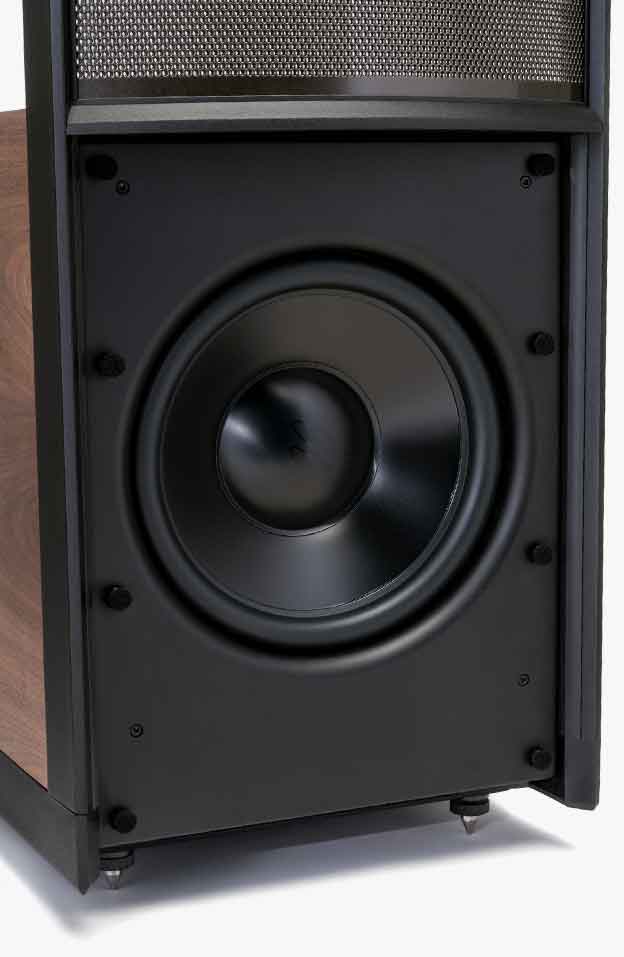

Two 12” (30.5 cm) PoweredForce Forward™ woofers with cast basket, high excursion, rigid aluminium cone and extended throw drive assembly, non-resonance asymmetrical chamber format.
Woofer: 2 x 500 watts/channel (4 ohms), 2 x 1,000 watts peak
Anthem Room Correction (ARC™) ready (Sold Separately)
Custom-wound audio transformer, air core coils, polypropylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier).
Bass: ±10 dB under 75 Hz Mid-Bass: –2 dB, 0 db, +2 db Light: On, Dim, Off ARC™ Room EQ: On, Off
WBT-0703Cu nextgen™ 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects.
AC Power, RJ45 (for ARC), mini USB (for ARC)
Idle: < 0.5W/channel Max: 900W/channel
LED intensity control: on, dim, off
140 lbs. (63.5 kg)
69.8" x 15.75" x 28.9 " (177.3cm x 40cm x 63.3cm)
New PoweredForce Forward™ Bass Technology
PoweredForce Forward bass technology combines two MartinLogan audio innovations: PoweredForce, which allows small enclosures to accurately produce massive amounts of bass, and ForceForward, which significantly reduces performance-robbing front-wall bass reflections.
PoweredForce Forward bass technology uses an advanced crossover topology with phase-timed woofers to minimize destructive reflected energy. By virtually eliminating front-wall bass reflections and working in tandem with the panel, PoweredForce Forward Bass Technology gives you more placement flexibility, and enhances the true audio realism of your sound source.
New PoweredForce Forward™ Bass Technology
PoweredForce Forward bass technology combines two MartinLogan audio innovations: PoweredForce, which allows small enclosures to accurately produce massive amounts of bass, and ForceForward, which significantly reduces performance-robbing front-wall bass reflections.
PoweredForce Forward bass technology uses an advanced crossover topology with phase-timed woofers to minimize destructive reflected energy. By virtually eliminating front-wall bass reflections and working in tandem with the panel, PoweredForce Forward Bass Technology gives you more placement flexibility, and enhances the true audio realism of your sound source.
Turning Unused Space Into Better Bass
The depth of Masterpiece Series speaker cabinets was carefully chosen to maximize benefits of both PoweredForce and ForceForward technologies, providing powerful bass with extreme detail. Combined with Anthem Room Correction (ARC™), these advanced bass technologies provide a level of low-frequency precision that is truly unique.

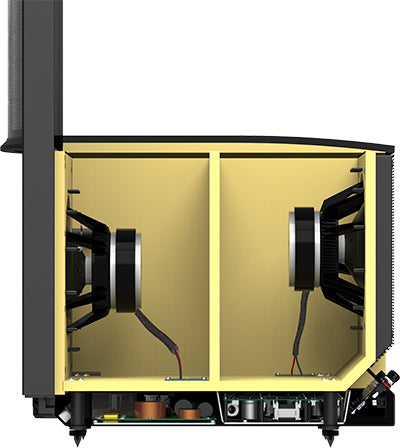

Masterpiece Series speaker cabinet dimensions create an ideal relationship between the woofers, cabinet volume, and amplifiers in their PoweredForce woofer systems. By providing ample internal volume for the woofers (two sealed enclosures—one per woofer) along with powerful amplification, Masterpiece Series speakers with powered woofer systems are capable of reaching the lowest registers with authority while preserving bass detail.
With ForceForward bass technology, the farther apart the woofers are from each other the lower in frequency its beneficial effects extend. MartinLogan’s ForceForward technology has solved a problem (found in nearly all speakers) where low bass frequency soundwaves reflect off the wall behind the speakers and interact with the waves traveling towards the listener. These interactions create non-linearity in those frequencies as they arrive at your ears and bass information suffers from both cancelations and excessiveness that is not accurate to the original sound. By selectively adjusting phasing of output from their opposing woofers, powered Masterpiece Series speakers eliminate problematic bass energy from behind the speakers.
Turning Unused Space Into Better Bass
The depth of Masterpiece Series speaker cabinets was carefully chosen to maximize benefits of both PoweredForce and ForceForward technologies, providing powerful bass with extreme detail. Combined with Anthem Room Correction (ARC™), these advanced bass technologies provide a level of low-frequency precision that is truly unique.
Masterpiece Series speaker cabinet dimensions create an ideal relationship between the woofers, cabinet volume, and amplifiers in their PoweredForce woofer systems. By providing ample internal volume for the woofers (two sealed enclosures—one per woofer) along with powerful amplification, Masterpiece Series speakers with powered woofer systems are capable of reaching the lowest registers with authority while preserving bass detail.
With ForceForward bass technology, the farther apart the woofers are from each other the lower in frequency its beneficial effects extend. MartinLogan’s ForceForward technology has solved a problem (found in nearly all speakers) where low bass frequency soundwaves reflect off the wall behind the speakers and interact with the waves traveling towards the listener. These interactions create non-linearity in those frequencies as they arrive at your ears and bass information suffers from both cancelations and excessiveness that is not accurate to the original sound. By selectively adjusting phasing of output from their opposing woofers, powered Masterpiece Series speakers eliminate problematic bass energy from behind the speakers.
ForceForward also simplifies the task of speaker placement by removing bass energy from behind the speaker and creating a uniform bass launch. This allows Masterpiece Series speaker cabinets to go closer to the wall than previous generations of MartinLogan speakers. As a rule of thumb we recommend placing the rear of the speaker cabinet no closer to the wall than the diameter of its woofer (Renaissance ESL 15A: 12-inches, Expression ESL 13A: 10-inches, and Impression ESL 11A and Classic ESL 9: 8-inches). For an added level of control powered Masterpiece Series speakers incorporate two level controls (at 75Hz and 200Hz) to allow for fine tuning of bass integration.
Additionally, due to their dipole nature, electrostatic panels perform best when placed at least 2.5-feet or more from the wall—a distance that is ideal for the front of nearly any high-end speaker, regardless of driver technology. The depth of Masterpiece Series cabinets lends itself to providing electrostatic panels with adequate distance from the wall, guaranteeing a richly detailed, three-dimensional soundstage.

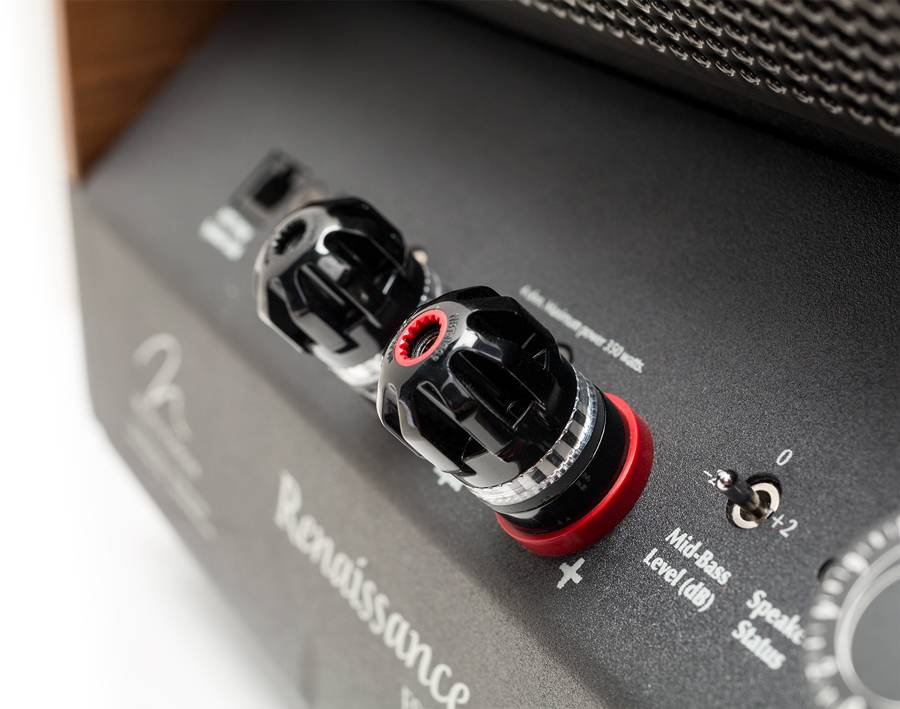

New More Performance, Versatility, and Safety, with WBT Binding Posts
Connect your electronics safely and securely using 5-Way audiophile WBT Binding Posts. Their pure copper connection plate is highly conductive and free from “eddy current” effects. These posts are insulated for shock protection, and fully damped against vibrations. They give you plenty of room for large-gauge professional speaker connections.
New More Performance, Versatility, and Safety, with WBT Binding Posts
Connect your electronics safely and securely using 5-Way audiophile WBT Binding Posts. Their pure copper connection plate is highly conductive and free from “eddy current” effects. These posts are insulated for shock protection, and fully damped against vibrations. They give you plenty of room for large-gauge professional speaker connections.

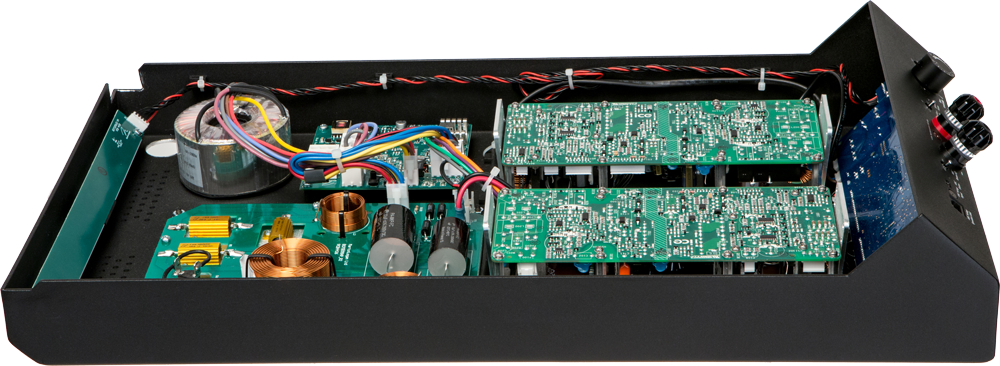

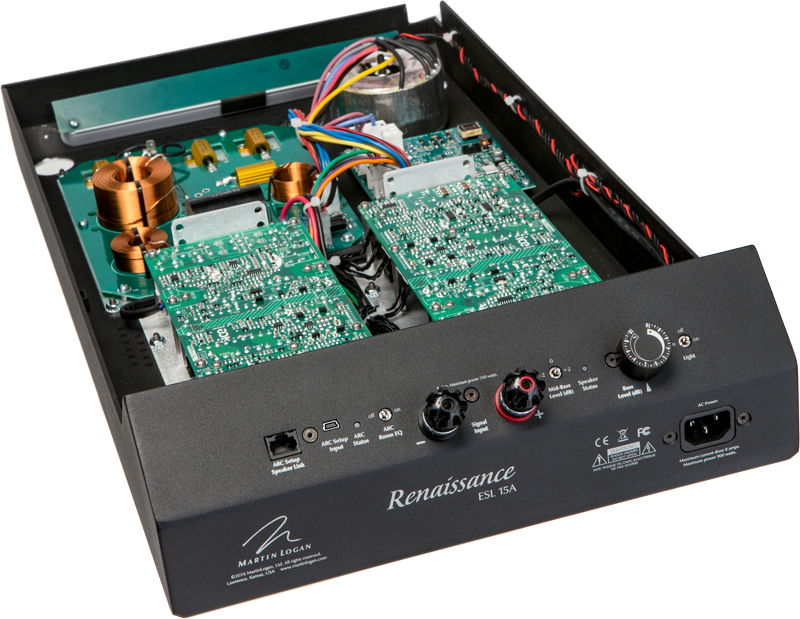

New Powerful Dual 500-Watt Class-D Amplification with 24-Bit Vojtko™ DSP Engine
The performance of Renaissance ESL 15A has been reconsidered from the ground up. Taking full advantage of innovations like PoweredForce Forward and ARC Technology, and the integration of the electrostatic panel with the woofer array, required daring thinking about power and efficiency. Our new dual 500-watt amplifiers produce clean power, in a small space, more efficiently than ever before. They enable the effortless delivery of exhilarating dynamic impact, with plenty of overhead. Superior, reliable Class-D technology means there’s virtually no energy lost between the amplifiers and the woofers.The performance of Renaissance ESL 15A has been reconsidered from the ground up. Taking full advantage of innovations like PoweredForce Forward and ARC Technology, and the integration of the electrostatic panel with the woofer array, required daring thinking about power and efficiency. Our new dual 500-watt amplifiers produce clean power, in a small space, more efficiently than ever before. They enable the effortless delivery of exhilarating dynamic impact, with plenty of overhead. Superior, reliable Class-D technology means there’s virtually no energy lost between the amplifiers and the woofers.
MartinLogan’s dedicated in-house design and engineering team created an extremely precise 24-bit Vojtko Digital Signal Processing (DSP) engine to work in conjunction with these powerful new amplifiers. It gives these speakers the ability to deliver detailed low-frequency performance reaching down to 22Hz. Advanced DSP allows complete control and performance optimization over the low pass filters, woofer equalization and limiting functions, all of which are mapped mathematically in the digital domain. Complete control of the signal, along with instant response, huge amounts of clean power, and efficient, integrated performance, paints an original picture of lifelike audio performance.
Precision-Built Advanced-Topology Vojtko Crossover
Vojtko Voiced, the advanced crossover and electronics in Renaissance ESL 15A add enhanced mid-range clarity to this artful composition. Carefully hand-built using only the finest polypropylene capacitors and air-core coils, the crossover employs MartinLogan’s proprietary Vojtko topology for vanishingly low distortion and seamless driver/ESL integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source.
We’ve also considered the signal you will feed your loudspeakers, and have engineered Renaissance ESL 15A to work well with practically any type of electronics. MartinLogan’s state-of-the-art toroidal transformer and electrical interface engineering ensure an absolutely transparent link from amplifier to electrostatic panel and woofer array. This produces sound of unparalleled purity, precision, clarity, and openness — the next best thing to no speaker at all.
Precision-Built Advanced-Topology Vojtko Crossover
Vojtko Voiced, the advanced crossover and electronics in Renaissance ESL 15A add enhanced mid-range clarity to this artful composition. Carefully hand-built using only the finest polypropylene capacitors and air-core coils, the crossover employs MartinLogan’s proprietary Vojtko topology for vanishingly low distortion and seamless driver/ESL integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source.
We’ve also considered the signal you will feed your loudspeakers, and have engineered Renaissance ESL 15A to work well with practically any type of electronics. MartinLogan’s state-of-the-art toroidal transformer and electrical interface engineering ensure an absolutely transparent link from amplifier to electrostatic panel and woofer array. This produces sound of unparalleled purity, precision, clarity, and openness — the next best thing to no speaker at all.
