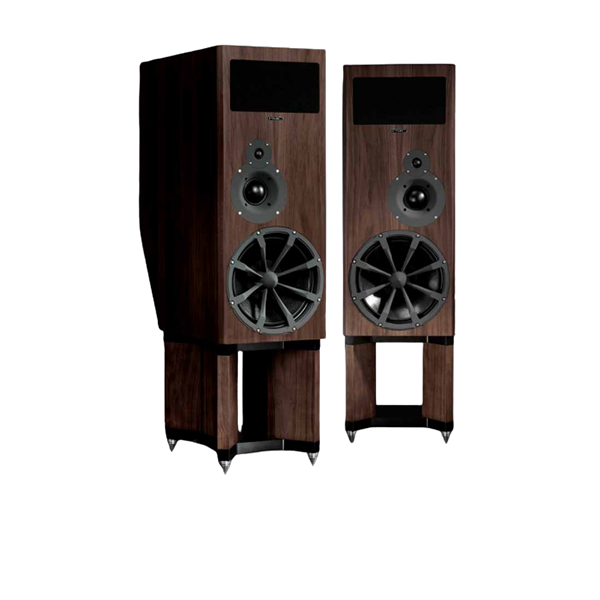

PMC BB5-A SE Active Speaker
The PMC BB5-A SE is a flagship active studio monitor engineered for the most demanding professional environments. Known for its accuracy, power, and unmatched low-frequency performance, the BB5-A SE is widely used in world-class studios for recording, mixing, and mastering. With PMC’s ATL™ technology and upgraded SE components, it delivers precise imaging, immense headroom, and transparent sound reproduction.
PMC BB5-A SE Active Speaker | High-End Studio Speaker
- Flagship active monitor with extraordinary accuracy
- ATL™ (Advanced Transmission Line) technology for deep, clean bass
- SE (Special Edition) upgrades for premium sonic performance
- Powerful, dedicated active amplification system
- Wide dynamic range with extremely low distortion
- Ideal for large recording, mixing, and mastering rooms
- Trusted by top studios globally for critical audio work
- Exceptional stereo imaging and clarity across the spectrum
- Built for sustained high-level performance
17Hz-25kHz
4m (13ft)
LF PMC 15” (380mm) Radial™ driver

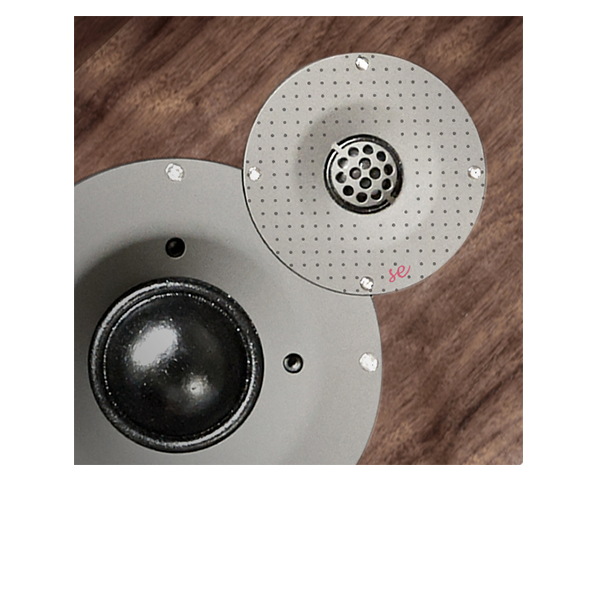

MF PMC75 3” (75mm) fabric dome
HF PMC34 1.3” (34mm) soft dome
380Hz - 3.8kHz

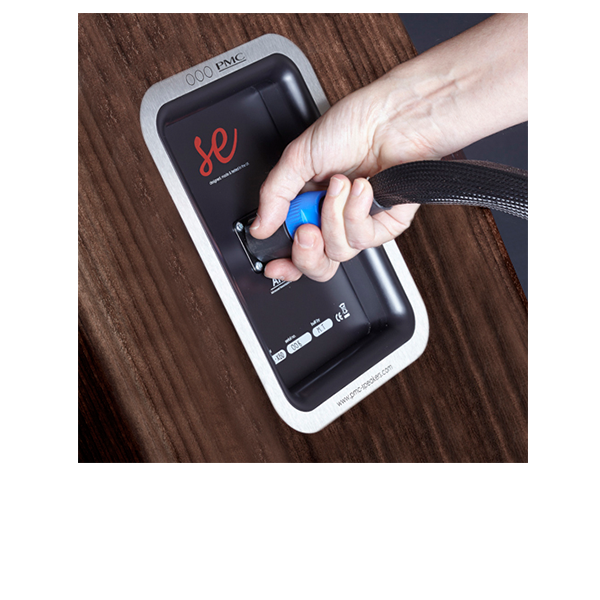

Neutrik NL8
Balanced Analogue XLR
LF 900W
MF 300W
HF 300W
H 1040mm (41”)
W 432mm (17”)
D 790mm (31”)
87kg (191.8lbs) Stand: 19kg (41.9lbs)
Grand Walnut
Technology
DEEPER, CLEARER, CLEANER BASS & MORE
• Greater detail & more natural
• A full, rich sound at any volume level
• Deeper bass from a smaller cabinet
The source of PMC’s legendary natural, realistic sound is the Advanced Transmission Line (ATL) bass-loading technology, professionally proven all around the world.
ATL uses energy generated by the bass unit in a much more intelligent, efficient way than speaker designs based on ported or sealed boxes.
Technology
DEEPER, CLEARER, CLEANER BASS & MORE
• Greater detail & more natural
• A full, rich sound at any volume level
• Deeper bass from a smaller cabinet
The source of PMC’s legendary natural, realistic sound is the Advanced Transmission Line (ATL) bass-loading technology, professionally proven all around the world.
ATL uses energy generated by the bass unit in a much more intelligent, efficient way than speaker designs based on ported or sealed boxes.

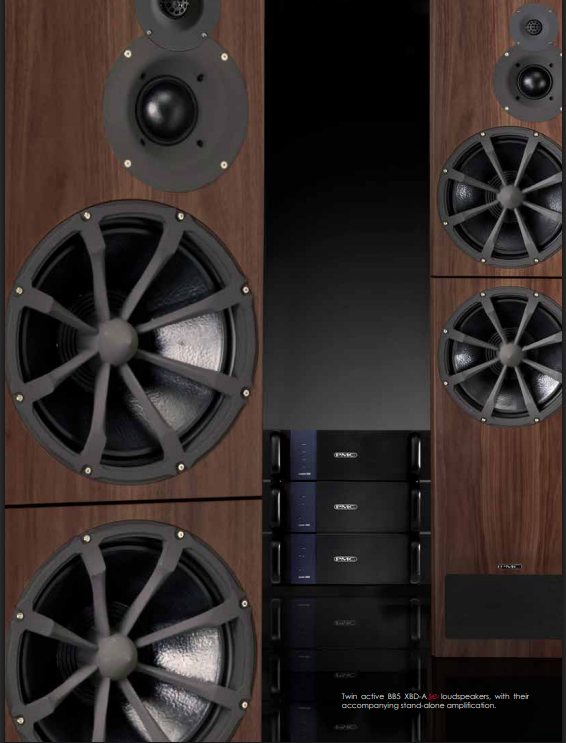

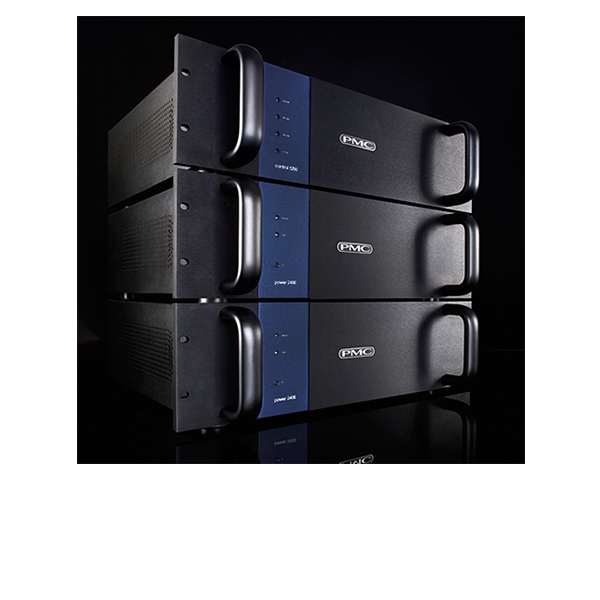

ACTIVE SYSTEMS
PMC’s active designs take our loudspeakers to another level. In our
active se systems, the loudspeakers are matched with dedicated PMC audiophile amplification and active crossovers, custom-tailored to the precise designs and power requirements of the loudspeakers; the amplification is also directly coupled to the drive units for superior control and a more efficient transfer of energy. Each piece of electronics is hand-crafted according to ensure quality, neutrality and transparency; the result is a natural-sounding, lifelike speaker with unmatched headroom, resolution and dynamics. The active crossovers used with our se systems also feature in-room tuning controls to allow the speakers to be adjusted to perfectly suit individual tastes and room acoustics; to guarantee optimum performance in situ, they are always tuned by our factory-trained installation engineers.
ACTIVE SYSTEMS
PMC’s active designs take our loudspeakers to another level. In our
active se systems, the loudspeakers are matched with dedicated PMC audiophile amplification and active crossovers, custom-tailored to the precise designs and power requirements of the loudspeakers; the amplification is also directly coupled to the drive units for superior control and a more efficient transfer of energy. Each piece of electronics is hand-crafted according to ensure quality, neutrality and transparency; the result is a natural-sounding, lifelike speaker with unmatched headroom, resolution and dynamics. The active crossovers used with our se systems also feature in-room tuning controls to allow the speakers to be adjusted to perfectly suit individual tastes and room acoustics; to guarantee optimum performance in situ, they are always tuned by our factory-trained installation engineers.
