PMC BB5 SE Passive Speaker
The PMC BB5 SE is a flagship passive studio monitor engineered for the highest level of accuracy in professional recording, mixing, and mastering environments. Built with PMC’s signature ATL™ (Advanced Transmission Line) technology and refined SE components, it delivers outstanding depth, precision, and dynamic range. Known for its powerful low-frequency performance and exceptionally detailed midrange, the BB5 SE is trusted in elite studios worldwide for reference-grade monitoring.
PMC BB5 SE Passive Speaker | High-End Passive Monitor
- Flagship passive studio monitor for large professional studios
- ATL™ (Advanced Transmission Line) technology for powerful, controlled bass
- SE (Special Edition) upgrades for superior clarity and accuracy
- Exceptional midrange detail with PMC’s renowned driver design
- Very wide dynamic range with low distortion
- Precise stereo imaging and expansive soundstage
- Ideal for recording, mixing, and mastering applications
- High power-handling to support large control rooms
- Built with premium materials for long-term reliability and consistency
17Hz-25kHz
92dB 1w 1m
10 - 700W
4m 13ft
4 Ohm nominal

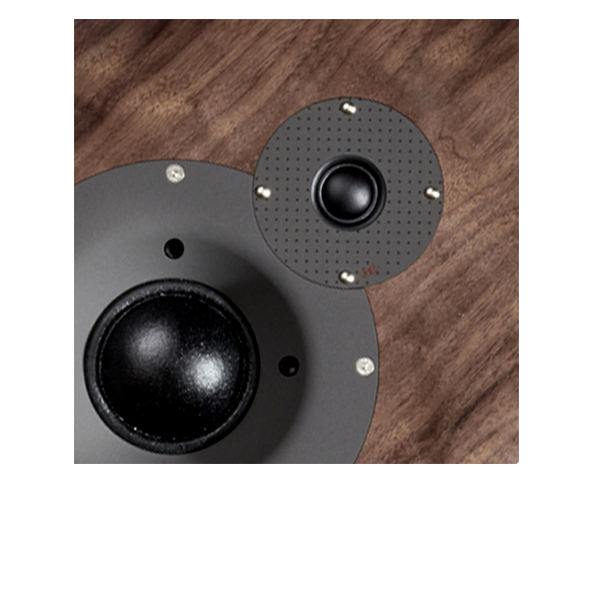

LF - PMC 15” 380mm Radial™ driver
HF - 27mm SONOLEX™ soft dome Ferrofluid cooled
MF - PMC75 SE - 75mm soft dome
380Hz - 3.8kHz

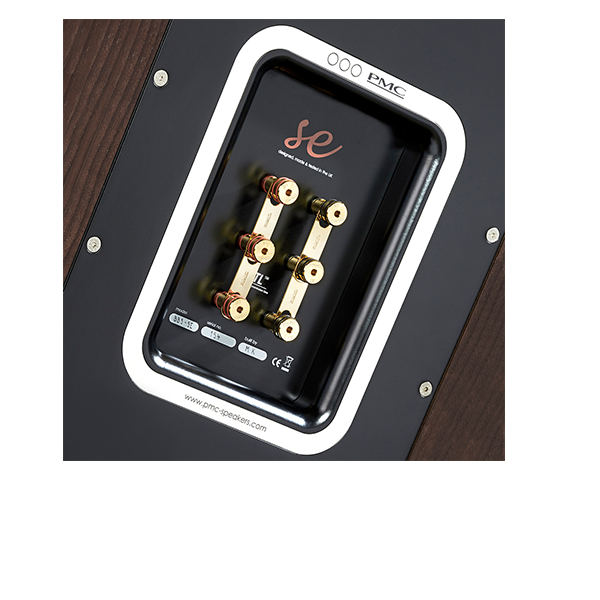

3 pairs 4mm sockets (Tri-Wire or Tri-Amp)
H 1040mm (41″)
W 432mm (17″)
D 790mm (31.1″)
87kg (191lbs) & Stands 19kg (42lbs)
Grand Walnut
Technology
DEEPER, CLEARER, CLEANER BASS & MORE
• Greater detail & more natural
• A full, rich sound at any volume level
• Deeper bass from a smaller cabinet
The source of PMC’s legendary natural, realistic sound is the Advanced Transmission Line (ATL) bass-loading technology, professionally proven all around the world.
ATL uses energy generated by the bass unit in a much more intelligent, efficient way than speaker designs based on ported or sealed boxes.
Technology
DEEPER, CLEARER, CLEANER BASS & MORE
• Greater detail & more natural
• A full, rich sound at any volume level
• Deeper bass from a smaller cabinet
The source of PMC’s legendary natural, realistic sound is the Advanced Transmission Line (ATL) bass-loading technology, professionally proven all around the world.
ATL uses energy generated by the bass unit in a much more intelligent, efficient way than speaker designs based on ported or sealed boxes.

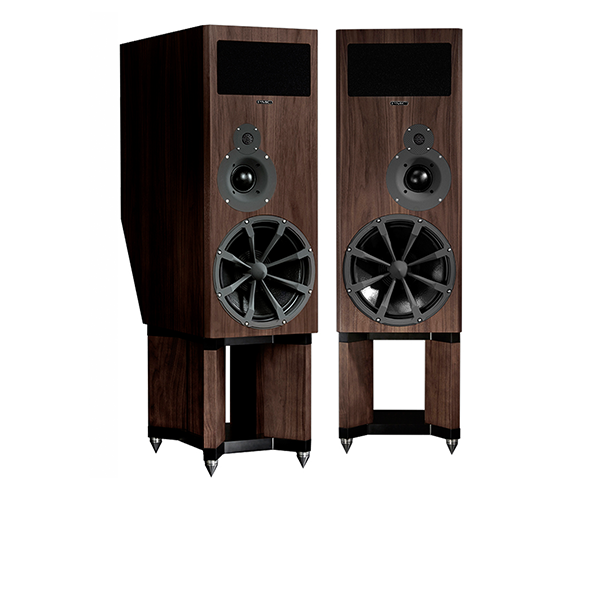

BB5 SE
The BB5se is the largest single-cabinet model in the se range and, with its striking 15-inch Radial™ LF driver, is based upon the original PMC BB5 professional loudspeaker, which has now been in continuous use in the world’s finest recording, mastering and broadcast studios for over a quarter of a century. Capable of reproducing bass tones down to a truly profound 17Hz, and across a massive dynamic range from whisperquiet to emotional levels of energy, the BB5se can handle everything from expansive electronic film soundtracks at full tilt to the subtlest of filigree acoustic performances with dexterity, delicacy, consistency and confidence.
The BB5se is available in passive or active versions, with a Centre speaker if required.
BB5 SE
The BB5se is the largest single-cabinet model in the se range and, with its striking 15-inch Radial™ LF driver, is based upon the original PMC BB5 professional loudspeaker, which has now been in continuous use in the world’s finest recording, mastering and broadcast studios for over a quarter of a century. Capable of reproducing bass tones down to a truly profound 17Hz, and across a massive dynamic range from whisperquiet to emotional levels of energy, the BB5se can handle everything from expansive electronic film soundtracks at full tilt to the subtlest of filigree acoustic performances with dexterity, delicacy, consistency and confidence.
The BB5se is available in passive or active versions, with a Centre speaker if required.
