PMC MB2 XBD SE Passive Speaker
The PMC MB2 XBD SE is a dual-cabinet passive monitoring system designed for the most demanding professional studios. Featuring PMC’s advanced ATL™ (Advanced Transmission Line) technology and Special Edition refinements, it delivers exceptionally deep, controlled bass with superior accuracy. The additional XBD cabinet significantly extends low-frequency performance, providing unmatched clarity, power, and headroom for large-scale recording, mixing, and mastering environments. This system is trusted by audio professionals who require absolute precision and transparency.
PMC MB2 XBD SE | High-End Passive Monitor System
- Dual-cabinet passive monitor system with extended XBD bass unit
- ATL™ (Advanced Transmission Line) technology for deep, accurate low-end
- SE (Special Edition) upgrades for enhanced clarity and precision
- Exceptional midrange and high-frequency detail
- Wide dynamic range with extremely low distortion
- Ideal for large professional control rooms and mastering studios
- Accurate imaging with a wide, detailed soundstage
- High power-handling capability for demanding monitoring setups
- Built with premium materials for long-term consistency and reliability
20Hz-25kHz
93dB 1w 1m
10 - 800W
2 x 3m 10ft
4 Ohm
LF - 2 x PMC 12” 310mm Radial™ driver

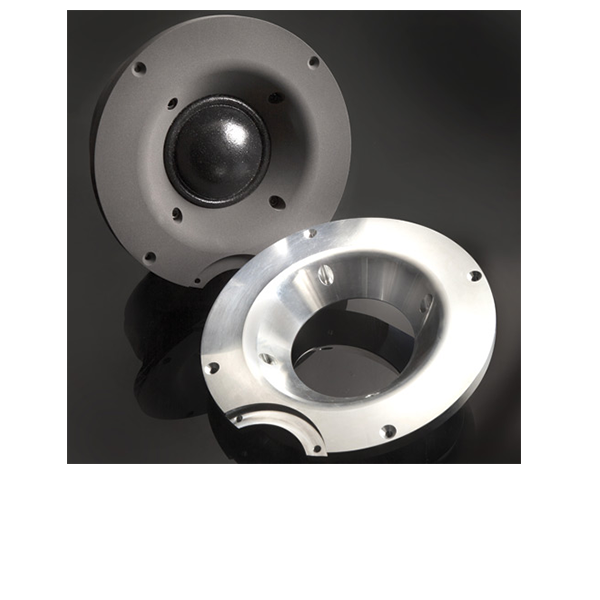

HF - 27mm SONOLEX™ soft dome Ferrofluid cooled

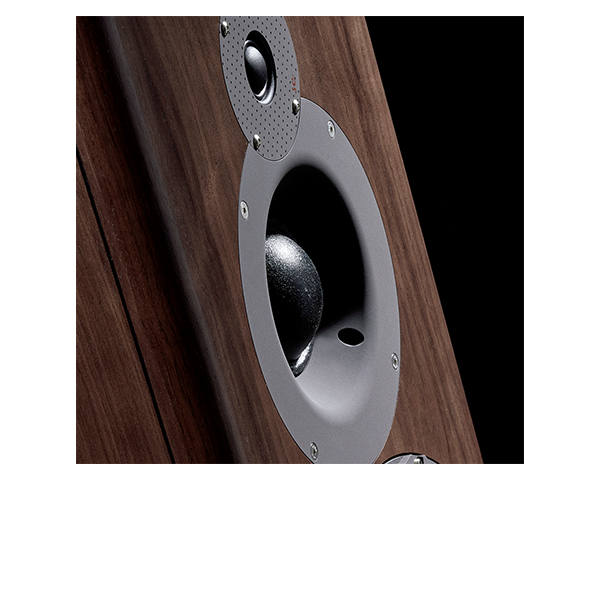

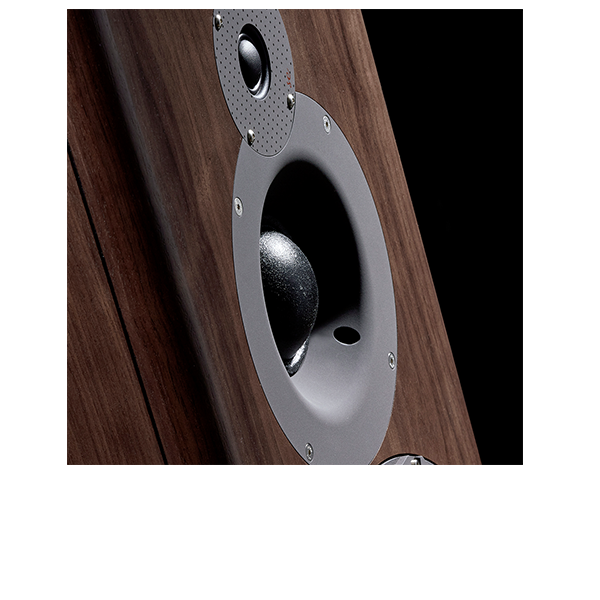

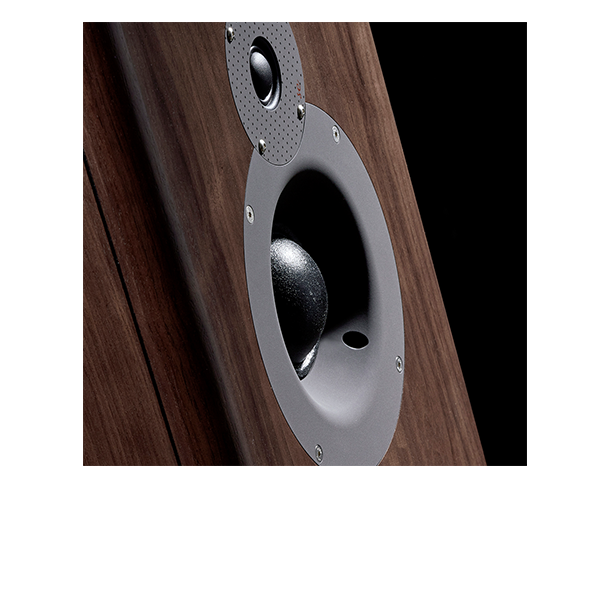

MF - PMC75 SE - 75mm soft dome
380Hz - 3.8kHz

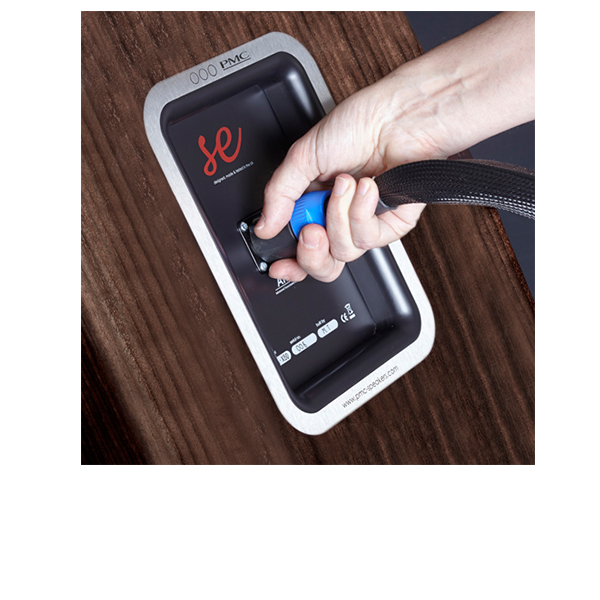

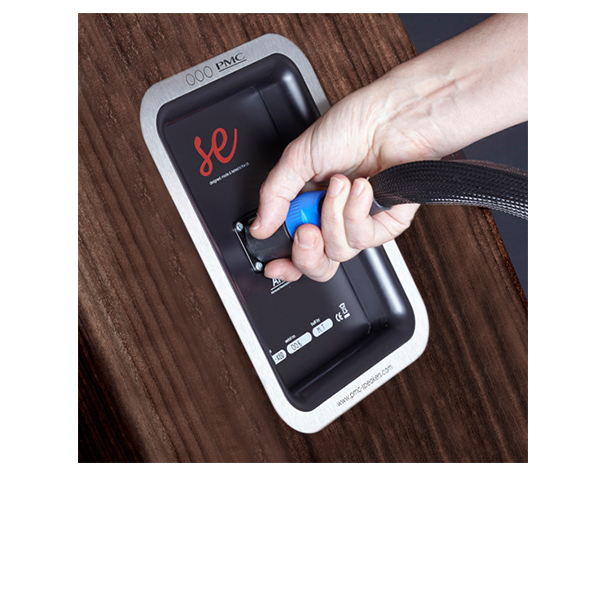

3 pairs 4mm sockets (Tri-Wire or Tri-Amp)
H 1740mm 68.5” (+ 50mm spikes)
W 380mm 14.96”
D 535mm 21”
116kg (255.7lbs)
Grand Walnut
Technology
DEEPER, CLEARER, CLEANER BASS & MORE
• Greater detail & more natural
• A full, rich sound at any volume level
• Deeper bass from a smaller cabinet
The source of PMC’s legendary natural, realistic sound is the Advanced Transmission Line (ATL) bass-loading technology, professionally proven all around the world.
ATL uses energy generated by the bass unit in a much more intelligent, efficient way than speaker designs based on ported or sealed boxes.
Technology
DEEPER, CLEARER, CLEANER BASS & MORE
• Greater detail & more natural
• A full, rich sound at any volume level
• Deeper bass from a smaller cabinet
The source of PMC’s legendary natural, realistic sound is the Advanced Transmission Line (ATL) bass-loading technology, professionally proven all around the world.
ATL uses energy generated by the bass unit in a much more intelligent, efficient way than speaker designs based on ported or sealed boxes.
MB2XBD SE

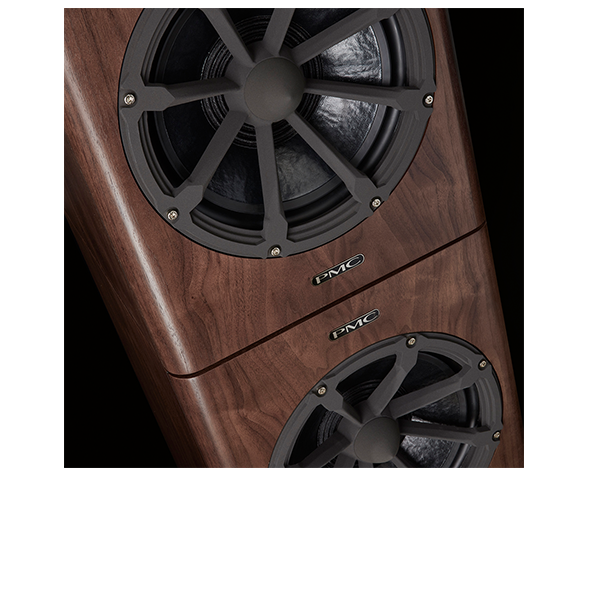

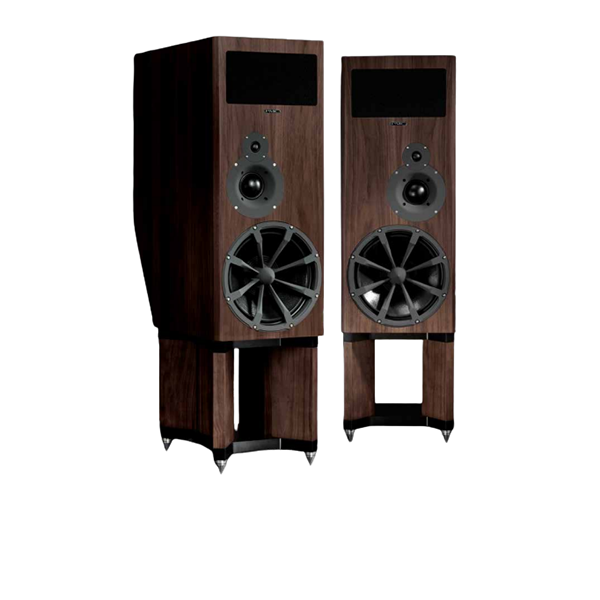

For those who crave greater depth and the feeling of limitless scale, the MB2 XBDse is the solution, with an additional cabinet sporting a 12-inch driver devoted exclusively to bass. Offering even greater headroom and slam than the single-cabinet MB, the MB2 XBD cabinets can be placed side by side, but work best mounted as a freestanding tower, keeping the baffle width to a minimum. In this configuration, with the bass output emanating from floor to ceiling, they can uniformly drive the room from top to bottom, producing a flat frequency response like no other speakers in their class.
The MB2 XBDse includes a pair of PL-5 plinths with large adjustable spikes. They not only allow for perfect levelling but prevent the passage of unwanted vibrations to and from your cabinets via the floor. The result is greater high- and mid-range focus, with improved bass definition and timing.
The MB2 XBDse is available in passive or active versions, with a Centre speaker if required.
MB2XBD SE
For those who crave greater depth and the feeling of limitless scale, the MB2 XBDse is the solution, with an additional cabinet sporting a 12-inch driver devoted exclusively to bass. Offering even greater headroom and slam than the single-cabinet MB, the MB2 XBD cabinets can be placed side by side, but work best mounted as a freestanding tower, keeping the baffle width to a minimum. In this configuration, with the bass output emanating from floor to ceiling, they can uniformly drive the room from top to bottom, producing a flat frequency response like no other speakers in their class.
The MB2 XBDse includes a pair of PL-5 plinths with large adjustable spikes. They not only allow for perfect levelling but prevent the passage of unwanted vibrations to and from your cabinets via the floor. The result is greater high- and mid-range focus, with improved bass definition and timing.
The MB2 XBDse is available in passive or active versions, with a Centre speaker if required.
