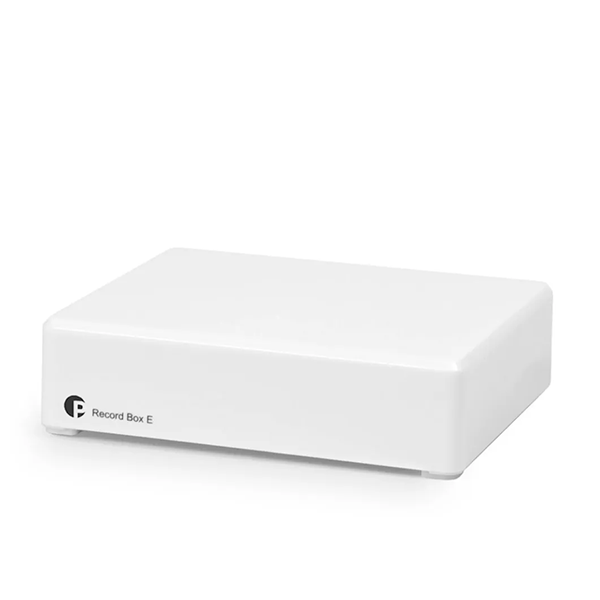

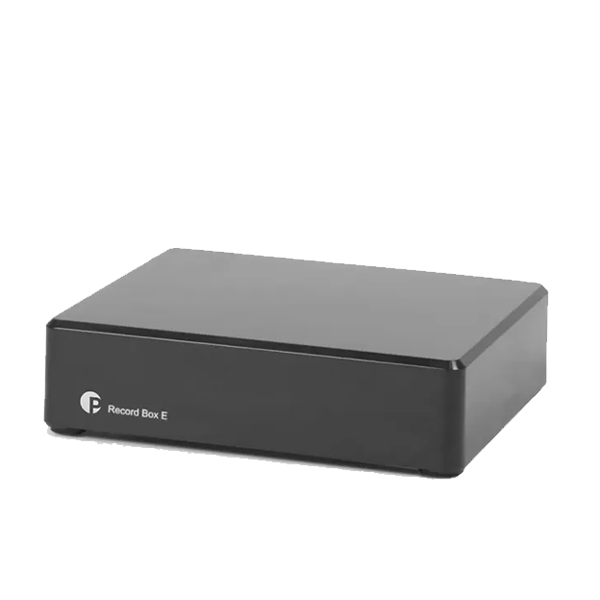

Pro-Ject Audio Systems Record Box E Phono Preamp
The Pro-Ject Record Box E is a compact and versatile phono preamplifier designed to connect turntables to modern audio systems while also enabling vinyl digitization. It supports both MM and MC cartridges and delivers accurate RIAA equalization for clean and balanced sound reproduction. With its built-in A/D converter and USB output, users can easily record vinyl records directly to a computer. Its low-noise circuitry, internal shielding, and high-quality components ensure reliable performance for both listening and recording purposes.
Share:
Pro-Ject Audio Systems Record Box E Phono Preamp
Sale price
Rs. 26,700.00
Regular price (/)
Pro-Ject Audio Systems Record Box E Phono Preamp with USB A/D Converter
- Amplification and RIAA equalisation for MM & MC
- Design principle inspired by Dr. Sykora
- Digitalisation of vinyl for recording direct to USB with suitable recording programs
- Automatic recognition with no additional drivers required
- Compatible with Windows®, Mac OS® & Linux operating systems
- SMD circuitry with special low noise components
- Internal metal shielding for reduced interference
- Compact size allows placement close to the turntable
- Gold plated RCA connection sockets
- Outboard power supply included
- Available in Black or White casing
Input capacitance/input impedance
MC: 100 ohms/120 pF (low output MC) MM: 47kohms/120 pF (MM or high output MC)
Gain, MM / MC
40 dB / 60 dB
Output voltage typically
300 mV/1 kHz bei 3 mV/1 kHz (MM) oder 0.3 mV/1 kHz (MC)
Max. output
9,5 V (1 kHz)
Noise floor MM / MC
94 dB (A weighted) / 75 dB (A weighted)
THD MM / MC
<0,01% / <0,05%
RIAA-equalisation curve accuracy
20 Hz - 20 kHz / max. 0.5 dB
A/D converter
Burr Brown PCM2904 16-Bit Delta Sigma
Sampling rates
32, 44,1 and 48 kHz
USB output
5 pin Mini b Buchse
USB signal
digital serial data protocol USB 1.1
Operating systems
Windows XP®, Windows Vista®, Windows 7®, Windows 8®, Mac OS, Linux

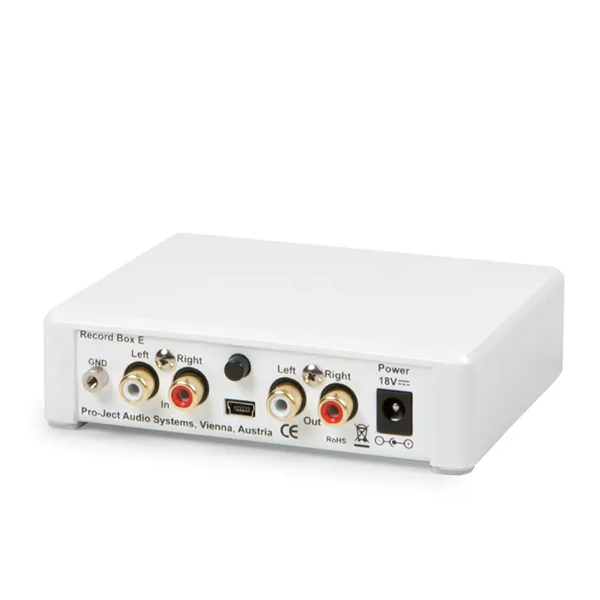

Input / Line output
1 pair RCA/Cinch sockets each
Outboard power supply
18 V / 500 mA DC, suitable for your country's mains supply
Power consumption
100 mA DC
Dimensions W x H x D (D with sockets)
120 x 32 x 100 (115) mm
Weight
250g without power supply
