Q Acoustics Q B12
The QB 12 is the first Q Acoustics subwoofer to feature a 12in driver. The big long-throw driver is powered by an ultra low-distortion 220-watt Class D amplifier for tight, powerful bass response, and features a 50mm voice coil for minimal thermal compression. Equally at home with Q Acoustics’ Concept and 3000i range of stereo and centre speakers, Q B12 is designed to be equally adept at reproducing big Hollywood action moments as it is the deep, subtle textures of bass instruments.
305mm (12in) high-excursion and stiffness paper, straight-sided cone.
440 W
220 W
Class D
28 Hz - 300 Hz
40Hz – 250Hz
13 kΩ
150 mV
Infinite baffle
MDF
400 x 400 x 446 mm (15.7 x 15.7 x 17.6 in)
47.40 lbs / (21.5 kg)
DESIGNED TO INTEGRATE SEAMLESSLY
Strength and control
Q B12’s sealed, ‘infinite baffle’ cabinet is cleverly braced to deliver maximum stiffness to its motor system and, as a consequence, minimum influence on those deep bass sounds. Mechanical stability = aural satisfaction.
SEAMLESS SETUP
Ease, simplicity and performance

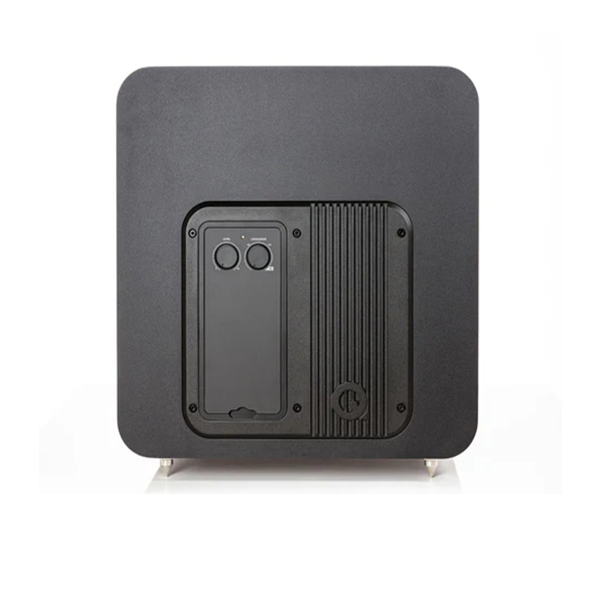

A reinforced MDF cabinet with a 36mm-thick baffle, a recessed and hidden terminal panel. Adjustable spiked feet with rubber caps. A choice of elegant, understated finishes. Q B12 is a simple and easy to position and set up as it is invigorating to listen to.
