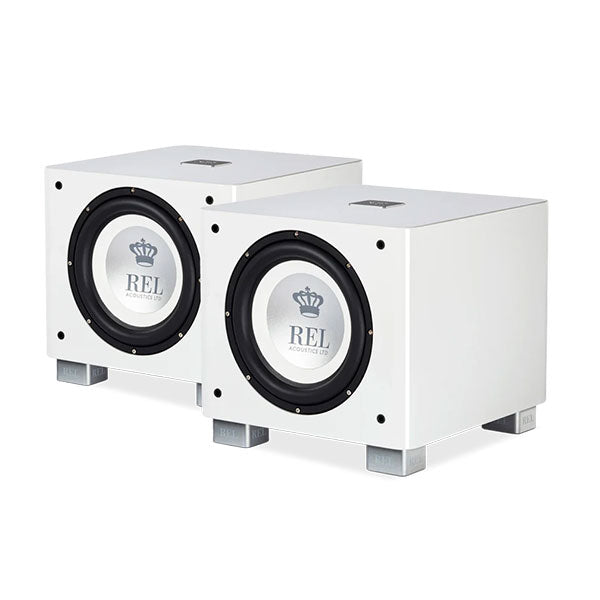

Rel Acoustic T/9x
Rel Acoustic T/9x - 10" Inch Arrow Wireless Compatible Subwoofers
- 10” front-firing active long-throw driver

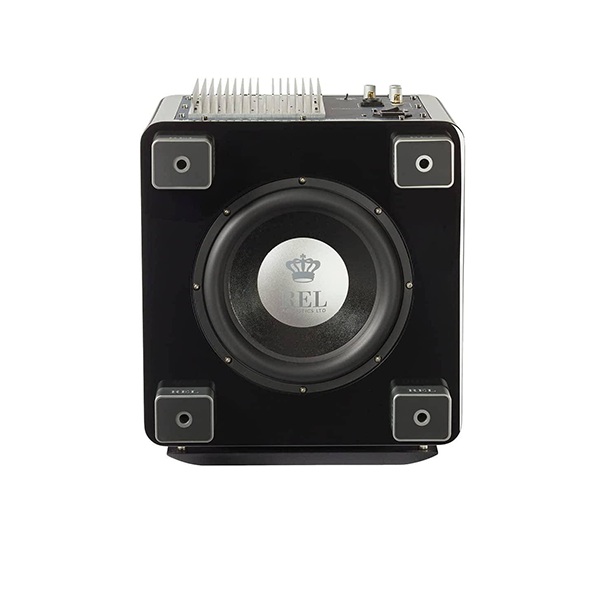

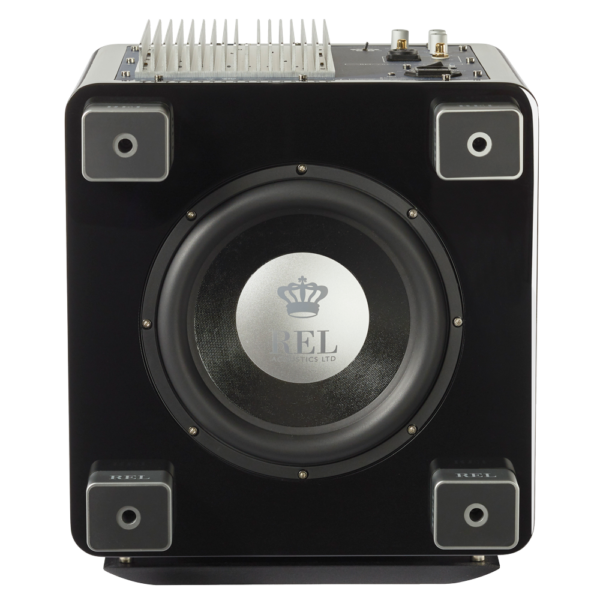

- 12” downward-firing passive radiator for deeper bass extension
- 300W Class A/B amplifier with high current reserves
- Designed for both music and theater use – fast, articulate, and musical
- High-level Neutrik Speakon, low-level RCA, and LFE inputs

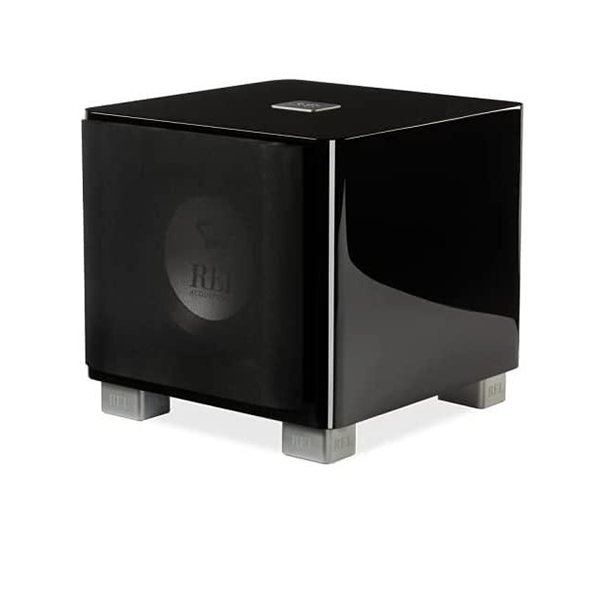

- Refined cabinet design with curved edges and premium high-gloss finish
- Perfect for medium to large rooms
- Blends effortlessly with main speakers without drawing attention to itself

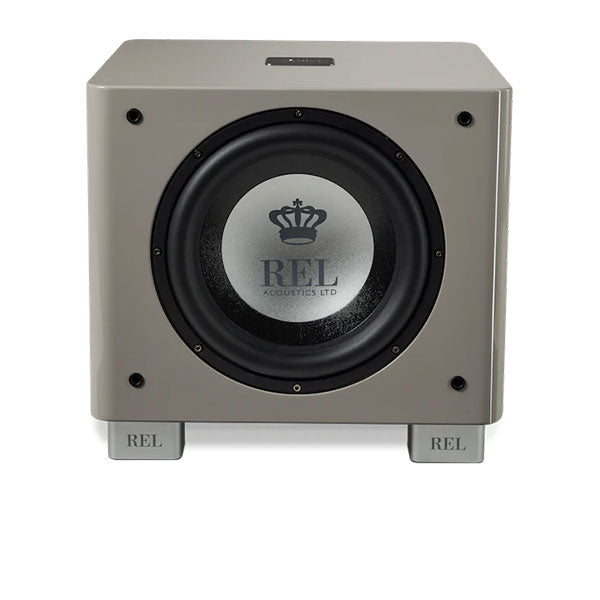

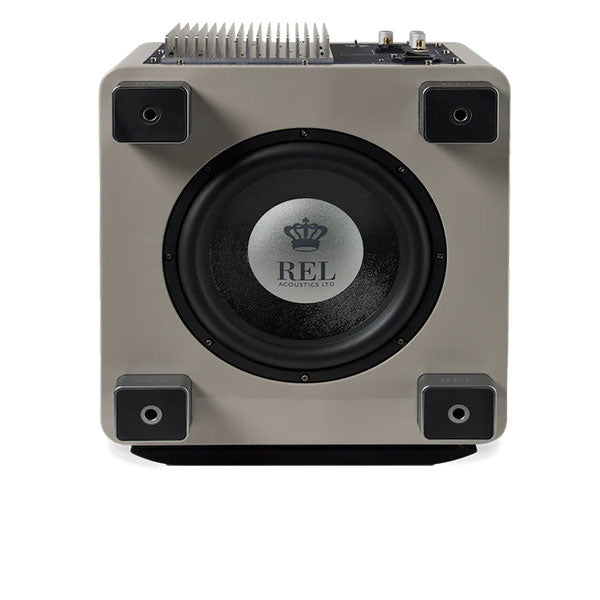

Front-firing active driver, down-firing passive
10 in. FibreAlloy™, 254mm long-throw, inverted alloy dust cap, steel chassis
10 in., 254mm long throw, inverted dust cap
-6dB at 27 Hz

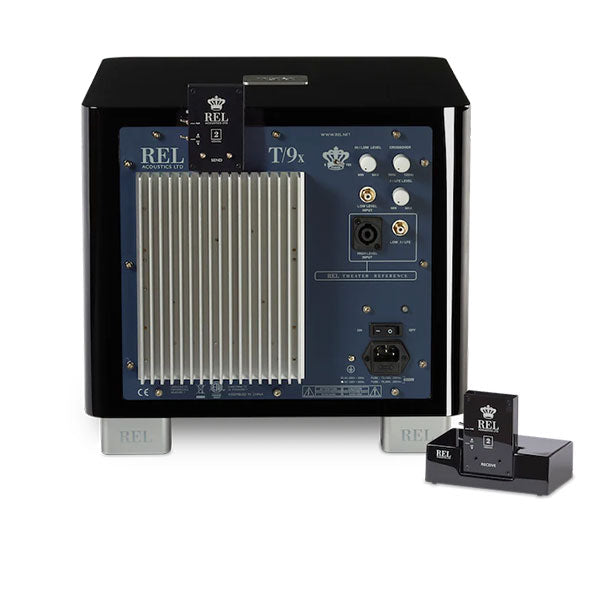

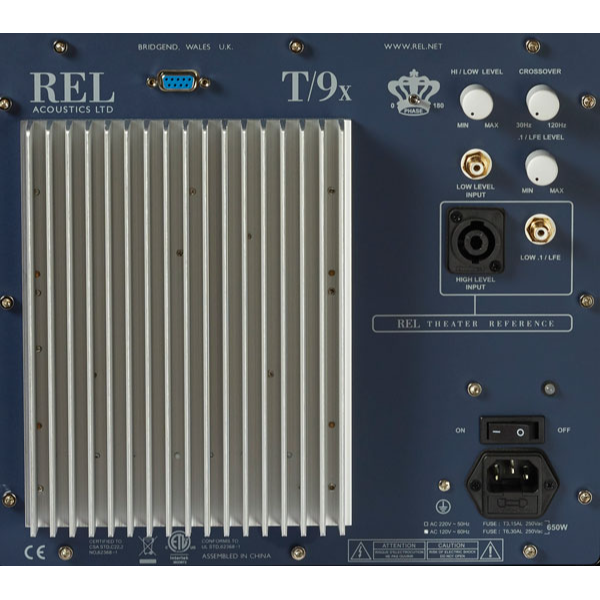

High Level Neutrik Speakon, Low Level single RCA, LFE RCA
N/A
300 watts (RMS)
Class A/B
Arrow (Optional), Zero Compression Single Large Scale Integrated Chip
Yes
Yes
Yes
220-240 volts, 110-120 volts for certain markets
3.15 Amp semi delay 230 volts operation, 6.3 Amp semi delay 115 volts operation
14.5 x 13.4 x 15.5 in., (370 x 340 x 393 mm)
45.5 lbs. (20.6 kg)

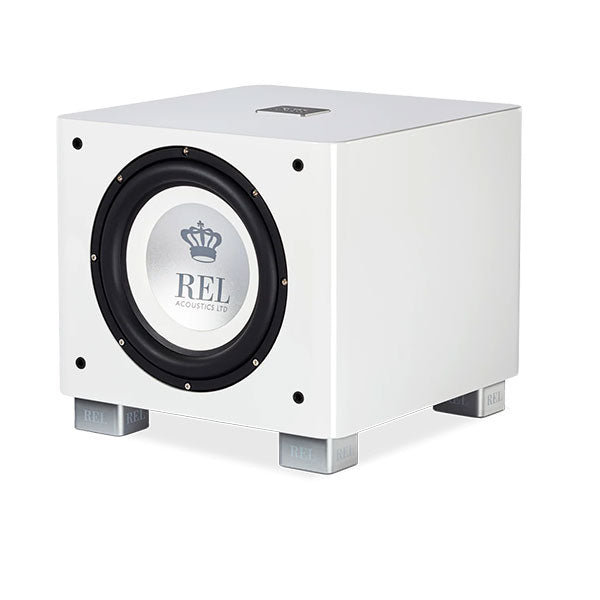

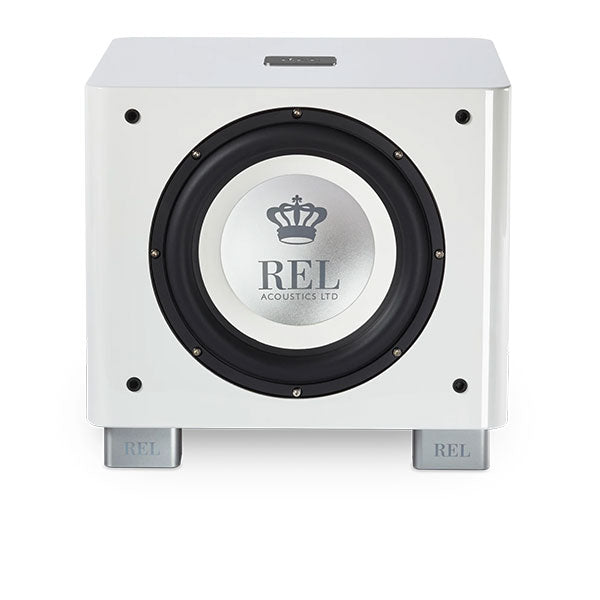

High Gloss Black, High Gloss White, 5 coats
Yes
Yes (10 Meters Nominal)
Yes
Outsized Performance
Innovative Alloy/Fibre Bass Engines
To achieve higher output with better control requires a complete overhaul of the suspension components. Much like the suspension on a sports car, these items are responsible for the tuning and feel of our designs. By increasing the cabinet volume, efficiency is improved yielding higher output for no more amplifier power. Less back pressure inside the cabinet means we can tune for a stiffer, better controlled driver suspension. We retained the best aspects of our previous design, such as the aluminum center cap responsible for stiffening the lightweight 10” (250mm) cone while adding almost no mass. The updated combination produces considerably better attack and dynamics with greater transparency.
Tried and True Amplifiers
The Brains Behind the Brawn
We have retained our signature Class A/B amplifiers used in every generation of Serie T since 2006. Reliability is the key to happy ownership and with some 200,000 and counting of this range leading long happy lives, Serie T/x owners can feel certain of REL’s standard setting reliability. The powerful 300 watt mosfet amplifier used in the T/9x remains an icon with huge reserves of current, massive power supplies but small upgrades are found everywhere. New driver mosfets that open up performance and transparency and new methods for securing the toroidal transformers mean better performance and superior strength.
REL’s legendary High Level Input connection and fast filters are a significant part of the REL story. Connecting via the speaker outputs of your amplifier without drawing any power from it may seem like magic, but the real magic lies in the way the sound takes on a natural character. Unique tuning and special limiters mean the T/x range sounds fresher, faster and more dynamic than before.
Wireless that Doesn’t Compress the Sound
Unlimited Possibilities

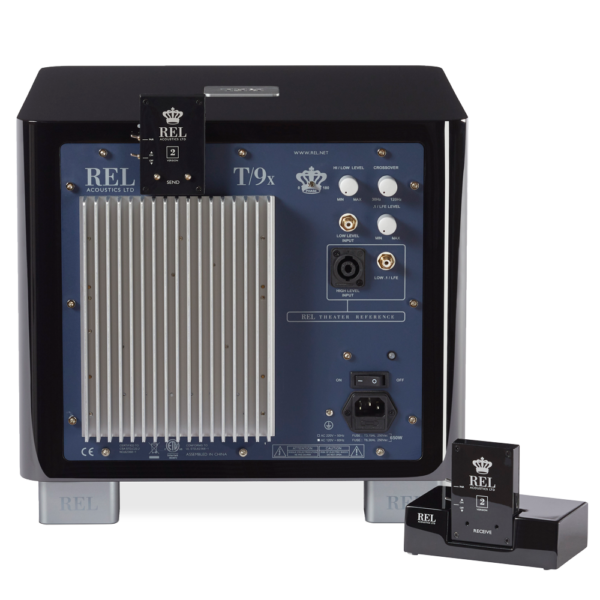

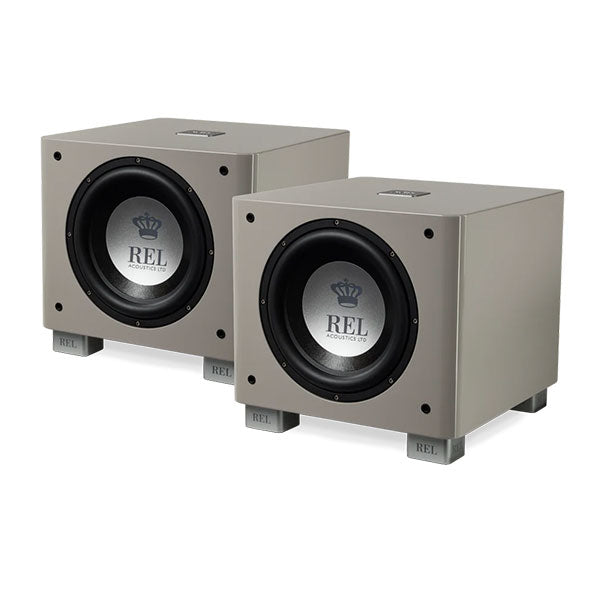

At REL, we’ve developed a sterling reputation for building the finest sounding, fastest wireless systems available in the industry. We never rely upon digital compression as it results in dull, lifeless sound. Instead, we have perfected an (optional) Arrow™ wireless system so fast and dynamic we’re comfortable encouraging the use of wireless on one channel of a pair of RELs while the other channel may be connected conventionally with cable.
