Rel Acoustics S/510
Rel Acoustics S/510 - 10" Inch Powered Subwoofers

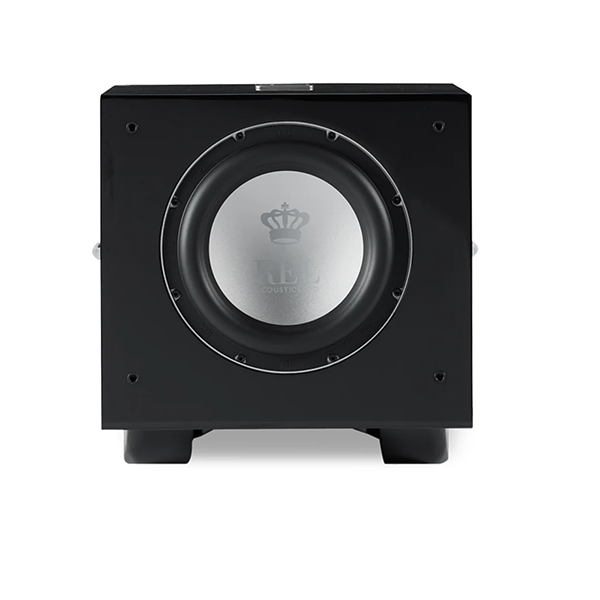

- 10” forward-firing active FibreAlloy™ driver with carbon fiber reinforcement

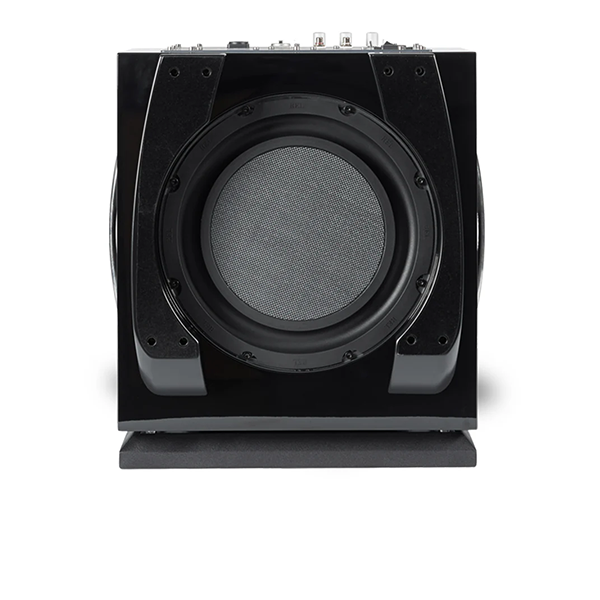

- 12” down-firing passive carbon radiator for extended bass and control
- 500W NextGen5 Class D amplifier for precision and power
- Supports REL Line Array stacking for professional-level performance
- High-Level Neutrik Speakon, low-level RCA, and LFE RCA inputs
- Fast, musical bass perfect for both music and high-end theater
- Elegant, furniture-grade cabinet in high-gloss black or white lacquer
Front-firing active woofer, down-firing passive radiator
10 in., 250mm long-throw, die cast aluminium chassis
12 in., 300mm
-6 dB at 20hz

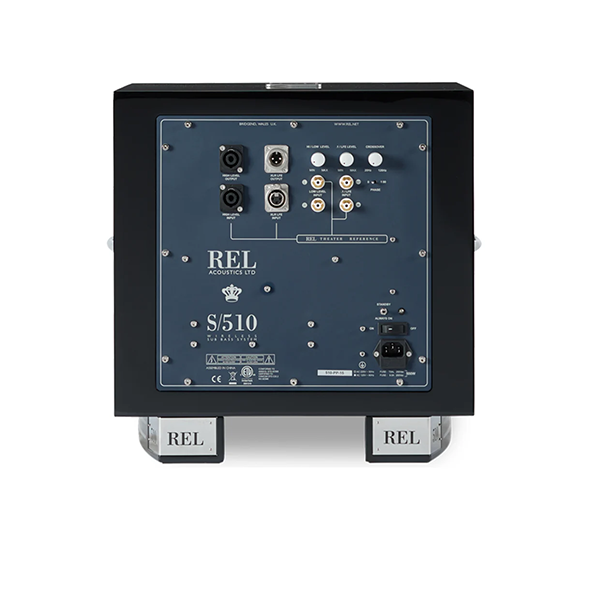

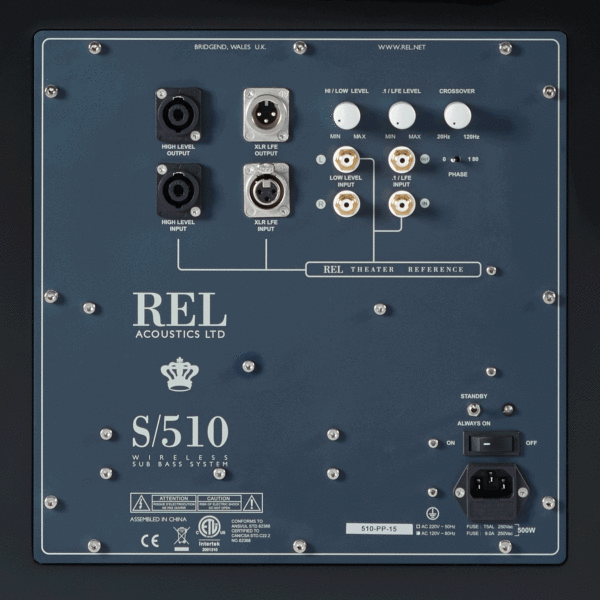

High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, LFE XLR
Hi Level Neutrik Speakon, LFE RCA, LFE XLR
500 watts (RMS)
NextGen3 Class D
Yes- REL AirShip system [required]. Sold separately.
Yes
Yes
Yes
220-240 volts, 110-120 volts for certain markets
5 Amp semi delay 220 volts operation 9 Amp semi delay 120 volts operation
15.7 x 16 x 18.25 in., (400 x 410 x 464 mm) Add 1.75in (44.5mm) in depth when using Hi Level connector
70 lbs. (31.7 kg)
Yes
Yes
Invisibly Upgraded

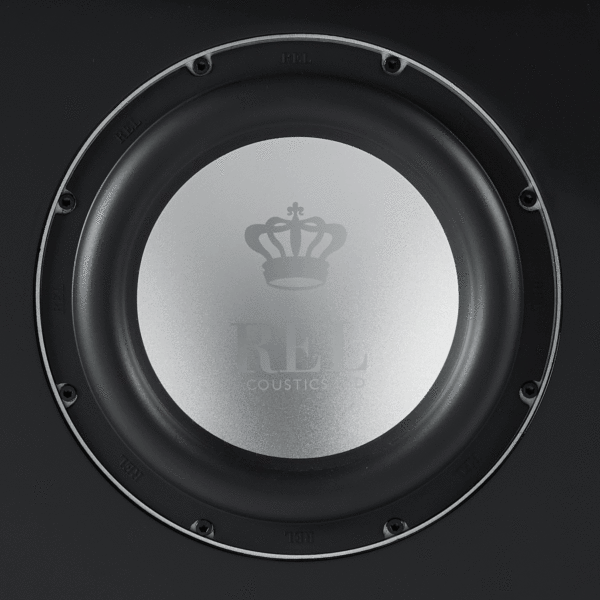

S/510’s Bass Engine
S/510 required upgrades to its ContinuousCast™ Alloy Cone to allow it to survive its massive power upgrades. To permit its thin, aluminum cone to survive 500 watts and incredibly long stroke, we added an ultra-lightweight backing of pure carbon fibre strategically placed over portions of the rear surface of the cone. This produces two benefits; it strengthens and stiffens the cone and also eliminates reversion, wherein the backwave inside the cabinet is now prevented from interfering with the main launch of bass into the room. The result is more accurate and far louder deep bass.

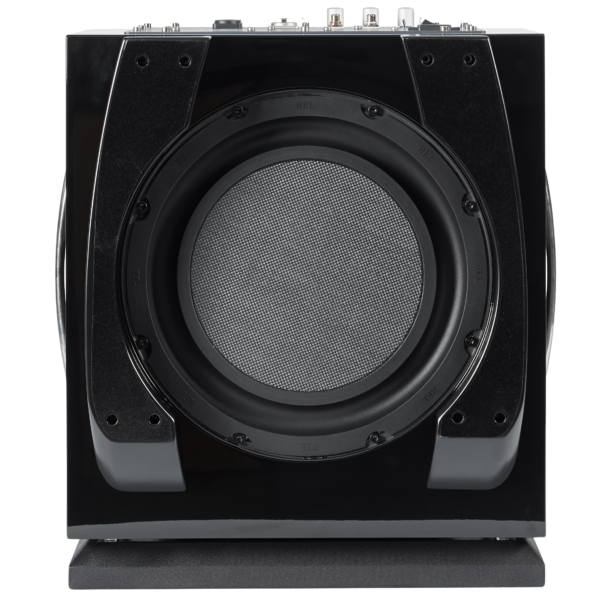

Nothing Passive About This
SuperProgressive™ passive radiator
Our uniquely tuned passive radiators use special suspensions, now with an additional 8mm of linear travel, to produce performance unlike conventional subwoofers. Our new SuperProgressive™ passive radiator produces extremely long travel allowing for very loud output while retaining the variable stiffness of its suspension. This allows it to act like a sealed box compact 12” design at low volumes and a high output 14” design at its limit.
500 Watt Monoblock Within
NextGen 3 Amplifier
At 500 watts the NextGen 3 amplifier is borrowed from our former flagship model and produces huge reservoirs of power and current. The 20%+ increase in power (previous version was 400 watts) is needed to deliver the high output levels needed for modern theatre, as well as to produce the extremely deep bass in a high end 2-channel system. This increase in power is necessitated by our development on the musical front of an all-new circuit termed PerfectFilter™ that balance both frequency extremes.
PerfectFilter performs two seemingly disparate qualities; extending the strong, even response of the extreme low end of bass frequencies while simultaneously opening up air and delicacy in the middle and high frequencies of one’s system. Additionally, we applied customized PureTheatre™ filters to allow S/510 to keep up with modern theatre effects without breaking a sweat.

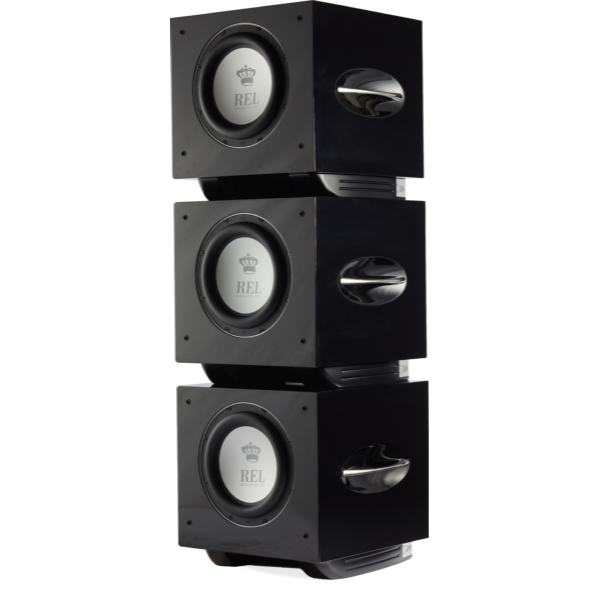

Stacked for Ultimate Performance
Serie S Line Arrays
In the real world, bass occurs with width, depth and height. By stacking up to three units per side (stereo or theatre main L-R speakers) the proper perspective and height of sonic events are illuminated. This elevates reproduction from conventional stereo or theatre to a floor to ceiling panoramic, full scale perspective of each sonic event. Reviewers are lining up to marvel at the transformation of music and film into the full-scale representation that REL Line Arrays uniquely deliver.
