Sonos Arc Ultra

Sonos Arc Ultra Premium Smart Soundbar
- Sound Motion™ Technology: Integrates a four-motor, dual-cone woofer that produces double the bass of the original Arc, enhancing low-frequency performance without increasing the soundbar's size.
- 14 Custom-Engineered Drivers: Features seven tweeters, six midrange drivers, and a Sound Motion woofer, providing a 9.1.4-channel virtual surround sound experience.
- Dolby Atmos Support: Delivers a 3D audio experience with precise sound placement, enveloping listeners in cinematic sound.
- Trueplay™ Tuning: Automatically adjusts the soundbar's audio profile to suit your room's acoustics, ensuring optimal sound quality
- Speech Enhancement: Improves dialogue clarity, making it easier to hear conversations in movies and TV shows.
- Night Sound Mode: Reduces loud noises and enhances quiet sounds, allowing for late-night viewing without disturbing others.
Fifteen Class-D digital amplifiers perfectly tuned to the unique acoustic architecture.
Seven precisely angled silk-dome tweeters create crisp high frequencies and clear dialogue. Two of these fire upward, creating dedicated height channels for spatial audio.
Six midwoofers ensure faithful playback of mid-range frequencies.
Sound Motion™, a four-motor, dual-membrane woofer, delivers exceptional bass in a revolutionary flat, compact design.
The far-field microphone array uses advanced beamforming and multichannel echo cancellation for quick and accurate voice control and Trueplay tuning. Disconnect by toggling off the mic switch.
Use the Sonos app to adjust bass, treble, and loudness.
This software measures the acoustics of the room then fine-tunes the EQ. Compatible with iOS and Android devices.
Choose your preferred level of dialogue clarity in the Sonos app.
Turn this setting on in the Sonos app to reduce the intensity of loud sounds and increase the level of quieter sounds.
Stereo PCM, Dolby Digital, Dolby Digital Plus, Dolby Atmos (Dolby Digital Plus), Dolby Atmos*, Dolby TrueHD*, Dolby Atmos (True HD)*, Multichannel PCM*, Dolby Multichannel PCM*, DTS Digital Surround**
Requires compatible content.
Swap TV audio between the soundbar and Sonos Ace headphones.
Height: 75 mm
Width: 1,178 mm
Depth: 110.6 mm
5.9 kg
Black, White
Matte
M5 x 0.8mm thread pitch L6.5mm
Use the capacitive touch controls to play, pause, skip, replay, adjust the volume, turn off voice assistants, and group or ungroup Sonos products.
Press to pair with a Bluetooth device.

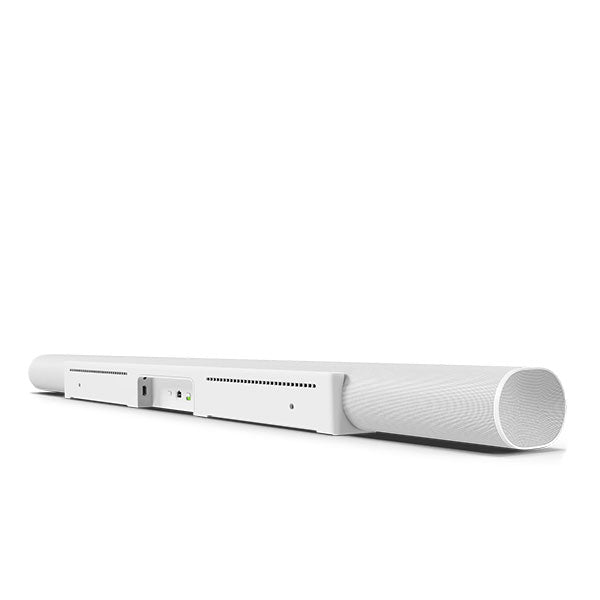

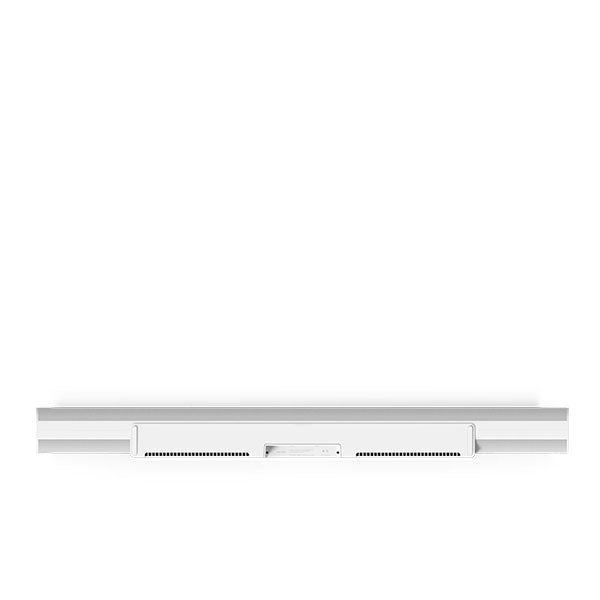

Toggle off the switch on the back of the product to disconnect power to the microphones.
Lights on the product indicate connection, mute status, microphone activation and errors.
Compatible with WiFi 6. Connect to WiFi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router.
Connect to your TV's HDMI eARC/ARC port with the included HDMI cable.
Optical audio adapter sold separately.
Bluetooth 5.3 supports audio streaming from any Bluetooth-enabled device.
100-240V 50/60Hz internal power supply
Quad Core
4xA55 1.9GHz
2GB SDRAM
8GB NV
Works with AirPlay 2 on Apple devices iOS 11.4 and higher on WiFi
Not compatible with CCFL-backlit TVs (manufactured 2004-2012)

Key to next-level immersion
Sound Motion™ technology redefines what’s possible in audio performance. By integrating Sound Motion™ into Arc Ultra, we’re able to obtain a deeper, more powerful bass response in a smaller package. This innovation frees up space for additional tweeter and mid-range drivers, delivering a more expansive and balanced soundstage, surpassing the previous generation of Arc.

Beyond immersive

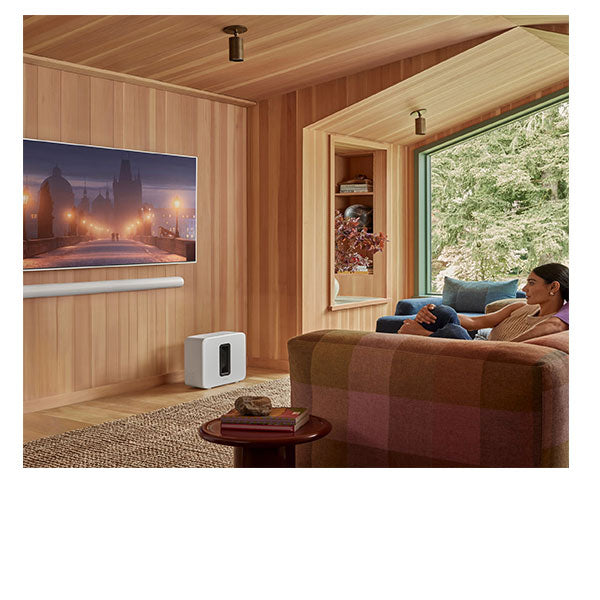

Pair Arc Ultra with a Sonos Sub and Era 300 rear speakers for the ultimate Dolby Atmos surround sound experience, with bass you can feel and jaw-dropping detail from every direction.2

Crystal-clear dialogue for every listener
Speech Enhancement with Arc Ultra uses AI to detect the human voice and clarify dialogue. With four customisable levels, you can ensure every listener hears every word with precision.

Design worthy of your home

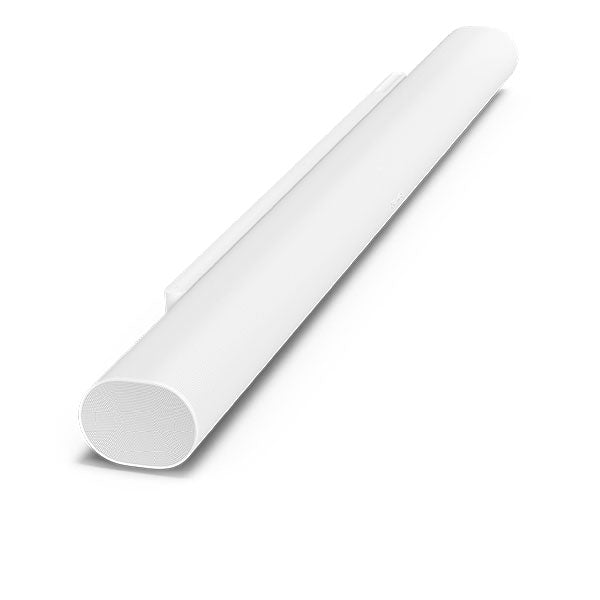

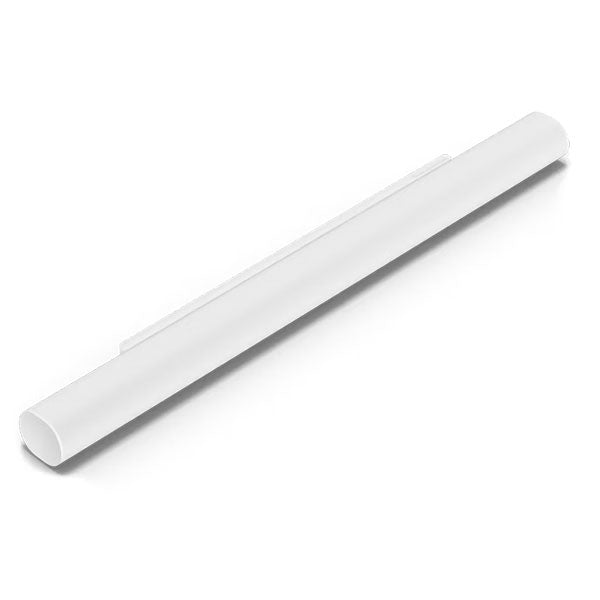

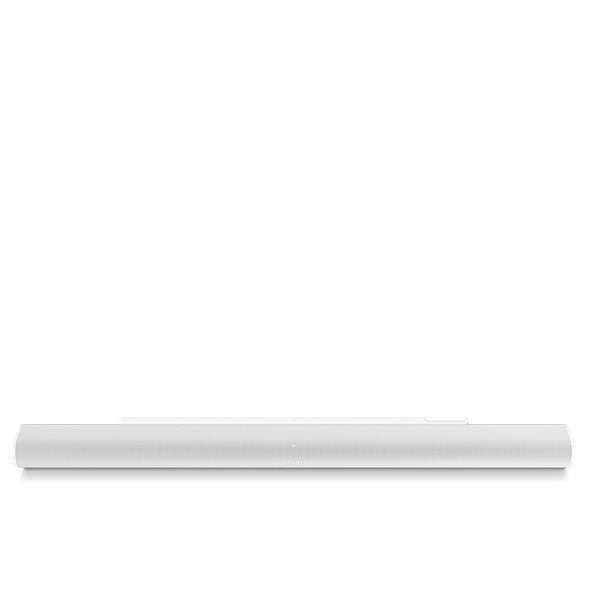

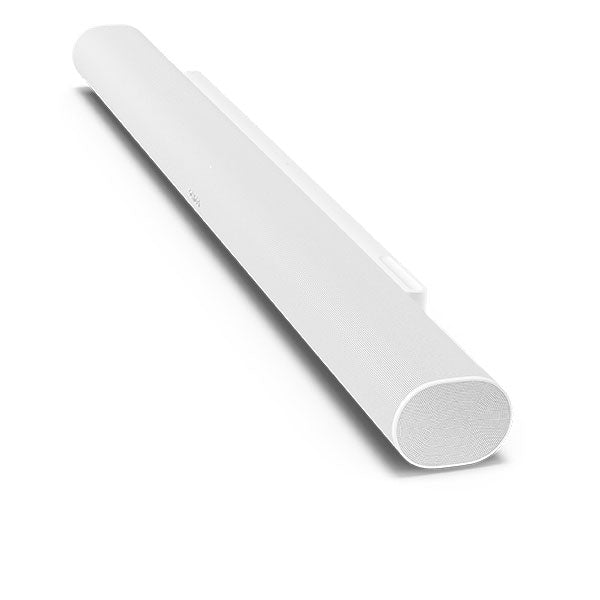

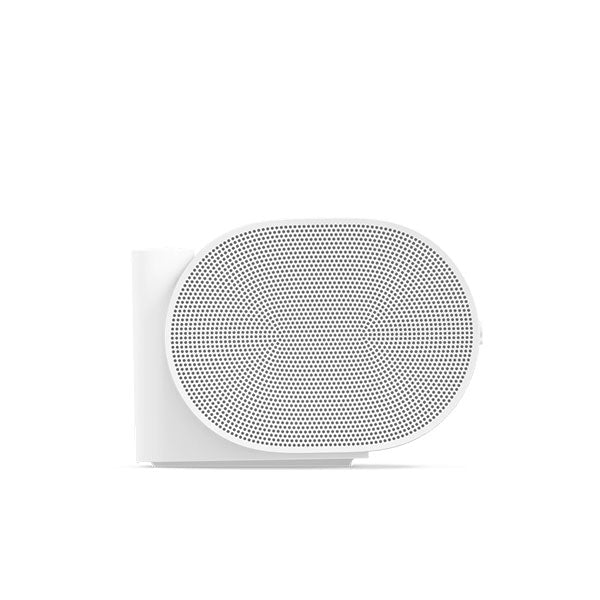

Distinctive curved shape. Low-profile design. Matte finish. Arc Ultra is thoughtfully crafted to look great in your home and keep the focus on your entertainment.
Sound in a whole new dimension
With Dolby Atmos, Arc Ultra brings sound to life with sensational definition and envelops you in a mind-blowing 9.1.4 spatial audio experience.1
A singular home theatre experience
Instantly swap TV audio from Arc Ultra to Sonos Ace for private surround sound and sensational spatial audio with dynamic head tracking.3
