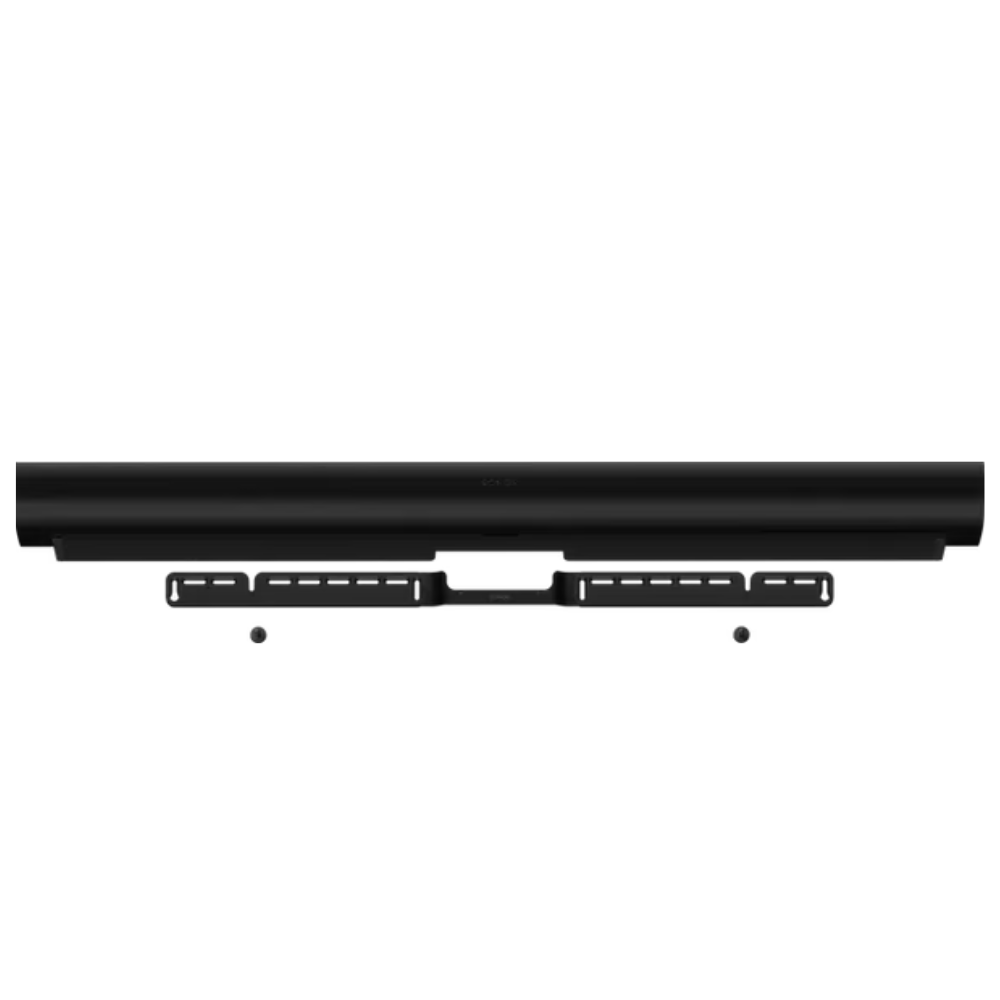

Sonos Arc Wall Mount
Make your soundbar blend even more seamlessly into your home with this near-invisible wall mount.
Arc smartly detects when it is mounted then automatically adjusts the EQ to temper bass resonance from the wall
Low-profile design keeps Arc close to the wall so your entertainment and home take centre stage
Includes installation hardware
Weight: 1.43 lb (0.65 kg)
The SW series of subwoofers offer a level of performance previously unheard of in their class. Revolutionary drive units, amplifier modules and filter stages feature on every model. They strike the perfect balance between power and sound quality, offering remarkable sound pressure levels, yet retaining enough control to be considered audiophile in quality.
The new range of SW subwoofers comes with a host of new features. They now come with Non-pressed paper cones for increase self-damping, improved transient impact and intern increased the structural rigidity of the cone itself. The centre vents are copper lined to reduce the magnetic distortion and improve the heat dissipation.
Still utilising the solid, well-engineered power amplifiers the SW subwoofers are optimised for high impact at low frequencies and are ideal for movies or music. With the various finishes to the cabinets – Rosewood /Walnut Pearl/White sandex/Blackwood Vinyl with Hi-gloss baffle – these subwoofers look great with matching floorstanding speakers.
100W + 100W (8Ω),
150W + 150W (4Ω)
PHONO (MM): 2.5mV/47kΩ
PHONO (MC): 0.3mV/100Ω
REC OUT: 180mV, PRE-OUT: 1V
PHONO: 20Hz to 20kHz (within -3dB)
LINE: 20Hz to 100kHz (within -3dB)
0.009% or less (8Ω, 1kHz)
0.09% or less (8Ω, 20Hz to 20kHz)
PHONO (MM): 91dB or more
PHONO (MC): 75dB or more
LINE: 104dB or more
Bipolar parallel push-pull
BASS: ±8dB at 100Hz
TREBLE: ±8dB at 10kHz
230V~(50Hz) / 115V~(60Hz)
85W (under no signal), 0.4W (at standby)
440(W) x 178(H) x 454(D) mm
front side knob of 20mm and rear side terminal
of 27mm included in depth

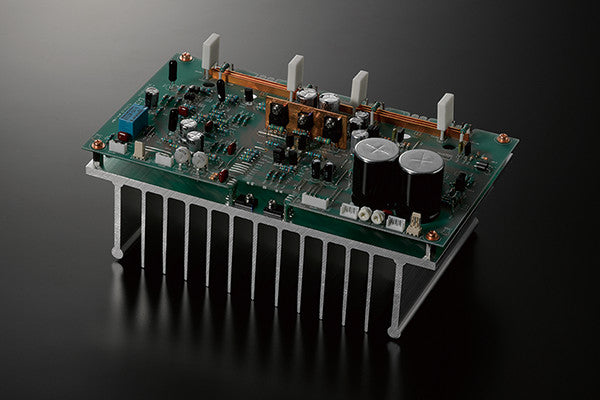

ODNF* Version 4.0 - Innovative amplification feedback circuit
An integral part of the design of the L-505uXII is LUXMAN's original ODNF amplification feedback circuit featuring a high-speed primary slew rate, an ultra-wide bandwidth and a low level of distortion that is achieved by feeding back only the distorted components of the audio from the amplifier's output circuit. The L-505uXII is equipped with the latest Version 4.0 ODNF circuit, resulting in a dramatically enhanced accuracy in distortion detection due to the paralleled first stage and Darlington equipped second stage amplification circuit, as well as a paralleled first stage error detection circuit. With it's lower impedance and higher S/N ratio, the L-505uXII realizes accurate reproduction of even the gentlest audio signals and achieves a full range of dynamic musical expression. The output stage, with it's parallel push-pull structure, has secured sufficient power at 100W+100W(8Ω) and 150W+150W(4Ω).

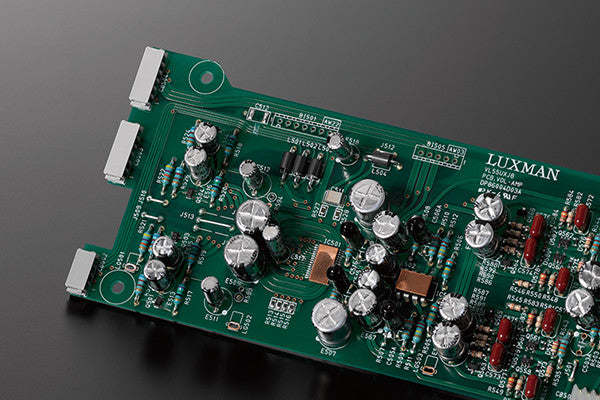

Highly accurate LECUA computerized attenuator
LECUA (Luxman Electronically Controlled Ultimate Attenuator) is at the heart of the pre-amplifier section and the sound volume adjustment function of the L-505uXII. The L-505uXII design also uses a solid state(IC) type circuit to achieve a significant reduction in size. LECUA provides an ideal level control mechanism that allows smooth and fine volume adjustment over 88 steps, thereby minimizing any deterioration of the audio signal. In addition, left and right balance adjustment is integrated into the attenuator's control functions. The multifunctional ability of LECUA ensures accuracy over the full range of the volume control, whilst suppressing any deterioration of sound quality. The volume may also be adjusted with the remote control, but when adjusting the volume manually, the tactile design and gradual motion of the control itself enables intuitive adjustment of the attenuation level.

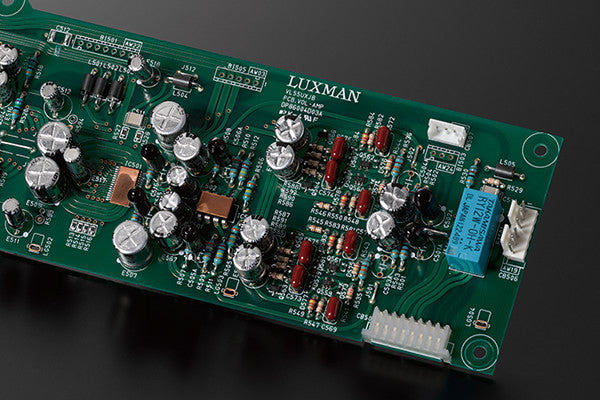

Discrete buffer circuit
The L-505uXII features a new discrete buffer circuit in the output stage of the pre-amplifier circuit that is equivalent to the type used in our high-end C-900u separate amplifier. The pre-amp output stage is able to drive the signal with enhanced current supply capacity. The clarity of the audio signal is protected, whilst at the same time, the driving force fed through to the power amplifier stage is significantly increased. The power and reproduction capability of the L-505uXII achieves overwhelming scale sensitivity and a sharpness on start-up that cannot be achieved by conventional pre-amplifiers.

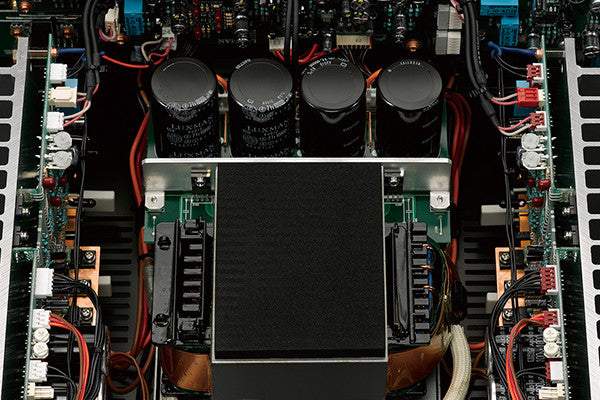

High stability power supply
The power supply of the L-505uXII consists of an EI core type power transformer, highly regulated, with four large capacity 10,000μF blocking capacitors creating a highly stable power supply. This ensures an instantaneous, constant and stable current supply.

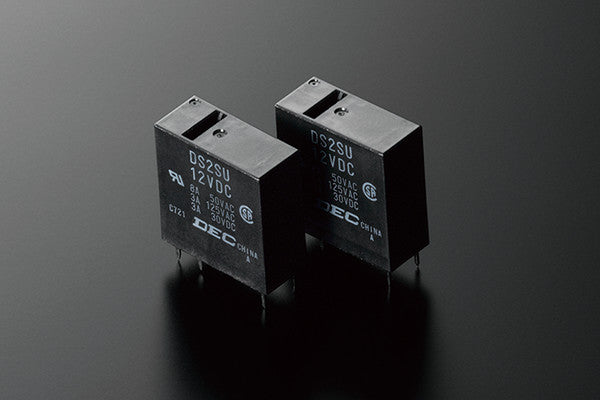

Low impedance transmission
Large-capacity, low resistance speaker relays are connected in parallel to enable lossless transmission for the powerful driving force that is generated by the large-scale output circuit. In addition, the damping factor has been improved from 180 to 210 by lowering the impedance of the wiring pattern.

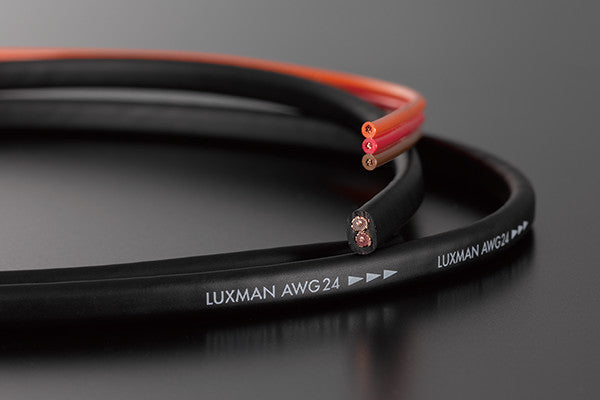

Original technologies prioritize sound quality
To realize a smooth, stress free signal transmission LUXMAN use an original Beeline construction that features a non-angled wiring pattern to allow smooth signal transmission along the shortest optimal route. This is one of many examples of a LUXMAN original design that makes sound quality a priority.
