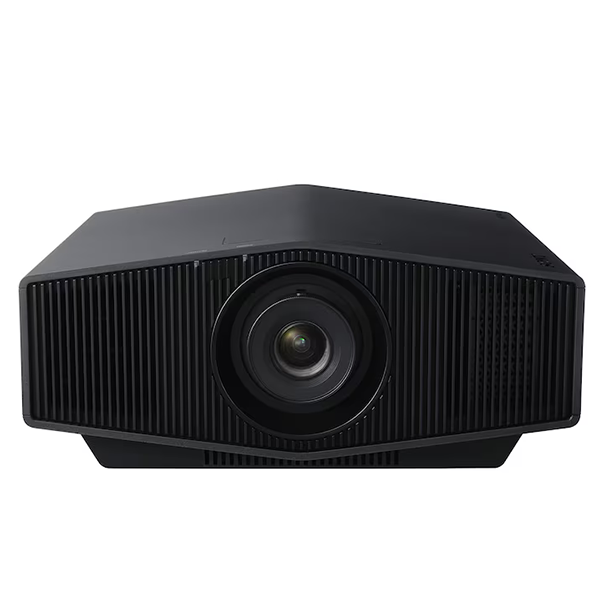

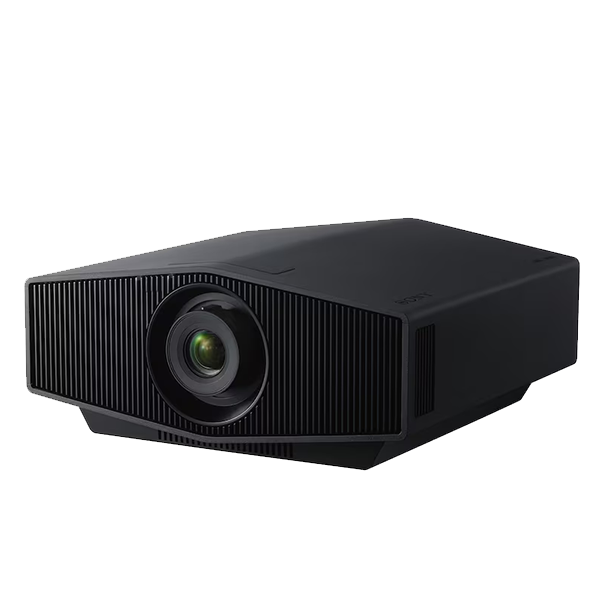

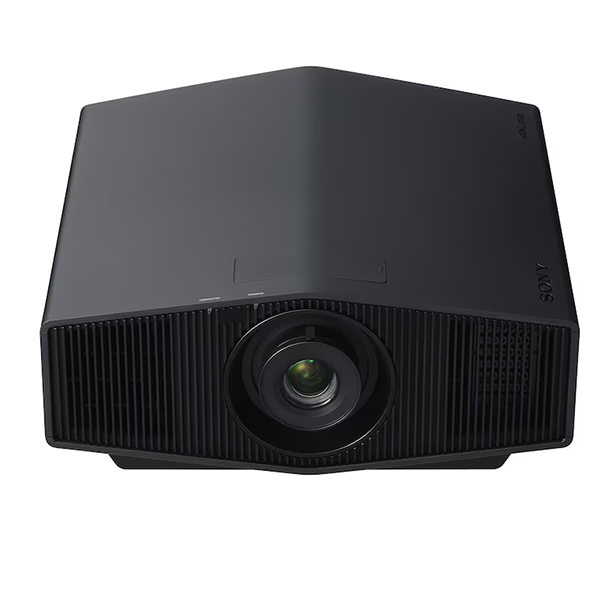

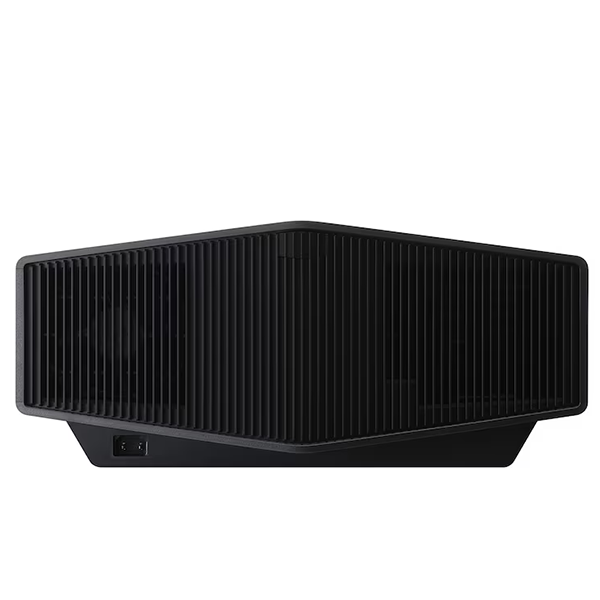

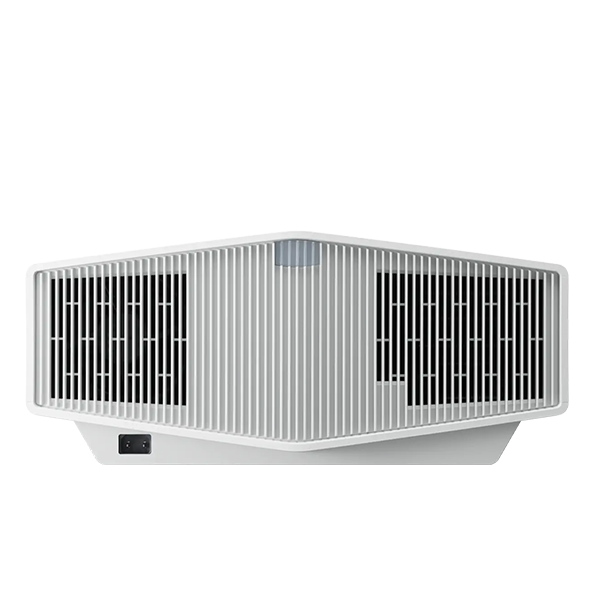

Sony Bravia Projector 7

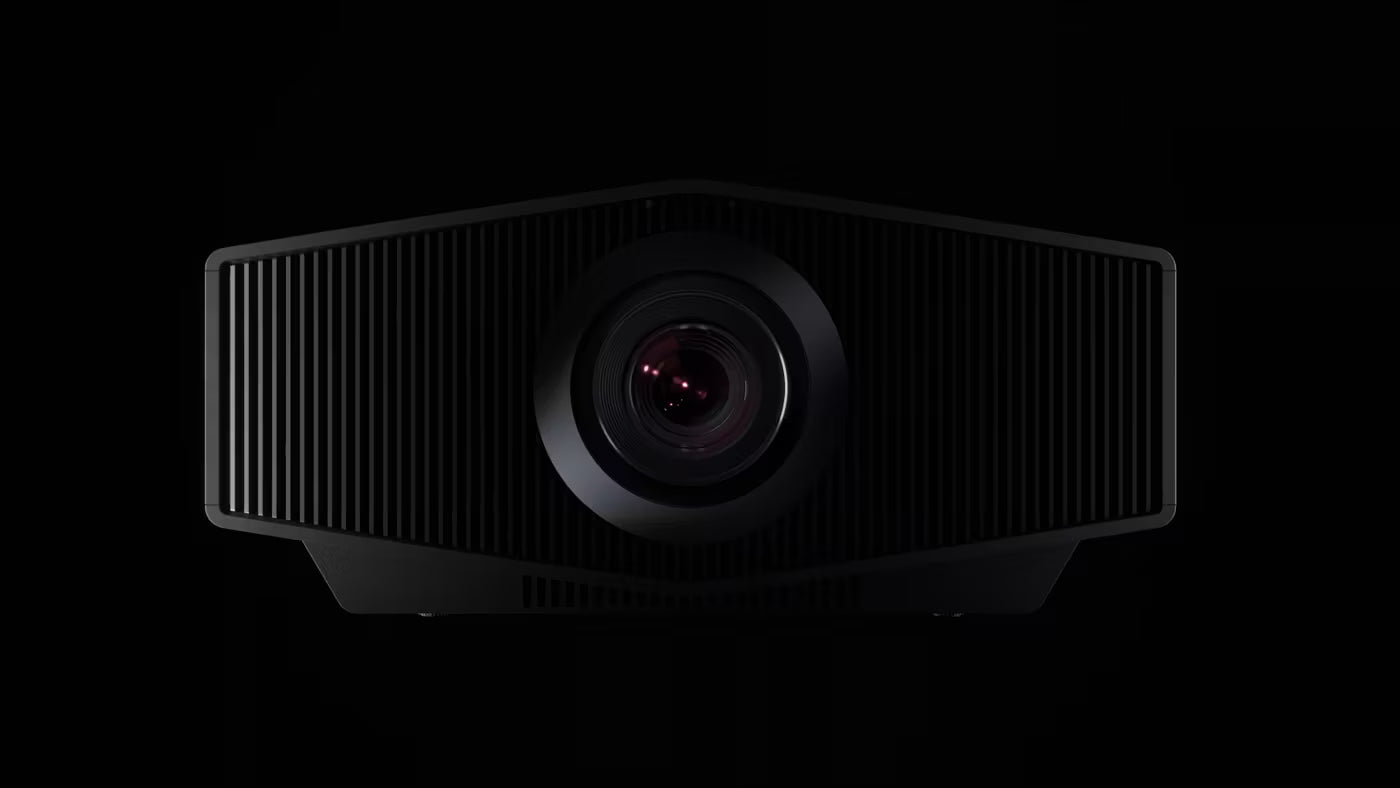

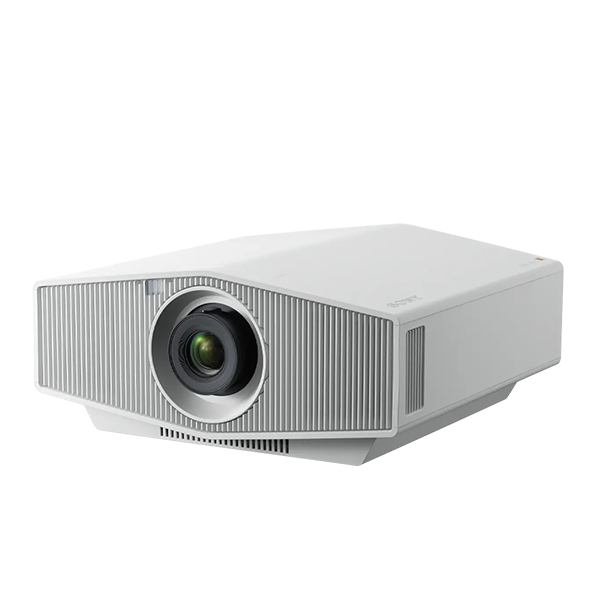

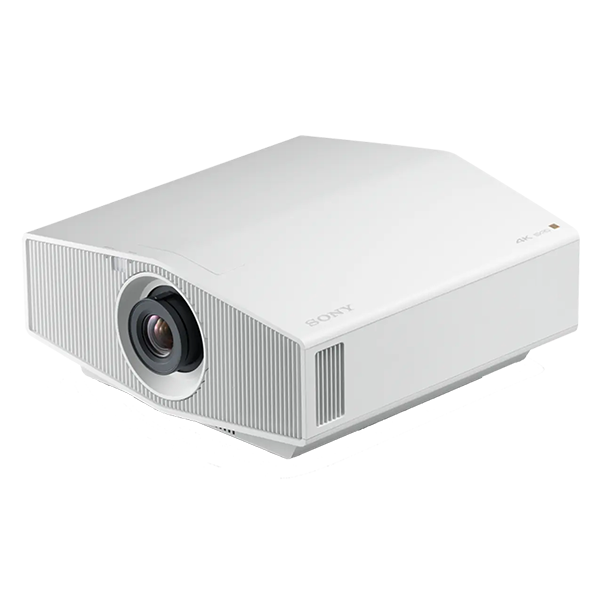

Sony Bravia Projector 7 Native 4K HDR Home Cinema Laser Projector
- Native 4K SXRD display system with 3840 × 2160 resolution
- Laser light source capable of ~ 2,200 lumens brightness for vivid images even on large screens
- Supports HDR10 and HLG formats with advanced image enhancement (XR Dynamic Tone Mapping, XR Deep Black, XR TRILUMINOS PRO) Low input lag (~ 12ms) with support for 4K at 120fps and HDMI 2.1 → good for gaming
- Wide lens shift (Vertical ±71%, Horizontal ±25%) for flexible installation positions without distortion
- Throw ratio ~ 1.38–2.21:1, allowing a large projection size from moderate distances
- Aspect Ratio Scaling mode to switch between standard (16:9) and Cinemascope (2.35:1) without physical lens changes
- Quiet operating noise (~ 24 dB) for a less distracting viewing experience
- Compact size (~ 18.13 × 7.88 × 18.59 in / ~ 28 lb) for a projector of this capability
- Built for durability: long life laser light source, and three-year warranty on unit (plus laser source warranty)
SXRD 0.61" x3
3,840 x 2,160
2.200 lm
∞: 1
Laser diode
Manual
Approx. x1.6
Vertical +/- 71 %, Horizontal +/- 25 %
1.38-2.21
XR Processor for projector
XR Dynamic Tone Mapping
XR Deep Black
XR Triluminos Pro
XR Clear Image
Motionflow
720x576/50p, 720x480/60p, 1280x720/50p, 1280x720/60p, 1920x1080/50i, 1920x1080/60i, 1920x1080/24p, 1920x1080/48p, 1920x1080/50p, 1920x1080/60p, 1920x1080/100p, 1920x1080/120p, 3840x2160/24p, 3840x2160/25p, 3840x2160/30p, 3840x2160/48p, 3840x2160/50p, 3840x2160/60p, 3840x2160/100p, 3840x2160/120p, 4096x2160/24p, 4096x2160/25p, 4096x2160/30p, 4096x2160/48p, 4096x2160/50p, 4096x2160/60p, 4096x2160/100p, 4096x2160/120p
HDR10/HLG
12ms / 21 ms / 12 ms *1

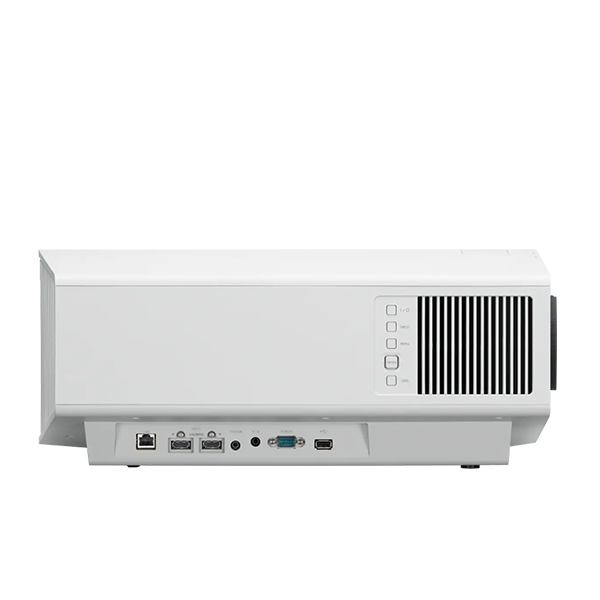

x 2 (HDCP2.3)
4K120/ALLM
x1 (RS-232C, D-Sub 9-pin (Male))
x 1 (Mini jack)
x 1 (Mini jack, DC 12 V, Max. 100 mA)
No
x 1 (RJ45, 10BASE-T/100BASE-TX)
x 1 (Type A, DC 5 V, Max. 500 mA) for Update
Yes (HDR/SDR)
Yes
Yes
No
Yes
18-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Arabic, Polish)
AC 100 V to 240 V, 50/60 Hz
295W
0.3 W (when “Remote Start” is set to “Off”)
0.5 W (LAN) (when “Remote Start” is set to “On”)
When a LAN terminal is not connected, it becomes a low power consumption mode (0.4 W)
After about 10 Minutes
Front/Back
24 dB *2
Width: 460 mm, 18 1/8"
Height: 200mm, 7 7/8"
Depth: 472 mm, 18 19/32"
Approx. 13kg / 28lb
5℃ to 35℃ (41°F to 95°F)/20% to 80% (no condensation)
-10℃ to +60℃ (14°F to 140°F)/20% to 80% (no condensation)
Remote control (RM-PJ28) (x1)
Size AA (R6/LR6) batteries (x2)
Lens cap (x1)
AC power cord (x1)
Setup Guide (x1)

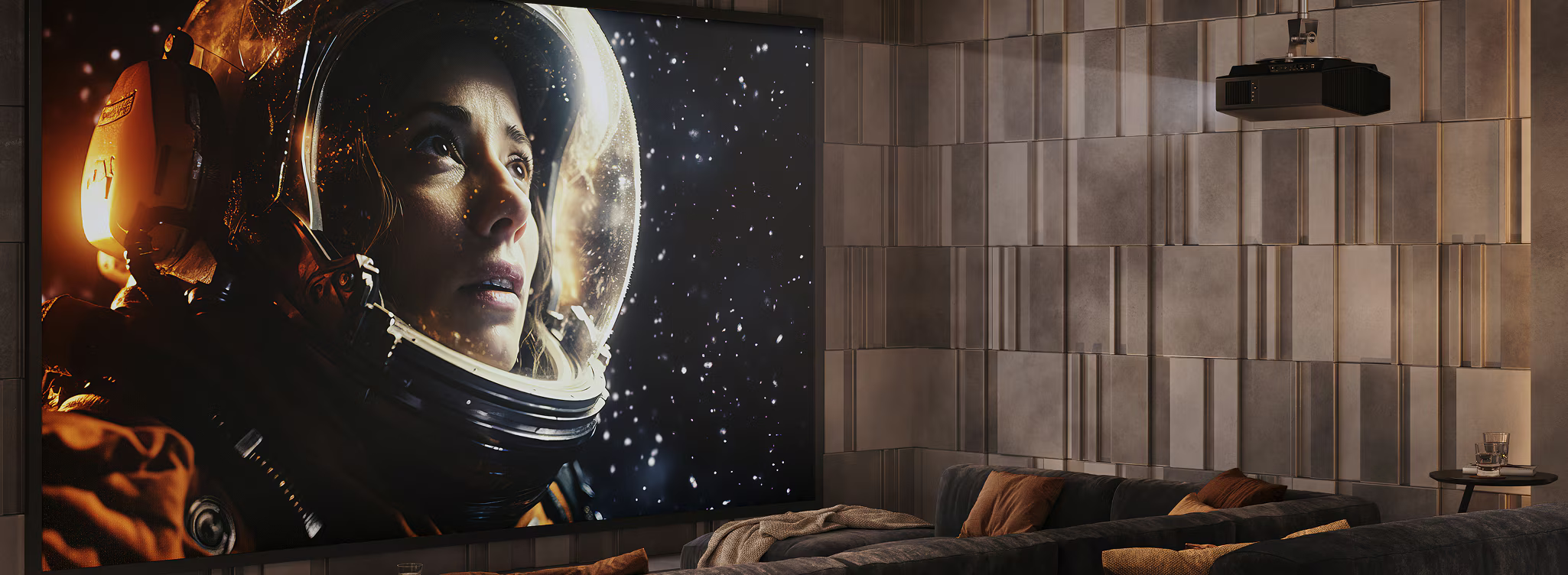

Cinema is coming home
Step up to a new generation of immersive cinematic experiences with our latest native 4K laser projectors. BRAVIA Projector 7 elevates home entertainment to the next level, drawing on cutting-edge picture processing technologies by Sony that harness cognitive intelligence for the most realistic, emotion packed images yet.
Wide dynamic range with richer, more subtle graduations
The latest XR processor for projector draws on Sony’s acclaimed BRAVIA TV technologies, harnessing advanced data processing for real-time optimisation of individual on-screen objects. You’ll be rewarded with stunning 4K HDR images with contrast and realism that are unattainable with previous-generation home cinema projectors.

XR Dynamic Tone Mapping
Peak brightness is analysed frame by frame: tone mapping ensures that direct sunlight and other bright highlights are faithfully reproduced, while retaining fine detail in dark showdow areas.

XR Deep Black
Laser dimming is accurately controlled in dark scenes like night skies, delivering deeper, richer blacks while maintaining tone and colour accuracy.
A billion bright, beautiful colours
High brightness is combined with XR Triluminos Pro technology, achieving over 95% coverage of the DCI-P3 colour space. Faithful reproduction of over a billion colours reveals the subtlest variations in saturation and hue.

XR Triluminos Pro
XR Triluminos Pro brings over a billion colours. Combine this with high brightness to expand colour volume and fine detail.

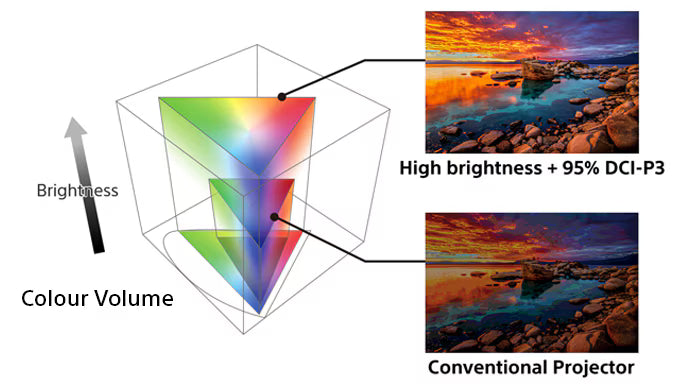

Wide colour gamut and High brightness
This, combined with high brightness and expanded colour volume, delivers outstanding colour expression.
A billion bright, beautiful colours
High brightness is combined with XR Triluminos Pro technology, achieving over 95% coverage of the DCI-P3 colour space. Faithful reproduction of over a billion colours reveals the subtlest variations in saturation and hue.

Individually clear
Image cross-analysis ensures that optimal super-resolution processing is applied to individual objects within each scene, for incredibly natural textures.

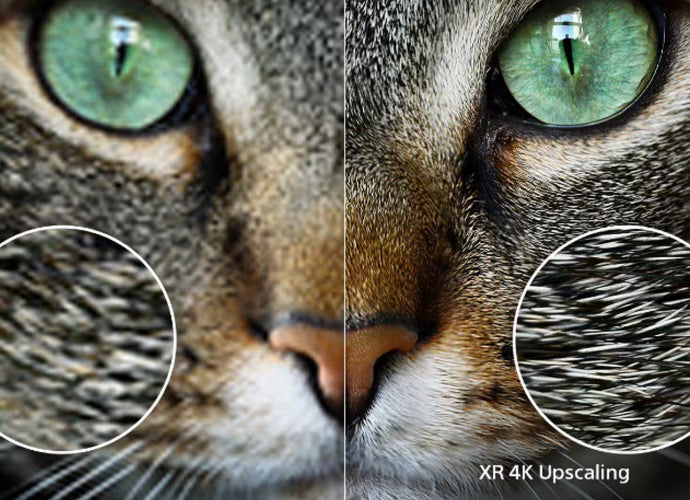

Intelligent upscaling
Lower-resolution images are upscaled close to 4K, drawing on a vast pattern-matching database that intelligently reconstructs lost texture and detail.

More beauty, less noise
Thanks to powerful XR Clear Image processing, picture noise is minimised through zone division and dynamic frame analysis.
Brilliant pictures powered by innovative technology
Combining the brightness of our powerful laser light source with the game-changing XR processor for projctor delivers a uniquely immersive native 4K HDR home cinema experience.

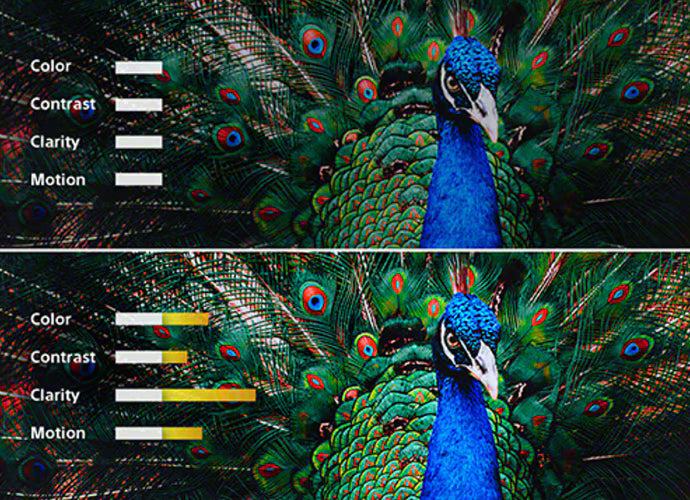

Image cross-analysis
Image parameters including colour, definition and contrast are analysed and processed in parallel, providing more natural artefact-free images.

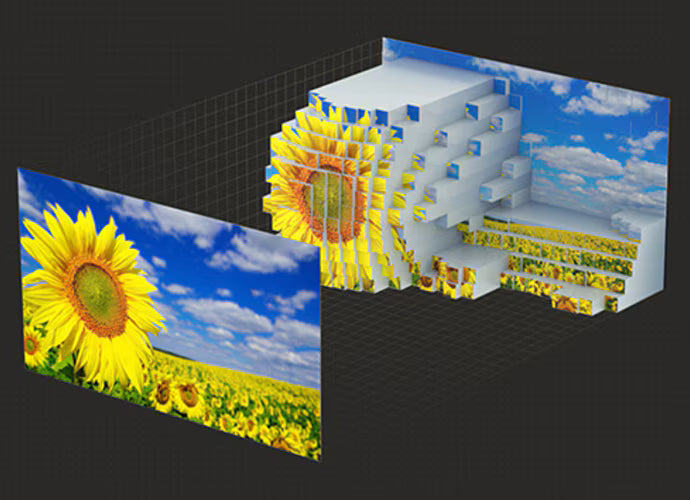

Depth mapping
Depth and texture are enhanced by cognitive technology, accentuating foreground subjects for images that look more real and natural.

Focal point recognition
The natural focal point of the picture is enhanced, drawing the viewer’s eye to the most important part of the scene.

Easy installation and set-up

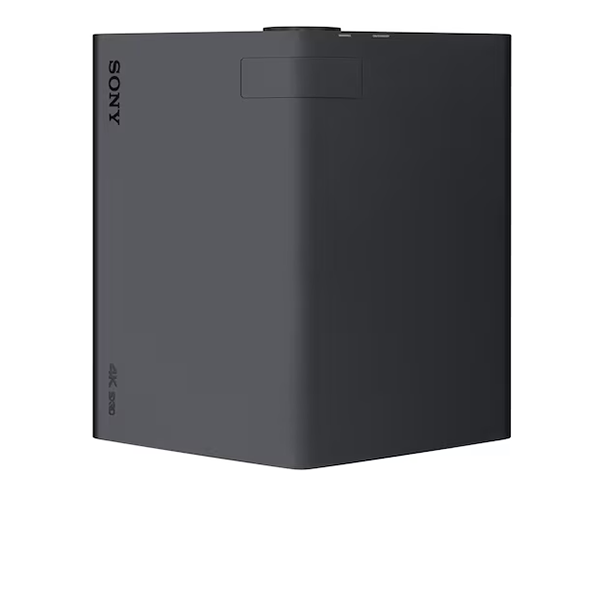

Light and compact
Lighter than most native 4K home cinema projectors, the BRAVIA Projector 7 simplifies ceiling-mounted installation.
Easy installation and set-up
Light and compact
Lighter than most native 4K home cinema projectors, the BRAVIA Projector 7 simplifies ceiling-mounted installation.

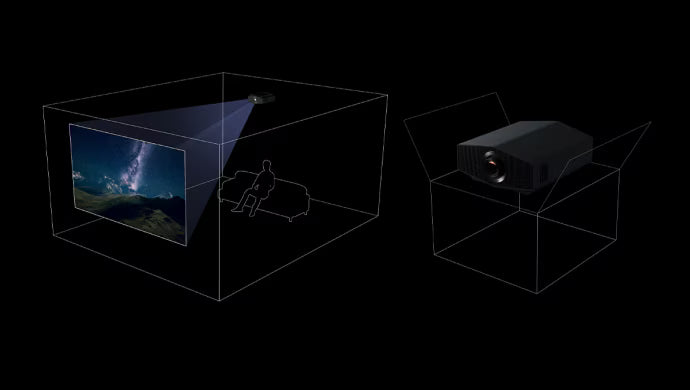

Ready for action
Out-of-the-box picture settings including colour and gamma are fine-tuned for home cinema watching, saving time on fiddly adjustments during installation.

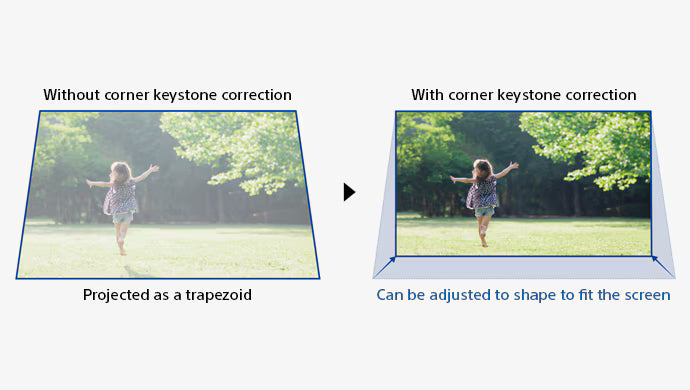

Great in any space
Lens shift and keystone correction ensure perfectly-proportioned pictures, even in smaller rooms with high ceilings and limited depth.
