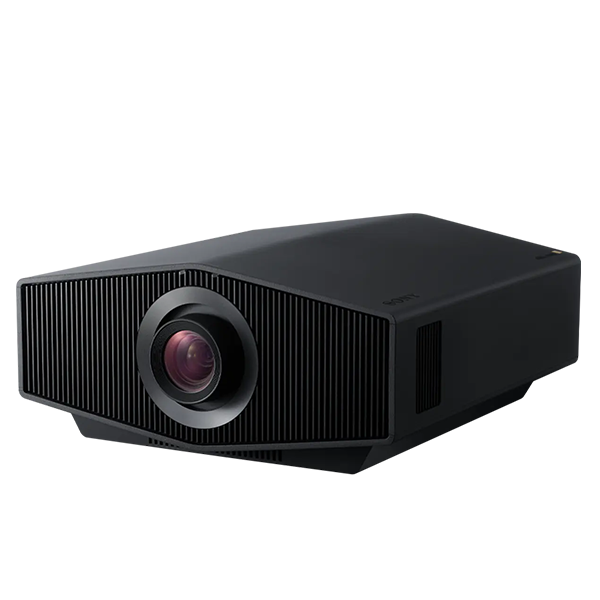

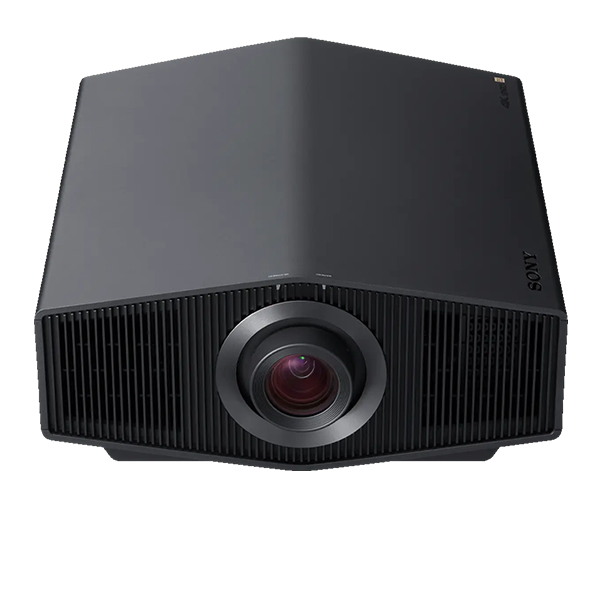

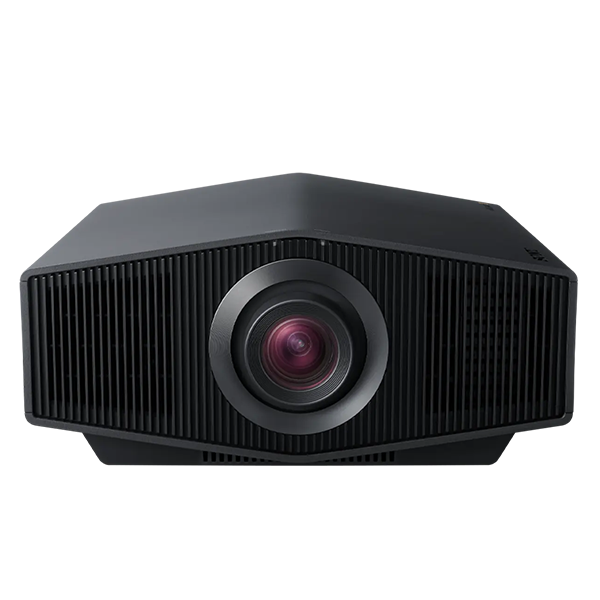

Sony BRAVIA Projector 9

The Sony BRAVIA Projector 9 is a high-end native 4K home theater projector designed to deliver stunning cinematic visuals even in rooms with ambient light. With a 3,400-lumen laser light source, SXRD panels, and Sony’s latest XR processing technologies, it produces vivid color, deep blacks, and sharp image clarity. This model emphasizes flexibility of installation (large lens shift, wide throw range), gaming readiness with high refresh rates and low latency, plus smart home integration. It’s made to satisfy enthusiasts who want premium performance without compromise.

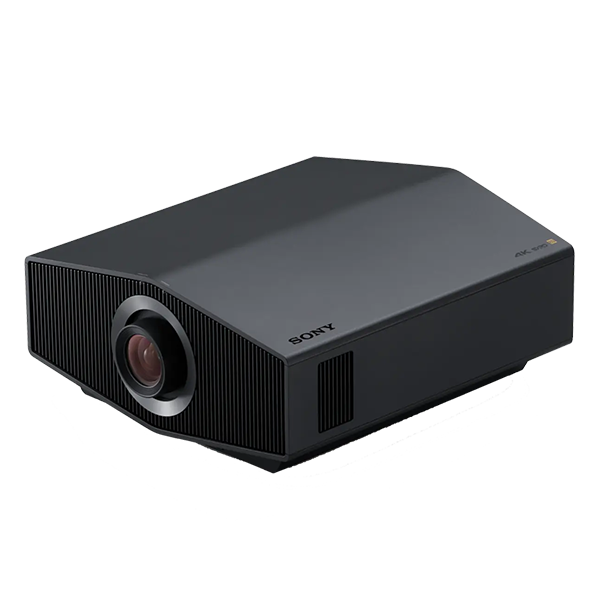

Sony BRAVIA Projector 9 4K HDR Laser Home Theater Projector with Native 4K SXRD Panel

Native 4K UHD resolution (3840 × 2160) via three 0.61-inch SXRD panels.
Brightness: ~3,400 ANSI lumens, enabling bright, vibrant images even in less-than-dark rooms.
Laser light source rated for up to ~20,000 hours of use.
Wide throw ratio: approximately 1.35–2.84:1 (powered zoom ~2.1×) for flexible screen sizes and throw distances.
Large lens shift capability: vertical ±85%, horizontal ±36% for easier mounting and alignment.
Advanced lens: ACF (Advanced Crisp-Focused) lens with aspherical element and floating focus system for edge-to-edge clarity.
Sony XR Processor for Projector: includes picture technologies such as XR Dynamic Tone Mapping, XR Deep Black, XR TRILUMINOS PRO, XR Clear Image.
Live Colour Enhancer: enhances vibrancy in bright rooms without oversaturating.
Low input lag & gaming support: supports 4K at 120 Hz with HDMI 2.1, approx 12-ms input lag, making gaming smooth and responsive.
Multiple image adjustment features: lens focus, zoom, shift, digital keystone correction. Picture position memory to store settings for different screen formats.
Support for HDR formats (HDR10 & HLG), wide color gamut (~95% DCI-P3).
Smart integrations and home automation compatibility: compatible with Control4, Crestron, Savant, AMX, and remote monitoring (e.g. OvrC, Domotz).

Display Device

SXRD 0.61" x3

Panel Resolution

3,840 x 2,160

Light Output

3.400 lm

Dynamic Contrast

∞: 1

Light Source

Laser diode

Light Source

Powered

Light Source

Approx. x2.1

Lens Shift

Vertical +/- 85 %,
Horizontal +/- 36 %

Throw Ratio

1.35-2.84

Picture Position

5

Picture Processor

XR Processor for projector

Contrast

XR Dynamic Tone Mapping
XR Deep Black

Color

XR Triluminos ProLive Color Enhancer

Clarity

XR Clear Image

Motion

Motionflow

Accepted Digital Signals

720x576/50p, 720x480/60p, 1280x720/50p, 1280x720/60p,1920x1080/50i, 1920x1080/60i,1920x1080/24p, 1920x1080/48p, 1920x1080/50p, 1920x1080/60p,1920x1080/100p, 1920x1080/120p,3840x2160/24p, 3840x2160/25p,3840x2160/30p, 3840x2160/48p, 3840x2160/50p, 3840x2160/60p,3840x2160/100p, 3840x2160/120p,4096x2160/24p, 4096x2160/25p,4096x2160/30p, 4096x2160/48p, 4096x2160/50p, 4096x2160/60p,4096x2160/100p, 4096x2160/120p

Accepted HDR Format

HDR10/HLG

Input lag (4K 120P / 4K 60P/ 2K 120P)

12ms / 21 ms / 12 ms *1

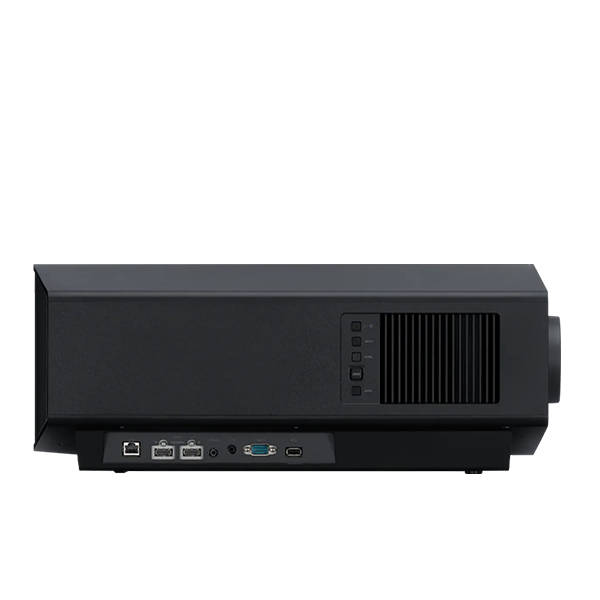

HDMI

x 2 (HDCP2.3)

Features specified in HDMI2.1

4K120/ALLM

Wide dynamic range with rich gradations

Designed for immersive HDR imagery, movies come to life with the high resolution, smooth and fast response SXRD projection. Deeper blacks, vivid colors, and cinematic tonal expressions.

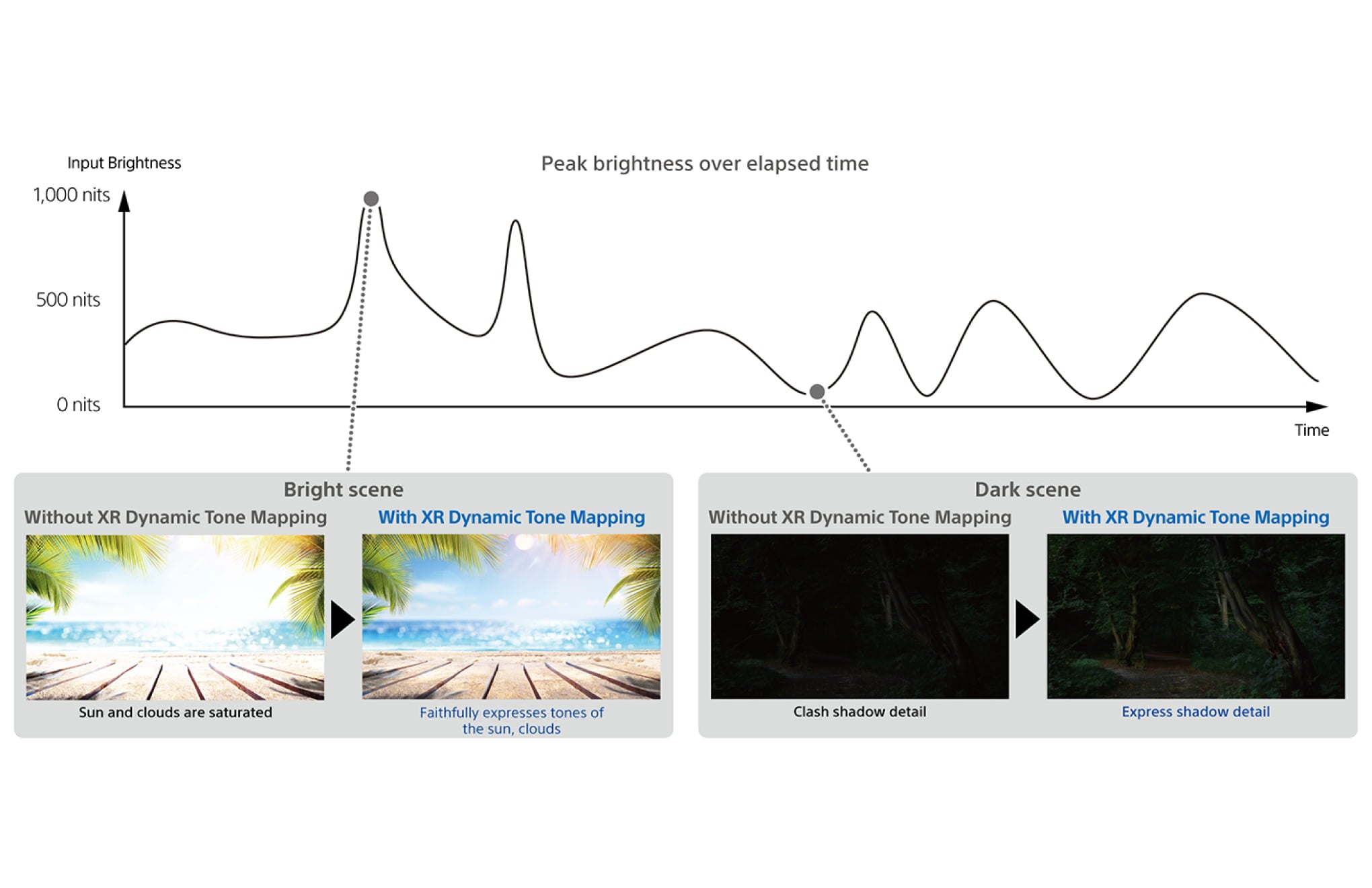

XR Dynamic Tone Mapping

XR Dynamic Tone Mapping optimizes brightness frame by frame, using the responsive laser light source. This brings the director's full vision to life in every shadow and light. Our advanced HDR tone-mapping and SDR upscaling, informed by our production expertise, deliver vibrant and lifelike visuals with smooth gradations.

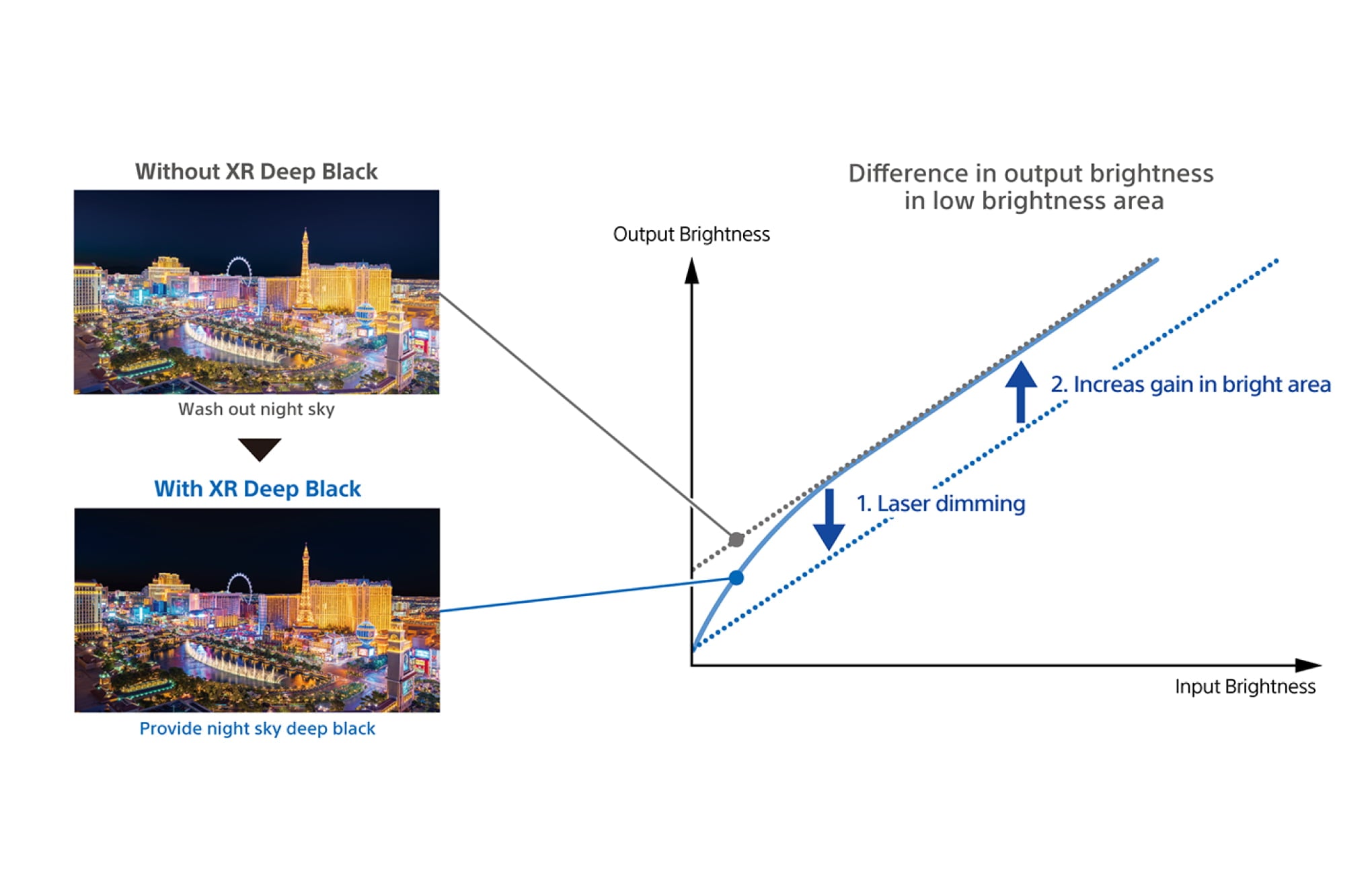

XR Deep Black

Leveraging the ultimate blacks and powerful adaptive laser light source brightness control, our XR Deep Black technology analyzes and enhances dark scenes. Enjoy deeper blacks without sacrificing color expression or specular highlights, for more realistic and immersive scenes.

Wide dynamic range with rich gradations

Experience all the world's colors with XR Triluminos Pro. With an ultra-bright, 3,400-lumen laser light, the BRAVIA Projector 9 reproduces astonishing color volume for realistic and compelling colors in every scene.

XR Triluminos Pro

Adapted from our acclaimed BRAVIA TVs, XR Triluminos Pro deeply scans color composition at the pixel level, remapping saturation and brightness from a palette of over a billion colors. Complemented by high brightness technology, it expands color volume and sharpens details, delivering breathtaking, true-to-life images that push the boundaries of projection technology.

XR Triluminos Pro

Adapted from our acclaimed BRAVIA TVs, XR Triluminos Pro deeply scans color composition at the pixel level, remapping saturation and brightness from a palette of over a billion colors. Complemented by high brightness technology, it expands color volume and sharpens details, delivering breathtaking, true-to-life images that push the boundaries of projection technology.

Cinema-ready settings

Stunning visuals right out of the box. The BRAVIA Projector 9 is pre-configured for cinematic color and gamma, with extensive adjustment and calibration options available if needed.

Cinema-ready settings

Stunning visuals right out of the box. The BRAVIA Projector 9 is pre-configured for cinematic color and gamma, with extensive adjustment and calibration options available if needed.

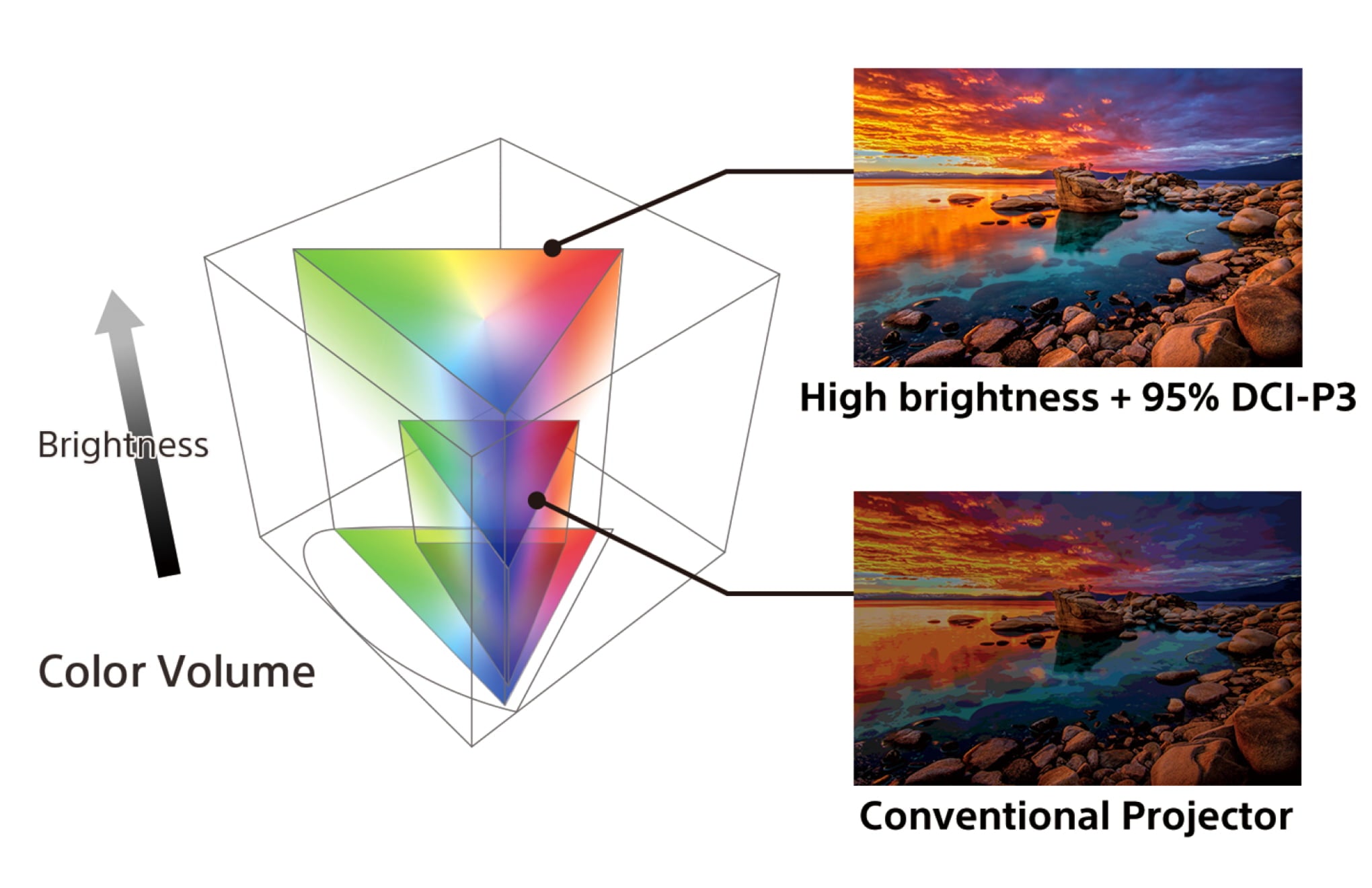

Wide color gamut and high brightness

A wide color gamut is nothing without the precise control to deliver it across luminance levels. Our wide color volume reproduces 95% of the cinema benchmark DCI-P3. As brightness increases, the color volume expands, preserving vivid hues without washing out, even at peak brightness.

Wide color gamut and high brightness

A wide color gamut is nothing without the precise control to deliver it across luminance levels. Our wide color volume reproduces 95% of the cinema benchmark DCI-P3. As brightness increases, the color volume expands, preserving vivid hues without washing out, even at peak brightness.

Live Color Enhancer

Witness colors as they were meant to be seen with Live Color Enhancer. Unlike other projectors which can suffer from washed-out images, especially in ambient light, our advanced algorithms use our cinematic expertise to re-balance colors perfectly. Tones are selectively enhanced to deliver the full vibrance of a sunset or the brilliance of neon lights, while maintaining natural skin and organic tones and cavernous blacks. Bring every scene to life with striking realism.

Live Color Enhancer

Witness colors as they were meant to be seen with Live Color Enhancer. Unlike other projectors which can suffer from washed-out images, especially in ambient light, our advanced algorithms use our cinematic expertise to re-balance colors perfectly. Tones are selectively enhanced to deliver the full vibrance of a sunset or the brilliance of neon lights, while maintaining natural skin and organic tones and cavernous blacks. Bring every scene to life with striking realism.

Ultimate clarity

Every frame is refined with XR Clear Image, enhancing textures and minimizing noise for perfect clarity.

Best clarity for individual objects

Focus on the finest details. XR technology hones in on individual details, bringing unparalleled sharpness and precision to every scene.

Everything upscaled to 4K quality

See everything in crisp 4K quality. XR upscaling smartly recreates lost textures and details, transforming every frame to restore the director's vision

Beautiful images without noise

Uncompromised clarity. XR Clear Image's noise reduction technology ensures smooth, distraction-free visuals.

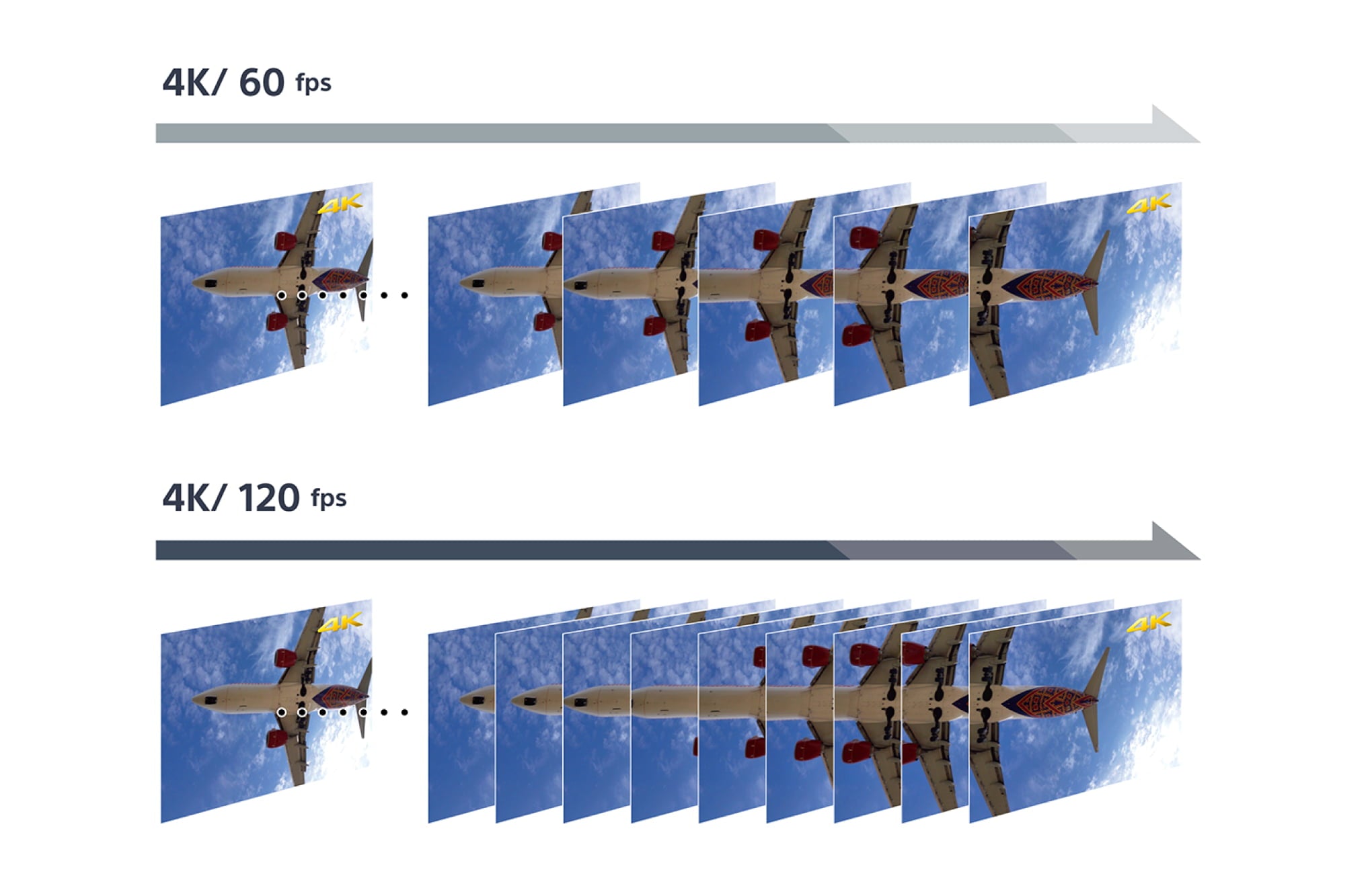

4K/120 fps

Experience lightning-fast, smooth visuals in 4K at 120 frames per second. Perfect for action-packed gaming.

Auto Low Latency Mode

Always game-ready. Automatically switch to game mode with Auto Low Latency Mode, ensuring responsive play and minimal lag.
